Description

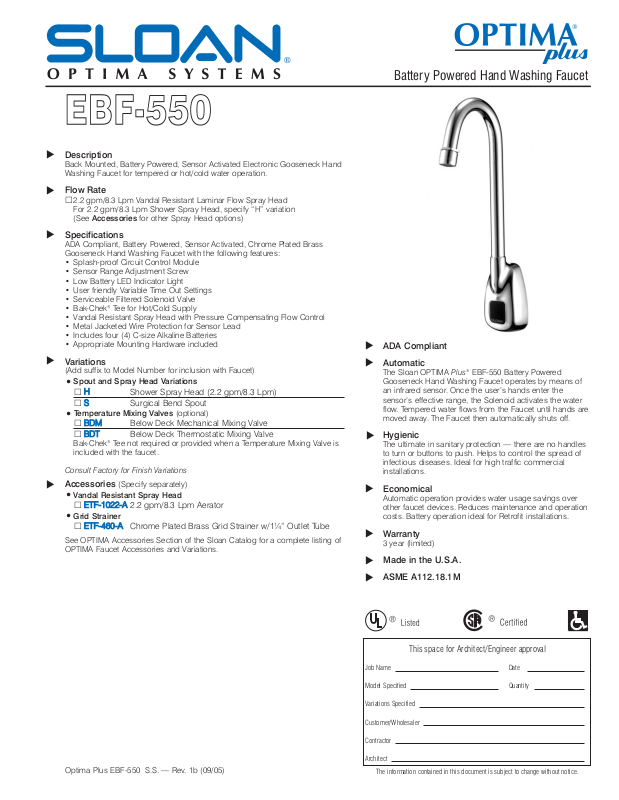

Back Mounted, Battery Powered, Sensor Activated Electronic Gooseneck Hand
Washing Faucet for tempered or hot/cold water operation.
Flow Rate
2.2 gpm/8.3 Lpm Vandal Resistant Laminar Flow Spray Head
For 2.2 gpm/8.3 Lpm Shower Spray Head, specify “H” variation
(See Accessories for other Spray Head options)
Specifications
ADA Compliant, Battery Powered, Sensor Activated, Chrome Plated Brass
Gooseneck Hand Washing Faucet with the following features:
• Splash-proof Circuit Control Module
• Sensor Range Adjustment Screw
• Low Battery LED Indicator Light
• User friendly Variable Time Out Settings
• Serviceable Filtered Solenoid Valve
• Bak-Chek®Tee for Hot/Cold Supply
• Vandal Resistant Spray Head with Pressure Compensating Flow Control
• Metal Jacketed Wire Protection for Sensor Lead
• Includes four (4) C-size Alkaline Batteries
• Appropriate Mounting Hardware included
Variations
(Add suffix to Model Number for inclusion with Faucet)
•
Spout and Spray Head Variations
HH
Shower Spray Head (2.2 gpm/8.3 Lpm)
SS
Surgical Bend Spout
•
Temperature Mixing Valves (optional)
BBDDMM
Below Deck Mechanical Mixing Valve
BBDDTT
Below Deck Thermostatic Mixing Valve
Bak-Chek®Tee not required or provided when a Temperature Mixing Valve is
included with the faucet.
Consult Factory for Finish Variations
Accessories (Specify separately)
•
Vandal Resistant Spray Head
EETTFF--11002222--AA
2.2 gpm/8.3 Lpm Aerator
•
Grid Strainer
EETTFF--446600--AA
Chrome Plated Brass Grid Strainer w/1¼” Outlet Tube
See OPTIMA Accessories Section of the Sloan Catalog for a complete listing of
OPTIMA Faucet Accessories and Variations.
ADA Compliant
Automatic
The Sloan OPTIMA Plus®EBF-550 Battery Powered
Gooseneck Hand Washing Faucet operates by means of
an infrared sensor. Once the user’s hands enter the
sensor’s effective range, the Solenoid activates the water
flow. Tempered water flows from the Faucet until hands are
moved away. The Faucet then automatically shuts off.
Hygienic
The ultimate in sanitary protection — there are no handles
to turn or buttons to push. Helps to control the spread of
infectious diseases. Ideal for high traffic commercial
installations.
Economical
Automatic operation provides water usage savings over
other faucet devices. Reduces maintenance and operation
costs. Battery operation ideal for Retrofit installations.
Warranty
3 year (limited)
Made in the U.S.A.
ASME A112.18.1M
The information contained in this document is subject to change without notice.
Optima Plus EBF-550 S.S. — Rev. 1b (09/05)
This space for Architect/Engineer approval
Job Name Date
Model Specified Quantity
Variations Specified
Customer/Wholesaler
Contractor
Architect
Battery Powered Hand Washing Faucet
Page 2
SLOAN VALVE COMPANY • 10500 SEYMOUR AVENUE • FRANKLIN PARK, IL 60131
Phone: 1-800-9-VALVE-9 or 1-847-671-4300 • Fax: 1-800-447-8329 or 1-847-671-4380 • http://www.sloanvalve.com
Copyright © 2005 Sloan Valve Company Printed in the U.S.A. Made in the U.S.A. Optima Plus EBF-550 S.S. — Rev. 1b (09/05)
Description
Back Mounted, Battery Powered, Sensor Activated Electronic Gooseneck
Hand Washing Faucet for tempered or hot/cold water operation.
Flow Rate
2.2 gpm/8.3 Lpm Vandal Resistant Laminar Flow Spray Head
For 2.2 gpm/8.3 Lpm Shower Spray Head, specify “H” variation
(See Accessories for other Spray Head options)
ELECTRICAL SPECIFICATIONS
Control Circuit
6 VDC — operates on four (4)
alkaline C-size batteries.
Battery Life
2 years at 8,000 cycles/month
Indicator Lights
Range Adjustment/Low Battery
Solenoid Valve
Low Energy Latching Solenoid
with Self-cleaning Bypass and
Integral Clean Out Strainer
Filter.
Optima®Sensor Range
Factory Set: 4” - 5” (102 mm 127 mm)
Adjustable: 1” - 8” (25 mm 203 mm)
Time Out Adjustment
Settings
30 seconds — The Faucet Time
Out Setting determines the
maximum time the faucet will run
upon continuous detection. The
EBF-550 is factory set at the 30
second time out. Consult factory
for time out settings to meet
individual application
requirements.
EBF-550-H-S
Surgical Bend
11..
A continuous invisible beam
of light is emitted from the
OPTIMA®Sensor located at
the base of the lavatory
faucet.
22..
As the user’s hands enter the
beam’s effective range, the
beam is reflected back into the
sensor receiver and activates
the solenoid valve allowing
tempered water to flow from the
faucet. Water will flow until the
hands are removed or until the
faucet reaches its automatic
time out limit setting.
33..
When hands are moved away
from the OPTIMA®Sensor,
the loss of reflected light
initiates an electrical signal
that deactivates the Solenoid
Valve shutting off the water
flow. The Circuit then
automatically resets and is
ready for the next user.
OPERATION

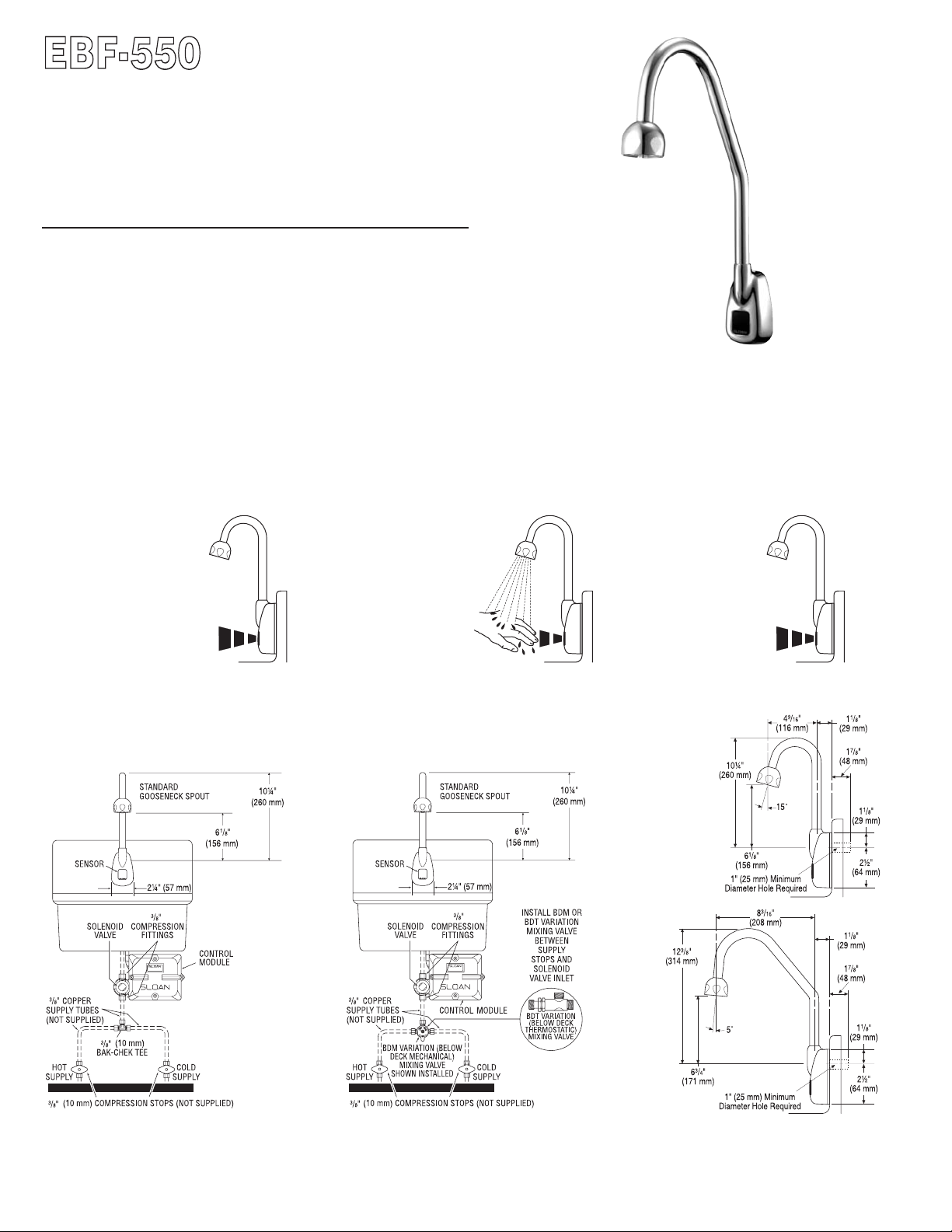

Rough-in Dimensions (side view)
ROUGH-IN
EBF-550 Faucet with Bak-Chek®Te e
for Hot and Cold Water Supply
EBF-550 Faucet with BDM and BDT
Variation Mixing Valves for Hot and Cold
Water Supply
EBF-550-H
with Standard
Spout and
Shower Spray
Head
EBF-550-H-S
with Surgical
Bend Spout
and Shower
Spray Head
Max. Distance Control Module may be Installed from Spout
With Standard Cable: 15” (381 mm)
Extension Cable (Optional)
EBF-203-A-16 16” (406 mm)
