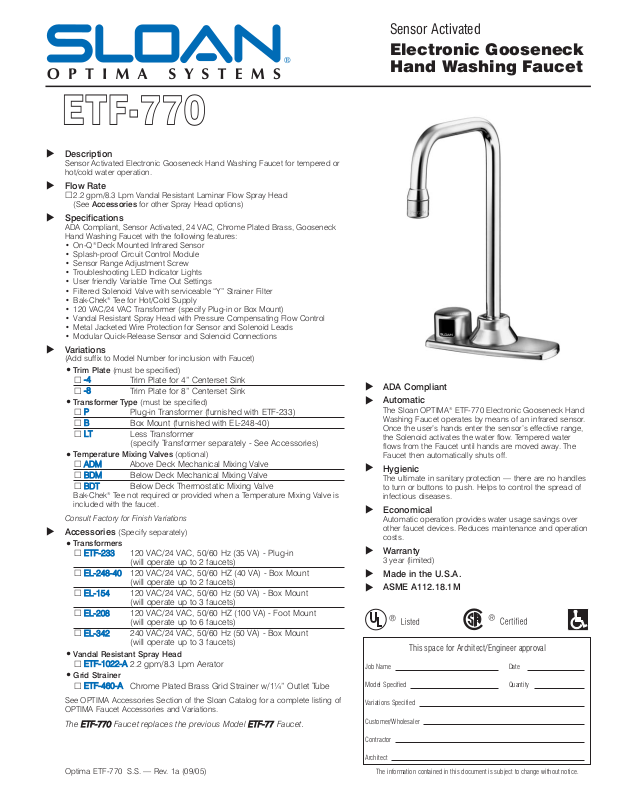

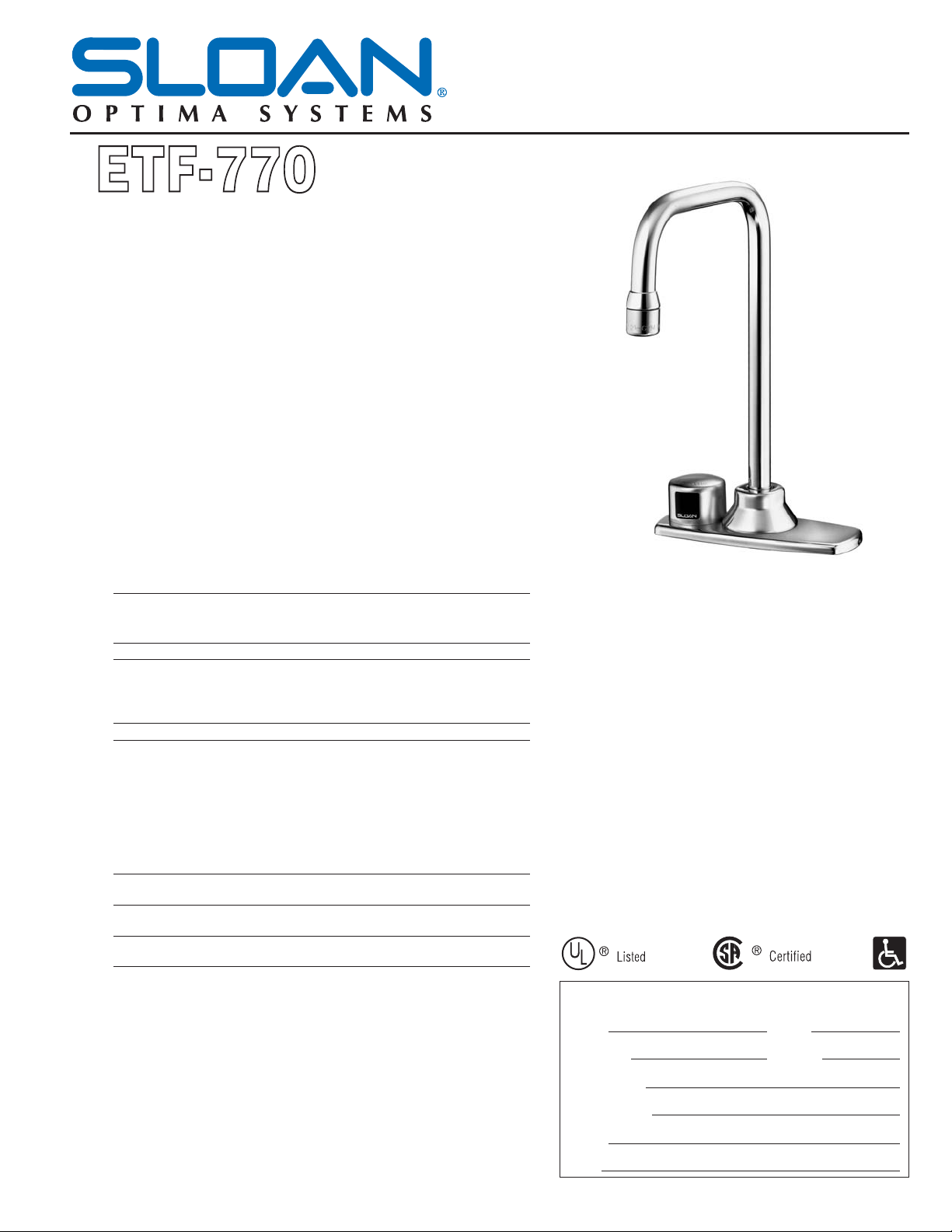

Page 1
Description
Sensor Activated Electronic Gooseneck Hand Washing Faucet for tempered or
hot/cold water operation.
Flow Rate
2.2 gpm/8.3 Lpm Vandal Resistant Laminar Flow Spray Head
(See Accessories for other Spray Head options)
Specifications
ADA Compliant, Sensor Activated, 24 VAC, Chrome Plated Brass, Gooseneck
Hand Washing Faucet with the following features:
• On-Q® Deck Mounted Infrared Sensor
• Splash-proof Circuit Control Module
• Sensor Range Adjustment Screw
• Troubleshooting LED Indicator Lights
• User friendly Variable Time Out Settings
• Filtered Solenoid Valve with serviceable “Y” Strainer Filter
• Bak-Chek®Tee for Hot/Cold Supply
• 120 VAC/24 VAC Transformer (specify Plug-in or Box Mount)
• Vandal Resistant Spray Head with Pressure Compensating Flow Control
• Metal Jacketed Wire Protection for Sensor and Solenoid Leads
• Modular Quick-Release Sensor and Solenoid Connections
Variations
(Add suffix to Model Number for inclusion with Faucet)
•
Trim Plate (must be specified)
--44
Trim Plate for 4” Centerset Sink
--88
Trim Plate for 8” Centerset Sink
•
Transformer Type (must be specified)
PP
Plug-in Transformer (furnished with ETF-233)
BB
Box Mount (furnished with EL-248-40)
LLTT
Less Transformer
(specify Transformer separately - See Accessories)
•
Temperature Mixing Valves (optional)
AADDMM
Above Deck Mechanical Mixing Valve
BBDDMM
Below Deck Mechanical Mixing Valve
BBDDTT
Below Deck Thermostatic Mixing Valve
Bak-Chek®Tee not required or provided when a Temperature Mixing Valve is
included with the faucet.
Consult Factory for Finish Variations
Accessories (Specify separately)
•
Transformers
EETTFF--223333
120 VAC/24 VAC, 50/60 Hz (35 VA) - Plug-in
(will operate up to 2 faucets)
EELL--224488--4400
120 VAC/24 VAC, 50/60 HZ (40 VA) - Box Mount
(will operate up to 2 faucets)
EELL--115544
120 VAC/24 VAC, 50/60 Hz (50 VA) - Box Mount
(will operate up to 3 faucets)
EELL--220088
120 VAC/24 VAC, 50/60 HZ (100 VA) - Foot Mount
(will operate up to 6 faucets)
EELL--334422
240 VAC/24 VAC, 50/60 Hz (50 VA) - Box Mount
(will operate up to 3 faucets)
•
Vandal Resistant Spray Head
EETTFF--11002222--AA
2.2 gpm/8.3 Lpm Aerator
•
Grid Strainer
EETTFF--446600--AA
Chrome Plated Brass Grid Strainer w/1¼” Outlet Tube
See OPTIMA Accessories Section of the Sloan Catalog for a complete listing of
OPTIMA Faucet Accessories and Variations.
The
EETTFF--777700
Faucet replaces the previous Model
EETTFF--7777
Faucet.
ADA Compliant
Automatic
The Sloan OPTIMA®ETF-770 Electronic Gooseneck Hand
Washing Faucet operates by means of an infrared sensor.
Once the user’s hands enter the sensor’s effective range,
the Solenoid activates the water flow. Tempered water
flows from the Faucet until hands are moved away. The
Faucet then automatically shuts off.
Hygienic
The ultimate in sanitary protection — there are no handles
to turn or buttons to push. Helps to control the spread of
infectious diseases.
Economical
Automatic operation provides water usage savings over
other faucet devices. Reduces maintenance and operation
costs.
Warranty
3 year (limited)
Made in the U.S.A.
ASME A112.18.1M
Sensor Activated
Electronic Gooseneck
Hand Washing Faucet
The information contained in this document is subject to change without notice.
Optima ETF-770 S.S. — Rev. 1a (09/05)
This space for Architect/Engineer approval
Job Name Date
Model Specified Quantity
Variations Specified
Customer/Wholesaler
Contractor
Architect
Page 2
SLOAN VALVE COMPANY • 10500 SEYMOUR AVENUE • FRANKLIN PARK, IL 60131
Phone: 1-800-9-VALVE-9 or 1-847-671-4300 • Fax: 1-800-447-8329 or 1-847-671-4380 • http://www.sloanvalve.com
Copyright © 2005 Sloan Valve Company Printed in the U.S.A. Made in the U.S.A. Optima ETF-770 S.S. — Rev. 1a (09/05)
Description
Sensor Activated Electronic Gooseneck Hand Washing Faucet for
tempered or hot/cold water operation.
Flow Rate
2.2 gpm/8.3 Lpm Vandal Resistant Laminar Flow Spray Head
(See Accessories for other Spray Head options)
ELECTRICAL SPECIFICATIONS
11..
A continuous invisible light
beam is emitted from the
“ON-Q” OPTIMA®Sensor.
22..
As the user’s hands enter the
beam’s effective range, the
beam is reflected back into the
OPTIMA®Scanner Window and
activates the solenoid valve
allowing tempered water to flow
from the faucet. Water will flow
until the hands are removed or
until the faucet reaches its
automatic time out limit
setting.
33..
When hands are moved away
from the “ON-Q” OPTIMA
®
Sensor, the loss of reflected
light initiates an electrical
signal that deactivates the
Solenoid Valve, shutting off
the water flow. The Circuit
then automatically resets and
is ready for the next user.
Control Circuit
24 VAC Input/Output, 50/60 Hz,
Adjustable Range & Time Out
Settings, Modular Plugs &
Troubleshooting LED
Indicators.
OPTIMA®Sensor Range
Factory Set: 8” - 10” (203 mm 254 mm)
Adjustable: 1” - 14” (25 mm 356 mm)
Solenoid Valve
24 VAC, 50/60 Hz with integral
“Y” strainer filter, 3/8” NPT
Inlet/Outlet.
OPERATION
Time Out Adjustment Settings
3, 6, 12, 30 & 45 seconds; 1, 3 &
20 minutes. The Faucet Time Out
Setting determines the maximum
time the faucet will run upon
continuous activation. This timing
can be changed to meet
individual application
requirements. Unless otherwise
specified the ETF-770 is factory
set at the 30 second time out.

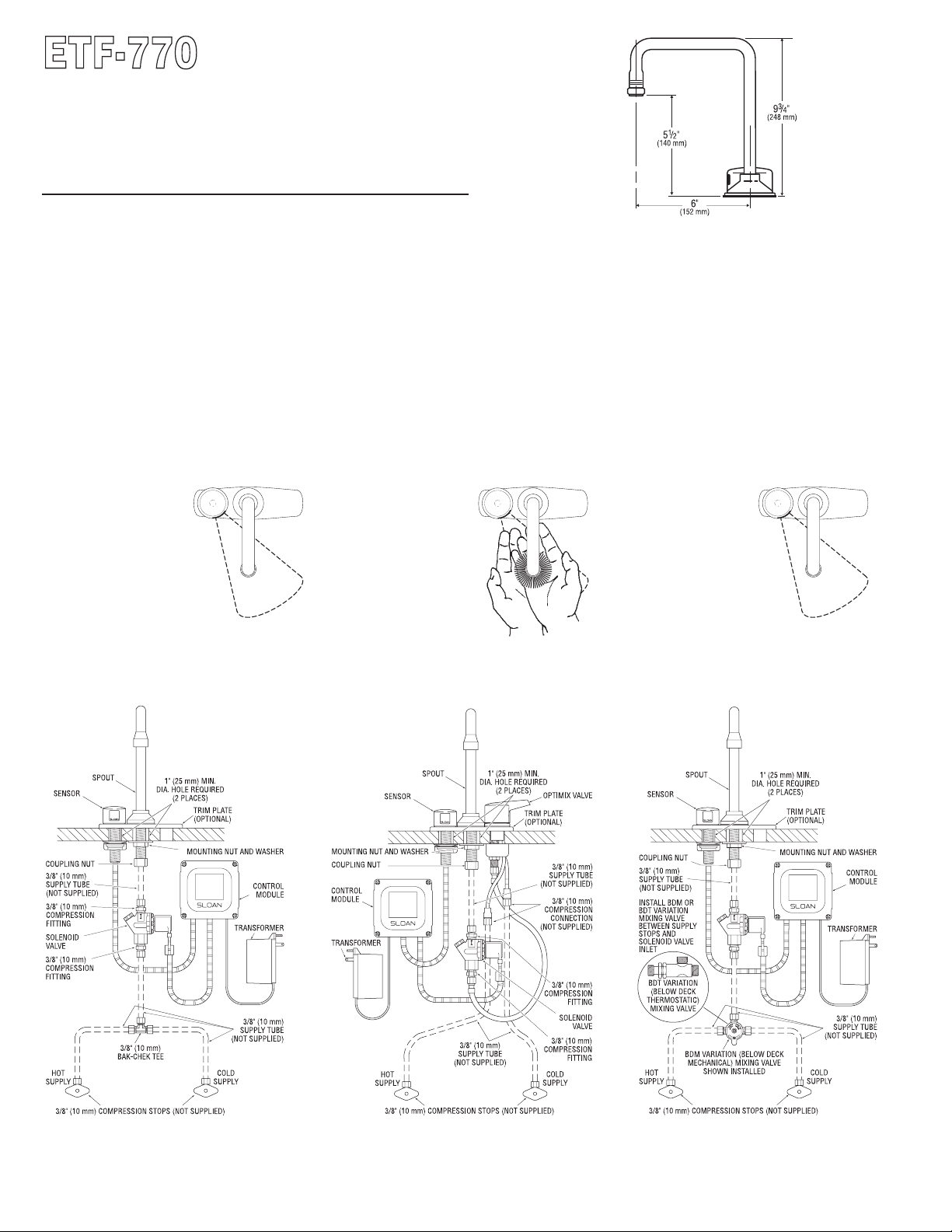

FAUCET
DIMENSIONS
ETF-770 Faucet with Bak-Chek®Te e
for Hot and Cold Water Supply
(shown with 4” trim plate)
ETF-770 Faucet with ADM Variation Mixing
Valve for Hot and Cold Water Supply
(shown with 4” trim plate)
ETF-770 Faucet with BDM and BDT
Variation Mixing Valves for Hot and Cold
Water Supply (shown with 4” trim plate)
Transformer
All Sloan Transformers are 50/60 Hz.
Multiple faucets can be powered by a single transformer, provided
that the transformer has been properly sized. Allow a minimum of
15 VA of current rating for each faucet being used.
Plug-in ETF-233 120 VAC/24 VAC - 35 VA (supplied with “P” variation)
Box Mount EL-248-40 120 VAC/24 VAC - 40 VA (supplied with “B” variation)
Box Mount EL-154 120 VAC/24 VAC - 50 VA
Foot Mount EL-208 120 VAC/24 VAC - 100 VA
Box Mount EL-342 240 VAC/24 VAC - 50 VA
Max. Distance Control Module may be Installed from Spout
With Standard Cable: 12” (305 mm)
Extension Cables (Optional)
From Sensor to Control Module: From Solenoid Valve to Control Module:
ETF-1005-26 26” (660 mm) ETF-1003-26 26” (660 mm)
ETF-1005-36 36” (914 mm) ETF-1003-48 48” (1219 mm)
ETF-1005-72 72” (1829 mm) ETF-1003-72 72” (1829 mm)
ETF-1005-108 108” (2743 mm) ETF-1003-108 108” (2743 mm)
