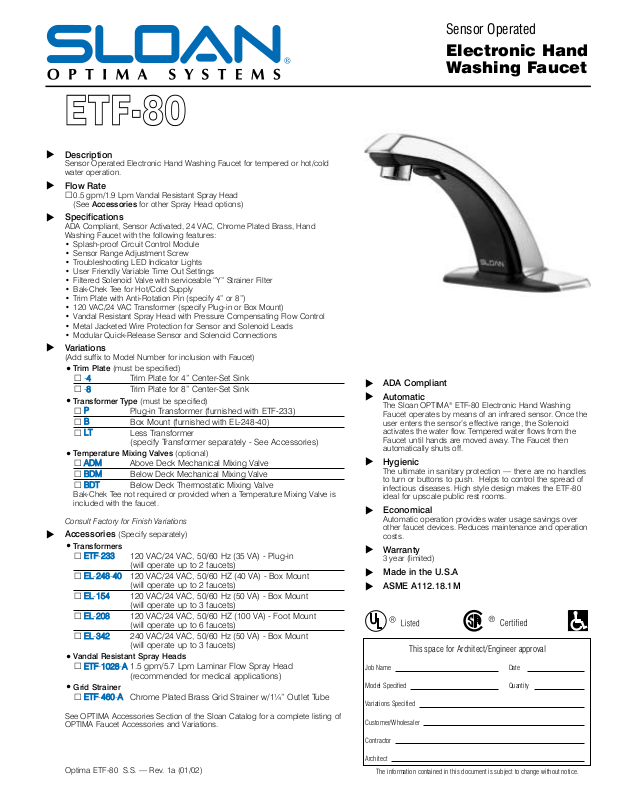

Sensor Operated Electronic Hand Washing Faucet for tempered or hot/cold
water operation.
Flow Rate
! 0.5 gpm/1.9 Lpm Vandal Resistant Spray Head
(See Accessories for other Spray Head options)
Specifications
ADA Compliant, Sensor Activated, 24 VAC, Chrome Plated Brass, Hand
Washing Faucet with the following features:
• Splash-proof Circuit Control Module
• Sensor Range Adjustment Screw
• Troubleshooting LED Indicator Lights
• User Friendly Variable Time Out Settings
• Filtered Solenoid Valve with serviceable “Y” Strainer Filter
• Bak-Chek Tee for Hot/Cold Supply
• Trim Plate with Anti-Rotation Pin (specify 4” or 8”)
• 120 VAC/24 VAC Transformer (specify Plug-in or Box Mount)
• Vandal Resistant Spray Head with Pressure Compensating Flow Control
• Metal Jacketed Wire Protection for Sensor and Solenoid Leads
• Modular Quick-Release Sensor and Solenoid Connections
Variations
(Add suffix to Model Number for inclusion with Faucet)
•
Trim Plate (must be specified)
!
-44
Trim Plate for 4” Center-Set Sink
!
-88
Trim Plate for 8” Center-Set Sink
•
Transformer Type (must be specified)
!
P
Plug-in Transformer (furnished with ETF-233)
!
B
Box Mount (furnished with EL-248-40)
!
LT
Less Transformer
(specify Transformer separately - See Accessories)
•
Temperature Mixing Valves (optional)
!
ADM
Above Deck Mechanical Mixing Valve
!
BDM
Below Deck Mechanical Mixing Valve
!
BDT
Below Deck Thermostatic Mixing Valve
Bak-Chek Tee not required or provided when a Temperature Mixing Valve is
included with the faucet.
Consult Factory for Finish Variations
Accessories (Specify separately)
•
Transformers
!
ETF-2233
120 VAC/24 VAC, 50/60 Hz (35 VA) - Plug-in
(will operate up to 2 faucets)
!
EL-2248-440
120 VAC/24 VAC, 50/60 HZ (40 VA) - Box Mount
(will operate up to 2 faucets)
!
EL-1154
120 VAC/24 VAC, 50/60 Hz (50 VA) - Box Mount
(will operate up to 3 faucets)
!
EL-2208
120 VAC/24 VAC, 50/60 HZ (100 VA) - Foot Mount
(will operate up to 6 faucets)
!
EL-3342
240 VAC/24 VAC, 50/60 Hz (50 VA) - Box Mount
(will operate up to 3 faucets)
•
Vandal Resistant Spray Heads
!
ETF-11028-AA
1.5 gpm/5.7 Lpm Laminar Flow Spray Head
(recommended for medical applications)
•
Grid Strainer
!
ETF-4460-AA
Chrome Plated Brass Grid Strainer w/1¼” Outlet Tube
See OPTIMA Accessories Section of the Sloan Catalog for a complete listing of
OPTIMA Faucet Accessories and Variations.
!
!
!
!
ADA Compliant
Automatic

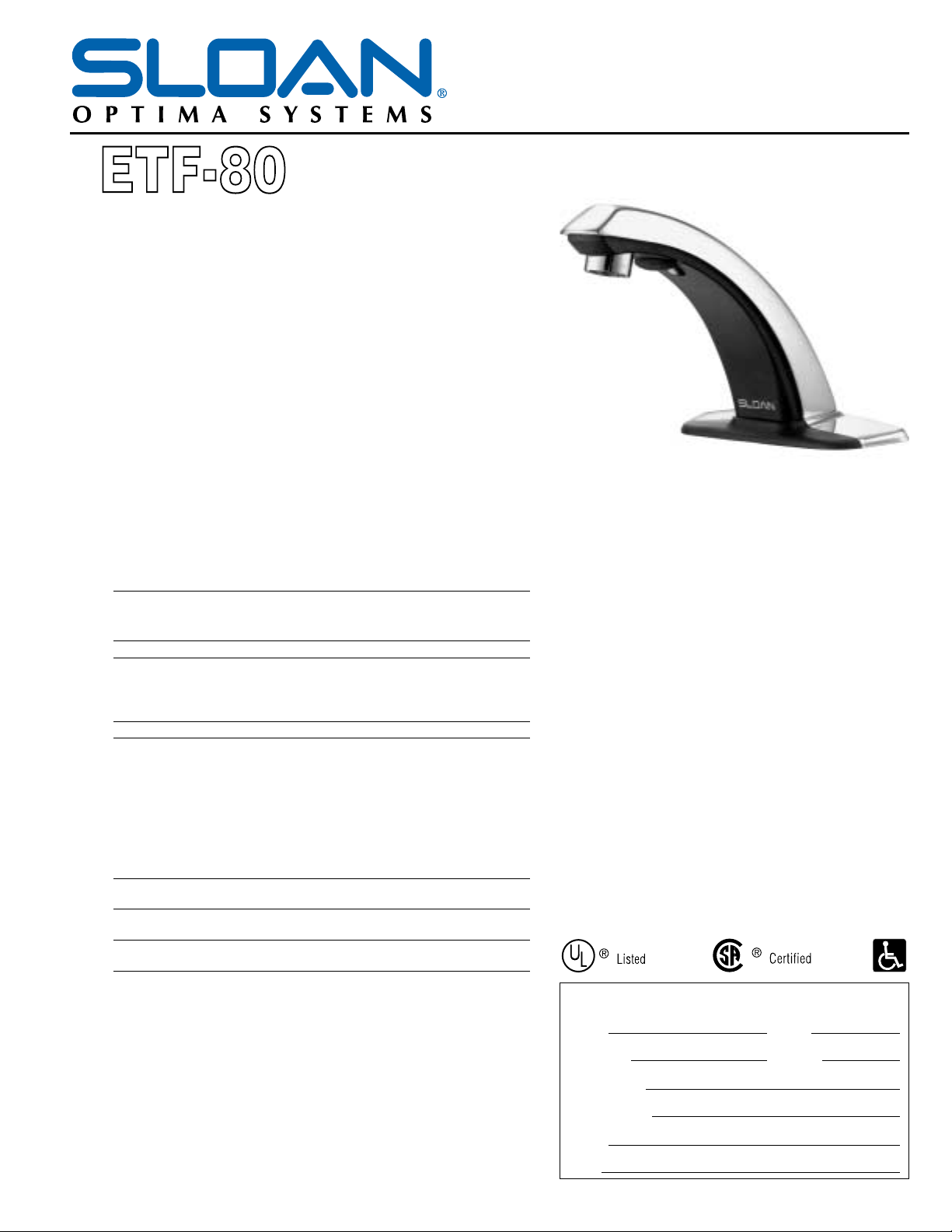

The Sloan OPTIMA®ETF-80 Electronic Hand Washing
Faucet operates by means of an infrared sensor. Once the
user enters the sensor’s effective range, the Solenoid
activates the water flow. Tempered water flows from the
Faucet until hands are moved away. The Faucet then
automatically shuts off.
Hygienic
The ultimate in sanitary protection — there are no handles
to turn or buttons to push. Helps to control the spread of
infectious diseases. High style design makes the ETF-80
ideal for upscale public rest rooms.
Economical
Automatic operation provides water usage savings over
other faucet devices. Reduces maintenance and operation
costs.
Warranty
3 year (limited)
Made in the U.S.A
ASME A112.18.1M
!
!
!
!
!
Sensor Operated
Electronic Hand
Washing Faucet
The information contained in this document is subject to change without notice.
!
Optima ETF-80 S.S. — Rev. 1a (01/02)
This space for Architect/Engineer approval
Job Name Date
Model Specified Quantity
Variations Specified
Customer/Wholesaler
Contractor
Architect
!
!
Page 2
SLOAN VALVE COMPANY • 10500 SEYMOUR AVENUE • FRANKLIN PARK, IL 60131
Phone: 1-800-9-VALVE-9 or 1-847-671-4300 • Fax: 1-800-447-8329 or 1-847-671-4380 • http://www.sloanvalve.com
Copyright © 2002 Sloan Valve Company Printed in the U.S.A. Made in the U.S.A. Optima ETF-80 S.S. — Rev. 1a (01/02)
Description
Sensor Operated Electronic Hand Washing Faucet for tempered or
hot/cold water operation.
Flow Rate
! 0.5 gpm/1.9 Lpm Vandal Resistant Spray Head
(See Accessories for other Spray Head options)
ELECTRICAL SPECIFICATIONS
1.
A continuous, invisible light
beam is emitted from the
OPTIMA®Sensor located on
the throat of the lavatory
faucet.
2.
As the user’s hands enter the
beam’s effective range, the
beam is reflected back into the
Sensor Receiver and activates
the solenoid valve allowing
tempered water to flow from the
faucet. Water will flow until the
hands are removed or until the
faucet reached its automatic
time out limit setting.
3.
When hands are moved away
from the OPTIMA®Sensor,
the loss of reflected light
initiates an electrical signal
that deactivates the Solenoid
Valve shutting off the water
flow. The Circuit then
automatically resets and is
ready for the next user.
!
!
Control Circuit
24 VAC Input/Output, 50/60Hz,
Adjustable Range Time Out
Settings, Modular Plugs and
Troubleshooting LED Indicators.
OPTIMA®Sensor Range
Factory Set: 4”- 5” (102 mm 127 mm)
Adjustable: 1” - 8” (25 mm 203 mm) — Adjustability
dependent upon depth and
reflectivity of basin.
OPERATION
Solenoid Valve
24 VAC 50/60Hz with integral “Y”
strainer filter, 3/8” NPT
Inlet/Outlet.
Time Out Adjustment
Settings
3, 6, 12, 30 & 45 seconds; 1, 3 &
20 minutes. The Faucet Time
Out Setting determines the
maximum time the faucet will run
upon continuous activation. This
timing can be changed to meet
individual application
requirements. Unless otherwise
specified the ETF-80 is factory
set at the 30 second time out.
!
!
!
!
!
Transformer
All Sloan Transformers are 50/60 Hz.
Multiple faucets can be powered by a single transformer, provided
that the transformer has been properly sized. Allow a minimum of
15 VA of current rating for each faucet being used.
Plug-in ETF-233 120 VAC/24 VAC - 35 VA (supplied with “P” variation)
Box Mount EL-248-40 120 VAC/24 VAC - 40 VA (supplied with “B” variation)
Box Mount EL-154 120 VAC/24 VAC - 50 VA
Foot Mount EL-208 120 VAC/24 VAC - 100 VA
Box Mount EL-342 240 VAC/24 VAC - 50 VA
Max. Distance Control Module may be Installed from Spout
With Standard Cable: 12” (305 mm)
Extension Cables (Optional)
From Sensor to Control Module: From Solenoid Valve to Control Module:
ETF-1005-26 26” (660 mm) ETF-1003-26 26” (660 mm)
ETF-1005-36 36” (914 mm) ETF-1003-48 48” (1219 mm)
ETF-1005-72 72” (1829 mm) ETF-1003-72 72” (1829 mm)
ETF-1005-108 108” (2743 mm) ETF-1003-108 108” (2743 mm)

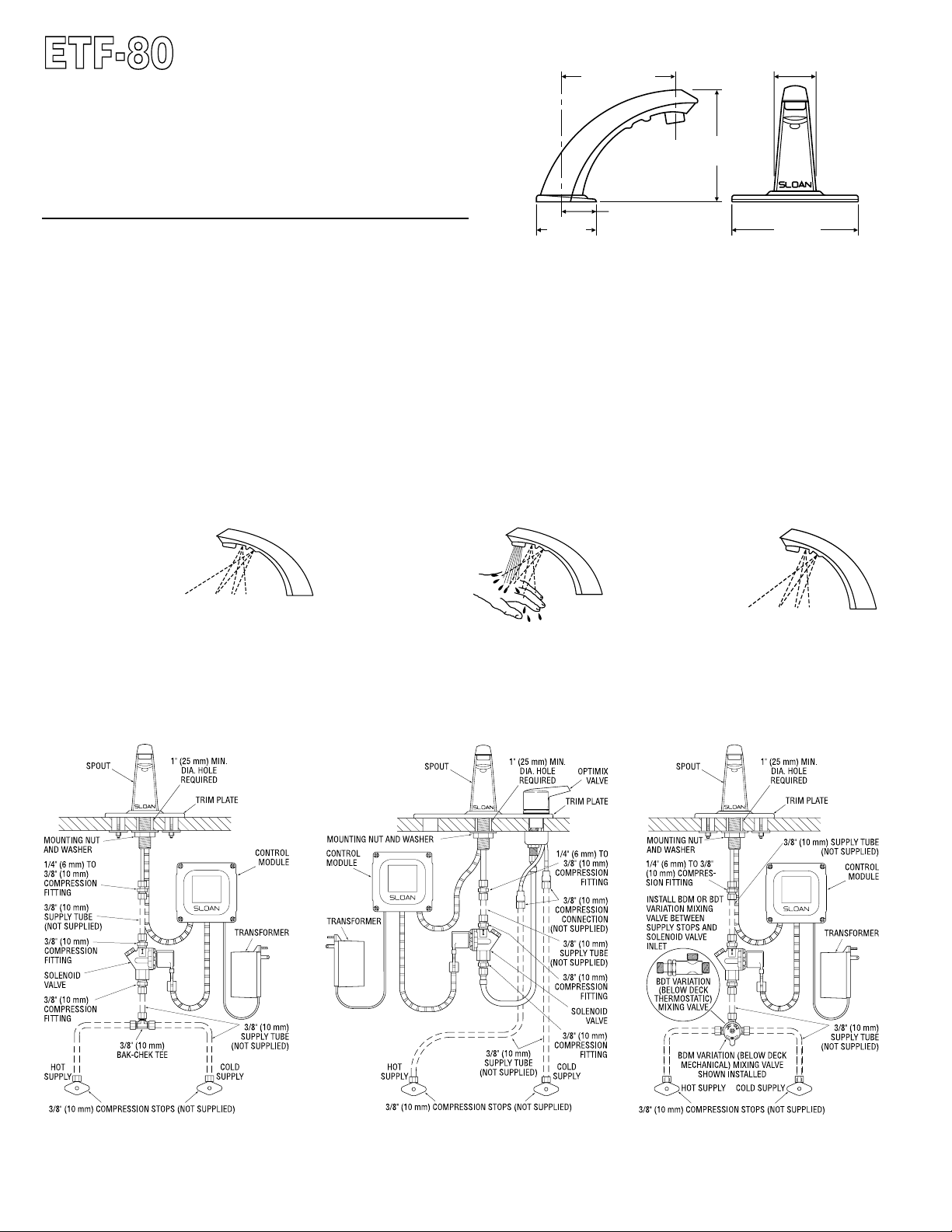

FAUCET DIMENSIONS
(Shown with 4” Trim Plate)
5-3/4”
(146 mm)
6-9/32”
(160 mm)
2”
(51 mm)
5-1/8” (130 mm)
2-5/8”
(67 mm)
1-5/16” (33 mm)
ETF-80 Faucet with Bak-Chek Tee
for Hot and Cold Water Supply
(shown with 4” trim plate)
ETF-80 Faucet with ADM Variation Mixing
Valve for Hot and Cold Water Supply
(shown with 8” trim plate)
ETF-80 Faucet with BDM and BDT
Variation Mixing Valves for Hot and Cold
Water Supply (shown with 4” trim plate)
!
!
