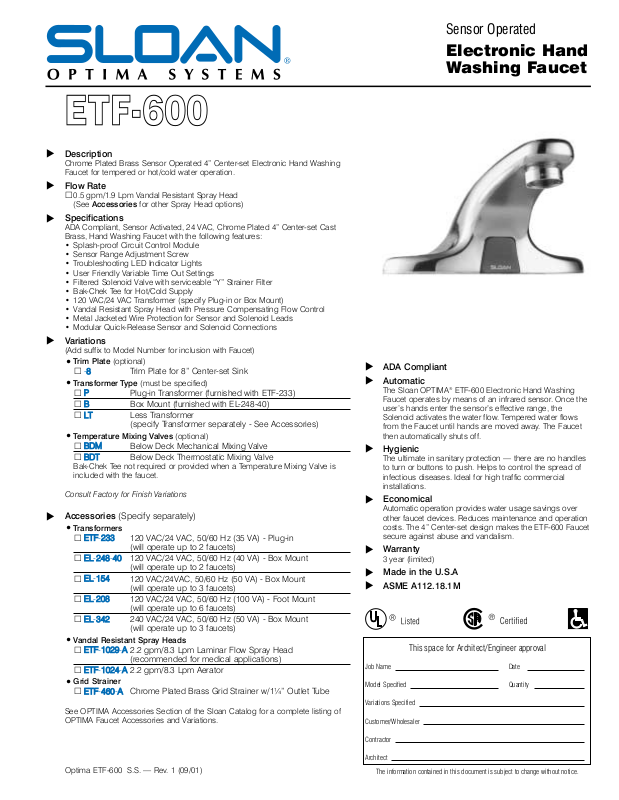

Page 1
Description
Chrome Plated Brass Sensor Operated 4” Center-set Electronic Hand Washing
Faucet for tempered or hot/cold water operation.
Flow Rate
! 0.5 gpm/1.9 Lpm Vandal Resistant Spray Head
(See Accessories for other Spray Head options)
Specifications
ADA Compliant, Sensor Activated, 24 VAC, Chrome Plated 4” Center-set Cast
Brass, Hand Washing Faucet with the following features:
• Splash-proof Circuit Control Module
• Sensor Range Adjustment Screw
• Troubleshooting LED Indicator Lights
• User Friendly Variable Time Out Settings
• Filtered Solenoid Valve with serviceable “Y” Strainer Filter
• Bak-Chek Tee for Hot/Cold Supply
• 120 VAC/24 VAC Transformer (specify Plug-in or Box Mount)
• Vandal Resistant Spray Head with Pressure Compensating Flow Control
• Metal Jacketed Wire Protection for Sensor and Solenoid Leads
• Modular Quick-Release Sensor and Solenoid Connections
Variations
(Add suffix to Model Number for inclusion with Faucet)
•
Trim Plate (optional)
!
-88
Trim Plate for 8” Center-set Sink
•
Transformer Type (must be specified)
!
P
Plug-in Transformer (furnished with ETF-233)
!
B
Box Mount (furnished with EL-248-40)
!
LT
Less Transformer
(specify Transformer separately - See Accessories)
•
Temperature Mixing Valves (optional)
!
BDM
Below Deck Mechanical Mixing Valve
!
BDT
Below Deck Thermostatic Mixing Valve
Bak-Chek Tee not required or provided when a Temperature Mixing Valve is
included with the faucet.
Consult Factory for Finish Variations
Accessories (Specify separately)
•
Transformers
!
ETF-2233
120 VAC/24 VAC, 50/60 Hz (35 VA) - Plug-in
(will operate up to 2 faucets)
!
EL-2248-440
120 VAC/24 VAC, 50/60 Hz (40 VA) - Box Mount
(will operate up to 2 faucets)
!
EL-1154
120 VAC/24VAC, 50/60 Hz (50 VA) - Box Mount
(will operate up to 3 faucets)
!
EL-2208
120 VAC/24 VAC, 50/60 Hz (100 VA) - Foot Mount
(will operate up to 6 faucets)
!
EL-3342
240 VAC/24 VAC, 50/60 Hz (50 VA) - Box Mount
(will operate up to 3 faucets)
•
Vandal Resistant Spray Heads
!
ETF-11029-AA
2.2 gpm/8.3 Lpm Laminar Flow Spray Head
(recommended for medical applications)
!
ETF-11024-AA
2.2 gpm/8.3 Lpm Aerator
•
Grid Strainer
!
ETF-4460-AA
Chrome Plated Brass Grid Strainer w/1¼” Outlet Tube
See OPTIMA Accessories Section of the Sloan Catalog for a complete listing of
OPTIMA Faucet Accessories and Variations.
!
!
!
!
ADA Compliant
Automatic
The Sloan OPTIMA®ETF-600 Electronic Hand Washing
Faucet operates by means of an infrared sensor. Once the
user’s hands enter the sensor’s effective range, the
Solenoid activates the water flow. Tempered water flows
from the Faucet until hands are moved away. The Faucet
then automatically shuts off.
Hygienic
The ultimate in sanitary protection — there are no handles
to turn or buttons to push. Helps to control the spread of
infectious diseases. Ideal for high traffic commercial
installations.
Economical
Automatic operation provides water usage savings over
other faucet devices. Reduces maintenance and operation
costs. The 4” Center-set design makes the ETF-600 Faucet
secure against abuse and vandalism.
Warranty
3 year (limited)
Made in the U.S.A
ASME A112.18.1M
!
!
!
!
!
!
Sensor Operated
Electronic Hand
Washing Faucet
The information contained in this document is subject to change without notice.
!
Optima ETF-600 S.S. — Rev. 1 (09/01)
This space for Architect/Engineer approval
Job Name Date
Model Specified Quantity
Variations Specified
Customer/Wholesaler
Contractor
Architect
!
Page 2
SLOAN VALVE COMPANY • 10500 SEYMOUR AVENUE • FRANKLIN PARK, IL 60131
Phone: 1-800-9-VALVE-9 or 1-847-671-4300 • Fax: 1-800-447-8329 or 1-847-671-4380 • http://www.sloanvalve.com
Copyright © 2001 Sloan Valve Company Printed in the U.S.A. Made in the U.S.A. Optima ETF-600 S.S. — Rev. 1 (09/01)
Description
Chrome Plated Brass Sensor Operated 4” Center-set Electronic Hand
Washing Faucet for tempered or hot/cold water operation.
Flow Rate
! 0.5 gpm/1.9 Lpm Vandal Resistant Spray Head
(See Accessories for other Spray Head options)
ELECTRICAL SPECIFICATIONS
1.
A continuous invisible beam
of light is emitted from the
OPTIMA®Sensor located at
the base of the lavatory
faucet.
2.
As the user’s hands enter the
beam’s effective range, the
beam is reflected back into the
Sensor Receiver and activates
the Solenoid Valve allowing
tempered water to flow from the
faucet. Water will flow until the
hands are removed or until the
faucet reaches its automatic
time out limit setting.
3.
When hands are moved away
from the OPTIMA®Sensor,
the loss of reflected light
initiates an electrical signal
that deactivates the Solenoid
Valve, shutting off the water
flow. The Circuit then
automatically resets and is
ready for the next user.
!
!
Control Circuit
24 VAC Input/Output, 50/60Hz,
Adjustable Range & Time Out
Settings, Modular Plugs &
Troubleshooting LED Indicators
OPTIMA®Sensor Range
Factory Set: 4” - 5” (102 mm 127 mm)
Adjustable: 1” - 14” (25 mm 356 mm)
Solenoid Valve
24 VAC 50/60Hz with integral “Y”
strainer filter, 3/8” NPT
Inlet/Outlet.
OPERATION
Time Out Adjustment
Settings
3, 6, 12, 30 & 45 seconds; 1, 3 &
20 minutes. The Faucet Time
Out Setting determines the
maximum time the faucet will run
upon continuous activation. This
timing can be changed to meet
individual application
requirements. Unless otherwise
specified the ETF-600 is factory
set at the 30 second time out.
!
!
!
!

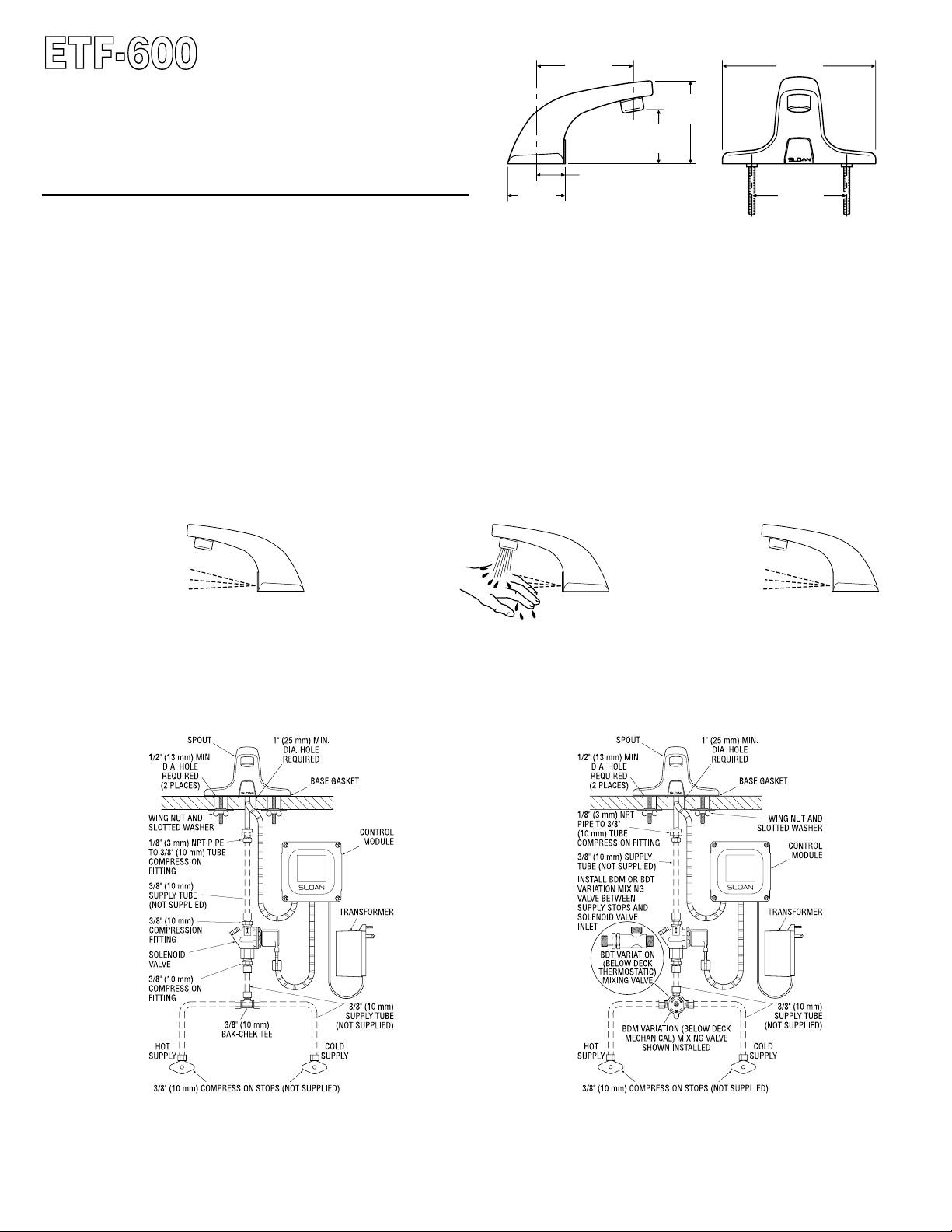

FAUCET DIMENSIONS
3-5/8”
(92 mm)
4”
(102 mm)
6-5/16”
(160 mm)
4-9/16”
(116 mm)
2-7/16”
(62 mm)
1-7/32” (31 mm)
2-3/16”
(56 mm)
ETF-600 Faucet with Bak-Chek Tee for Hot and Cold Water Supply ETF-600 Faucet with BDM and BDT Variation Mixing Valves for Hot
and Cold Water Supply
!
Transformer
All Sloan Transformers are 50/60 Hz.
Multiple faucets can be powered by a single transformer, provided
that the transformer has been properly sized. Allow a minimum of
15 VA of current rating for each faucet being used.
Plug-in ETF-233 120 VAC/24 VAC - 35 VA (supplied with “P” variation)
Box Mount EL-248-40 120 VAC/24 VAC - 40 VA (supplied with “B” variation)
Box Mount EL-154 120 VAC/24 VAC - 50 VA
Foot Mount EL-208 120 VAC/24 VAC - 100 VA
Box Mount EL-342 240 VAC/24 VAC - 50 VA
Max. Distance Control Module may be Installed from Spout
With Standard Cable: 12” (305 mm)
Extension Cables (Optional)
From Sensor to Control Module: From Solenoid Valve to Control Module:
ETF-1005-26 26” (660 mm) ETF-1003-26 26” (660 mm)
ETF-1005-36 36” (914 mm) ETF-1003-48 48” (1219 mm)
ETF-1005-72 72” (1829 mm) ETF-1003-72 72” (1829 mm)
ETF-1005-108 108” (2743 mm) ETF-1003-108 108” (2743 mm)
!
!
