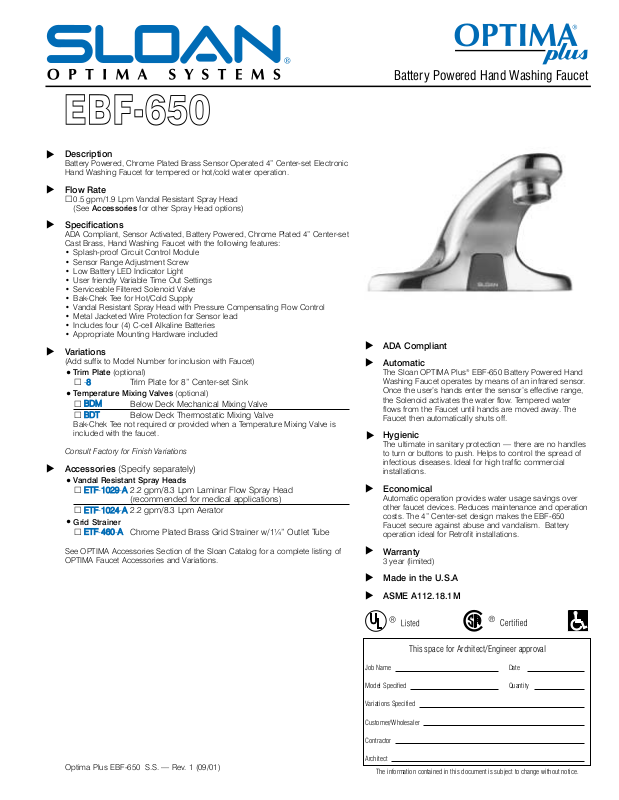

Page 1
Description

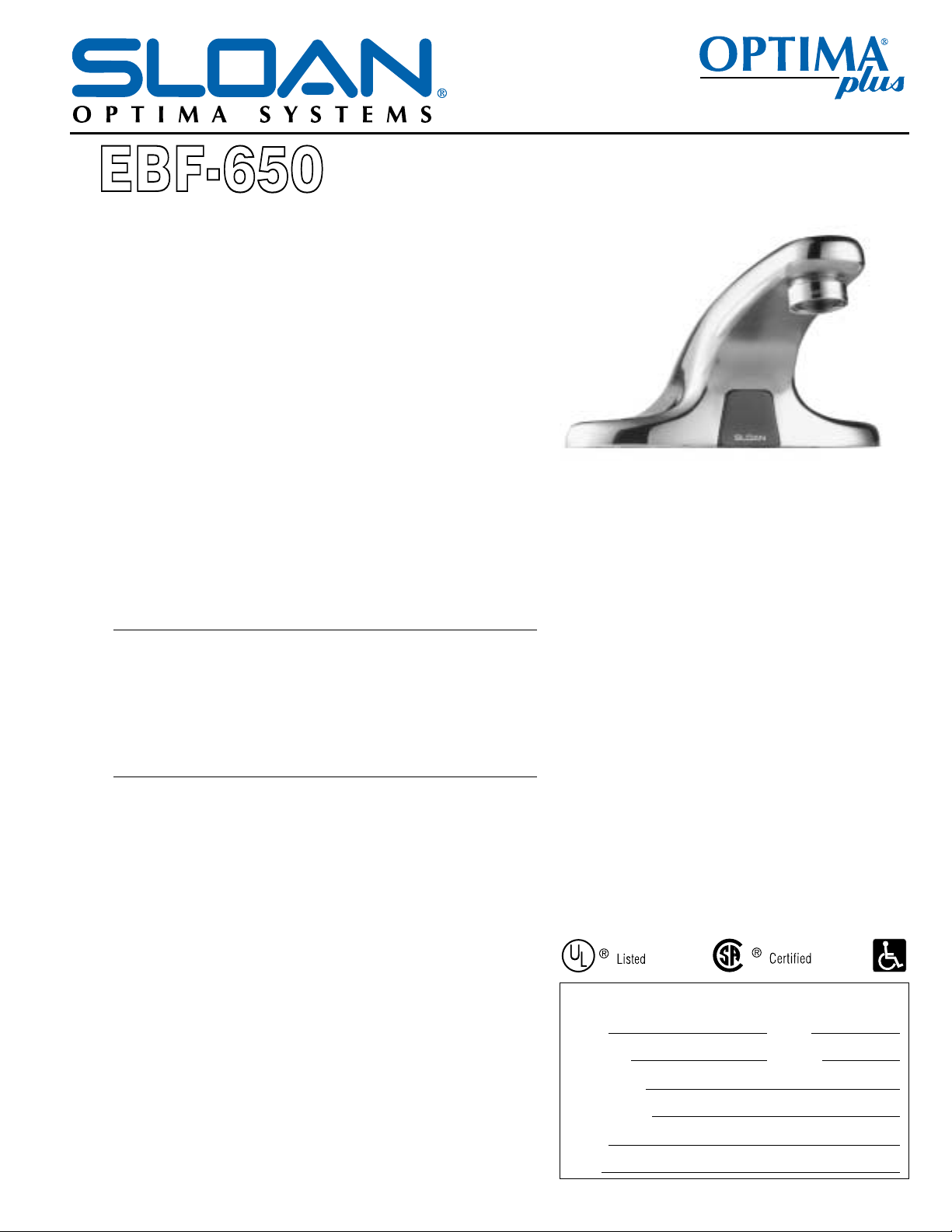

Battery Powered, Chrome Plated Brass Sensor Operated 4” Center-set Electronic
Hand Washing Faucet for tempered or hot/cold water operation.
Flow Rate
! 0.5 gpm/1.9 Lpm Vandal Resistant Spray Head
(See Accessories for other Spray Head options)
Specifications
ADA Compliant, Sensor Activated, Battery Powered, Chrome Plated 4” Center-set
Cast Brass, Hand Washing Faucet with the following features:
• Splash-proof Circuit Control Module
• Sensor Range Adjustment Screw
• Low Battery LED Indicator Light
• User friendly Variable Time Out Settings
• Serviceable Filtered Solenoid Valve
• Bak-Chek Tee for Hot/Cold Supply
• Vandal Resistant Spray Head with Pressure Compensating Flow Control
• Metal Jacketed Wire Protection for Sensor lead
• Includes four (4) C-cell Alkaline Batteries
• Appropriate Mounting Hardware included
Variations
(Add suffix to Model Number for inclusion with Faucet)
•
Trim Plate (optional)
!
-88
Trim Plate for 8” Center-set Sink
•
Temperature Mixing Valves (optional)
!
BDM
Below Deck Mechanical Mixing Valve
!
BDT
Below Deck Thermostatic Mixing Valve
Bak-Chek Tee not required or provided when a Temperature Mixing Valve is
included with the faucet.
Consult Factory for Finish Variations
Accessories (Specify separately)
•
Vandal Resistant Spray Heads
!
ETF-11029-AA
2.2 gpm/8.3 Lpm Laminar Flow Spray Head
(recommended for medical applications)
!
ETF-11024-AA
2.2 gpm/8.3 Lpm Aerator
•
Grid Strainer
!
ETF-4460-AA
Chrome Plated Brass Grid Strainer w/1¼” Outlet Tube
See OPTIMA Accessories Section of the Sloan Catalog for a complete listing of
OPTIMA Faucet Accessories and Variations.
!
!
!
!
ADA Compliant
Automatic
The Sloan OPTIMA Plus®EBF-650 Battery Powered Hand
Washing Faucet operates by means of an infrared sensor.
Once the user’s hands enter the sensor’s effective range,
the Solenoid activates the water flow. Tempered water
flows from the Faucet until hands are moved away. The
Faucet then automatically shuts off.
Hygienic
The ultimate in sanitary protection — there are no handles
to turn or buttons to push. Helps to control the spread of
infectious diseases. Ideal for high traffic commercial
installations.
Economical
Automatic operation provides water usage savings over
other faucet devices. Reduces maintenance and operation
costs. The 4” Center-set design makes the EBF-650
Faucet secure against abuse and vandalism. Battery
operation ideal for Retrofit installations.
Warranty
3 year (limited)
Made in the U.S.A
ASME A112.18.1M
!
!
!
!
!
The information contained in this document is subject to change without notice.
!
Optima Plus EBF-650 S.S. — Rev. 1 (09/01)
This space for Architect/Engineer approval
Job Name Date
Model Specified Quantity
Variations Specified
Customer/Wholesaler
Contractor
Architect
Battery Powered Hand Washing Faucet
!
!
Page 2
SLOAN VALVE COMPANY • 10500 SEYMOUR AVENUE • FRANKLIN PARK, IL 60131
Phone: 1-800-9-VALVE-9 or 1-847-671-4300 • Fax: 1-800-447-8329 or 1-847-671-4380 • http://www.sloanvalve.com
Copyright © 2001 Sloan Valve Company Printed in the U.S.A. Made in the U.S.A. Optima Plus EBF-650 S.S. — Rev. 1 (09/01)
Description
Battery Powered, Chrome Plated Brass Sensor Operated 4” Center-set
Electronic Hand Washing Faucet for tempered or hot/cold water operation.
Flow Rate
! 0.5 gpm/1.9 Lpm Vandal Resistant Spray Head
(See Accessories for other Spray Head options)
ELECTRICAL SPECIFICATIONS
!
!
Control Circuit
6 VDC — operates on four (4)
alkaline C-cell batteries.
Battery Life
2 years at 8,000 cycles/month
Indicator Lights
Range Adjustment/Low Battery
Solenoid Valve
Low Energy Latching Solenoid
with Self-cleaning By-pass and
Integral Clean Out Strainer
Filter.
Optima®Sensor Range
Factory Set: 4” - 5” (102 mm 127 mm)
Adjustable: 2” - 7” (51 mm 178 mm)
Time Out Adjustment Settings
30 seconds — The Faucet Time
Out Setting determines the
maximum time the faucet will run
upon continuous detection. The
EBF-650 is factory set at the 30
second time out. Consult factory
for time out settings to meet
individual application
requirements.
!
!
!
!

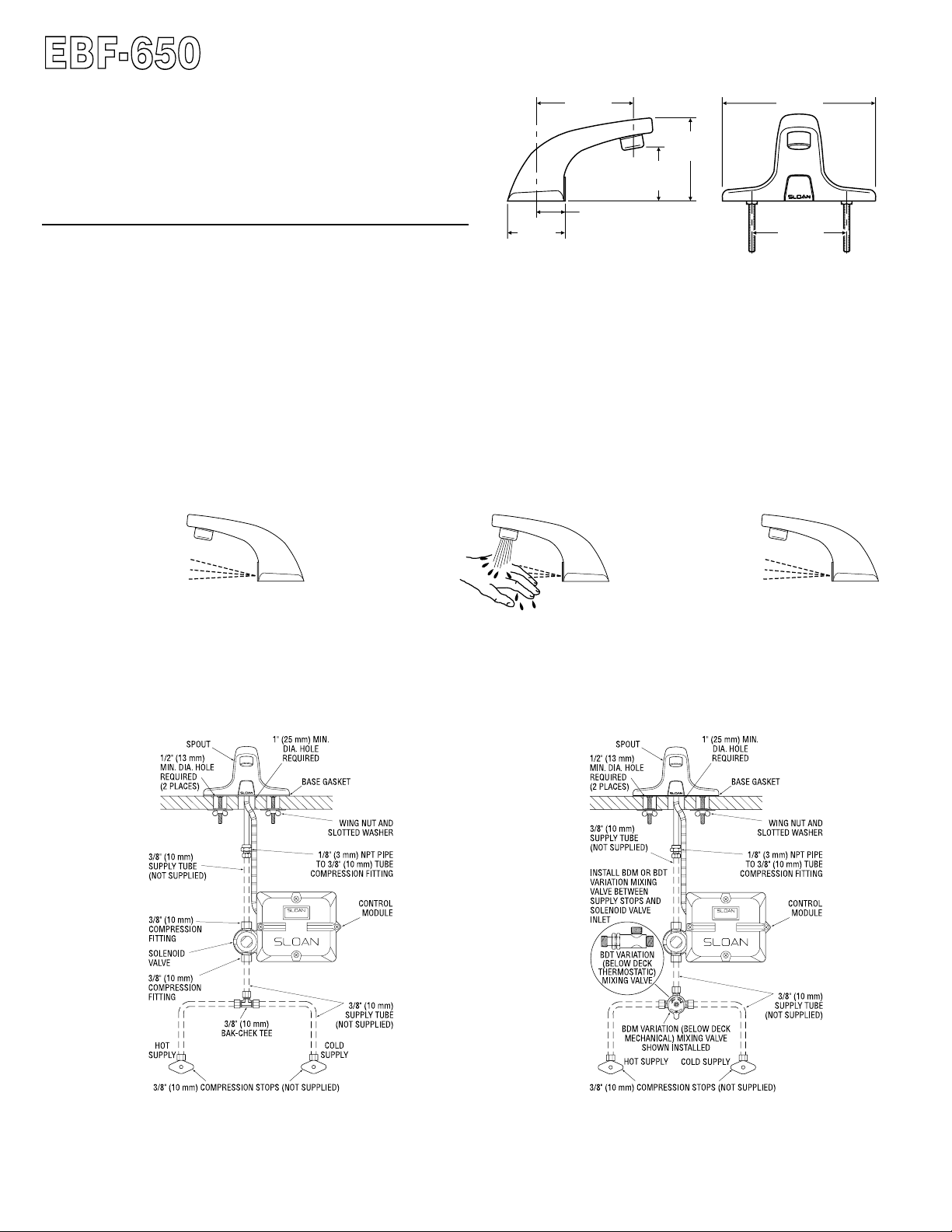

FAUCET DIMENSIONS
3-5/8”
(92 mm)
4”
(102 mm)
6-5/16”
(160 mm)
4-9/16”
(116 mm)
2-7/16”
(62 mm)
1-7/32” (31 mm)
2-3/16”
(56 mm)
1.
A continuous invisible beam
of light is emitted from the
OPTIMA®Sensor located at
the base of the lavatory
faucet.
2.
As the user’s hands enter the
beam’s effective range, the
beam is reflected back into the
Sensor Receiver and activates
the Solenoid Valve allowing
tempered water to flow from the
faucet. Water will flow until the
hands are removed or until the
faucet reaches its automatic
time out limit setting.
3.
When hands are moved away
from the OPTIMA®Sensor,
the loss of reflected light
initiates an electrical signal
that deactivates the Solenoid
Valve, shutting off the water
flow. The Circuit then
automatically resets and is
ready for the next user.
OPERATION
EBF-650 Faucet with Bak-Chek Tee for Hot and Cold Water Supply EBF-650 Faucet with BDM and BDT Variation Mixing Valves for Hot
and Cold Water Supply
Max. Distance Control Module may be Installed from Spout
With Standard Cable: 15” (381 mm)
Extension Cable (Optional)
EBF-203-A-16 16” (406 mm)
!
!
!
!
