SLOAN VALVE COMPANY • 10500 SEYMOUR AVE. • FRANKLIN PARK, IL. 60131
Ph: 1-800-9-VALVE-9 or 1-847-671-4300 • Fax: 1-800-447-8329 or 1-847-671-4380
http://www.sloanvalve.com

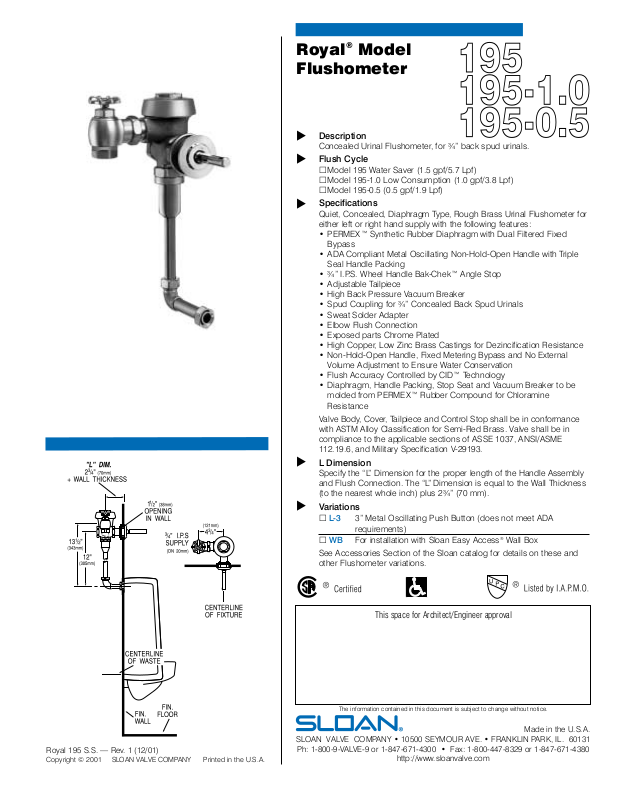

Royal®Model
Flushometer
!
!
!
!
This space for Architect/Engineer approval
The information contained in this document is subject to change without notice.
Royal 195 S.S. — Rev. 1 (12/01)
Copyright © 2001 SLOAN VALVE COMPANY Printed in the U.S.A.
Made in the U.S.A.
!
Description
Concealed Urinal Flushometer, for ¾” back spud urinals.
Flush Cycle
! Model 195 Water Saver (1.5 gpf/5.7 Lpf)
! Model 195-1.0 Low Consumption (1.0 gpf/3.8 Lpf)
! Model 195-0.5 (0.5 gpf/1.9 Lpf)
Specifications
Quiet, Concealed, Diaphragm Type, Rough Brass Urinal Flushometer for
either left or right hand supply with the following features:
• PERMEX™ Synthetic Rubber Diaphragm with Dual Filtered Fixed
Bypass
• ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple
Seal Handle Packing
• ¾” I.P.S. Wheel Handle Bak-Chek™ Angle Stop
• Adjustable Tailpiece
• High Back Pressure Vacuum Breaker
• Spud Coupling for ¾” Concealed Back Spud Urinals
• Sweat Solder Adapter
• Elbow Flush Connection
• Exposed parts Chrome Plated
• High Copper, Low Zinc Brass Castings for Dezincification Resistance
• Non-Hold-Open Handle, Fixed Metering Bypass and No External
Volume Adjustment to Ensure Water Conservation
• Flush Accuracy Controlled by CID™ Technology
• Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker to be
molded from PERMEX™ Rubber Compound for Chloramine
Resistance
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance
with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in
compliance to the applicable sections of ASSE 1037, ANSI/ASME
112.19.6, and Military Specification V-29193.

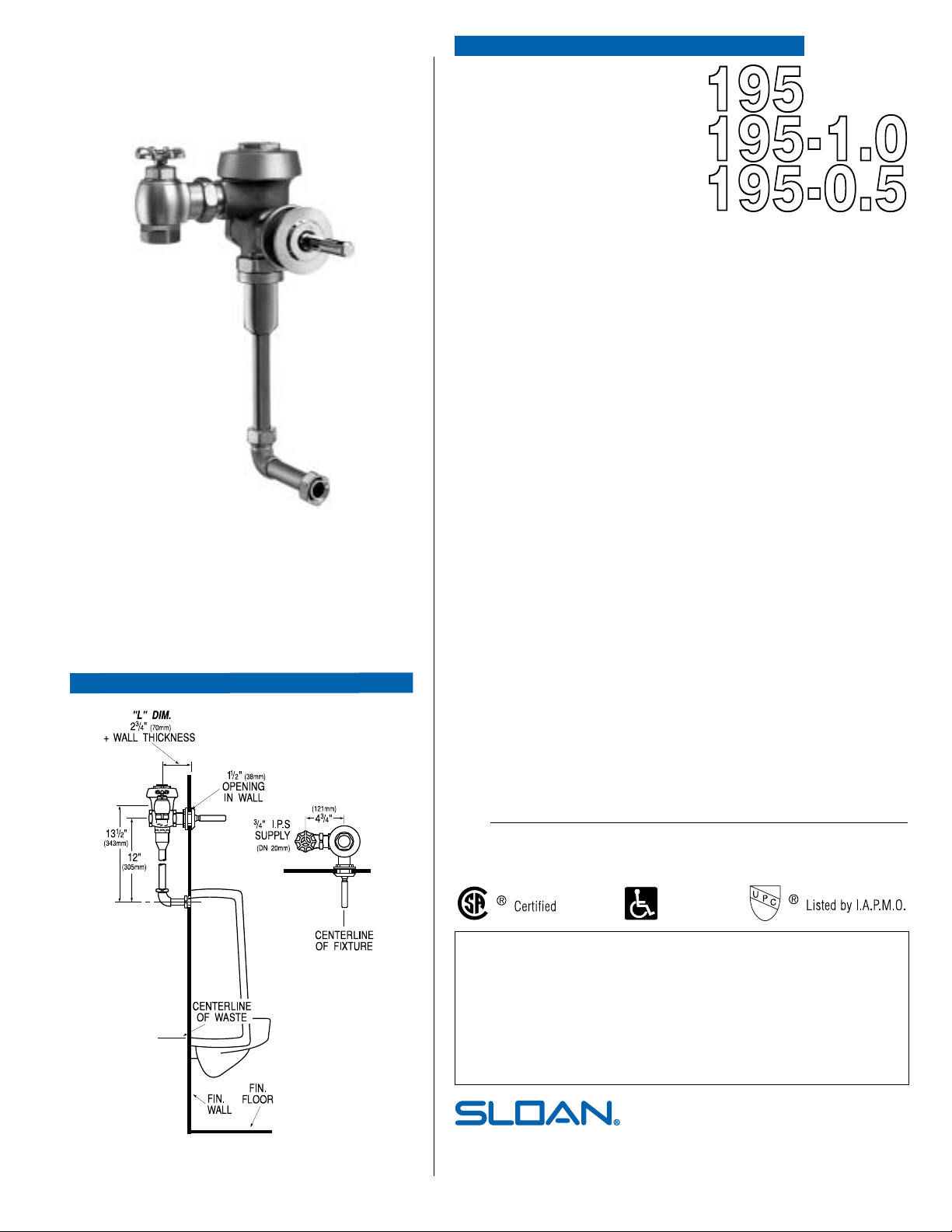

L Dimension
Specify the “L” Dimension for the proper length of the Handle Assembly
and Flush Connection. The “L” Dimension is equal to the Wall Thickness
(to the nearest whole inch) plus 2¾” (70 mm).
Variations
! L-3 3” Metal Oscillating Push Button (does not meet ADA
requirements)
! WB For installation with Sloan Easy Access
®
Wall Box
See Accessories Section of the Sloan catalog for details on these and
other Flushometer variations.
