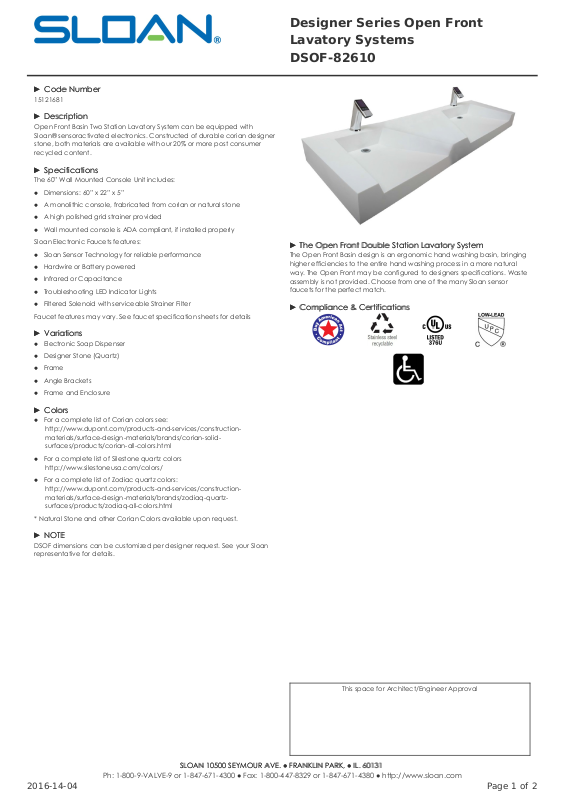

Page 1
►► Code NumberCode Number
15121681
►► DescriptionDescription
Open Front Basin Two Station Lavatory System can be equipped with
Sloan® sensoractivated electronics. Constructed of durable corian designer
stone, both materials are available with our 20% or more post consumer
recycled content.
►► SpecificationsSpecifications
The 60” Wall Mounted Console Unit includes:
● ● Dimensions: 60” x 22” x 5”
● ● A monolithic console, frabricated from corian or natural stone
● ● A high polished grid strainer provided
● ● Wall mounted console is ADA compliant, if installed properly
Sloan Electronic Faucets features:
● ● Sloan Sensor Technology for reliable performance
● ● Hardwire or Battery powered
● ● Infrared or Capacitance
● ● Troubleshooting LED Indicator Lights
● ● Filtered Solenoid with serviceable Strainer Filter
Faucet features may vary. See faucet specification sheets for details
►► VariationsVariations
● ● Electronic Soap Dispenser
● ● Designer Stone (Quartz)
● ● Frame
● ● Angle Brackets
● ● Frame and Enclosure
►► ColorsColors
● ● For a complete list of Corian colors see:
http://www.dupont.com/products-and-services/constructionmaterials/surface-design-materials/brands/corian-solidsurfaces/products/corian-all-colors.html
● ● For a complete list of Silestone quartz colors
http://www.silestoneusa.com/colors/
● ● For a complete list of Zodiac quartz colors:
http://www.dupont.com/products-and-services/constructionmaterials/surface-design-materials/brands/zodiaq-quartzsurfaces/products/zodiaq-all-colors.html
* Natural Stone and other Corian Colors available upon request.
►► NOTENOTE
DSOF dimensions can be customized per designer request. See your Sloan
representative for details.
►► The Open Front Double Station Lavatory SystemThe Open Front Double Station Lavatory System
The Open Front Basin design is an ergonomic hand washing basin, bringing
higher efficiencies to the entire hand washing process in a more natural
way. The Open Front may be configured to designers specifications. Waste
assembly is not provided. Choose from one of the many Sloan sensor
faucets for the perfect match.
►► Compliance & CertificationsCompliance & Certifications
This space for Architect/Engineer Approval
Designer Series Open Front
Lavatory Systems
DSOF-82610
2016-14-04 Page 1 of 2
SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. 60131 60131
Ph: 1-800-9-VALVE-9 or 1-847-671-4300 ● Fax: 1-800-447-8329 or 1-847-671-4380 ● http://www.sloan.com

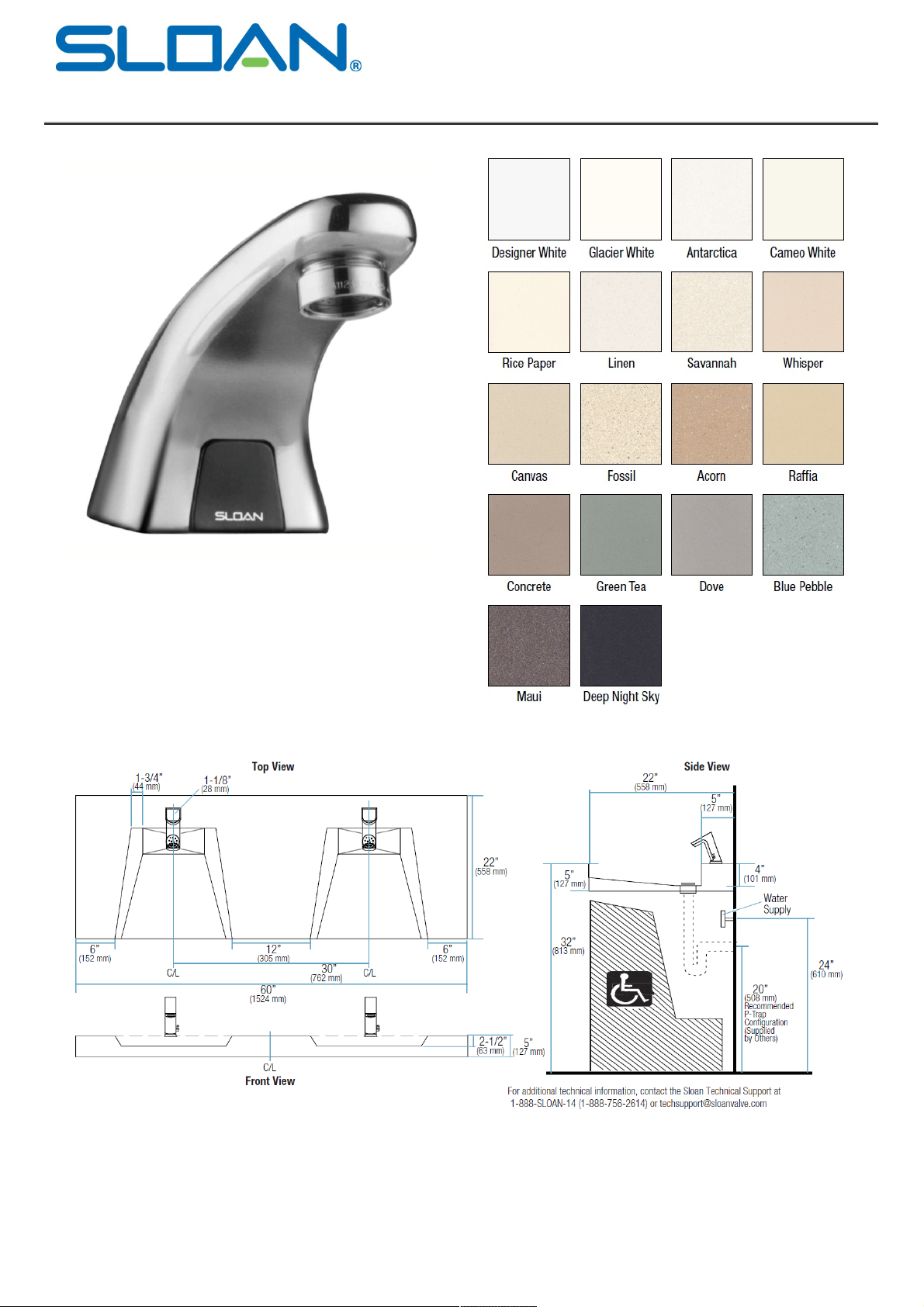

Page 2
►► FAUCET OPTIONSFAUCET OPTIONS
EBF-615
►► SINK COLORSSINK COLORS
►► ROUGH-INROUGH-IN
Designer Series Open Front
Lavatory Systems
DSOF-82610
2016-14-04 Page 2 of 2
SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. 60131 60131
Ph: 1-800-9-VALVE-9 or 1-847-671-4300 ● Fax: 1-800-447-8329 or 1-847-671-4380 ● http://www.sloan.com
