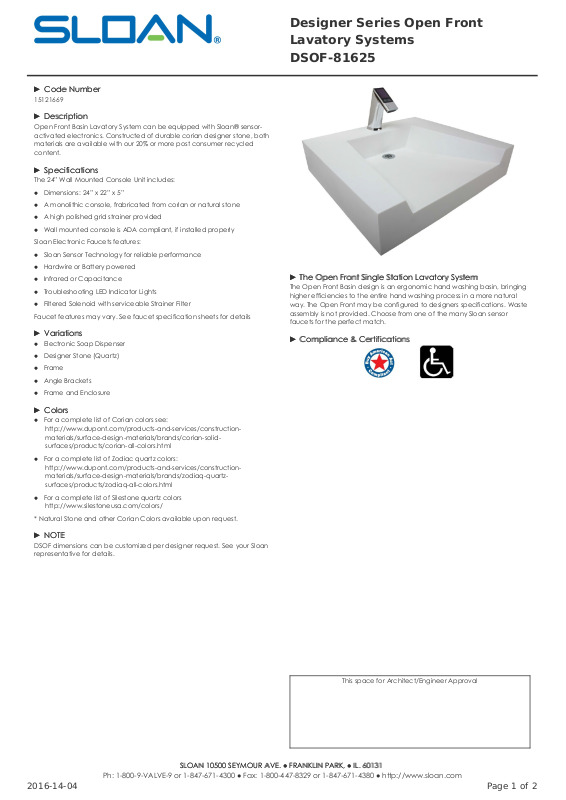

Page 1
►► Code NumberCode Number
15121669
►► DescriptionDescription
Open Front Basin Lavatory System can be equipped with Sloan® sensoractivated electronics. Constructed of durable corian designer stone, both
materials are available with our 20% or more post consumer recycled
content.
►► SpecificationsSpecifications
The 24” Wall Mounted Console Unit includes:
● ● Dimensions: 24” x 22” x 5”
● ● A monolithic console, frabricated from corian or natural stone
● ● A high polished grid strainer provided
● ● Wall mounted console is ADA compliant, if installed properly
Sloan Electronic Faucets features:
● ● Sloan Sensor Technology for reliable performance
● ● Hardwire or Battery powered
● ● Infrared or Capacitance
● ● Troubleshooting LED Indicator Lights
● ● Filtered Solenoid with serviceable Strainer Filter
Faucet features may vary. See faucet specification sheets for details
►► VariationsVariations
● ● Electronic Soap Dispenser
● ● Designer Stone (Quartz)
● ● Frame
● ● Angle Brackets
● ● Frame and Enclosure
►► ColorsColors
● ● For a complete list of Corian colors see:
http://www.dupont.com/products-and-services/constructionmaterials/surface-design-materials/brands/corian-solidsurfaces/products/corian-all-colors.html
● ● For a complete list of Zodiac quartz colors:
http://www.dupont.com/products-and-services/constructionmaterials/surface-design-materials/brands/zodiaq-quartzsurfaces/products/zodiaq-all-colors.html
● ● For a complete list of Silestone quartz colors
http://www.silestoneusa.com/colors/
* Natural Stone and other Corian Colors available upon request.
►► NOTENOTE
DSOF dimensions can be customized per designer request. See your Sloan
representative for details.
►► The Open Front Single Station Lavatory SystemThe Open Front Single Station Lavatory System
The Open Front Basin design is an ergonomic hand washing basin, bringing
higher efficiencies to the entire hand washing process in a more natural
way. The Open Front may be configured to designers specifications. Waste
assembly is not provided. Choose from one of the many Sloan sensor
faucets for the perfect match.
►► Compliance & CertificationsCompliance & Certifications
This space for Architect/Engineer Approval
Designer Series Open Front
Lavatory Systems
DSOF-81625
2016-14-04 Page 1 of 2
SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. 60131 60131
Ph: 1-800-9-VALVE-9 or 1-847-671-4300 ● Fax: 1-800-447-8329 or 1-847-671-4380 ● http://www.sloan.com

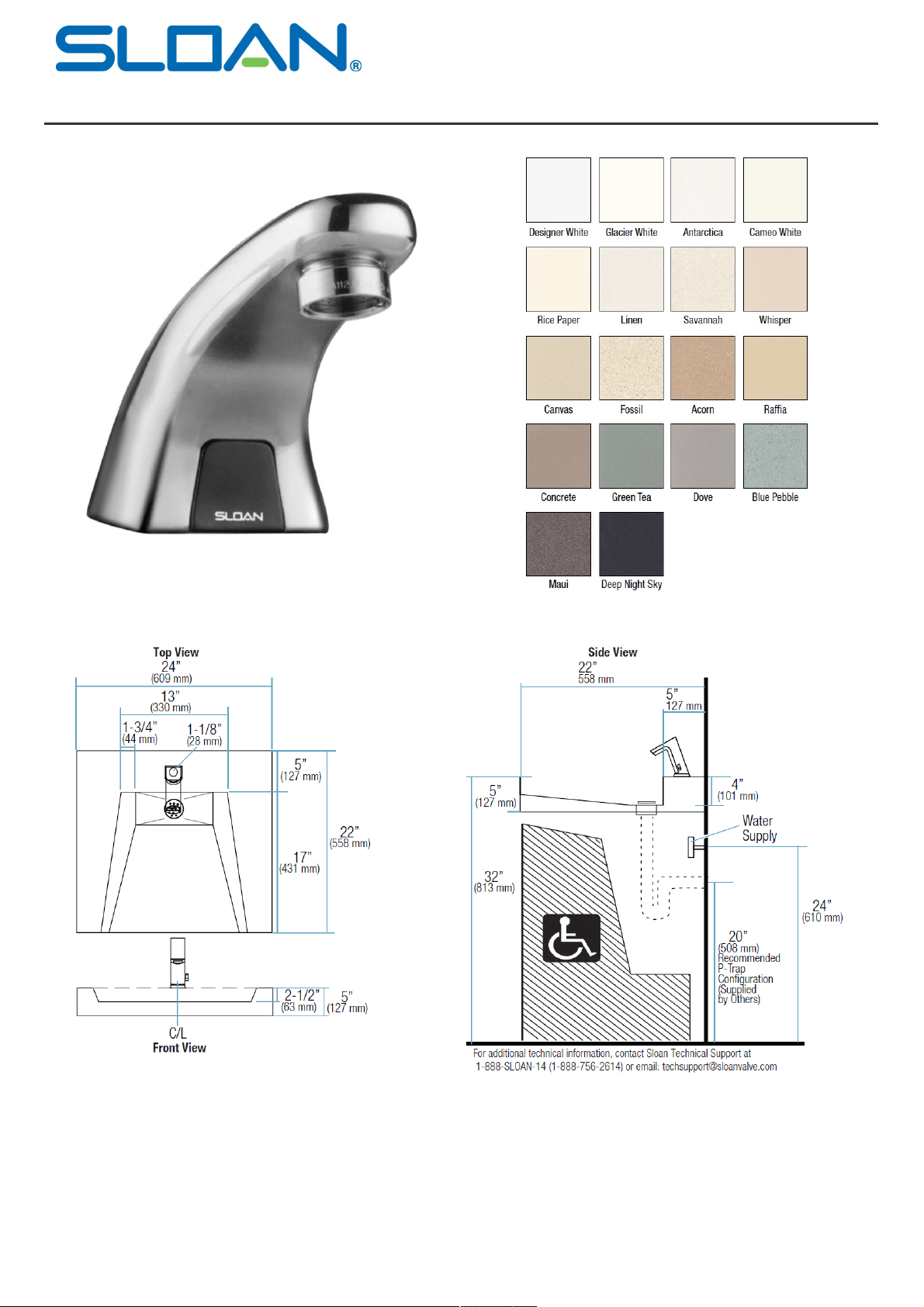

Page 2
►► FAUCET OPTIONSFAUCET OPTIONS
EBF-615
►► SINK COLORSSINK COLORS
►► ROUGH-INROUGH-IN
Designer Series Open Front
Lavatory Systems
DSOF-81625
2016-14-04 Page 2 of 2
SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. 60131 60131
Ph: 1-800-9-VALVE-9 or 1-847-671-4300 ● Fax: 1-800-447-8329 or 1-847-671-4380 ● http://www.sloan.com
