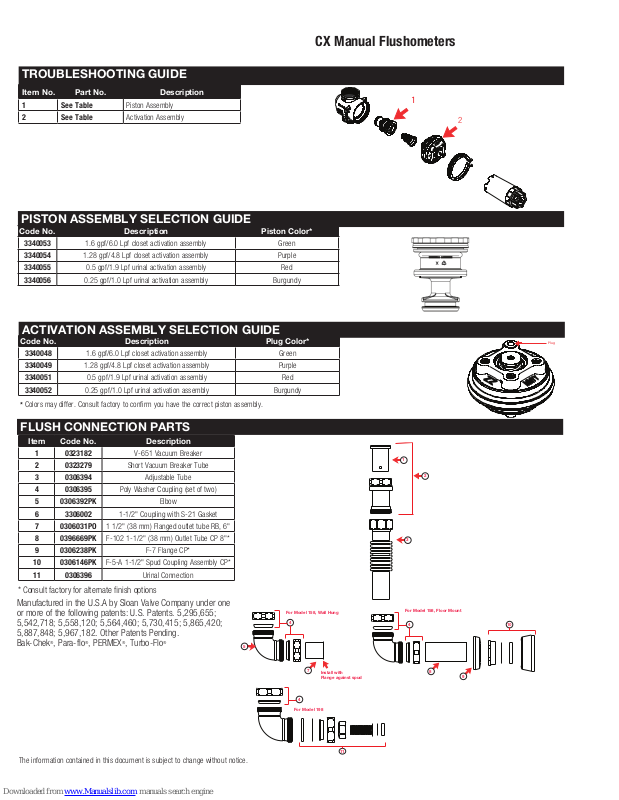

Sloan CX Troubleshooting Instructions
TROUBLESHOOTING GUIDE
1
2
Item No. Part No. Description
1 See Table Piston Assembly
2 See Table Activation Assembly
PISTON ASSEMBLY SELECTION GUIDE
Code No. Description Piston Color*
3340053 1.6 gpf/6.0 Lpf closet activation assembly Green
3340054 1.28 gpf/4.8 Lpf closet activation assembly Purple
3340055 0.5 gpf/1.9 Lpf urinal activation assembly Red
3340056 0.25 gpf/1.0 Lpf urinal activation assembly Burgundy
ACTIVATION ASSEMBLY SELECTION GUIDE
Code No. Description Plug Color*
3340048 1.6 gpf/6.0 Lpf closet activation assembly Green
3340049 1.28 gpf/4.8 Lpf closet activation assembly Purple
3340051 0.5 gpf/1.9 Lpf urinal activation assembly Red
3340052 0.25 gpf/1.0 Lpf urinal activation assembly Burgundy
* Colors may differ. Consult factory to conrm you have the correct piston assembly.
CX Manual Flushometers
Plug
FLUSH CONNECTION PARTS
Item Code No. Description
1 0323182 V-651 Vacuum Breaker
2 0323279 Short Vacuum Breaker Tube
3 0306394 Adjustable Tube
4 0306395 Poly Washer Coupling (set of two)
5 0306392PK Elbow
6 3306002 1-1/2" Coupling with S-21 Gasket
7 0306031PO 1 1/2" (38 mm) Flanged outlet tube RB, 6"
8 0396669PK F-102 1-1/2" (38 mm) Outlet Tube CP 8"*
9 0306238PK F-7 Flange CP*
10 0306146PK F-5-A 1-1/2" Spud Coupling Assembly CP*
11 0306396 Urinal Connection
* Consult factory for alternate nish options
Manufactured in the U.S.A by Sloan Valve Company under one
or more of the following patents: U.S. Patents. 5,295,655;
5,542,718; 5,558,120; 5,564,460; 5,730,415; 5,865,420;
5,887,848; 5,967,182. Other Patents Pending.
Bak-Chek
®
, Para-flo®, PERMEX®, Turbo-Flo
®
1
2
3
For Model 158, Wall Hung
4
5
7
Install with
Flange against spud
4
For Model 198
For Model 158, Floor Mount
4
8
10
9
The information contained in this document is subject to change without notice.
11
CX Manual Flushometers
TROUBLESHOOTING GUIDE
1. Flushometer does not function (no water/flush).
A. Ensure water supply to valve is turned on.
B. Shut off sleeve is in closed position. Turn counterclockwise to open water ow.
C. Plunger screw is not adjusted properly. Adjust screw using depth guide.
2. Volume of water is not sufficient to evacuate the bowl.
A. Shut off sleeve is not open wide enough. Adjust shut off sleeve for desired delivery of water volume.
B. Urinal piston parts installed in a Closet ushometer. Replace piston with proper Closet piston (1.6 gpf/6.0 Lpf or 1.28 gpf/4.8 Lpf)
C. Water supply volume or pressure is inadequate (low). If the xture does not siphon or evacuate the bowl, steps must be taken to increase the
water supply pressure and/or volume. Contact the xture manufacturer for minimum water supply requirements of the xture.
D. Plunger screw is not adjusted properly. Adjust screw using depth guide.
3. Flushometer closes off immediately.
A. Urinal piston parts installed in a Closet ushometer. Replace piston with proper Closet piston (1.6 gpf/6.0 Lpf or 1.28/4.8 Lpf).
B. Piston lip seal may be damaged or worn. Replace with new correct gpf/Lpf piston.
C. Plunger screw not set properly. Adjust screw using depth guide.
4. Length of flush is too short (Short Flush).
A. Incorrect piston is installed in Flushometer; for instance, Urinal assembly inside a Closet Flushometer,
or High Efciency assembly inside a higher consumption xture. Determine the ush volume required by the xture and replace with proper gpf/
Lpf piston. Use valve label and markings on xture for reference.
B. Piston lip seal may be damaged or worn. Replace with new correct gpf/Lpf piston.
C. Plunger screw is not adjusted properly. Adjust screw using depth guide.
5. Length of flush is too long (Long Flush) or continuous.
A. Metering bypass hole in piston is clogged. Remove the piston from the valve, slide o ring off lter, and wash under clean running water.
Reposition o-ring before reinstalling piston. Replace piston if cleaning does not correct the problem.
B. Supply line water pressure has dropped and is not sufcient to close the valve. Close shut off sleeve until pressure is restored.
D. Piston is damaged. Replace with new proper gpf/Lpf piston
E. Incorrect Piston is installed in Flushometer; for instance, Closet assembly inside a Urinal ushometer. Determine the ush volume required by the
xture and replace piston. Use valve label and markings on xture for reference.
6. Chattering noise is heard during flush.
A. Reduce ow pressure by turning shut off sleeve clockwise.
CARE AND CLEANING
DO NOT use abrasive or chemical cleaners (including chlorine bleach) to clean Flushometers that may dull the luster and attack the chrome or special
decorative nishes. Use ONLY mild soap and water, then wipe dry with clean cloth or towel. While cleaning the bathroom tile, protect the Flushometer
from any splattering of cleaner. Acids and cleaning uids will discolor or remove chrome plating.
