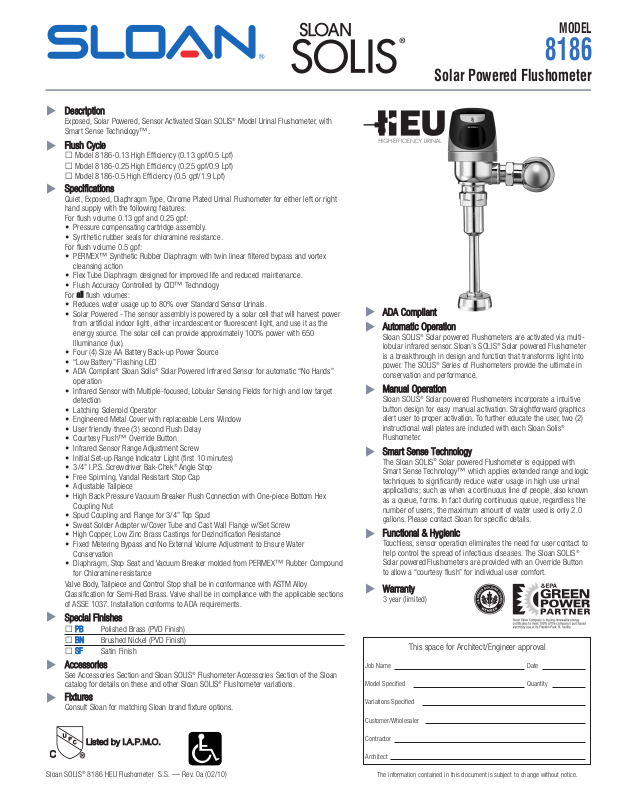

Page 1
MODEL
Solar Powered Flushometer
Description
u
Exposed, Solar Powered, Sensor Activated Sloan SOLIS®Model Urinal Flushometer, with
Smart Sense Technology™.
Flush Cycle
u
£ Model 8186-0.13 High Efficiency (0.13 gpf/0.5 Lpf)
£ Model 8186-0.25 High Efficiency (0.25 gpf/0.9 Lpf)
£ Model 8186-0.5 High Efficiency (0.5 gpf/1.9 Lpf)
Specifications
u
Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer for either left or right
hand supply with the following features:
For flush volume 0.13 gpf and 0.25 gpf:
• Pressure compensating cartridge assembly.
• Synthetic rubber seals for chloramine resistance.
For flush volume 0.5 gpf:
• PERMEX™ Synthetic Rubber Diaphragm with twin linear filtered bypass and vortex
cleansing action
• Flex Tube Diaphragm designed for improved life and reduced maintenance.
• Flush Accuracy Controlled by CID™ Technology
all
flush volumes:
For
• Reduces water usage up to 80% over Standard Sensor Urinals.
• Solar Powered - The sensor assembly is powered by a solar cell that will harvest power
from artificial indoor light, either incandescent or fluorescent light, and use it as the
energy source. The solar cell can provide approximately 100% power with 650
Illuminance (lux).
• Four (4) Size AA Battery Back-up Power Source
• “Low Battery” Flashing LED
• ADA Compliant Sloan Solis
operation
• Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target
detection
• Latching Solenoid Operator
• Engineered Metal Cover with replaceable Lens Window
• User friendly three (3) second Flush Delay
• Courtesy Flush™ Override Button
• Infrared Sensor Range Adjustment Screw
• Initial Set-up Range Indicator Light (first 10 minutes)
• 3/4” I.P.S. Screwdriver Bak-Chek
• Free Spinning, Vandal Resistant Stop Cap
• Adjustable Tailpiece
• High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex
Coupling Nut
• Spud Coupling and Flange for 3/4” Top Spud
• Sweat Solder Adapter w/Cover Tube and Cast Wall Flange w/Set Screw
• High Copper, Low Zinc Brass Castings for Dezincification Resistance
• Fixed Metering Bypass and No External Volume Adjustment to Ensure Water
Conservation
• Diaphragm, Stop Seat and Vacuum Breaker molded from PERMEX™ Rubber Compound
for Chloramine resistance
Valve Body, Tailpiece and Control Stop shall be in conformance with ASTM Alloy
Classification for Semi-Red Brass. Valve shall be in compliance with the applicable sections
of ASSE 1037. Installation conforms to ADA requirements.
Special Finishes
u
PB
£
£
£
Accessories
u
See Accessories Section and Sloan SOLIS®Flushometer Accessories Section of the Sloan
catalog for details on these and other Sloan SOLIS
Fixtures
u
Consult Sloan for matching Sloan brand fixture options.
Polished Brass (PVD Finish)
BN
Brushed Nickel (PVD Finish)
SF
Satin Finish
®
Solar Powered Infrared Sensor for automatic “No Hands”
®
Angle Stop
®
Flushometer variations.
ADA Compliant
u
Automatic Operation
u
Sloan SOLIS®Solar powered Flushometers are activated via multilobular infrared sensor. Sloan’s SOLIS
is a breakthrough in design and function that transforms light into
power. The SOLIS
conservation and performance.
Manual Operation
u
Sloan SOLIS®Solar powered Flushometers incorporate a intuitive
button design for easy manual activation. Straightforward graphics
alert user to proper activation. To further educate the user, two (2)
instructional wall plates are included with each Sloan Solis
Flushometer.
Smart Sense Technology
u
The Sloan SOLIS®Solar powered Flushometer is equipped with
Smart Sense Technology™ which applies extended range and logic
techniques to significantly reduce water usage in high use urinal
applications; such as when a continuous line of people, also known
as a queue, forms. In fact during continuous queue, regardless the
number of users, the maximum amount of water used is only 2.0
gallons. Please contact Sloan for specific details.
Functional & Hygienic
u
Touchless, sensor operation eliminates the need for user contact to
help control the spread of infectious diseases. The Sloan SOLIS
Solar powered Flushometers are provided with an Override Button
to allow a “courtesy flush” for individual user comfort.
Warranty
u
3 year (limited)
®
Series of Flushometers provide the ultimate in
®
Solar powered Flushometer
This space for Architect/Engineer approval
Job Name Date
Model Specified Quantity
Variations Specified
Customer/Wholesaler
®
®
Listed by I.A.P.M.O.
Sloan SOLIS®8186 HEU Flushometer S.S. — Rev. 0a (02/10)
Contractor
Architect
The information contained in this document is subject to change without notice.
Page 2
Description
MODEL
Solar Powered Flushometer
u
Exposed, Solar Powered, Sensor Activated Sloan SOLIS®Model Urinal Flushometer, with Smart
Sense Technology™.
Flush Cycle
u
£ Model 8186-0.13 High Efficiency (0.13 gpf/0.5 Lpf)
£ Model 8186-0.25 High Efficiency (0.25 gpf/0.9 Lpf)
£ Model 8186-0.5 High Efficiency (0.5 gpf/1.9 Lpf)
ELECTRICAL SPECIFICATIONS
Control Circuit
u
Solid State
6 VDC Input
Second Arming Delay
8
3 Second Flush Delay
Sloan Solis®Sensor Type
u
Active Infrared
Sloan Solis®Sensor Range
u
Nominal 22” - 42” (559 mm -1067 mm),
Adjustable ± 8” (203 mm)
Battery Back Up Type
u
(4) AA Alkaline
Battery Life
u
6 Years @ 4,000 Flushes/Month
Indicator Lights
u
Range Adjustment/Low Battery
Operating Pressure
u
15 - 100 psi (104 - 689 kPa)
Sentinel Flush
u
Once Every 72 Hours After the Last Flush
OPERATION
1. A continuous, invisible light
beam is emitted from the
SOLIS®Sensor.
2. As the user enters the beam’s
effective range (15” to 30”) the
beam is reflected into the
SOLIS®Scanner Window and
transformed into a low voltage
electrical circuit. Once activated,
the Output Circuit continues in a
“hold” mode for as long as the
user remains within the effective
range of the Sensor.
3. When the user steps away from
the SOLIS®Sensor, the Sensor
initiates an electrical signal that
operates the Solenoid. This
initiates the flushing cycle to
flush the fixture. The Circuit then
automatically resets and is ready
for the next user.

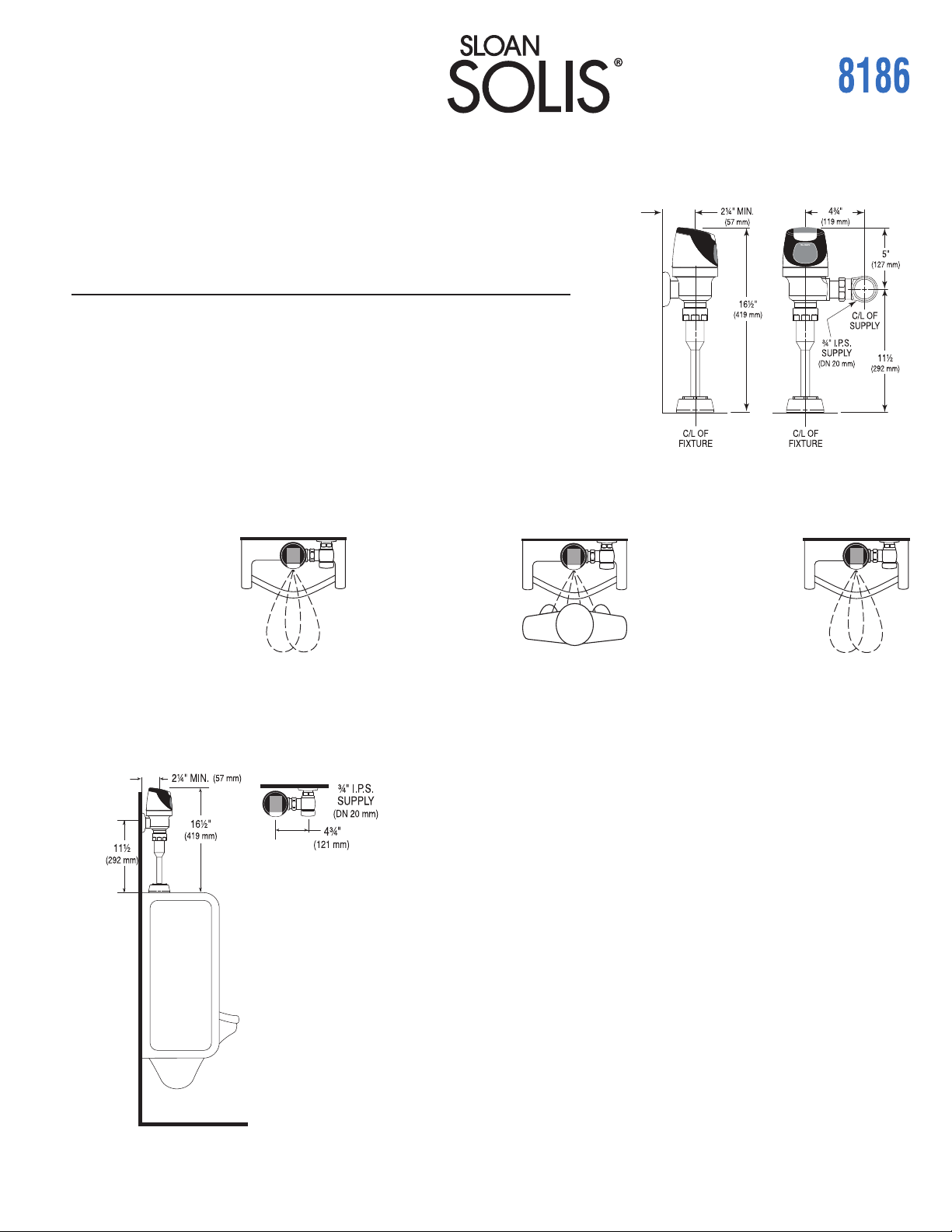

VALVE ROUGH-IN
Model 8186
Note:
Lens Deflector is not needed for
targeting children or wheel chair users.
SLOAN VALVE COMPANY • 10500 SEYMOUR AVENUE • FRANKLIN PARK, IL 60131
Phone: 1-800-982-5839 or 1-847-671-4300 • Fax: 1-800-447-8329 or 1-847-671-4380 • www.sloanvalve.com
Copyright © 2010 Sloan Valve Company Sloan SOLIS®8186 HEU Flushometer S.S. — Rev. 0a (02/10)
