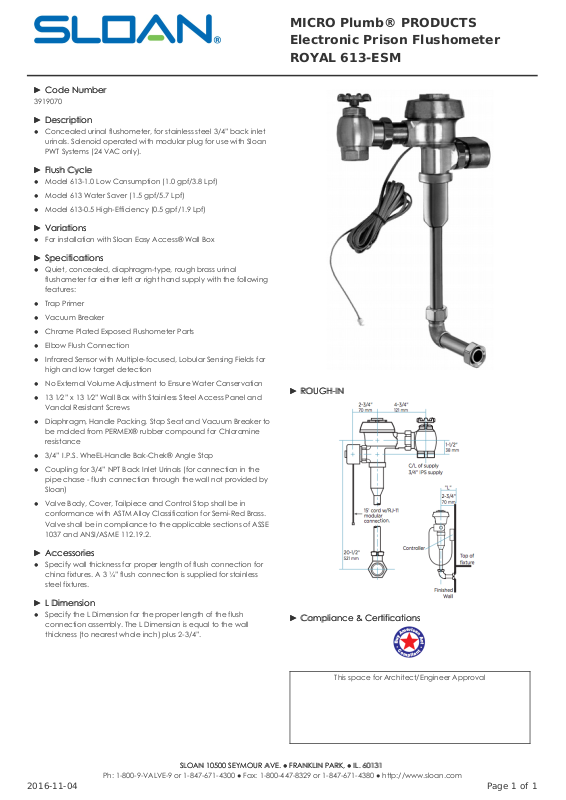

►► Code NumberCode Number

3919070

►► DescriptionDescription

● ● Concealed urinal flushometer, for stainless steel 3/4” back inlet
urinals. Solenoid operated with modular plug for use with Sloan
PWT Systems (24 VAC only).

►► Flush CycleFlush Cycle

● ● Model 613-1.0 Low Consumption (1.0 gpf/3.8 Lpf)

● ● Model 613 Water Saver (1.5 gpf/5.7 Lpf)

● ● Model 613-0.5 High-Efficiency (0.5 gpf/1.9 Lpf)

►► VariationsVariations

● ● For installation with Sloan Easy Access® Wall Box

►► SpecificationsSpecifications

● ● Quiet, concealed, diaphragm-type, rough brass urinal
flushometer for either left or right hand supply with the following
features:

● ● Trap Primer

● ● Vacuum Breaker

● ● Chrome Plated Exposed Flushometer Parts

● ● Elbow Flush Connection

● ● Infrared Sensor with Multiple-focused, Lobular Sensing Fields for
high and low target detection

● ● No External Volume Adjustment to Ensure Water Conservation

● ● 13 1⁄2” x 13 1⁄2” Wall Box with Stainless Steel Access Panel and
Vandal Resistant Screws

● ● Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker to
be molded from PERMEX® rubber compound for Chloramine
resistance

● ● 3/4” I.P.S. WheEL-Handle Bak-Chek® Angle Stop

● ● Coupling for 3/4” NPT Back Inlet Urinals (for connection in the
pipe chase - flush connection through the wall not provided by
Sloan)

● ● Valve Body, Cover, Tailpiece and Control Stop shall be in
conformance with ASTM Alloy Classification for Semi-Red Brass.
Valve shall be in compliance to the applicable sections of ASSE
1037 and ANSI/ASME 112.19.2.

►► AccessoriesAccessories

● ● Specify wall thickness for proper length of flush connection for
china fixtures. A 3 ¼” flush connection is supplied for stainless
steel fixtures.

►► L DimensionL Dimension

● ● Specify the L Dimension for the proper length of the flush
connection assembly. The L Dimension is equal to the wall
thickness (to nearest whole inch) plus 2-3/4”.

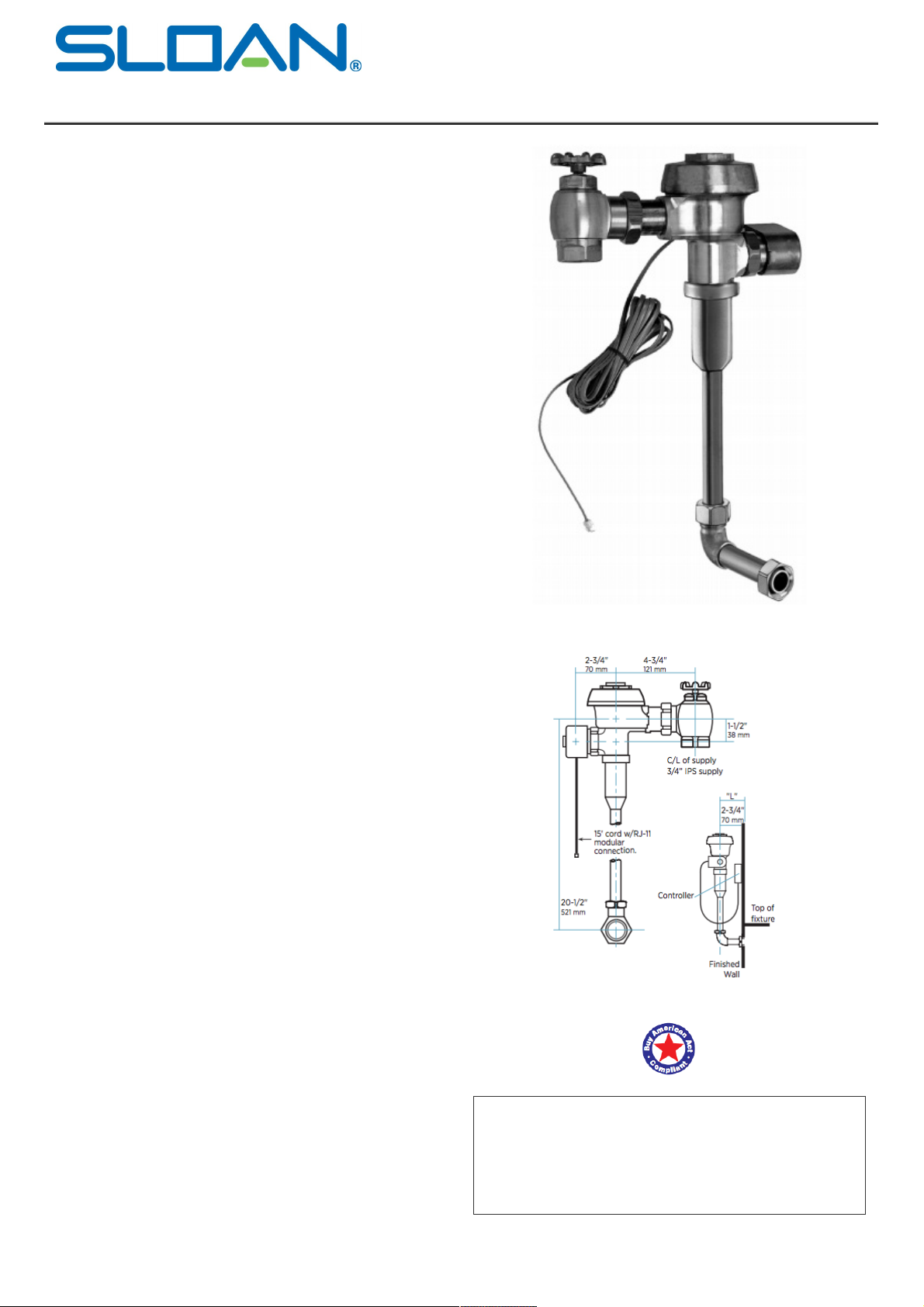

►► ROUGH-INROUGH-IN

►► Compliance & CertificationsCompliance & Certifications

This space for Architect/Engineer Approval

MICRO Plumb® PRODUCTS
Electronic Prison Flushometer
ROYAL 613-ESM

2016-11-04 Page 1 of 1
