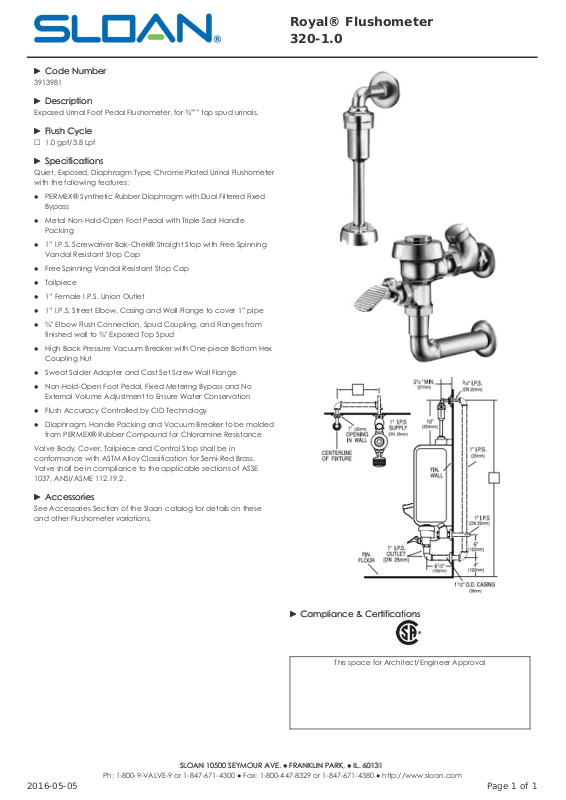

Sloan 320-1.0 User Manual

►► Code NumberCode Number

3913981

►► DescriptionDescription

Exposed Urinal Foot Pedal Flushometer, for ¾""” top spud urinals.

►► Flush CycleFlush Cycle

☐ 1.0 gpf/3.8 Lpf

►► SpecificationsSpecifications

Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer
with the following features:

● ● PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed
Bypass

● ● Metal Non-Hold-Open Foot Pedal with Triple Seal Handle
Packing

● ● 1” I.P.S. Screwdriver Bak-Chek® Straight Stop with Free Spinning
Vandal Resistant Stop Cap

● ● Free Spinning Vandal Resistant Stop Cap

● ● Tailpiece

● ● 1” Female I.P.S. Union Outlet

● ● 1” I.P.S. Street Elbow, Casing and Wall Flange to cover 1” pipe

● ● ¾" Elbow Flush Connection, Spud Coupling, and Flanges from
finished wall to ¾" Exposed Top Spud

● ● High Back Pressure Vacuum Breaker with One-piece Bottom Hex
Coupling Nut

● ● Sweat Solder Adapter and Cast Set Screw Wall Flange

● ● Non-Hold-Open Foot Pedal, Fixed Metering Bypass and No
External Volume Adjustment to Ensure Water Conservation

● ● Flush Accuracy Controlled by CID Technology

● ● Diaphragm, Handle Packing and Vacuum Breaker to be molded
from PERMEX® Rubber Compound for Chloramine Resistance

Valve Body, Cover, Tailpiece and Control Stop shall be in
conformance with ASTM Alloy Classification for Semi-Red Brass.
Valve shall be in compliance to the applicable sections of ASSE
1037, ANSI/ASME 112.19.2.

►► AccessoriesAccessories

See Accessories Section of the Sloan catalog for details on these
and other Flushometer variations.

►► Compliance & CertificationsCompliance & Certifications

This space for Architect/Engineer Approval

Royal® Flushometer
320-1.0

2016-05-05 Page 1 of 1
