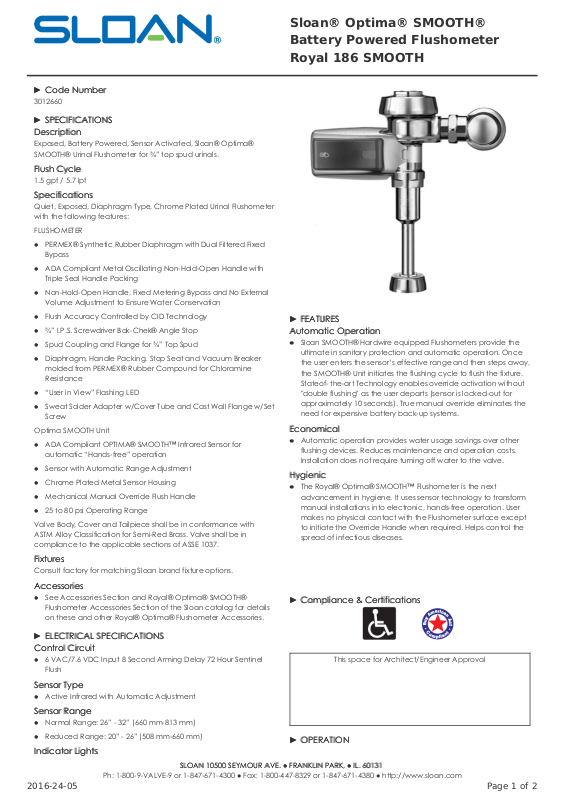

Sloan 186 User Manual

►► Code NumberCode Number

3012660

►► SPECIFICATIONSSPECIFICATIONS

DescriptionDescription

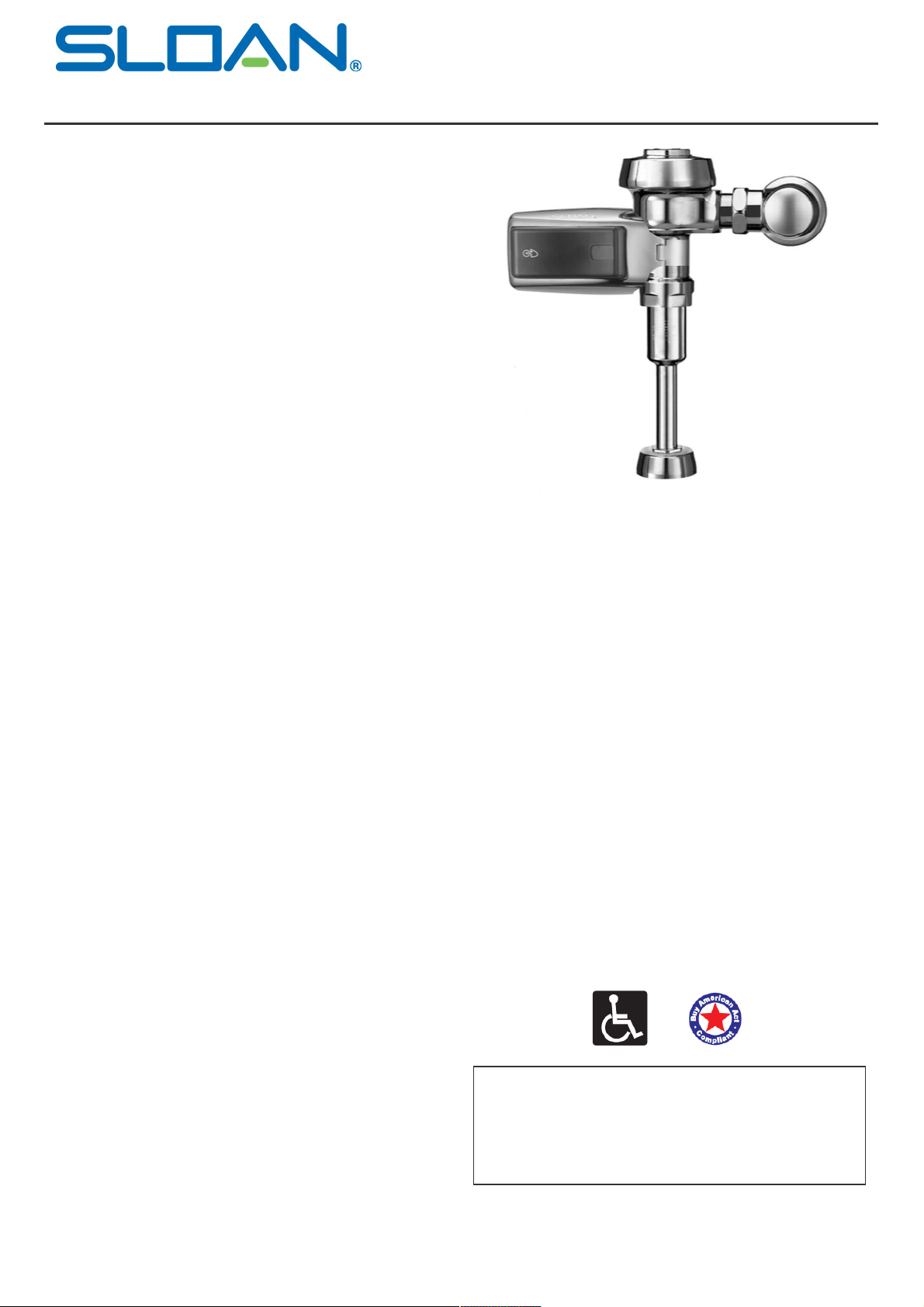

Exposed, Battery Powered, Sensor Activated, Sloan® Optima®
SMOOTH® Urinal Flushometer for ¾” top spud urinals.

Flush CycleFlush Cycle

1.5 gpf / 5.7 lpf

SpecificationsSpecifications

Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer
with the following features:

FLUSHOMETER

● ● PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed
Bypass

● ● ADA Compliant Metal Oscillating Non-Hold-Open Handle with
Triple Seal Handle Packing

● ● Non-Hold-Open Handle, Fixed Metering Bypass and No External
Volume Adjustment to Ensure Water Conservation

● ● Flush Accuracy Controlled by CID Technology

● ● ¾” I.P.S. Screwdriver Bak-Chek® Angle Stop

● ● Spud Coupling and Flange for ¾” Top Spud

● ● Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker
molded from PERMEX® Rubber Compound for Chloramine
Resistance

● ● “User in View” Flashing LED

● ● Sweat Solder Adapter w/Cover Tube and Cast Wall Flange w/Set
Screw

Optima SMOOTH Unit

● ● ADA Compliant OPTIMA® SMOOTH™ Infrared Sensor for
automatic “Hands-free” operation

● ● Sensor with Automatic Range Adjustment

● ● Chrome Plated Metal Sensor Housing

● ● Mechanical Manual Override Flush Handle

● ● 25 to 80 psi Operating Range

Valve Body, Cover and Tailpiece shall be in conformance with
ASTM Alloy Classification for Semi-Red Brass. Valve shall be in
compliance to the applicable sections of ASSE 1037.

FixturesFixtures

Consult factory for matching Sloan brand fixture options.

AccessoriesAccessories

● ● See Accessories Section and Royal® Optima® SMOOTH®
Flushometer Accessories Section of the Sloan catalog for details
on these and other Royal® Optima® Flushometer Accessories.

►► ELECTRICAL SPECIFICATIONSELECTRICAL SPECIFICATIONS

Control CircuitControl Circuit

● ● 6 VAC/7.6 VDC Input 8 Second Arming Delay 72 Hour Sentinel
Flush

Sensor TypeSensor Type

● ● Active Infrared with Automatic Adjustment

Sensor RangeSensor Range

● ● Normal Range: 26” - 32” (660 mm-813 mm)

● ● Reduced Range: 20” - 26” (508 mm-660 mm)

Indicator LightsIndicator Lights

►► FEATURESFEATURES

Automatic OperationAutomatic Operation

● ● Sloan SMOOTH® Hardwire equipped Flushometers provide the
ultimate in sanitary protection and automatic operation. Once
the user enters the sensor’s effective range and then steps away,
the SMOOTH® Unit initiates the flushing cycle to flush the fixture.
Stateof- the-art Technology enables override activation without
"double flushing" as the user departs (sensor is locked-out for
approximately 10 seconds). True manual override eliminates the
need for expensive battery back-up systems.

EconomicalEconomical

● ● Automatic operation provides water usage savings over other
flushing devices. Reduces maintenance and operation costs.
Installation does not require turning off water to the valve.

HygienicHygienic

● ● The Royal® Optima® SMOOTH™ Flushometer is the next
advancement in hygiene. It uses sensor technology to transform
manual installations into electronic, hands-free operation. User
makes no physical contact with the Flushometer surface except
to initiate the Override Handle when required. Helps control the
spread of infectious diseases.

►► Compliance & CertificationsCompliance & Certifications

This space for Architect/Engineer Approval

►► OPERATIONOPERATION

Sloan® Optima® SMOOTH®
Battery Powered Flushometer
Royal 186 SMOOTH

2016-24-05 Page 1 of 2

SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. 60131 60131

Ph: 1-800-9-VALVE-9 or 1-847-671-4300 ● Fax: [phone] or 1-847-671-4380 ● http://www.sloan.com

● ● User in View

Operating PressureOperating Pressure

● ● 25-80 psi (172-552 kPa)

1. A continuous, invisible light beam is emitted from the
SMOOTH™ unit’s Infrared Sensor.

2. When the user enters the sensor's effective range, the Red

LED light in the sensor window flashes for eight seconds. After

eight seconds of sensing the user, the light will stop flashing

and the unit waits for the user to step away before initiating a

flush cycle.

3. When the user steps away, the unit initiates a flush cycle. The
unit then automatically resets and is ready for the next user.

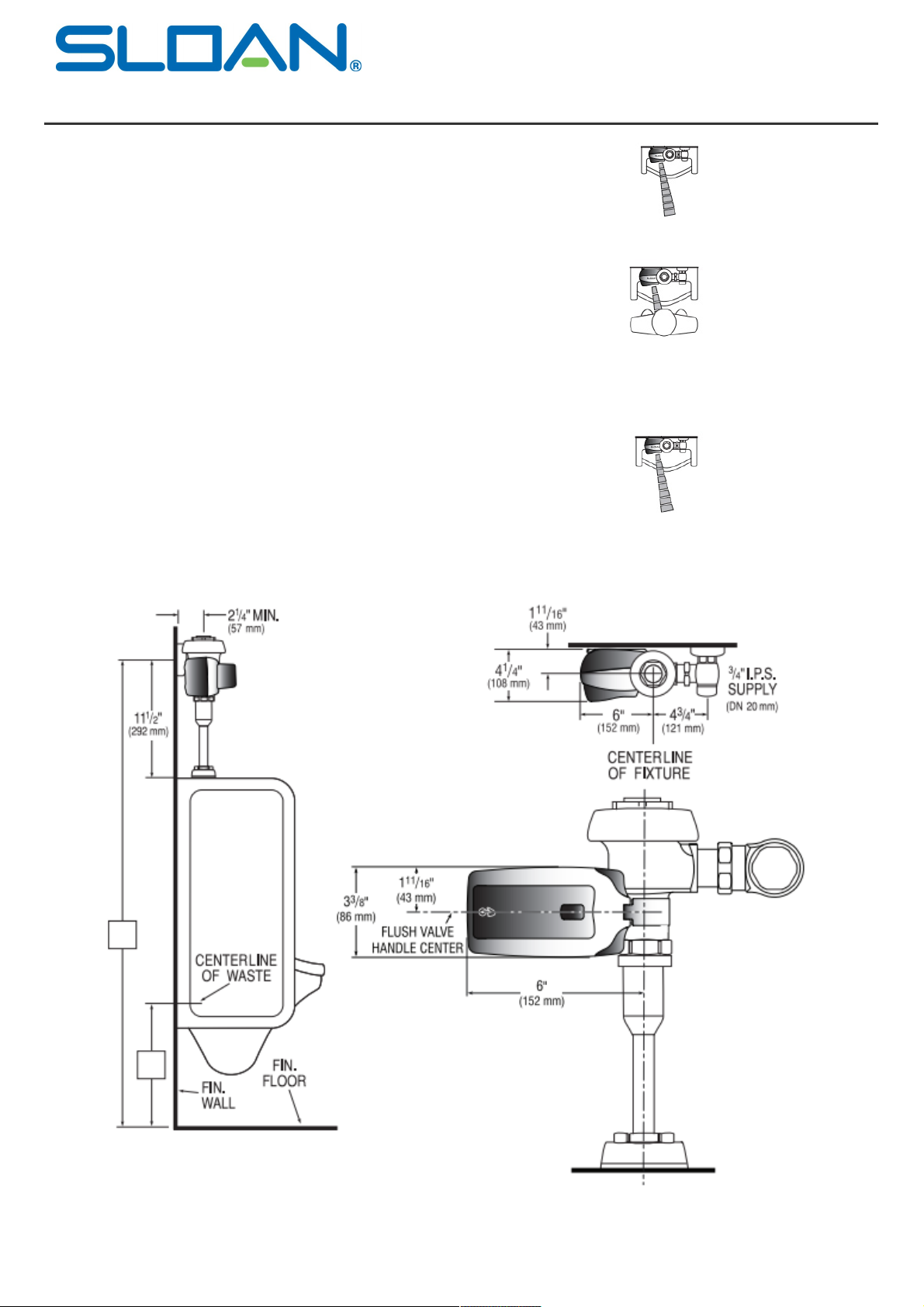

►► ROUGH-INROUGH-IN
