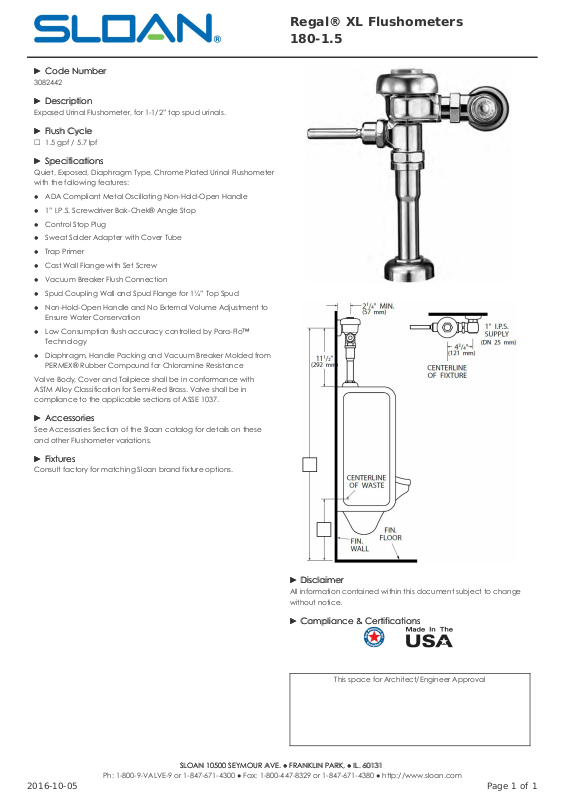

Sloan 180-1.5 User Manual

►► Code NumberCode Number

3082442

►► DescriptionDescription

Exposed Urinal Flushometer, for 1-1/2” top spud urinals.

►► Flush CycleFlush Cycle

☐ 1.5 gpf / 5.7 lpf

►► SpecificationsSpecifications

Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer
with the following features:

● ● ADA Compliant Metal Oscillating Non-Hold-Open Handle

● ● 1” I.P.S. Screwdriver Bak-Chek® Angle Stop

● ● Control Stop Plug

● ● Sweat Solder Adapter with Cover Tube

● ● Trap Primer

● ● Cast Wall Flange with Set Screw

● ● Vacuum Breaker Flush Connection

● ● Spud Coupling Wall and Spud Flange for 1¼” Top Spud

● ● Non-Hold-Open Handle and No External Volume Adjustment to
Ensure Water Conservation

● ● Low Consumption flush accuracy controlled by Para-Flo™
Technology

● ● Diaphragm, Handle Packing and Vacuum Breaker Molded from
PERMEX® Rubber Compound for Chloramine Resistance

Valve Body, Cover and Tailpiece shall be in conformance with
ASTM Alloy Classification for Semi-Red Brass. Valve shall be in
compliance to the applicable sections of ASSE 1037.

►► AccessoriesAccessories

See Accessories Section of the Sloan catalog for details on these
and other Flushometer variations.

►► FixturesFixtures

Consult factory for matching Sloan brand fixture options.

►► DisclaimerDisclaimer

All information contained within this document subject to change
without notice.

►► Compliance & CertificationsCompliance & Certifications

This space for Architect/Engineer Approval

Regal® XL Flushometers
180-1.5

2016-10-05 Page 1 of 1

SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. 60131 60131

Ph: 1-800-9-VALVE-9 or 1-847-671-4300 ● Fax: [phone] or 1-847-671-4380 ● http://www.sloan.com
