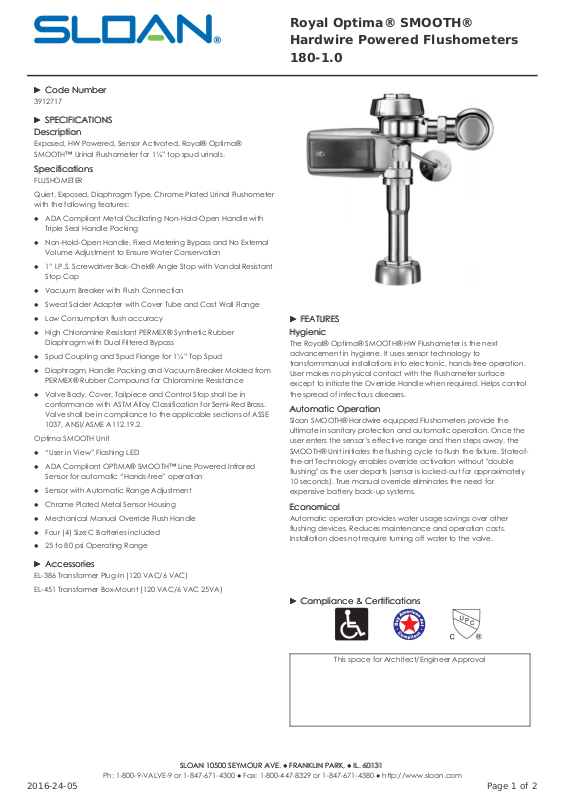

Page 1
►► Code NumberCode Number
3912717
►► SPECIFICATIONSSPECIFICATIONS
DescriptionDescription

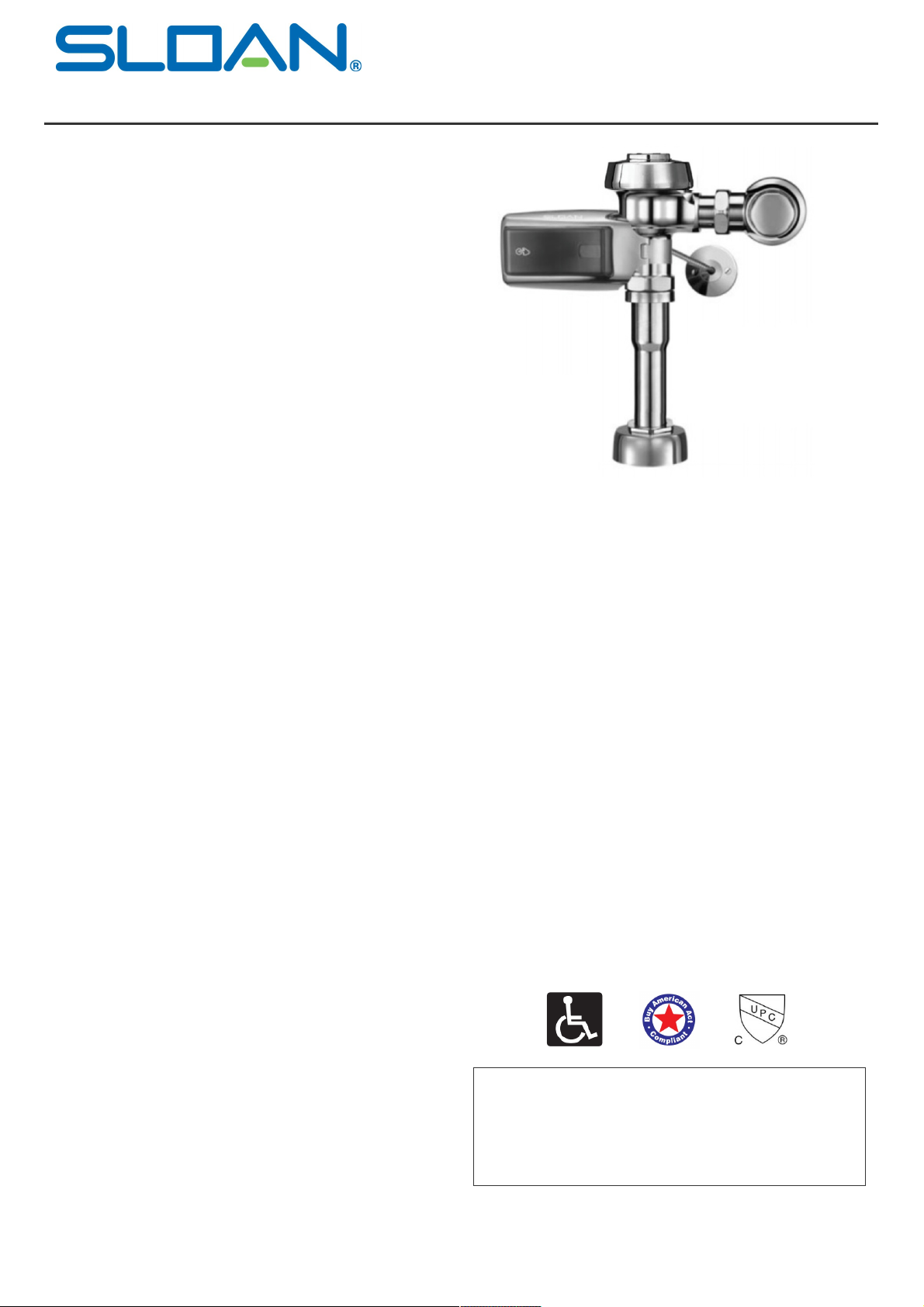

Exposed, HW Powered, Sensor Activated, Royal® Optima®
SMOOTH™ Urinal Flushometer for 1¼” top spud urinals.
SpecificationsSpecifications
FLUSHOMETER
Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer
with the following features:
● ● ADA Compliant Metal Oscillating Non-Hold-Open Handle with
Triple Seal Handle Packing
● ● Non-Hold-Open Handle, Fixed Metering Bypass and No External
Volume Adjustment to Ensure Water Conservation
● ● 1” I.P.S. Screwdriver Bak-Chek® Angle Stop with Vandal Resistant
Stop Cap
● ● Vacuum Breaker with Flush Connection
● ● Sweat Solder Adapter with Cover Tube and Cast Wall Flange
● ● Low Consumption flush accuracy
● ● High Chloramine Resistant PERMEX® Synthetic Rubber
Diaphragm with Dual Filtered Bypass
● ● Spud Coupling and Spud Flange for 1¼” Top Spud
● ● Diaphragm, Handle Packing and Vacuum Breaker Molded from
PERMEX® Rubber Compound for Chloramine Resistance
● ● Valve Body, Cover, Tailpiece and Control Stop shall be in
conformance with ASTM Alloy Classification for Semi-Red Brass.
Valve shall be in compliance to the applicable sections of ASSE
1037, ANSI/ASME A112.19.2.
Optima SMOOTH Unit
● ● “User in View” Flashing LED
● ● ADA Compliant OPTIMA® SMOOTH™ Line Powered Infrared
Sensor for automatic “Hands-free” operation
● ● Sensor with Automatic Range Adjustment
● ● Chrome Plated Metal Sensor Housing
● ● Mechanical Manual Override Flush Handle
● ● Four (4) Size C Batteries included
● ● 25 to 80 psi Operating Range
►► AccessoriesAccessories
EL-386 Transformer Plug-In (120 VAC/6 VAC)
EL-451 Transformer Box-Mount (120 VAC/6 VAC 25VA)
►► FEATURESFEATURES
HygienicHygienic
The Royal® Optima® SMOOTH® HW Flushometer is the next
advancement in hygiene. It uses sensor technology to
transformmanual installations into electronic, hands-free operation.
User makes no physical contact with the Flushometer surface
except to initiate the Override Handle when required. Helps control
the spread of infectious diseases.
Automatic OperationAutomatic Operation
Sloan SMOOTH® Hardwire equipped Flushometers provide the
ultimate in sanitary protection and automatic operation. Once the
user enters the sensor’s effective range and then steps away, the
SMOOTH® Unit initiates the flushing cycle to flush the fixture. Stateofthe-art Technology enables override activation without "double
flushing" as the user departs (sensor is locked-out for approximately
10 seconds). True manual override eliminates the need for
expensive battery back-up systems.
EconomicalEconomical
Automatic operation provides water usage savings over other
flushing devices. Reduces maintenance and operation costs.
Installation does not require turning off water to the valve.
►► Compliance & CertificationsCompliance & Certifications
This space for Architect/Engineer Approval
Royal Optima® SMOOTH®
Hardwire Powered Flushometers
180-1.0
2016-24-05 Page 1 of 2
SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. 60131 60131
Ph: 1-800-9-VALVE-9 or 1-847-671-4300 ● Fax: 1-800-447-8329 or 1-847-671-4380 ● http://www.sloan.com
Page 2
►► ELECTRICAL SPECIFICATIONSELECTRICAL SPECIFICATIONS
Control CircuitControl Circuit
● ● 6 VAC/7.6 VDC Input 8 Second Arming Delay 72 Hour Sentinel
Flush
Sensor TypeSensor Type
● ● Active Infrared with Automatic Adjustment
Sensor RangeSensor Range
● ● Normal Range: 26” - 32” (660 mm-813 mm)
● ● Reduced Range: 20” - 26” (508 mm-660 mm)
Operating PressureOperating Pressure
● ● 25-80 psi (172-552 kPa)
Indicator LightsIndicator Lights
● ● User in View
►► WIRING DIAGRAMWIRING DIAGRAM
One EL-386 Transformer serves one (1) OPTIMA Closet/Urinal
Flushometer.
One EL-451 Transformer serves up to eight (8) OPTIMA Closet/Urinal
Flushometers.

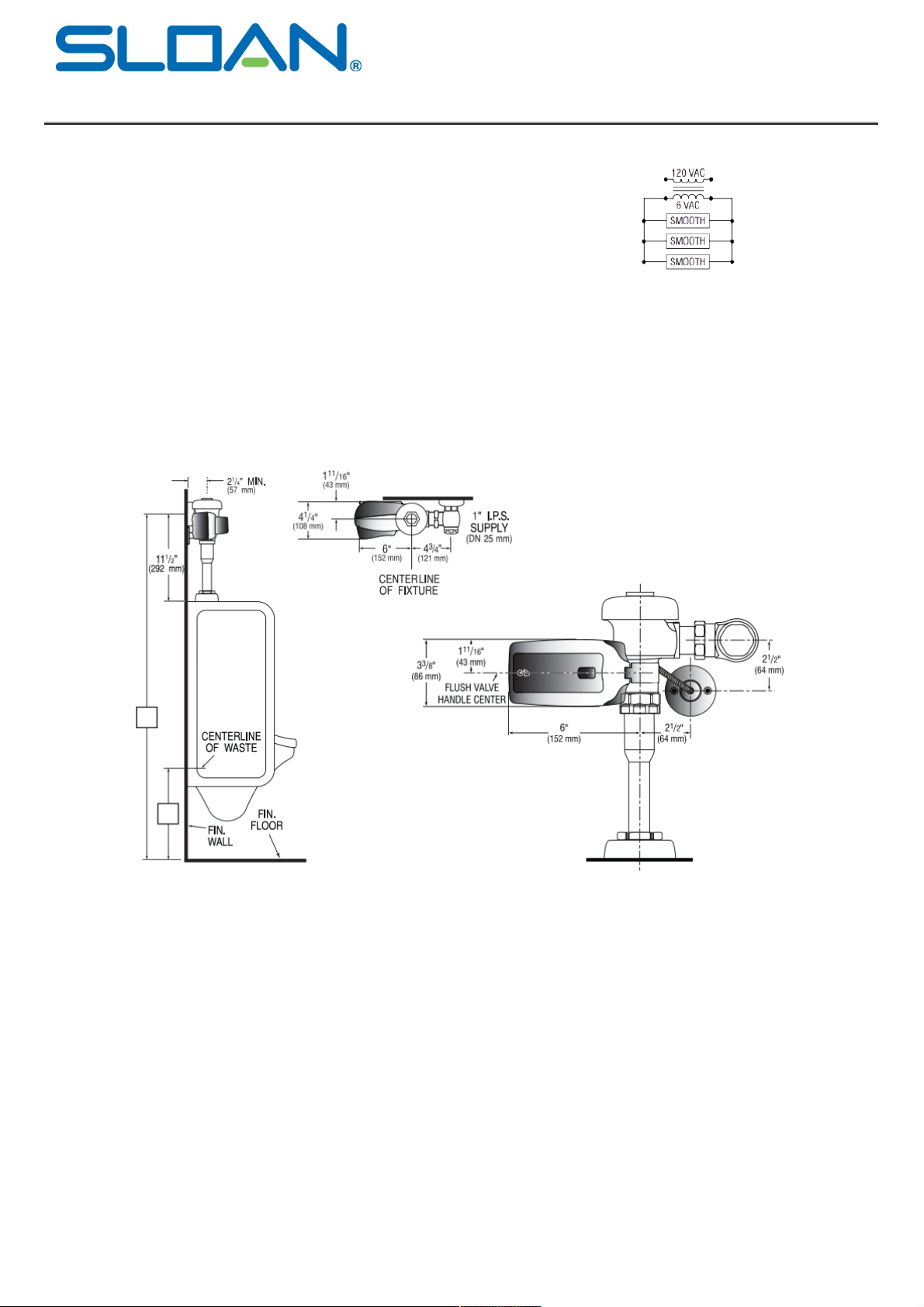

►► ROUGH-INROUGH-IN
Royal Optima® SMOOTH®
Hardwire Powered Flushometers
180-1.0
2016-24-05 Page 2 of 2
SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. 60131 60131
Ph: 1-800-9-VALVE-9 or 1-847-671-4300 ● Fax: 1-800-447-8329 or 1-847-671-4380 ● http://www.sloan.com
