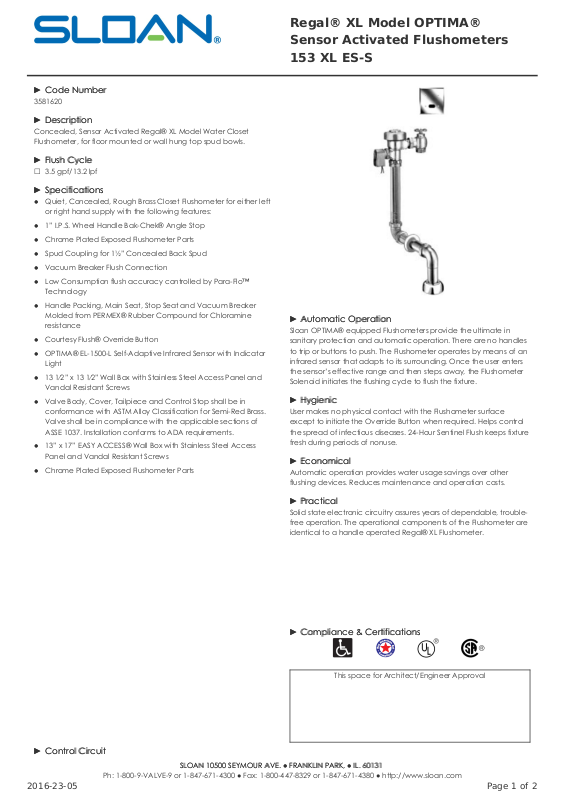

Page 1
►► Code NumberCode Number
3581620
►► DescriptionDescription

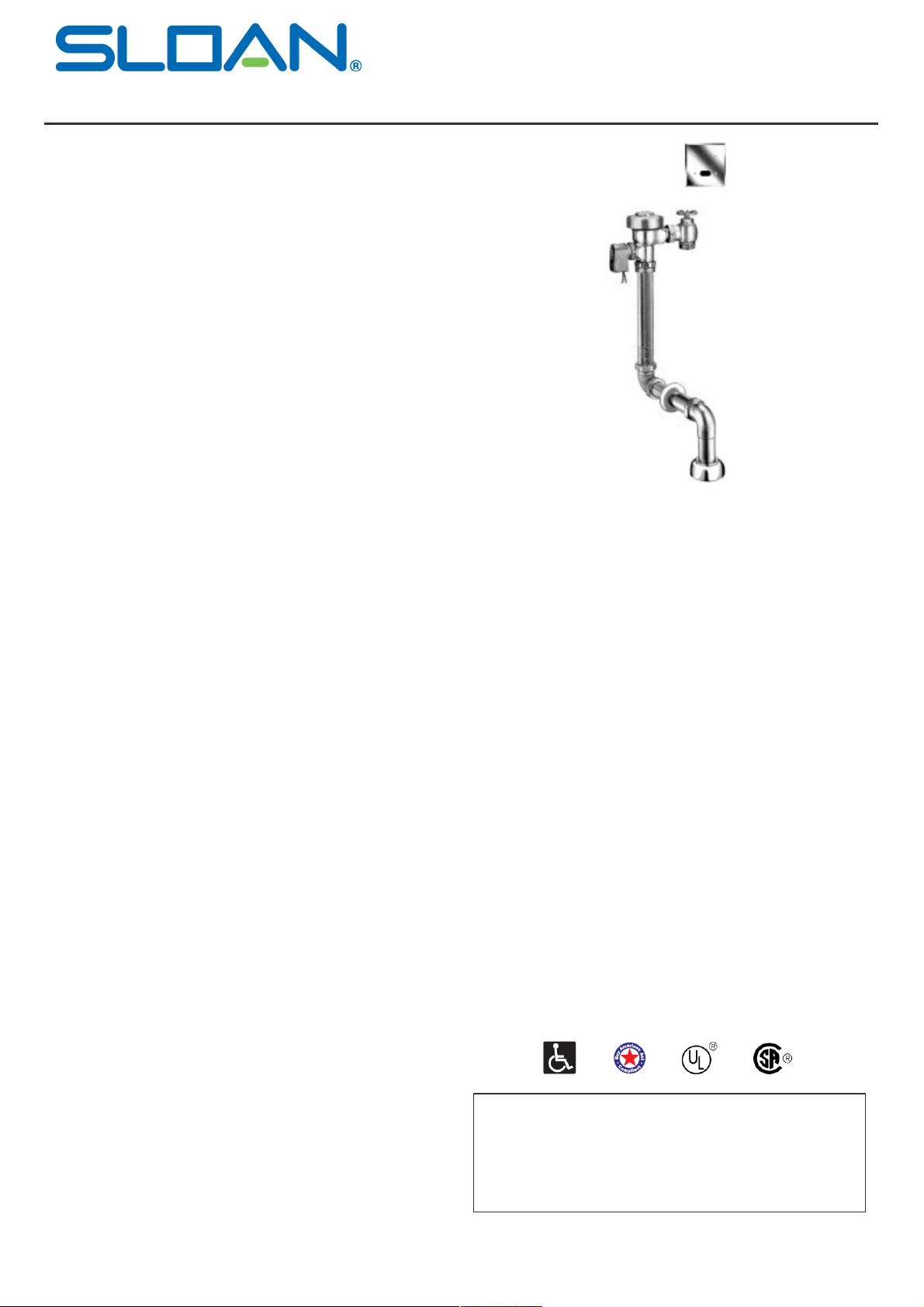

Concealed, Sensor Activated Regal® XL Model Water Closet
Flushometer, for floor mounted or wall hung top spud bowls.
►► Flush CycleFlush Cycle
☐ 3.5 gpf/13.2 lpf
►► SpecificationsSpecifications
● ● Quiet, Concealed, Rough Brass Closet Flushometer for either left
or right hand supply with the following features:
● ● 1” I.P.S. Wheel Handle Bak-Chek® Angle Stop
● ● Chrome Plated Exposed Flushometer Parts
● ● Spud Coupling for 1½” Concealed Back Spud
● ● Vacuum Breaker Flush Connection
● ● Low Consumption flush accuracy controlled by Para-Flo™
Technology
● ● Handle Packing, Main Seat, Stop Seat and Vacuum Breaker
Molded from PERMEX® Rubber Compound for Chloramine
resistance
● ● Courtesy Flush® Override Button
● ● OPTIMA® EL-1500-L Self-Adaptive Infrared Sensor with Indicator
Light
● ● 13 1⁄2” x 13 1⁄2” Wall Box with Stainless Steel Access Panel and
Vandal Resistant Screws
● ● Valve Body, Cover, Tailpiece and Control Stop shall be in
conformance with ASTM Alloy Classification for Semi-Red Brass.
Valve shall be in compliance with the applicable sections of
ASSE 1037. Installation conforms to ADA requirements.
● ● 13” x 17” EASY ACCESS® Wall Box with Stainless Steel Access
Panel and Vandal Resistant Screws
● ● Chrome Plated Exposed Flushometer Parts
►► Control CircuitControl Circuit
►► Automatic OperationAutomatic Operation
Sloan OPTIMA® equipped Flushometers provide the ultimate in
sanitary protection and automatic operation. There are no handles
to trip or buttons to push. The Flushometer operates by means of an
infrared sensor that adapts to its surrounding. Once the user enters
the sensor’s effective range and then steps away, the Flushometer
Solenoid initiates the flushing cycle to flush the fixture.
►► HygienicHygienic
User makes no physical contact with the Flushometer surface
except to initiate the Override Button when required. Helps control
the spread of infectious diseases. 24-Hour Sentinel Flush keeps fixture
fresh during periods of nonuse.
►► EconomicalEconomical
Automatic operation provides water usage savings over other
flushing devices. Reduces maintenance and operation costs.
►► PracticalPractical
Solid state electronic circuitry assures years of dependable, troublefree operation. The operational components of the Flushometer are
identical to a handle operated Regal® XL Flushometer.
►► Compliance & CertificationsCompliance & Certifications
This space for Architect/Engineer Approval
Regal® XL Model OPTIMA®
Sensor Activated Flushometers
153 XL ES-S
2016-23-05 Page 1 of 2
SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. 60131 60131
Ph: 1-800-9-VALVE-9 or 1-847-671-4300 ● Fax: 1-800-447-8329 or 1-847-671-4380 ● http://www.sloan.com
Page 2
● ● Solid State
● ● 8 Second Arming Delay
● ● 3 Second Flush Delay
● ● 24 VAC Input
● ● 24 VAC Output
● ● 24-Hour Sentinel Flush
►► Sensor RangeSensor Range
Nominal 22” - 42” (559 mm - 1067 mm) Self-adaptive Window: ± 10”
(254 mm)
►► Solenoid OperatorSolenoid Operator
24 VAC, 50/60 Hz
►► L DimensionL Dimension
Specify the “L” Dimension for the proper length of the Flush
Connection. The “L” Dimension is equal to the Wall Thickness (to
nearest whole inch) plus 2¾”. This product is designed to function in
applications where the wall thickness is greater than 2”, but less
than 10¾”. If your application is not in this range please consult your
local Sloan Representative or Sloan Technical Support.
►► OPERATIONOPERATION
1. A continuous, invisible light beam is emitted from the
OPTIMA Sensor.
2. As the user enters the beam’s effective range (22” to 42”)
the beam is reflected into the OPTIMA Scanner Window and
transformed into a low voltage electrical circuit. Once
activated, the Output Circuit continues in a “hold” mode for
as long as the user remains within the effective range of the
Sensor.
3. When the user steps away from the OPTIMA Sensor, the
circuit waits 3 seconds (to prevent false flushing) then initiates
an electrical “onetime” signal that operates the Solenoid. This
initiates the flushing cycle to flush the fixture. The Circuit then
automatically resets and is ready for the next user.

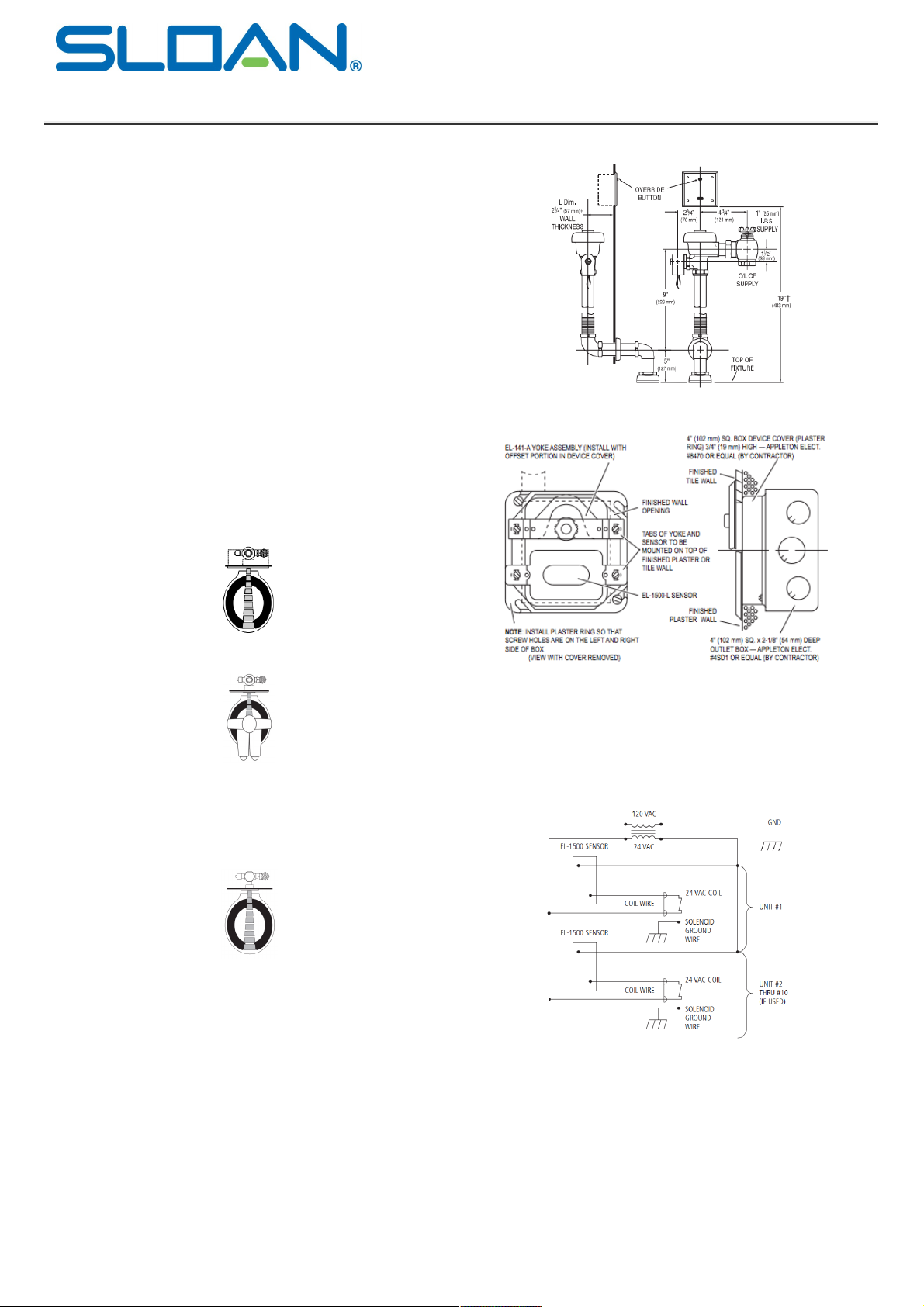

►► ROUGH-INROUGH-IN
►► ELECTRICAL BOX INSTALLATIONELECTRICAL BOX INSTALLATION
Failure to properly position the electrical boxes to the plumbing
rough-in will result in improper installation and impair product
performance. All tradesmen (plumbers, electricians, tile setters, etc.)
involved with the installation of this product must coordinate their
work to assure proper product installation. Installation Template
furnished with Flushometer.
►► WIRING DIAGRAMWIRING DIAGRAM
One Transformer serves up to ten (10) OPTIMA Closet/Urinal
Flushometers. Specify number of transformers required
accordingly.
Regal® XL Model OPTIMA®
Sensor Activated Flushometers
153 XL ES-S
2016-23-05 Page 2 of 2
SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. 60131 60131
Ph: 1-800-9-VALVE-9 or 1-847-671-4300 ● Fax: 1-800-447-8329 or 1-847-671-4380 ● http://www.sloan.com
