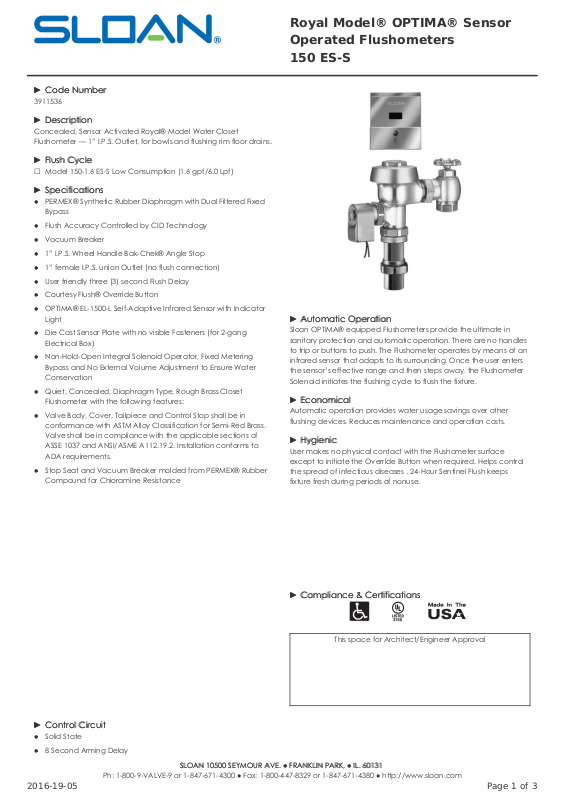

►► Code NumberCode Number
3911536
►► DescriptionDescription

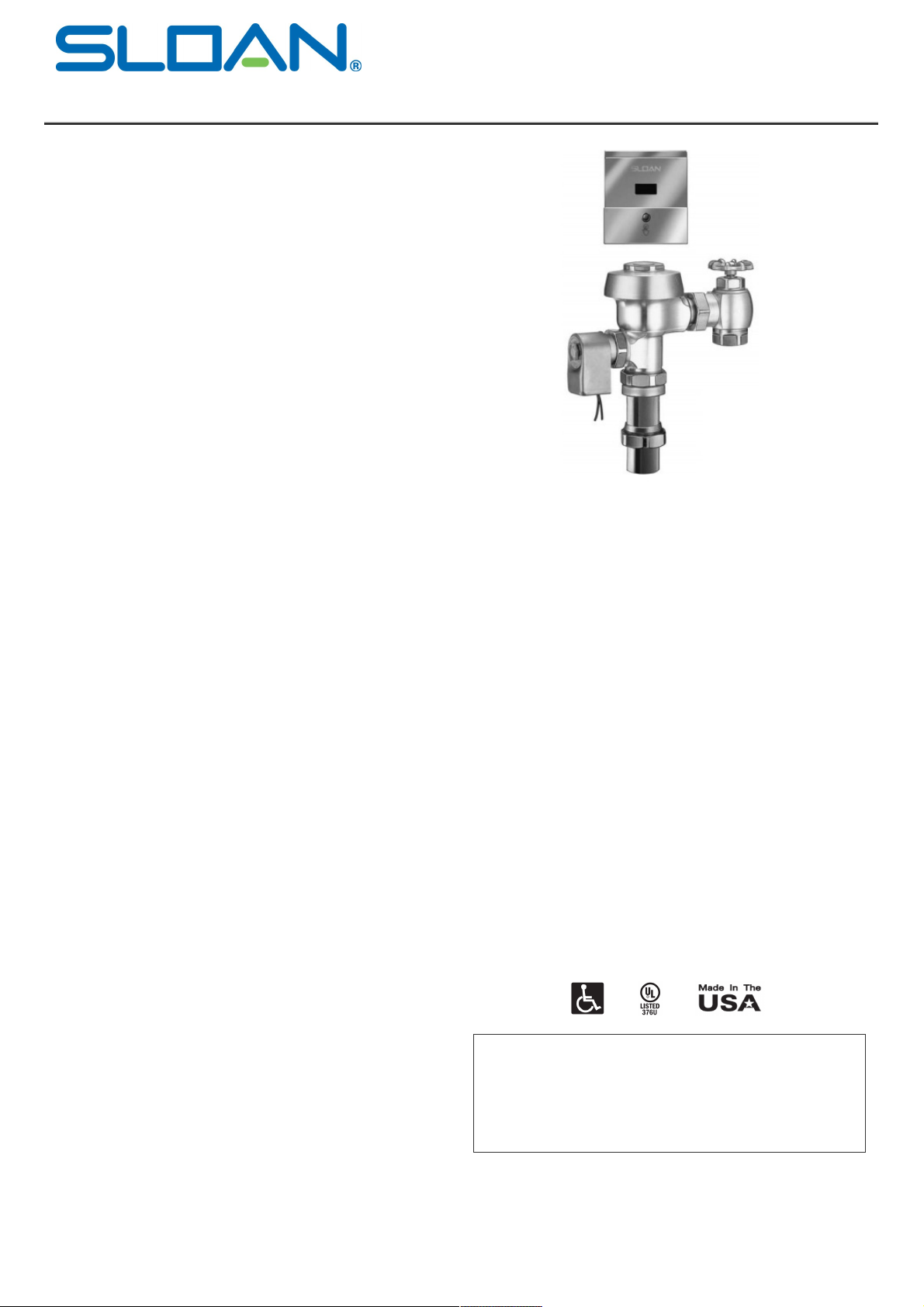

Concealed, Sensor Activated Royal® Model Water Closet
Flushometer — 1” I.P.S. Outlet, for bowls and flushing rim floor drains.
►► Flush CycleFlush Cycle
☐ Model 150-1.6 ES-S Low Consumption (1.6 gpf/6.0 Lpf)
►► SpecificationsSpecifications
● ● PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed
Bypass
● ● Flush Accuracy Controlled by CID Technology
● ● Vacuum Breaker
● ● 1” I.P.S. Wheel Handle Bak-Chek® Angle Stop
● ● 1” female I.P.S. union Outlet (no flush connection)
● ● User friendly three (3) second Flush Delay
● ● Courtesy Flush® Override Button
● ● OPTIMA® EL-1500-L Self-Adaptive Infrared Sensor with Indicator
Light
● ● Die Cast Sensor Plate with no visible Fasteners (for 2-gang
Electrical Box)
● ● Non-Hold-Open Integral Solenoid Operator, Fixed Metering
Bypass and No External Volume Adjustment to Ensure Water
Conservation
● ● Quiet, Concealed, Diaphragm Type, Rough Brass Closet
Flushometer with the following features:
● ● Valve Body, Cover, Tailpiece and Control Stop shall be in
conformance with ASTM Alloy Classification for Semi-Red Brass.
Valve shall be in compliance with the applicable sections of
ASSE 1037 and ANSI/ASME A112.19.2. Installation conforms to
ADA requirements.
● ● Stop Seat and Vacuum Breaker molded from PERMEX® Rubber
Compound for Chloramine Resistance
►► Control CircuitControl Circuit
● ● Solid State
● ● 8 Second Arming Delay
►► Automatic OperationAutomatic Operation
Sloan OPTIMA® equipped Flushometers provide the ultimate in
sanitary protection and automatic operation. There are no handles
to trip or buttons to push. The Flushometer operates by means of an
infrared sensor that adapts to its surrounding. Once the user enters
the sensor’s effective range and then steps away, the Flushometer
Solenoid initiates the flushing cycle to flush the fixture.
►► EconomicalEconomical
Automatic operation provides water usage savings over other
flushing devices. Reduces maintenance and operation costs.
►► HygienicHygienic
User makes no physical contact with the Flushometer surface
except to initiate the Override Button when required. Helps control
the spread of infectious diseases . 24-Hour Sentinel Flush keeps
fixture fresh during periods of nonuse.
►► Compliance & CertificationsCompliance & Certifications
This space for Architect/Engineer Approval
Royal Model® OPTIMA® Sensor
Operated Flushometers
150 ES-S
2016-19-05 Page 1 of 3
SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. 60131 60131
Ph: 1-800-9-VALVE-9 or 1-847-671-4300 ● Fax: 1-800-447-8329 or 1-847-671-4380 ● http://www.sloan.com
Page 2
● ● 3 Second Flush Delay
● ● 24 VAC Input
● ● 24 VAC Output
● ● 24-Hour Sentinel Flush
►► Solenoid OperatorSolenoid Operator
24 VAC, 50/60 Hz
►► Sensor RangeSensor Range
Nominal 22” - 42” (559 mm - 1067 mm) Self-adaptive Window ± 10”
(254 mm)
►► TransformersTransformers
● ● Sloan Part #EL-154 120 VAC, 50/60 Hz Primary 24 VAC, 50/60 Hz
Secondary Class II, UL Listed, 50 VA.
● ● Sloan Part #EL-342 240 VAC, 50/60 Hz Primary 24 VAC, 50/60 Hz
Secondary Class II, UL Listed, 50 VA.
►► L DimensionL Dimension
Specify the “L” Dimension for the proper length of the Flush
Connection. The “L” Dimension is equal to the Wall Thickness (to
nearest whole inch) plus 2¾”.
►► PracticalPractical
Solid state electronic circuitry assures years of dependable, troublefree operation. The operational components of the Flushometer are
identical to a handle activated Royal® Flushometer, proven by 90
years of experience.
Solid state electronic circuitry assures years of dependable, troublefree operation. Proven by more than 100 years of experience.
►► OPERATIONOPERATION
1. A continuous, invisible light beam is emitted from the
OPTIMA Sensor.
2. As the user enters the beam’s effective range (22” to 42”)
the beam is reflected into the OPTIMA Scanner Window and
transformed into a low voltage electrical circuit. Once
activated, the Output Circuit continues in a “hold” mode for
as long as the user remains within the effective range of the
Sensor.
3. When the user steps away from the OPTIMA Sensor, the
circuit waits 3 seconds (to prevent false flushing) then initiates
an electrical “onetime” signal that operates the Solenoid. This
initiates the flushing cycle to flush the fixture. The Circuit then
automatically resets and is ready for the next user.

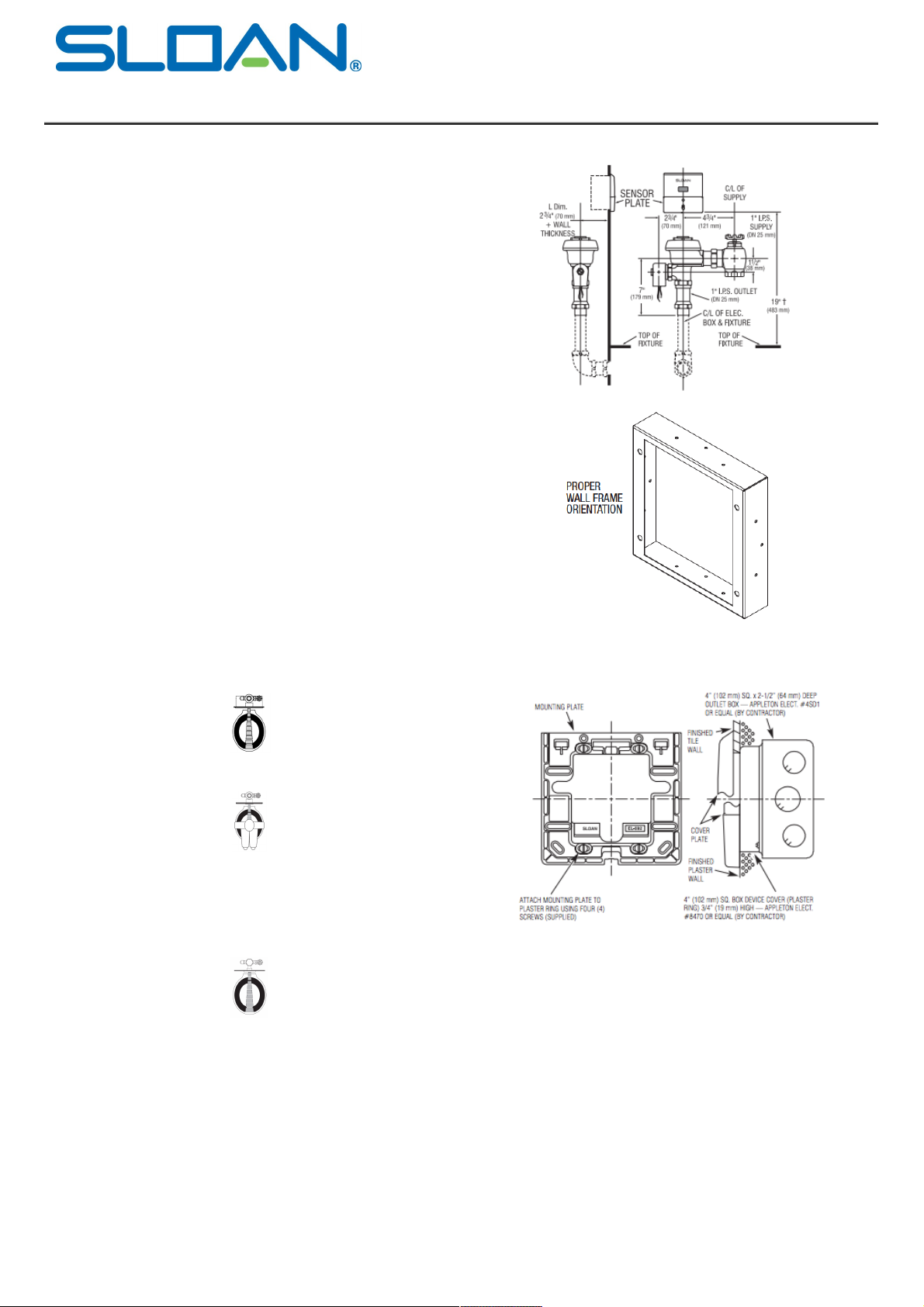

►► ROUGH-INROUGH-IN
NOTE: Flush Connection shown with dotted lines is not included.
►► ELECTRICAL BOX INSTALLATIONELECTRICAL BOX INSTALLATION
Failure to properly position the electrical boxes to the plumbing
rough-in will result in improper installation and impair product
performance. All tradesmen (plumbers, electricians, tile setters, etc.)
involved with the installation of this product must coordinate their
work to assure proper product installation. Installation Template
furnished with Flushometer.

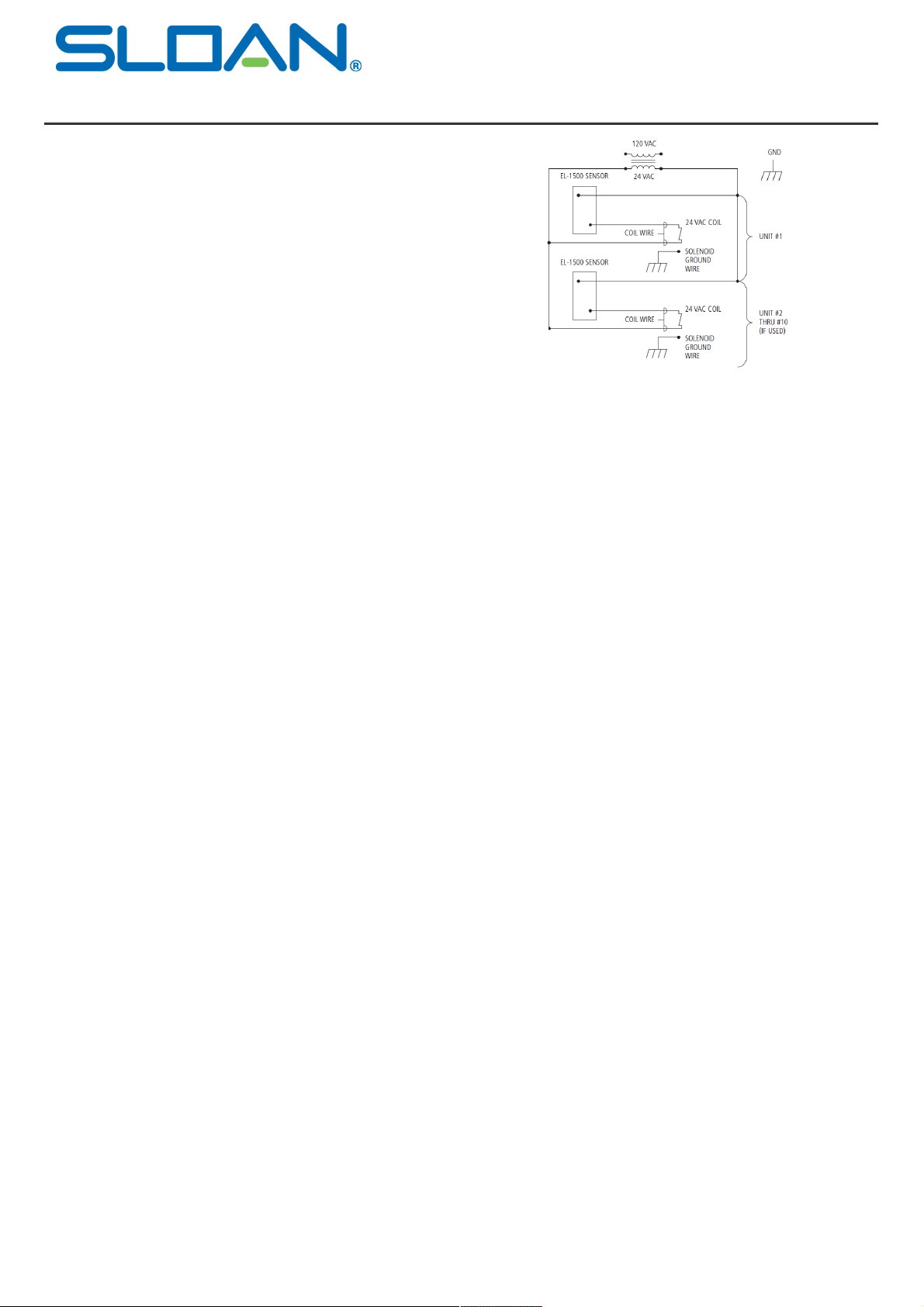

►► WIRING DIAGRAMWIRING DIAGRAM
Royal Model® OPTIMA® Sensor
Operated Flushometers
150 ES-S
2016-19-05 Page 2 of 3
SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. 60131 60131
Ph: 1-800-9-VALVE-9 or 1-847-671-4300 ● Fax: 1-800-447-8329 or 1-847-671-4380 ● http://www.sloan.com
Page 3
One Transformer serves up to ten (10) OPTIMA Closet/Urinal
Flushometers. Specify number of transformers required
accordingly.
