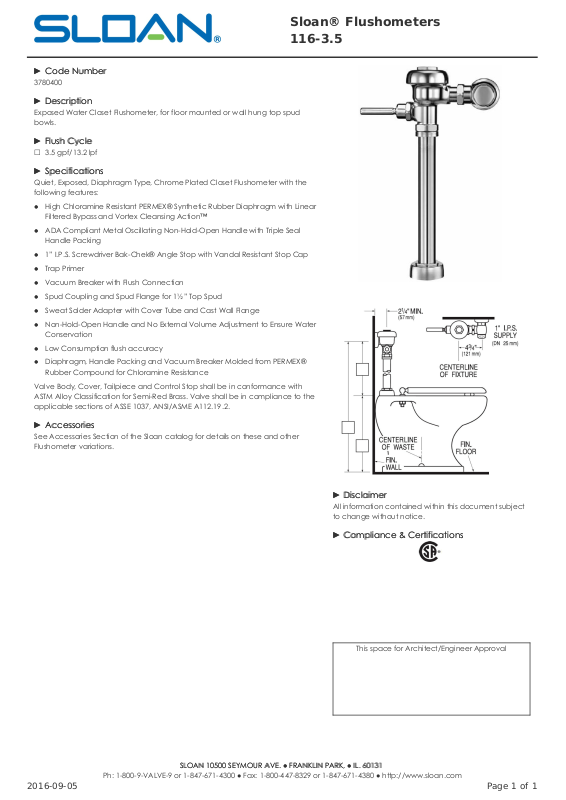

Sloan 116-3.5 User Manual

►► Code NumberCode Number

3780400

►► DescriptionDescription

Exposed Water Closet Flushometer, for floor mounted or wall hung top spud
bowls.

►► Flush CycleFlush Cycle

☐ 3.5 gpf/13.2 lpf

►► SpecificationsSpecifications

Quiet, Exposed, Diaphragm Type, Chrome Plated Closet Flushometer with the
following features:

● ● High Chloramine Resistant PERMEX® Synthetic Rubber Diaphragm with Linear
Filtered Bypass and Vortex Cleansing Action™

● ● ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal
Handle Packing

● ● 1” I.P.S. Screwdriver Bak-Chek® Angle Stop with Vandal Resistant Stop Cap

● ● Trap Primer

● ● Vacuum Breaker with Flush Connection

● ● Spud Coupling and Spud Flange for 1½” Top Spud

● ● Sweat Solder Adapter with Cover Tube and Cast Wall Flange

● ● Non-Hold-Open Handle and No External Volume Adjustment to Ensure Water
Conservation

● ● Low Consumption flush accuracy

● ● Diaphragm, Handle Packing and Vacuum Breaker Molded from PERMEX®
Rubber Compound for Chloramine Resistance

Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with
ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the
applicable sections of ASSE 1037, ANSI/ASME A112.19.2.

►► AccessoriesAccessories

See Accessories Section of the Sloan catalog for details on these and other
Flushometer variations.

►► DisclaimerDisclaimer

All information contained within this document subject
to change without notice.

►► Compliance & CertificationsCompliance & Certifications

This space for Architect/Engineer Approval

Sloan® Flushometers
116-3.5

2016-09-05 Page 1 of 1
