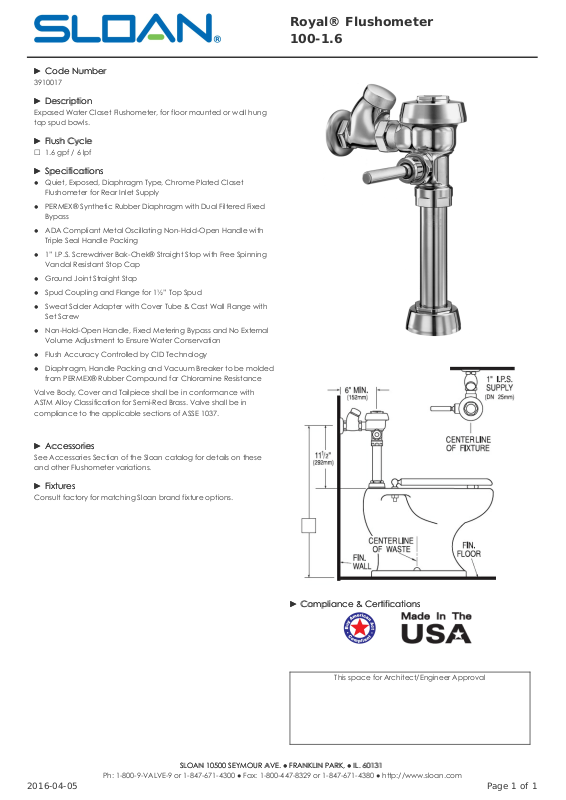

Sloan 100-1.6 User Manual

►► Code NumberCode Number

3910017

►► DescriptionDescription

Exposed Water Closet Flushometer, for floor mounted or wall hung
top spud bowls.

►► Flush CycleFlush Cycle

☐ 1.6 gpf / 6 lpf

►► SpecificationsSpecifications

● ● Quiet, Exposed, Diaphragm Type, Chrome Plated Closet
Flushometer for Rear Inlet Supply

● ● PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed
Bypass

● ● ADA Compliant Metal Oscillating Non-Hold-Open Handle with
Triple Seal Handle Packing

● ● 1” I.P.S. Screwdriver Bak-Chek® Straight Stop with Free Spinning
Vandal Resistant Stop Cap

● ● Ground Joint Straight Stop

● ● Spud Coupling and Flange for 1½” Top Spud

● ● Sweat Solder Adapter with Cover Tube & Cast Wall Flange with
Set Screw

● ● Non-Hold-Open Handle, Fixed Metering Bypass and No External
Volume Adjustment to Ensure Water Conservation

● ● Flush Accuracy Controlled by CID Technology

● ● Diaphragm, Handle Packing and Vacuum Breaker to be molded
from PERMEX® Rubber Compound for Chloramine Resistance

Valve Body, Cover and Tailpiece shall be in conformance with
ASTM Alloy Classification for Semi-Red Brass. Valve shall be in
compliance to the applicable sections of ASSE 1037.

►► AccessoriesAccessories

See Accessories Section of the Sloan catalog for details on these
and other Flushometer variations.

►► FixturesFixtures

Consult factory for matching Sloan brand fixture options.

►► Compliance & CertificationsCompliance & Certifications

This space for Architect/Engineer Approval

Royal® Flushometer
100-1.6

2016-04-05 Page 1 of 1

SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. SLOAN 10500 SEYMOUR AVE. ● FRANKLIN PARK, ● IL. 60131 60131

Ph: 1-800-9-VALVE-9 or 1-847-671-4300 ● Fax: [phone] or 1-847-671-4380 ● http://www.sloan.com
