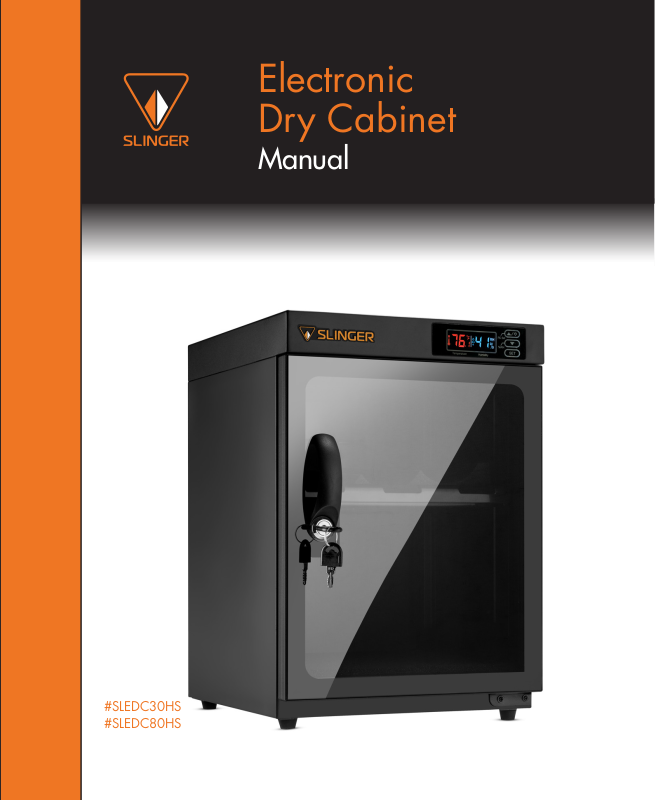

Electronic
Dry Cabinet
Manual
#SLEDC30HS
#SLEDC80HS
Introduction
Thank you for choosing the Slinger Brand Electronic Dry Cabinet,
the state-of-the-art way to preserve the value and quality of your photographic equipment,
lenses and all moisture sensitive objects. The advanced thermoelectric desiccation
technologies built into this cabinet, prevent insipid microscopic fungi and corrosive
damage stemming from excess environmental humidity, without the use of
noisy compressors.
Please read this instructions manual before using your new dry cabinet.
Important Note Before Use
• The cabinets are shipped with the handle installed on the inner position of the door to prevent
shipping damage. Please remove and reattach the handle on outside of door by using a
screwdriver to secure the t.
• Keep the cabinet away from sunlight, high temperature, and heat sources. There should be a
minimum of 5 inches of space from the wall.
• Remove the protective masking tape from surface of shelf board and slide way. Then, adjust the
shelves according your needs.
• Do not place anything on top of the cabinet.
• The unit does not create humidity. While the humidity levels can be decreased, the amount of
moisture in the cabinet cannot be increased.
• The cabinet cannot control the internal temperature, but does monitor the interior temperature on the
LED readout.
• Prepare the Slinger Dry Cabinet for rst time (or if left unused for a long time), by running it for more
than 8 hours completely empty, until the humidity has stabilized to your target level.
• In order to ensure the best dehumidication result, make sure that the cabinet door seals tightly.
• It is a normal phenomenon that the internal humidity level increases after the door is opened.
• Dehumidication time depends on ambient humidity, the moisture inherent in the object placed
inside and the set target value.
2
SlingerBags.com
Instructions
Product Features
• Thermoelectric Cooling Technology is a
quick and heatless process which protects
your items from moisture, mildew, rust,
mold, fungus, rust, oxidation, and even
insects.
• The dehumidication is achieved through
safe and silent operation with very low DC
power consumption, with less than 8 watts
of draw. Can be used worldwide.
• The dry cabinets can control the relative
humidity level in the range of 25% to 60%
RH, and the humidity control precision with
±3%RH differential.
• Once programed, the cabinet is totally
automatic, operating only when internal
humidity exceeds the set level and resuming when the internal humidity goes over
2% RH than set value.
• Temperatures can be displayed as Celsius
or Fahrenheit.
• A LED convenience light illuminates the
cabinet and turns on or off easily.
Product Overview
30 liter/1830 cu in Model
1 DC Socket
2 Dehumidier
3 LED Light
4 Flat Sponge Pad
5 Sponge Wave Pad
6 Plastic Shelf Board
7 Shelf Slide Guide
8 Door Keys (2)
30 liter/1830 cu in Model
1 DC Socket
2 Dehumidier
3 LED Light
4 Flat Sponge Pad
5 Sponge Wave Pad
6 Plastic Shelf Board
7 Shelf Slide Guide
8 Door Keys (2)
112
3
4 5 6 7 8
2
3
4 5 6
7 8 9
3
SlingerBags.com
Instructions
Humidity Settings Reference Guide
Relative Humidity RH% Articles
50%-60% Paper Books, antiques, fax paper, copy paper, print paper
40%-50%
Optical Instrument
35%-40%
Precision instrument and
electronic products
Less than 30% Pharmaceutical raw materials, spices, coating powder, powder
Camcorders, laser encoded discs, computer devices, cameras, lenses, telescopes, microscopes, endoscopes, negatives, slides, audio
tapes, microlm, disk drives.
Metal, nonmetal, metal powder products, electrical equipment,
semiconductors, capacitors, printed circuit boards, IC, batteries and
other electrical appliances, crystal, precision measuring tools, accessories, consumables, optics, lenses, chronometers, spectrometers
and delicate objects.
materials, adhesives, seeds, pollen, desiccated owers, insect
preservation.
4
SlingerBags.com
Instructions
Control Panel
Humidity Display
Temperature Symbols
*The humidity symbols ash when the dry cabinet is working
*The humidity symbols stay on when unit reaches the desired level.
Temperature Display
Button function:
(F/C Set) , ( ) : Fahrenheit and Celsius option, Humidity
value increase and LED light switch button (%RH) , ( ) :
Humidity set value check, Humidity value decrease, strengthen
and weaken the display brightness button. (Set) : Humidity set
and conrm value button
5
Humidity Symbols
SlingerBags.com
Operation
1. Insert the DC adapter
plug into the socket on
the back of dry cabinet
2. Plug the AC plug of adapter into a power outlet (AC100-240V). The unit turns on automatically when
the power is supplied. The humidity set value is set at 40% RH as a factory default.
Please follow below steps to adjust the humidity level:
3. *Press “ ” button twice, then you will see the humidity number (blue) ashes.
4. *Press “ ” or “ ” button to increase or decrease the humidity value to the desired level.
5. *Press “set” button to conrm the value.
6. The inside LED light can be turned on by pressing the “ ” button once.
Press once again to turn off the LED light.
7. The temperature display can be changed from Celsius to Fahrenheit by pressing the “ ” button for
3-5 seconds.
8. The set humidity value can be checked by pressing the “ ” button once. After about two seconds,
the actual internal humidity level will be shown on the display.
9. The brightness level of the display can be varied by pressing the “ ” button for 3-5 seconds.
Adapter DC Socket
6
SlingerBags.com
Trouble Shooting
Problem Likely Cause Solution
The LED display
is off or turns dark
The internal
humidity level is
higher than the
set level for a
long time
Attention
• Do not put any corrosive, dangerous, volatile or ammable articles within the cabinet
• When storing food, medicine or chemicals, please make them airtight and store separately
to avoid leakage and chemical vapor and damage the desiccation unit.
• Do not attempt to remove the controller by yourself. Avoid damage and danger.
• Check the display humidity value every 10 days for stability and if the external conditions
are inuencing the set target value.
• Use a stable power source, to avoid damage to the AC/CD adapter, controller and display
The AC adapter disconnected Connect the AC adapter
The AC adapter has failed. Replace the AC adapter
The power supply device has
damaged the main unit
The cabinet not sealing properly Make sure the door is sealing tightly
Ambient room temperature lower
than 20ºC or 68ºF, the controller
is icing up
The controller is damaged Contact customer service
Contact customer service for
assistance
Placing the cabinet in the room
temperature higher than 20ºC or
68ºF. Open the door for 5-10 mins
7
SlingerBags.com
Three Year Slinger Limited Warranty
Slinger warrants to the original purchaser that your Slinger product shall be free from defects in material
and workmanship for the period of three (3) years from the date of purchase (or delivery as may be
required in certain jurisdictions), or thirty (30) days after replacement, whichever comes later.
Slinger’s entire liability and your exclusive remedy for any breach of warranty shall be, at Slinger’s
option, to repair or replace the hardware, provided that the hardware is returned to the point of
purchase or such other place as Slinger may direct with a copy of the sales receipt or dated itemized
receipt. Slinger may, at its option, replace your product, offer to provide a functionally equivalent
product, or repair any product with new, refurbished or used parts as long as such parts are in
compliance with the product’s technical specications. Any replacement hardware product will be
warranted for the remainder of the original warranty period or thirty (30) days, whichever is longer,
or for any additional period of time that may be applicable in your jurisdiction. If the product has been
discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality
and function.
This warranty does not cover problems or damage resulting from accident, abuse, misapplication, or
any unauthorized repair, modication or disassembly, improper operation or maintenance, normal
wear and tear, or usage not in accordance with product instructions or connection to improper voltage
supply, use of consumables, such as replacement batteries, not supplied by Slinger, except where such
restriction is prohibited by applicable law.
Except where prohibited by applicable law, this warranty is nontransferable and is limited to the original
purchaser and the country in which the product was purchased. This warranty gives you specic legal
rights, and you may also have other rights, including a longer warranty duration that may vary under
local laws.
To start a warranty claim, contact the Slinger Customer Service Department to obtain a return
merchandise authorization (“RMA”) number, and return the defective product to Slinger, along with the
RMA number and proof of purchase.
Question about our product line? Need Product Support?
We are proud of our products and celebrate our customers. We are with you, from product selection to
everyday use. Be secure with your purchase and reach us as you need.
Email us: brands@adorama.com Call: 212-647-9300
Address: Adorama Brands, 42 West 18th Street, New York, NY 10011
You can always contact us at BRANDS@ADORAMA.COM for personal technical support.
Our web site contains a wide range of support and FAQ pages with valuable technical assistance.
Slinger is a registered trademark of ADORAMA CAMERA.
© 2017 Adorama Camera, Corp. All Rights Reserved.
8
