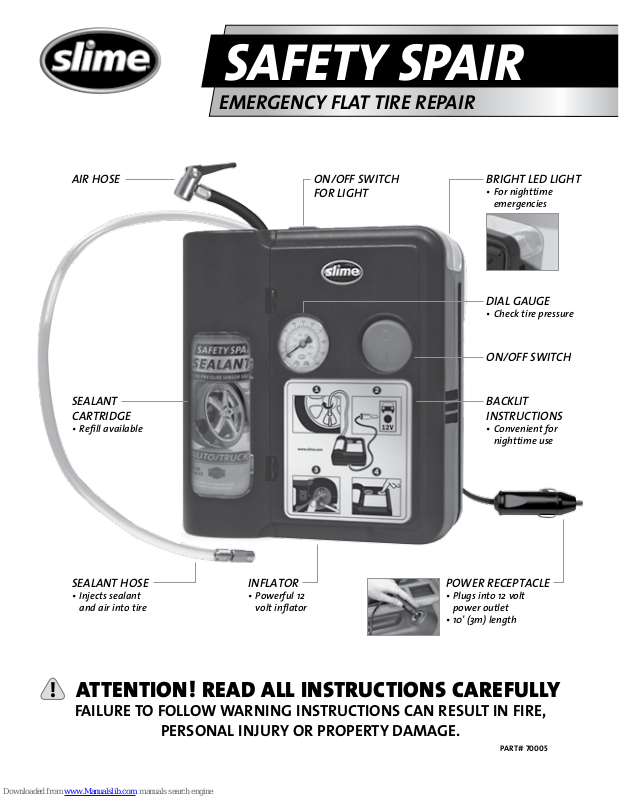

Page 1
SAFETY SPAIR
EMERGENCY FLAT TIRE REPAIR
AIR HOSE
SEALANT
CARTRIDGE
• Refill available
ON/OFF SWITCH
FOR LIGHT
BRIGHT LED LIGHT
• For nighttime
emergencies
DIAL GAUGE
• Check tire pressure
ON/OFF SWITCH
BACKLIT
INSTRUCTIONS
• Convenient for
nighttime use
SEALANT HOSE
• Injects sealant
and air into tire
ATTENTION! READ ALL INSTRUCTIONS CAREFULLY
!
FAILURE TO FOLLOW WARNING INSTRUCTIONS CAN RESULT IN FIRE,
PERSONAL INJURY OR PROPERTY DAMAGE.
INFLATOR
• Powerful 12
volt inflator
POWER RECEPTACLE
• Plugs into 12 volt
power outlet
• 10' (3m) length
PART# 70005
Page 2
FLAT TIRE REPAIR INSTRUCTIONS:
BEFORE STARTING: Inspect tire tread for puncturing object(s) and remove if possible.
NOTE: Seals punctures up to 1/4" (6mm). Correct tire pressure can be found in your vehicle’s
owner’s manual or driver side doorjamb.
1
2
3
1. Attach (clear) sealant hose to tire valve stem.
NOTE: Lay Safety Spair flat on the ground facing
upward.
2. Plug inflator into accessory power outlet. Do not run
vehicle while inflator is operating.
3. Attach (black) air hose to sealant cartridge nozzle,
located at the top of the sealant cartridge.
4
Drive one mile to dispense sealant throughout the tire, allowing it to seek out and seal the
puncture. Recheck tire pressure to verify that the puncture has been sealed.
At your earliest convenience take your vehicle to a tire repair facility for a permanent
professional repair. Inform tire repair specialist that Slime is in the tire.
4. Push the green button to turn the system on. Wait 6
minutes (in temperatures below 32˚F wait 12 minutes).
Some sealant may remain in the hose. Turn system off
and check tire pressure. If additional air is needed follow
“air only” instructions. Once correct tire pressure has
been achieved disconnect the system.
Page 3
AIR ONLY INSTRUCTIONS:
1
2
3
1. Attach (black) air hose to tire valve stem.
2. Plug inflator into accessory power outlet. Do not run
vehicle while inflator is operating.
3. Push the green button to turn system on. Inflate tire as
needed. Turn system off and check tire pressure. Once
correct tire pressure has been achieved, disconnect air
hose and power plug.
SEALANT REMOVAL INSTRUCTIONS:
FOR THE TIRE REPAIR PROFESSIONAL
Slime Tire Sealant is non-flammable and water based so clean up is simple. The sealant
should be rinsed or wiped out of the tire prior to making a permanent repair. You can expect
to find approximately 16 ounces (473 mL) of sealant in the repaired tire. Should any sealant
fall on the shop floor, simply wipe it up with a rag and rinse off the area with water. This
sealant will not corrode or negatively affect the rim or tire.
Use of this tire sealant will not void any applicable tire warranty.
Page 4
WARNING! TIRE SEALANT CONTAINS LATEX. Harmful if swallowed. Do not inhale or
swallow. May cause eye and skin irritation. Avoid skin and eye contact. Keep out of
reach of children.
FIRST AID
Ingestion/Inhalation: Contact physician immediately. Do not induce vomiting.
Skin: Wash thoroughly with soap and water.
Eye: Flush with water for at least 15 minutes.
Reference product name: SLX
Sealant cartridge refills available • PART# 10100
