Slime 40001 Instructions Manual

OWER

P

IIRE RE IINNFLFLAATTOROR

TT

IRE INFLATOR

T

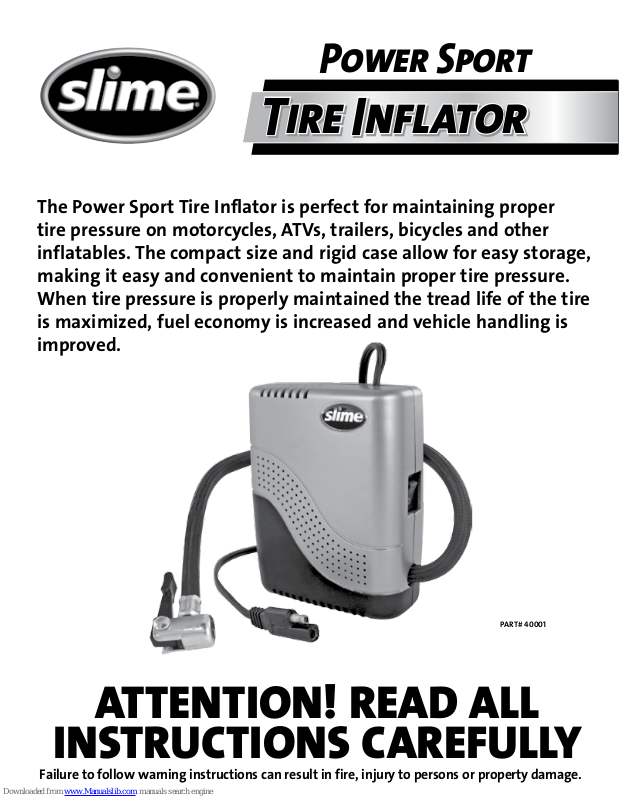

The Power Sport Tire Inflator is perfect for maintaining proper
tire pressure on motorcycles, ATVs, trailers, bicycles and other
inflatables. The compact size and rigid case allow for easy storage,
making it easy and convenient to maintain proper tire pressure.
When tire pressure is properly maintained the tread life of the tire
is maximized, fuel economy is increased and vehicle handling is
improved.

PORT

S

TTENTION! READ ALL

A

INSTRUCTIONS CAREFULLY

Failure t

o follow warning instructions can result in fire, injury to persons or property damage.

PART# 40001

Select appropriate power connection adaptor with fuse

1.
(A, B or C below) and attach adaptor to 8’ main harness power cord.

A

A • Attaches directly to battery (motorcycle)
B • Clips to battery (ATV/mower)
C • Plugs into DC power outlet (auto)

2. Attach (A, B or C) adaptor to power source and clip air hose to tire
valve.

3. Flip switch ON and inflate tire to recommended PSI.

B C

TIRE INFLATOR SET-UP INSTRUCTIONS

1. For use with 12-volt DC power outlet rated 15 amps or higher.
Do not use with older 8 amp cigarette lighter receptacles.

2. You may need to be in “accessory” or “on” position. Please
make sure emergency brake is set and car is in park. Always
ensure air hose chuck touches the core of the valve stem for
proper inflation.

3. Inflator is not designed for use on high pressure tires such as
truck tires. This inflator is not designed to operate for the length
of time it would take to inflate these large tires.

4. WARNING: DO NOT use inflator continuously for more than
10 minutes. Inflator is designed for occasional use ONLY.
Extended operation will overheat the unit causing damage.
Sluggish operation or exposed metal fittings too hot to the
touch indicate the unit has been operating too long. If either
occurs, turn the unit OFF and allow to cool for 25 minutes or
more prior to resuming operation.

5. Do not leave inflator unattended while the unit is running.

ALWAYS use a pressure gauge to check actual tire pressure.

DO NOT OVERINFLATE!

OUBLESHOOTING

TR

Inflator fails

1. The fuse, located in the plug adaptor (C), may
have blown. Unscrew the tip of the plug
adaptor, remove fuse, and inspect.
(If necessary, replace fuse with one of the
same amperage.)

2. The fuse, located in the power connection
adaptors (A, B), may have blown. Unclasp the
power connection adaptor, remove fuse, and
inspect. (If necessary, replace fuse with one of
the same amperage.)

Inflator does not start or blows fuses:

1. Push the power plug firmly into the receptacle and twist it back and forth.

2. Check receptacle and plug terminals for dirt, particularly tobacco.
(Use a nonconductive probe, not fingers or metal to dislodge and remove debris.)

to operate when plugged in:

3. Check vehicle power outlet fuse - should be 15 amps minimum.

Inflator runs but does not inflate:

1. Be sure the connector is on the valve stem as far as possible before closing locking lever.

2. Check tire for leaks, and check hose for breaks and leaks at fittings.

Inflator runs slowly:

1. Overheated from excessive use, shut it off and allow to cool for 25 minutes.

2. Voltage too low, check condition of battery.

NOTE: If tire is totally deflated, it is possible that the tire could separate from the
rim allowing air to leak out when trying to inflate. In the event this occurs, you

will have to jack up the tire prior to inflation.

CAUTION: Keep inflator out of reach of children. Always use a tire gauge to

check the actual pressure in tires. Do not overinflate tire.
