RoHS COMPLIANT
30.4
11.7
12.4
7.5
1M
18.0
3.0
9.0
CUSTOMER P/N
PKW-LIGHT-STP-K6 0.15
PKW-LIGHT-STP-K6 0.25
PKW-LIGHT-STP-K6 0.5
JACKET
CONDUCTOR
INSULATION
SEC:A-A
Test:
1.100%Open Short and miswire test.
2.DC300V,Contact resistance(3+2L)Ω MAX.
3.Insulation resistance 1MΩ MIN.
4.Pass TIA Fluke DTX 1800 Cat.6 Channel Test ( L≤10m)
RJ45 PLUG: 8P8C 3U" GOLD PLATED TWO-PIECE SHORT BODY LONG LATCH PLUG;
4
NICKEL-PLATED SHELL.
3
MOLDED:PVC MOLDED BOOT.
CABLE:CAT6 STP [36AWG(7/0.08BC)+AL/MYLAY]*4+DRALN(7*0.08BC) OD=3.8±0.1MM PVC
2
JACKET.
MARKING: www.justslim.eu – SLIM by Wirewin – CAT6 STP LIGHTpatchcord – Gigabit Ethernet
1
ready
AL/MYLAY
DRAIN
NO.
PKW-LIGHT-STP-K6 1.0
PKW-LIGHT-STP-K6 2.0
PKW-LIGHT-STP-K6 3.0
PKW-LIGHT-STP-K6 5.0
PKW-LIGHT-STP-K6 7.5
PKW-LIGHT-STP-K6 10.0
PKW-LIGHT-STP-K6 15.0
PKW-LIGHT-STP-K6 20.0
SPECIFICATION
A
A
LENGTH(mm)
150
250
500
1000
2000
3000
5000
7500
10000
15000
20000
BOM LIST
L+T
2 1
TOLERANCE
-0/+15mm
-0/+15mm
-0/+15mm
-0/+20mm
-10/+30mm
-20/+30mm
-20/+30mm
-20/+30mm
-50/+50mm
-50/+50mm
-50/+50mm
Q'TY
METER MARK
METER
MARK
0.15M
0.25M
0.5M
1M
2M
3M
5M
7.5M
10M
15M
20M
1P 2P
1
2
3
6
4
5
7
8
S S
ITEM NO:
TITLE
CUSTOMER
PKW-LIGHT-STP-K6 x.x

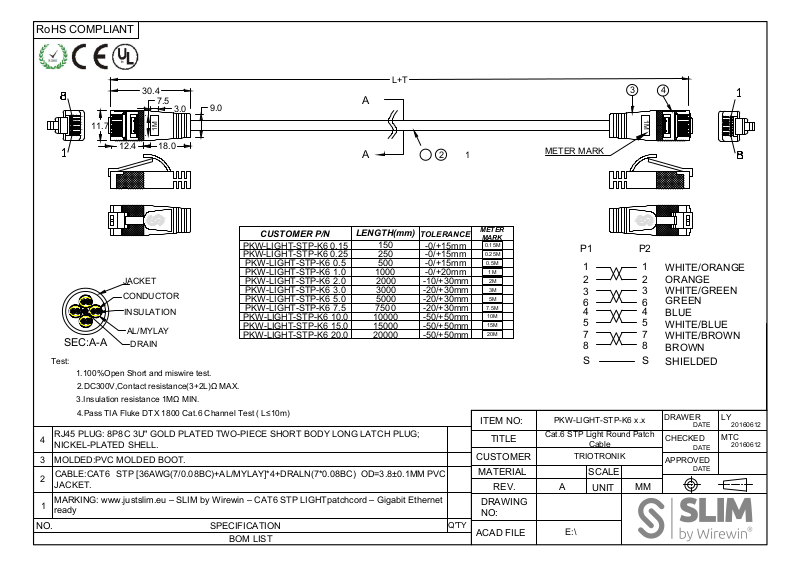

Cat.6 STP Light Round Patch
Cable
TRIOTRONIK
MATERIAL SCALE
REV.
A
UNIT
DRAWING
NO:
ACAD FILE
E:\
3
MM
4
1M
1
2
3
6
4
5
7
8
WHITE/ORANGE
ORANGE
WHITE/GREEN
GREEN
BLUE
WHITE/BLUE
WHITE/BROWN
BROWN
SHIELDED
DATE
DATE
DATE
LY
MTC
20160612
20160612
DRAWER
CHECKED
APPROVED
