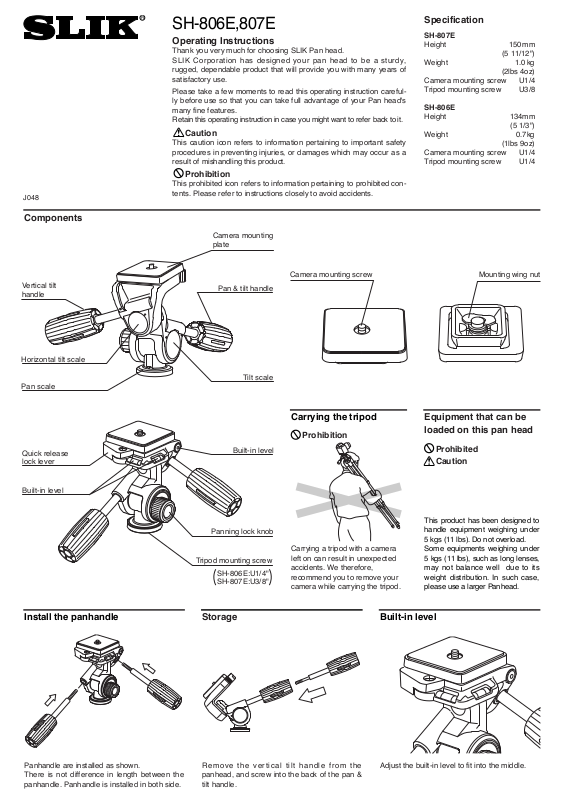

Components
J048
SH-806E,807E
Operating Instructions
Thank you very much for choosing SLIK Pan head.
SLIK Corporation has designed your pan head to be a sturdy,
rugged, dependable product that will provide you with many years of
satisfactory use.
Please take a few moments to read this operating instruction carefully before use so that you can take full advantage of your Pan head's
many fine features.
Retain this operating instruction in case you might want to refer back to it.
Caution
This caution icon refers to information pertaining to important safety
procedures in preventing injuries, or damages which may occur as a
result of mishandling this product.
Prohibition
This prohibited icon refers to information pertaining to prohibited contents. Please refer to instructions closely to avoid accidents.
Specification
SH-807E
Height 150mm
(5 11/12")
Weight 1.0 kg
(2lbs 4oz)
Camera mounting screw U1/4
Tripod mounting screw U3/8
SH-806E
Height 134mm
(5 1/3")
Weight 0.7kg
(1lbs 9oz)
Camera mounting screw U1/4
Tripod mounting screw U1/4
This product has been designed to
handle equipment weighing under
5 kgs (11 lbs). Do not overload.
Some equipments weighing under
5 kgs (11 lbs), such as long lenses,
may not balance well due to its
weight distribution. In such case,
please use a larger Panhead.
Equipment that can be
loaded on this pan head
Carrying the tripod
Carrying a tripod with a camera
left on can result in unexpected
accidents. We therefore,
recommend you to remove your
camera while carrying the tripod.
Prohibition
Install the panhandle
Panhandle are installed as shown.
There is not difference in length between the
panhandle. Panhandle is installed in both side.
Prohibited
Caution
Remove the vertical tilt handle from the
panhead, and screw into the back of the pan &
tilt handle.

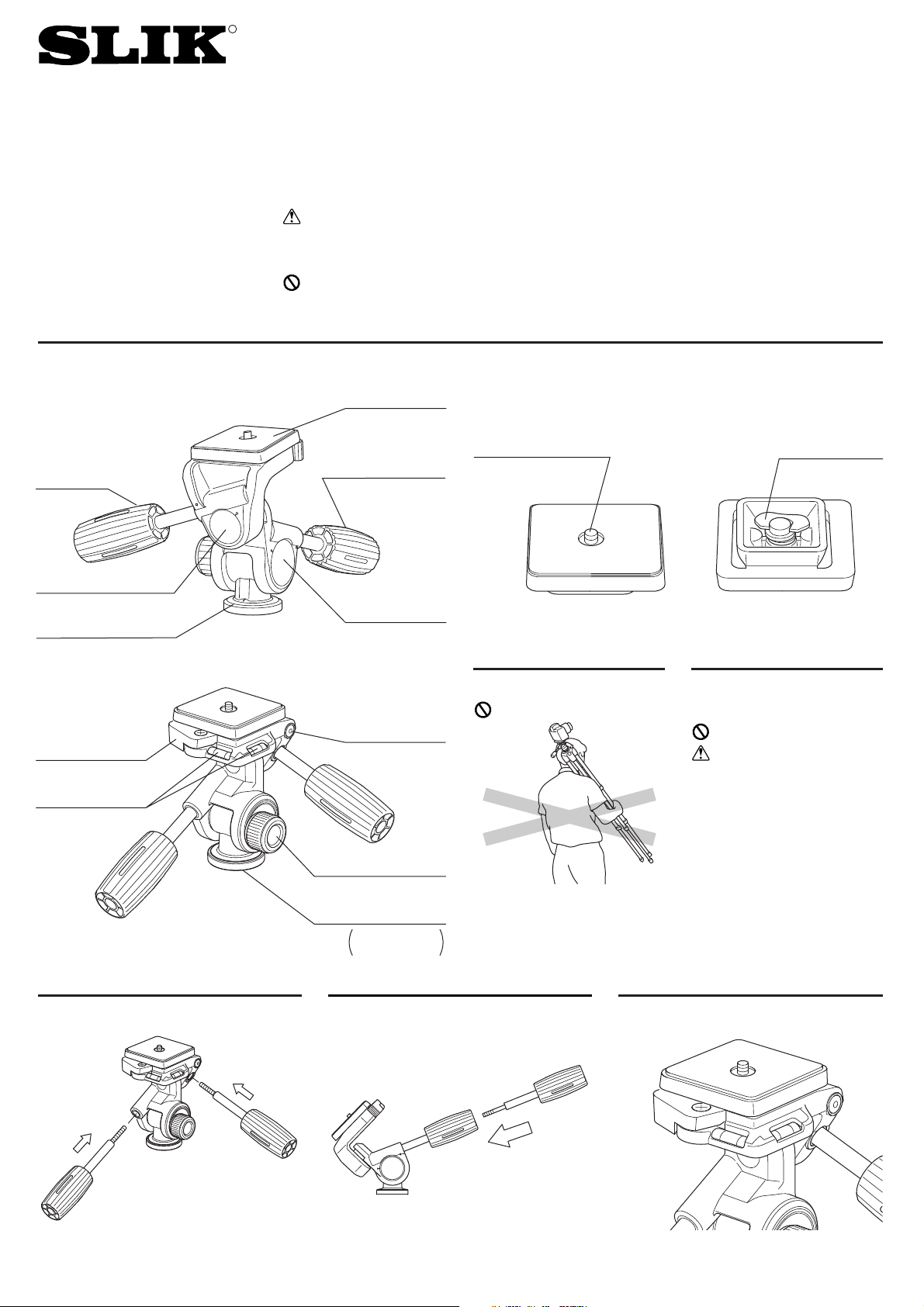

Storage Built-in level
Adjust the built-in level to fit into the middle.
R
Camera mounting
plate
Vertical tilt
handle
Horizontal tilt scale
Pan scale
Quick release
lock lever
Built-in level
Pan & tilt handle
Tilt scale
Built-in level
Panning lock knob
Tripod mounting screw
SH-806E:U1/4"
SH-807E:U3/8"
Camera mounting screw
Mounting wing nut
Page 2
Printed in Thailand.
Care of the Tripod
・DO NOT apply any grease or oil to this product.
・Clean with a mild detergent and a soft cloth only.
・DO NOT use close to flame. Avoid extreme heat.
Slik Corporation reserves the right to make changes in design and/or improvements on the products without any obligation and advanced notice.
SLIK CORPORATION
853 Kayama, Hidaka City, Saitama 350-1231 Japan Phone 81-42-989-2141, Fax. 81-42-985-0210 ©2006
OIL
THINNER
Use the following instructions if you wish to change to another heads, or
attach accessories.
First, lock the panning lock knob, then grasp the pan, or vertical tilt handle
and turn the head, counter-clockwise to loosen.
Removing the pan head from the center column
Set the new head, or accessory on the tripod's threaded post, and turn
clockwise until it comes to a stop. Tighten the panning lock knob and turn
clockwise slightly more.
Setting the pan head from the center column

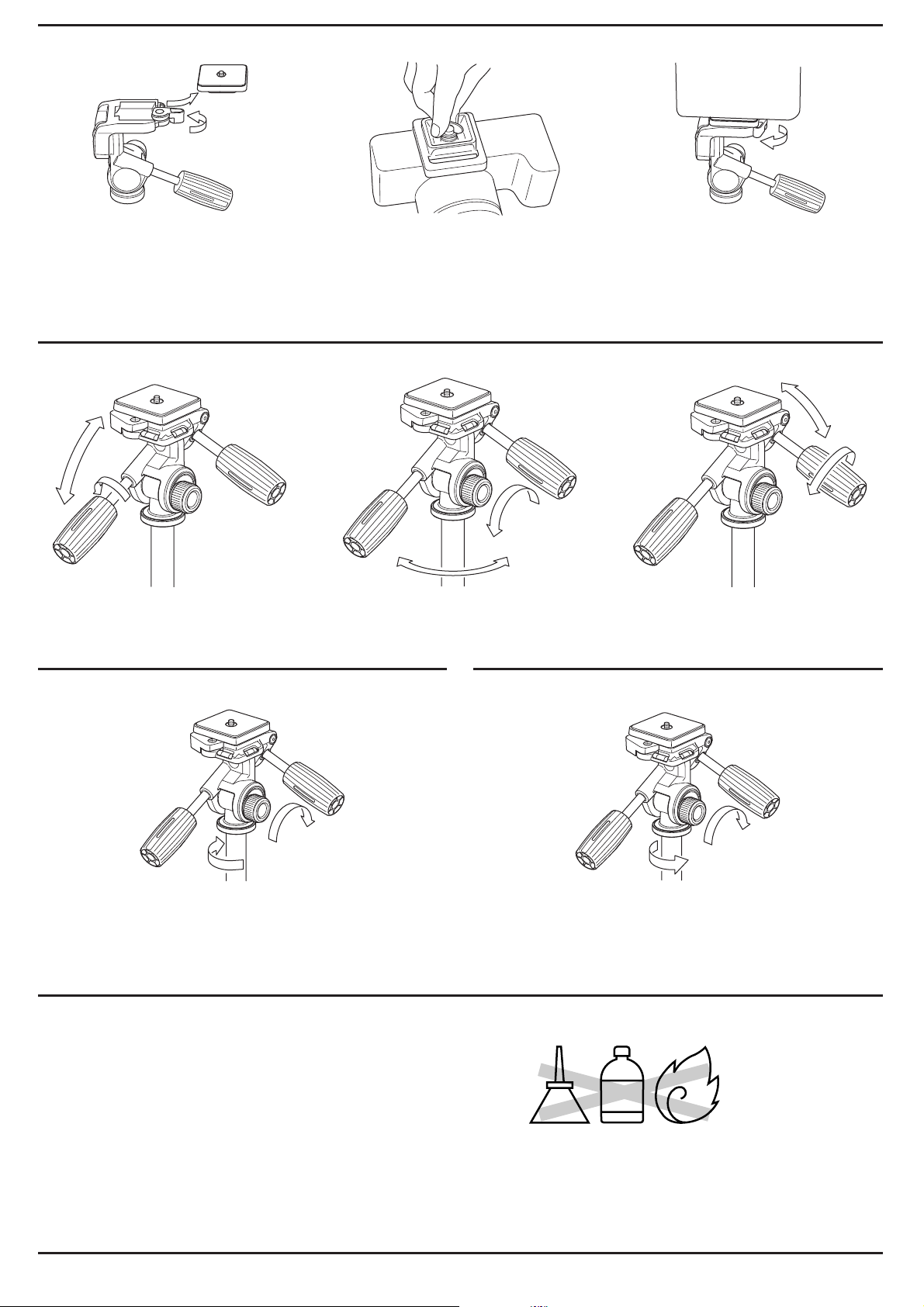

Using the pan head
Loosen the pan & tilt handle, and the head will
tilt back and forth.
Loosen the panning lock knob, and the head will
rotate along the horizontal direction.
Loosen the vertical tilt handle, and the level
can be adjusted.
Remove the quick release platform turning the
lock lever.
In this case, please do not put the lock lever
back by force as it has been stood by the
stopper.
Attaching the camera to the quick release platform
Align the length of the platform along the base
of the camera body, and securely tighten the
mounting wing nut.
When you fix this quick release platform to pan
head, the quick release lock lever will return to
the original position automatically.
We, however, recommend you to tighten this
lever more to secure the fixing.
