S-Lighting S-PROFILE User Manual

S-PROFILE

USER MANUAL

TABLE OF CONTENTS

1. IntroductIon 3

2. Safety InformatIon 3

3. Product InformatIon 4

3.1 SPecIfIcatIon 4

3.2 cleanIng and maIntenance 5

3.3 dMX-512 7

4. dISPlay menu 9

5. dMX functIonS and valueS 11

1. IntroductIon

Thank you for choosing our product! Please consult
this manual for any safety reasons, to ensure a painless
and trouble-free operation, as well as for any reference
needed.
We encourage you to check out our other products at our
website: http://slservice.pl/ !

2. Safety InformatIon

To maintain this device’s condition and to ensure a safe
operation, it is absolutely necessary for the user to follow
these safety instructions and warning notes written in this
user manual.

- This device falls under protection-class I. Therefore it is essential
that the device should be earthed.

- The electric connection and installation should be done
by qualied personnel in order to minimize the risk
of accidental electric shock and damaging the device.

- Always disconnect from the mains, when the device is not
in use or before cleaning it. Only handle the power cord by the plug.
Never pull out the plug by tugging the power cord.

- Make sure the power cord is never crimped or damaged
by sharp edges - if this would be the case, immediately
replace the cable for the exact same type.

- Before connecting the unit to the mains, make sure it is not
damaged mechanically. If you notice any signs of damage,
you should contact your dealer immediately. In this case
do not connect the device to the mains.

- Make sure that the available voltage is not higher than 240V.

- Never look directly into the light source (especially if you have
any epileptic past)!

- The device must be installed on a stable structure. Always use steel
security cable to attach the device to a stable structure.

- Do not use this device in high humidity conditions and at tempera­tures above 40°C.

- Do not cover the ventilation slots when operating to avoid internal
overheating.

3 www.slservice.pl S-LIGHTING

S-Prole

- CAUTION: This product’s housing may be hot when lights
are operating.

- DO NOT connect this product to a dimmer or rheostat.

In case of a serious operating problem stop using this product
immediately!

Important:

Damages caused by a disregard of this user manual are not subject
to warranty or any liability.

3. Product InformatIon

3.1 SPecIfIcatIon

Power supply voltage: 100-240V
Power consumption: 300W
Voltage frequency: 50/60Hz
Diode type and power: 300W RGBLA 5in1 LED
Number of diodes: 1pcs
Beam angle: 25°-50°
Scan rate: 600/1200/2000/4000/6000/25000 Hz
Dimming: 16-bit dimmer
DMX standard: DMX 512
DMX channels: 6/8/8/11/17
AC IN: powerCON
AC OUT: powerCON
DMX IN: XLR - 3 pin
DMX OUT: XLR - 3 pin
IP Rating: IP20
Cooling: Active
Height [cm]: 37
Width [cm]: 37
Depth [cm]: 70
Weight [kg]: 10.3

S-LIGHTING S-Prole www.slservice.pl4

3.2 cleanIng and maIntenance

We recommend a frequent cleaning of the device, as dust,
smoke and other debris will build up on the optics and ho­using. After disconnecting the power wipe the devi­ce with a soft, lint-free and damp cloth. Never use alcohol

or solvents, as these may damage the nish. A dry paint brush is an

excellent tool to remove surface dust.
Be sure to periodically check for loose parts that could damage the
device or potentially allow the device to cause injury. Make sure all
overhead and wall installations have a secondary safety accessory

installed, such as safety cable rated for your device type and size.

Check the power cord as well, make sure there is no damage that
could cause electrical shock, never remove the ground pin. There are
no user-servicable parts in this device. Do not attempt to open and

repair the xture.

CAUTION! Always disconnect from mains before
starting any maintenance operation!

There are no servicable parts inside the device. Maintenance and

service operations are only to be carried out by authorized dealers.

If you need any spare parts, please use only genuine parts.
If the power supply cable of this device becomes damaged,

it has to be replaced by authorized dealers only, in order
to avoid hazards.

Never remove the ground pins from power cord nor spin
any cooling fan with compressed air, as this can damage the compo-

nents in your xture.

If you have further questions, please contact your dealer.

Before replacing a fuse, disconnect the power
cord! Always replace with the same type
and rating of fuse!

5 www.slservice.pl S-LIGHTING

S-Prole

Mounting & rigging

This device can be mounted in any orientation (vertical, horizontal).
Always make sure there is adequate ventilation and no ammable

surfaces within 2 feet (0.6 meters) of the device. You can mount
the device using clamps or with threaded bolt type hardware.
Always install the included safety eyebolt and cable when mounting
in overhead or wall locations.

Warning: Do not mount the xture in the
ventilation path of a nearby heating supply
duct. The heated airow will cause device
failure due to overheating.

Expected LED lifespan

LEDs gradually decline in brightness over time, mostly because
of heat. Packaged in clusters, LEDs exhibit higher operating
temperatures than in ideal, single LED conditions. For this

reason, using clustered LEDs at their fullest intensity signicantly

reduces the LEDs’ lifespan. Under normal conditions, this lifespan
can be 40’000 to 50’000 hours.
If extending this lifespan is vital, lower the operating temperatu­re by improving the ventilation around the product and reducing
the ambient temperature to an optimal operating range. In addition,
limiting the overall projection intensity may also help to extend
the LEDs’ lifespan.

S-LIGHTING S-Prole www.slservice.pl6

3.3 dMX-512

To link devices together you’ll
need data cables. You should use
data grade cables that can carry
a high quality signal and are
less prone to electromagnetic
interference. For instance,
Belden© 9841 meets the

specications for EIA RS-485 applications. Standard microphone

cables will probably be OK, but note that they cannot transmit
DMX data as reliably over long distances. In any event, the cable
should have the following characteristics:

- 2-conductor twisted pair plus a shield,

- maximum capacitance between conductors - 30pF/ft,

- maximum capacitance between conductor & shield - 55 pF/ft,

- maximum resistance of 20 ohms / 1000 ft (304.8m in normal),

- nominal impedance 100-140ohms.

Cable connectors:

Cables must have a male XLR connector on one end and a female
XLR connector on the other end (duh!).
A word on termination: DMX is a resilient communication protocol,
however errors still occasionally occur. Termination reduces signal
errors, and therefore best practises include the use of terminator
in all circumstances. If you are experiencing problems with erratic
device behavior, especially over long cable runs, a terminator may
help improve performance.

To build your own DMX Terminator:

Obtain a 120-ohm, 1/4-watt resistor and
wire it between pins 2 & 3 of the last

xture. They are also readily available from

specialty retailers.

A DMX terminator

CAUTION: Do not allow contact between the common and the
device’s chassis ground. Grounding the common may cause
a ground loop, and your device may perform erratically. Test cables
with an ohm meter to verify correct polarity and to make sure
the pins are not grounded or shorted to the shield or each other.

7 www.slservice.pl S-LIGHTING

S-Prole

3-Pin / 5-Pin

If you use a controller with a 5 pin DMX output connector, you will
need to use a 5 pin to 3 pin adapter. They are widely available over
the Internet and from specialty retailers, but if you’d like to build
your own, the table below details a proper cable conversion:

Conductor 3-Pin female (Output) 5-Pin male (Input)

Ground/Shield Pin 1 Pin 1

DMX Data (-) Pin 2 Pin 2

DMX Data (+) Pin 3 Pin 3

Not used. no connector Pin 4

Not used. no connector Pin 5

Setting up DMX control

Signal IN

Step 1: Connect the male

connector of the DMX cable
to the female connector (output)

First device

in chain

on the controller.
Step 2: Connect the female
connector of the DMX cable
to the rst device’s male
connector (input).

next

Note: It doesn’t matter which device address

is the rst one connected. We recommend
connecting the device in terms of their proximi­ty to the controller, rather than connecting

the lowest device number rst, and so on.

Next device

in chain

To the

device

Step 3: Connect other devices in the chain from output to input

as above. Place a DMX terminator on the output of the nal device
to ensure the best communication.

Fixture linking (Master/Slave Mode)

1. Connect the (male) 3-pin connector side of the DMX cable to the

output (female) 3-pin connector of the rst device.

2. Connect the end of the cable coming from the rst device, which

will have a (female) 3-pin connector to the input connector of the
next device consisting of a (male) 3-pin connector. Then, proceed
to connect from the output as stated above, to the input
of the following device (and so on).

S-LIGHTING S-Prole www.slservice.pl8

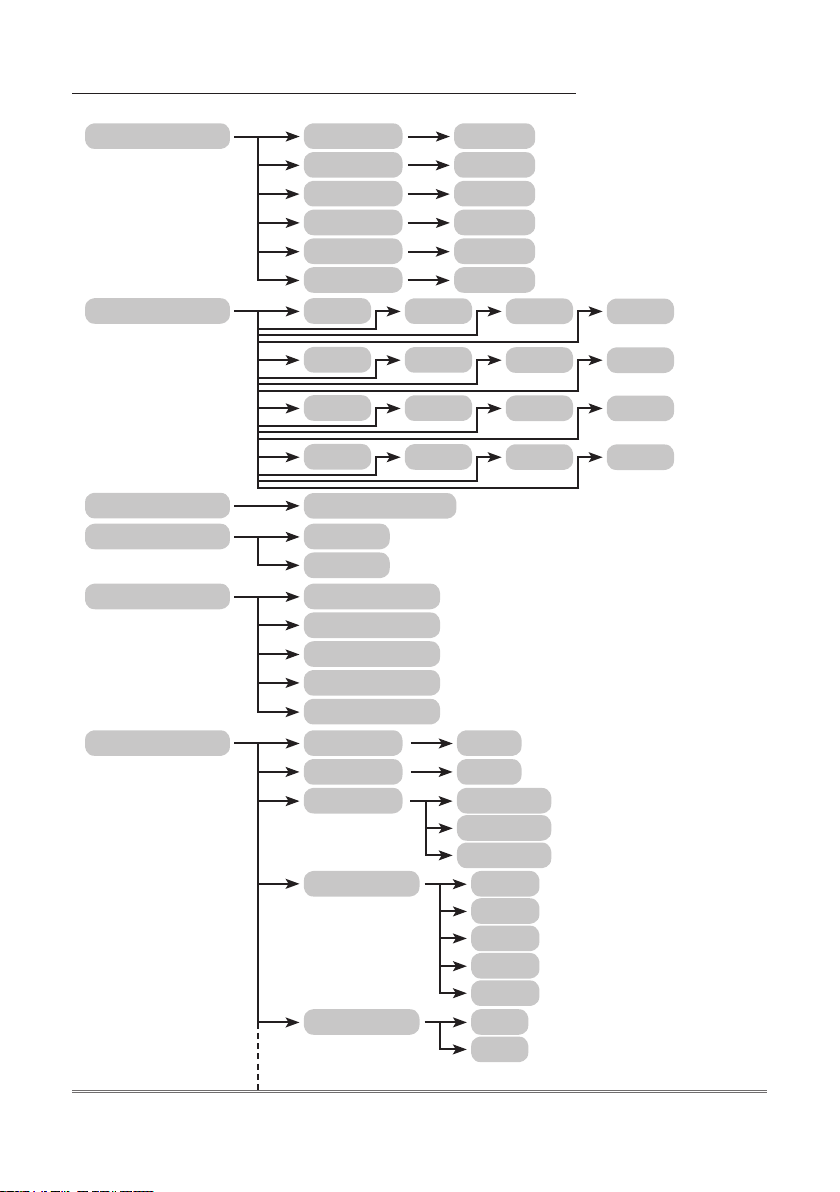

4. dISPlay menu

Stat

Preset Color

Address

Run Mode

Personality

Setting

RED 0-255

GREEN 0-255

BLUE 0-255

AMBER 0-255

LIME 0-255

STRB 0-25

L106

L019

L213

L328

Set DMX Address

DMX

Slave

HSIC

SIMPLE

SDO

COLOR 8BIT

COLOR 16BIT

Upload

Reset

Color

Dimmer

Send

R05

R08

R377

R3314

SEND

RESET

RGBtoW

UC

OFF

DIM4

DIM3

DIM2

DIM1

OFF

YES

NO

L194

R89

R80

L101

R54

R86

L202

L768

9 www.slservice.pl S-LIGHTING

S-Prole

Setting

4. dISPlay menu cont.

DMX Error SAVE

BLACK

Performance

STUDIO

POWER

600Hz

1200Hz

2000Hz

4000Hz

6000Hz

25000HZ

3200K

4200K

5600K

10000K

NORMAL

Key

Calib.C

PWM_Rate

Full Power CCT

ON

OFF

White

LIVE

WH.01

WH.02

2700K

3000K

WH.13 10000K

Info

RGBtoW

Version

RDM

R. (0-255)

G. (0-255)

B. (0-255)

UID

Label

S-LIGHTING S-Prole www.slservice.pl10

5. dMX functIonS and valueS

1 0-255 Intensity

2 0-255 Hue

3 0-255 Hue Fine

4 0-255 Saturation

CCT

0-010 No Function

11-030 2700K

31-050 3000K

51-070 3200K

71-090 3500K

5

6

7

8

91-110 4000K

111-130 4200K

131-150 4500K

151-170 5600K

171-190 6000K

191-210 6500K

211-230 7200K

231-255 8000K

STROBE

0-009 No Function

10-099 Strobe (slow <--> fast, 0-25Hz)

100-109 No Function

110-179 Lightning Strobe

180-189 No Function

190-255 Random Strobe

DIMMER SPEED

0-009 Preset Dimmer Speed (from display menu)

10-029 OFF

30-069 DIM1

70-129 DIM2

130-189 DIM3

190-255 DIM4

DIMMER SPEED

0-009 No Function

10-080 LIVE

81-160 STUDIO

160-240 POWER

241-255 No Function

HSIC

11 www.slservice.pl S-LIGHTING

S-Prole

1 0-255 Master Dimmer

2 0-255 Red

3 0-255 Green

4 0-255 Blue

5 0-255 Lime

0-255 Amber

STROBE

0-009 No Function

10-099 Strobe (slow <--> fast, 0-25Hz)

100-109 No Function

110-179 Lightning Strobe

180-189 No Function

190-255 Random Strobe

DIMMER SPEED

0-009 No Function

10-080 LIVE

81-160 STUDIO

161-240 POWER

241-255 No Function

1 0-255 Master Dimmer

PRESET COLOR

0-010 No Function

11-020 L106

21-030 R05

31-040 L194

41-050 R54

51-060 L019

61-070 R08

71-080 R89

2

81-090 R86

91-100 L213

101-110 R377

111-120 R80

121-130 L202

131-140 L328

141-150 R3314

151-160 L101

161-170 L768

171-255 No Function

SIMPLE

SDO

S-LIGHTING S-Prole www.slservice.pl12

CCT

0-010 No Function

11-030 2700K

31-050 3000K

51-070 3200K

71-090 3500K

3

4

5

6

91-110 4000K

111-130 4200K

131-150 4500K

151-170 5600K

171-190 6000K

191-210 6500K

211-230 7200K

231-255 8000K

STROBE

0-009 No Function

10-099 Strobe (slow <--> fast, 0-25Hz)

100-109 No Function

110-179 Lightning Strobe

180-189 No Function

190-255 Random Strobe

DIMMER SPEED

0-009 Preset Dimmer Speed (from display menu)

10-029 OFF

30-069 DIM1

70-129 DIM2

130-189 DIM3

190-255 DIM4

DIMMER SPEED

0-009 No Function

10-080 LIVE

81-160 STUDIO

160-240 POWER

241-255 No Function

SDO

13 www.slservice.pl S-LIGHTING

S-Prole

1 0-255 Master Dimmer

2 0-255 Red

3 0-255 Green

4 0-255 Blue

5 0-255 Lime

6 0-255 Amber

PRESET COLOR

0-010 No Function

11-020 L106

21-030 R05

31-040 L194

41-050 R54

51-060 L019

61-070 R08

71-080 R89

7

8

81-090 R86

91-100 L213

101-110 R377

111-120 R80

121-130 L202

131-140 L328

141-150 R3314

151-160 L101

161-170 L768

171-255 No Function

CCT

0-010 No Function

11-030 2700K

31-050 3000K

51-070 3200K

71-090 3500K

91-110 4000K

111-130 4200K

131-150 4500K

151-170 5600K

171-190 6000K

191-210 6500K

211-230 7200K

231-255 8000K

COLOR8BIT

S-LIGHTING S-Prole www.slservice.pl14

STROBE

0-009 No Function

10-099 Strobe (slow <--> fast, 0-25Hz)

9

10

11

100-109 No Function

110-179 Lightning Strobe

180-189 No Function

190-255 Random Strobe

DIMMER SPEED

0-009 Preset Dimmer Speed (from display menu)

10-029 OFF

30-069 DIM1

70-129 DIM2

130-189 DIM3

190-255 DIM4

DIMMER SPEED

0-009 No Function

10-080 LIVE

81-160 STUDIO

160-240 POWER

241-255 No Function

COLOR8BIT

15 www.slservice.pl S-LIGHTING

S-Prole

1 0-255 Master Dimmer

2 0-255 Master Dimmer Fine

3 0-255 Red

4 0-255 Red Fine

5 0-255 Green

6 0-255 Green Fine

7 0-255 Blue

8 0-255 Blue Fine

9 0-255 Lime

10 0-255 Lime Fine

11 0-255 Amber

12 0-255 Amber Fine

PRESET COLOR

0-010 No Function

11-020 L106

21-030 R05

31-040 L194

41-050 R54

51-060 L019

61-070 R08

71-080 R89

13

81-090 R86

91-100 L213

101-110 R377

111-120 R80

121-130 L202

131-140 L328

141-150 R3314

151-160 L101

161-170 L768

171-255 No Function

COLOR16BIT

S-LIGHTING S-Prole www.slservice.pl16

CCT

0-010 No Function

11-030 2700K

31-050 3000K

51-070 3200K

71-090 3500K

14

15

16

17

91-110 4000K

111-130 4200K

131-150 4500K

151-170 5600K

171-190 6000K

191-210 6500K

211-230 7200K

231-255 8000K

STROBE

0-009 No Function

10-099 Strobe (slow <--> fast, 0-25Hz)

100-109 No Function

110-179 Lightning Strobe

180-189 No Function

190-255 Random Strobe

DIMMER SPEED

0-009 Preset Dimmer Speed (from display menu)

10-029 OFF

30-069 DIM1

70-129 DIM2

130-189 DIM3

190-255 DIM4

DIMMER SPEED

0-009 No Function

10-080 LIVE

81-160 STUDIO

160-240 POWER

241-255 No Function

COLOR16BIT

17 www.slservice.pl S-LIGHTING

S-Prole
