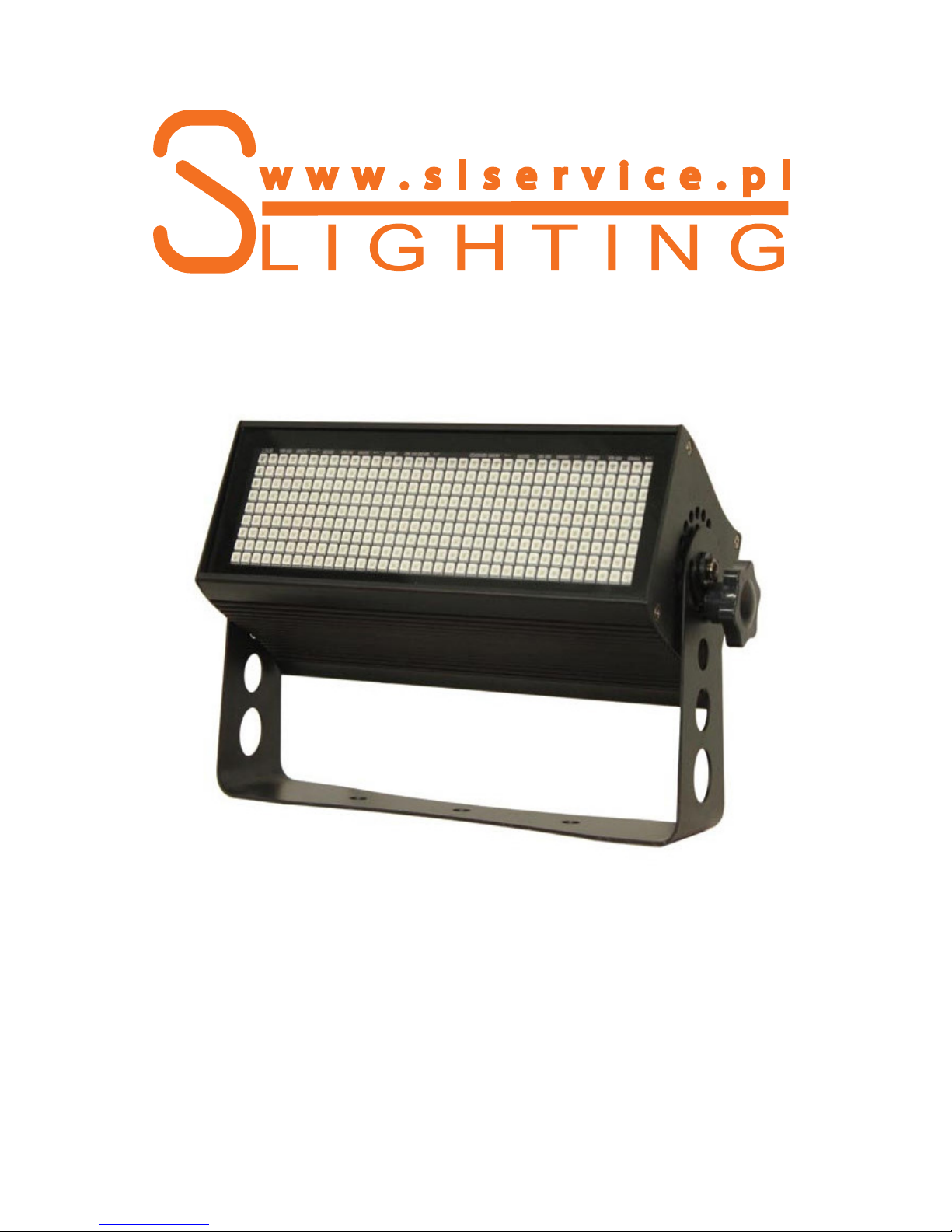

S-3
USER MANUAL
TABLE OF CONTENTS
1. IntroductIon 3
2. Safety InformatIon 3
3. Product InformatIon 4
3.1 SPecIfIcatIon 4
3.2 cleanIng and maIntenance 5
3.3 dMX-512 7
4. dISPlay menu 9
5. dMX
functIonS and valueS 10
3 www.slservice.pl S-LIGHTING S-3
1. IntroductIon
2. Safety InformatIon
Thank you for choosing our product! Please consult
this manual for any safety reasons, to ensure a painless
and trouble-free operation, as well as for any reference
needed.
We encourage you to check out our other products at our
website: http://slservice.pl/ !
To maintain this device’s condition and to ensure a safe
operation, it is absolutely necessary for the user to follow
these safety instructions and warning notes written in this
user manual.
- This device falls under protection-class I. Therefore it is essential
that the device should be earthed.
- The electric connection and installation should be done
by qualied personnel in order to minimize the risk
of accidental electric shock and damaging the device.
- Always disconnect from the mains, when the device is not
in use or before cleaning it. Only handle the power cord by the plug.
Never pull out the plug by tugging the power cord.
- Make sure the power cord is never crimped or damaged
by sharp edges - if this would be the case, immediately
replace the cable for the exact same type.
- Before connecting the unit to the mains, make sure it is not
damaged mechanically. If you notice any signs of damage,
you should contact your dealer immediately. In this case
do not connect the device to the mains.
- Make sure that the available voltage is not higher than 240V.
- Never look directly into the light source (especially if you have
any epileptic past)!
- The device must be installed on a stable structure. Always use steel
security cable to attach the device to a stable structure.
- Do not use this device in high humidity conditions and at temperatures above 40°C.
- Do not cover the ventilation slots when operating to avoid internal
overheating.
S-LIGHTING S-3 www.slservice.pl 4
Power supply voltage: 100-240V
Power consumption: 300W
Voltage frequency: 50/60Hz
Diode type and power: RGB 3in1 LED
Number of diodes: 324pcs
Brightness: 15'000 lm
Beam angle: 140°
Scan rate: 7000 Hz
Dimming: 16-bit dimmer
DMX standard: DMX 512
DMX channels: 1/3/4/6/7/16
AC IN: powerCON
AC OUT: powerCON
DMX IN: XLR - 3 pin
DMX OUT: XLR - 3 pin
IP Rating: IP20
Cooling: Passive
Height [cm]: 20
Width [cm]: 34
Depth [cm]: 10
Weight [kg]: 2.8
3. Product InformatIon
3.1 SPecIfIcatIon
- CAUTION: This product’s housing may be hot when lights
are operating.
- DO NOT connect this product to a dimmer or rheostat.
In case of a serious operating problem stop using this product
immediately!
Important:
Damages caused by a disregard of this user manual are not subject
to warranty or any liability.
