User Manual
2

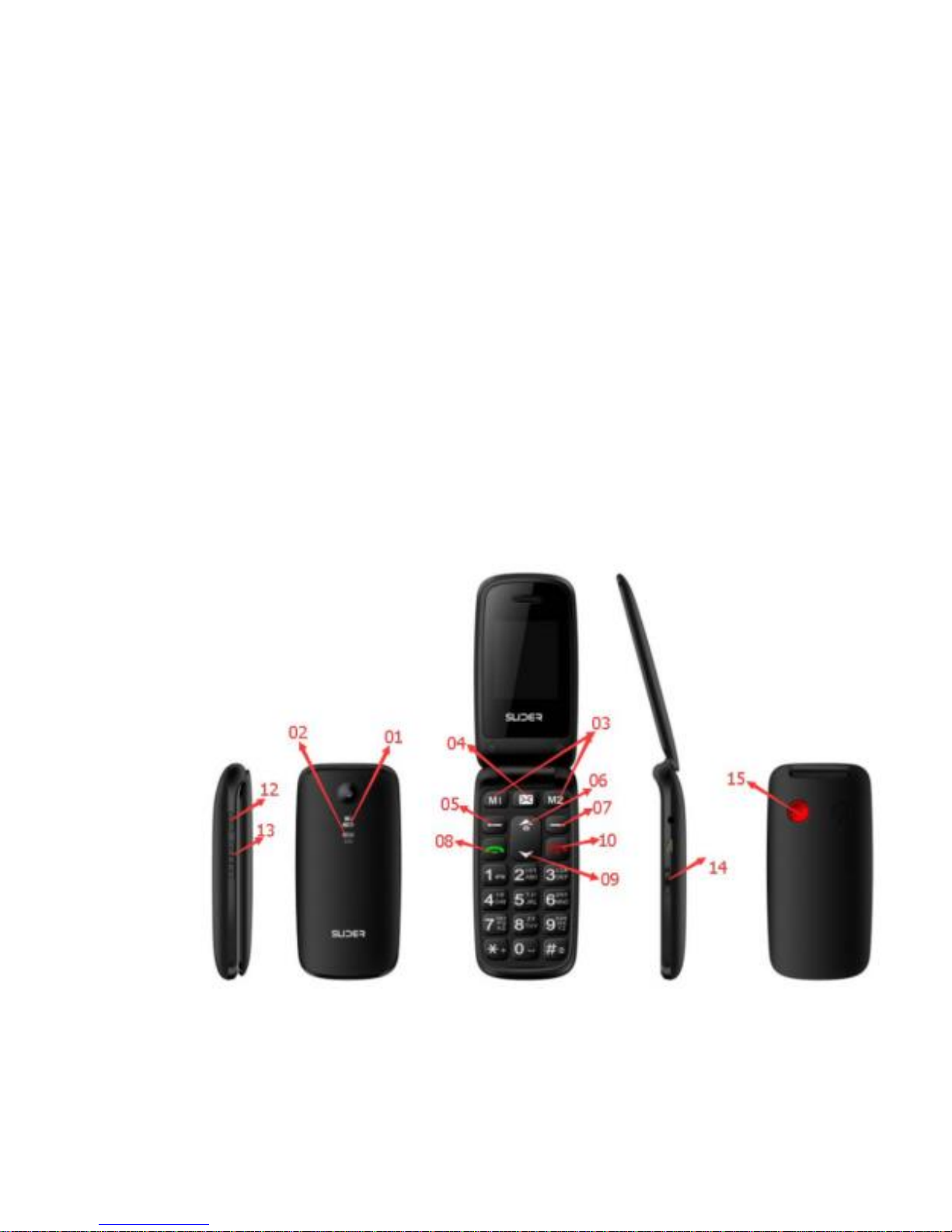

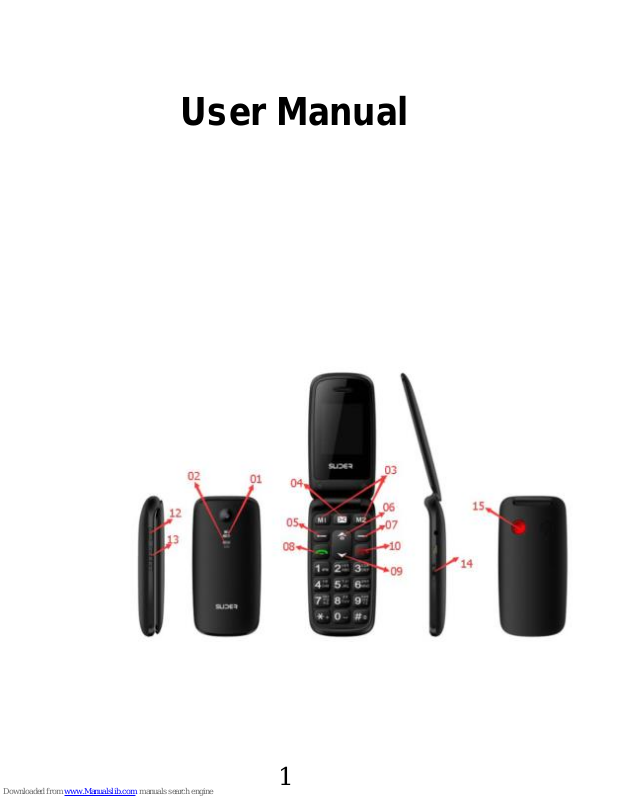

1. Phone appearance
01 ----Battery reminder light
02 ---- Message reminder light
03 ---- M1,M2 keys
04 ----Message key
05 ----Left key(menu key)
06 ----Up key
07 ----Right key
08 ----Dialing key
09 ----Down key
10 ----Power on/off key
11 ----The number keys
12 ----FM radio key
13 ----Volume key
14 ---- Torch light key
15 ----SOS button
2. Standby mode, the function of shortcut keys
2.1 left key: direct access to the main menu interface。
2.2 Up key: shortcuts for camera, FM radio, add new
3
contact and Calendar
2.3 Down key: direct access to alarm
2.4 Side keys: volume up & down key, FM and torch light
3. Messages
The phone supports SMS sending.
If the numbers for received messages is not full, it is directly
stored in the SIM card or phone (user settings). If the text
messages capacity is full, you can not receive new messages,
the top there will be a blinking icon in the main screen, and
prompts the SMS storage is full, delete some text messages,
inbox free space, the phone can continue to receive new SMS.
Standby interface, you can press message button to enter the
message menu interface.
3.1 Write Message
In the standby screen, select Menu →message → write
message .to enter the edit SMS interface, the following: text
editing, press the left soft key "Options", you can choose to
send, save, using a template, edit, language, Association
options. If you want to delete the contents written by the
navigation key to move the cursor to delete the contents of the
back, and then press the power button to clear, long press the
right function key to delete all content. When finished, send a
4
message, press the left soft key "OK".
Send: sending a number of interface, direct enter the number
you want to send from contacts, call history, add a number.
Selection is complete, press the left soft key "OK" to send a
message. Select a recipient the option to do the following:
Send: send a message to the corresponding recipient.
Edit: you can edit the recipient's number.
save
Save to Drafts.
Insert template: selectable built-in templates to send SMS.
Input method: set the language need to edit.
3.2 Inbox
In standby screen, select Menu → Messaging → Inbox,
you can view the SIM card inbox SMS has been received, as
the following options:
View: You can view a received message.
Reply: You can reply SMS to the sender.
Forward: to forward this message to others.
Delete: Delete the current SMS.
Delete All: Delete all SMS in the Inbox.
5
Save to phonebook:Add the number in the telephone
directory.
3.3 Drafts
Into the Drafts, you can view the message stored in the
Drafts, and can conduct the following operations: View,
send,edit,delete,delete all.
3.4 Outbox
Into the Outbox, you can view the SIM card to send and
save SMS, and can do the following:
view,resend,edit ,delete,delete all.
3.5 Sent messages
Into the Sent messages, you can view messages which
were sent
3.6 SMS setting
3.6.1 SIM
- validity period
- message type
- Delivery report: setting the switch of SMS report
- Reply path: setting the switch of reply path
6
- Voice Mail server: Each SIM card can be set two voice
mail number in the settings, press the “1”key for a longtime to
make available to listen to dial voice mail number voice
messages. This function should be supported by the network
operator.
3.6.2 Memory status
The memory status of SIM card and the phone are visible.
3.6.3 Text message counter
3.6.4 Save sent message: setting the switch of the storage of
sent messages.
3.6.5 Preferred storage: setting the preferred position of the
storage of SMS
4. Phonebook
4.1 Add new contact
The phone offers two memory storage: the SIM card and
mobile phone, the phone's storage capacity is 200, the
storage capacity of the SIM card is 250
You can select to save mobile numbers to SIM card or
mobile phone.
7
select any record in the phone book list will have the
following options:
Call: Call of the record;
View: View detailed information on the record.
Send text message: send a message to the record.。
Edit: Edit the record.
Delete: delete the record.
Copy: copy in the same or a different memory and the option
to save to the file management.
Add to blacklist: Add number to the black list.
8
4.2 phone book settings
4.2.1 Speed dial
4.2.2 Extra numbers
By setting this function, the phone will only can dial the
numbers that set in the FDN list.
Notice: this function will need SIM card pin code, it is
easy to lock the SIM,be caution to use!
4.2.3 Memory status
You can view how many phone numbers that saved
4.2.4 Copy contacts
You can copy phone numbers from SIM to phone, or from
phone to SIM
4.2.5 Move contacts
You can move phone numbers from SIM to phone, or from
phone to SIM
4.2.6 Delete all contacts
You can delete all phone numbers from SIM or from phone
9
5 Call center
5.1 Call history
5.1.1 Missed call:Enter the missed call, you can view the list of
missed calls.
5.1.2 Dialed calls:To enter the dialed calls, you can view the
dialed calls list.
5.1.3 Received calls:to enter the received phone, you can
view the list of received phone.
5.1.4 All calls：All call records
5.1.5 Delete call logs:You can choose to delete all the call
records.
5.2 Call settings
5.2.1 Call waiting：
Set the status to be activated, deactivated, query status. Note:
This function depends on the network operator. Please ask the
local network operator for more detail.
5.2.2 Call divert：
The options are “Divert all voice calls”, “Divert if unreachable”,
“Divert if no answer”, “Divert if busy”, “Divert all data callrator
10
for more detail.
5.2.3 Call barring：
The options are “All voice calls”, “International voice calls”,
“International voice calls except to home”, “All voice calls”,
“Voice calls when roaming”, “Cancel all”, “Change barring
password”. Note: This function depends on the network ops”,
“Cancel all diverts”. Note: This function depends on the
network operator. Please ask the local network operator.
Please ask the local network operator for more detail.
5.2.4 Line switching：
Able to switch line 1 or line 2.
5.2.5 Advanced setting:
Auto radial: Able to open or close the function of auto radial.
When it’s on, the phone shall redial automatically after you
failed dialing.
11
Call time reminder: The call time will display when calling if it’s
on.
Answer mode: Able to set answer the call by pressing any key.
6 Multimedia
6.1 Camera
Entering the camera preview screen press the “number key
5”to take photos, Switch to video recorder: you can be 6.1.1
Switch to video recorder
6.1.2 Photos：View the photos that you saved.
6.1.3 Camera settings：Set related parameters of the camera.
6.1.4 Image settings：Set the size and quality of the photos.
6.1.5 Storage: save photos to the phone or Memory card
6.1.6 Restore default：Restore the camera settings to default.
12
6.2 Video recorder
On the video interface, press up and down navigation keys to
tune the focal length; press left and right navigation keys to
tune exposure compensation. Note: Because the mobile
memory capacity is limited, a T-flash card has to be inserted
before you can save the video.
6.2.1 Switch to camera： Can be switch to camera.
6.2.2 Camcorder settings：Set the related parameters for the
video camera.
6.2.3 Video settings：Set related parameters for the video clip.
6.2.4 Storage: save video to the phone or Memory card
6.2.5 Restore default：Restore the video settings to default.
6.3 Image viewer
In [image viewer] interface, press the [option] can undertake
13
the following function:
6.3.1 View: Able to view the selected image.
6.3.2 Send: Send the image by the means of Bluetooth or
MMS.
6.3.3 Use as: The selected picture as wallpaper or switch
machine animation.
6.3.4 Rename: Change the name of the selected pictures.
6.3.5 Delete: Delete the selected pictures.
6.3.6 Storage: save video to the phone or Memory card
`6.3.7 Image information: Review images for details.
6.4 Video player
Lets you open different types of video file.
6.5 Audio player
In the music player interface, on the sidekey + (increase
volume), the sidekey - (decrease volume), 4 (previous), 6 key
14
(next); through five key play and pause music be controlled.
Music player interface, press "Options" to enter the list of
all the songs interface. Options to play music files in the list,
update playlists and more.
In Options, enter the setup menu:
Generate the list automatically: the switch settings. When this
feature is set to open, you can do to update the play list
"operation. When this feature is set to off, you can add a folder
of music files to play lists, remove a single music file in the
playlist, all to remove all music files in the playlist in the
options.
Repeat: You can set the repeat playback of music,
respectively, using 4,6 button is set to off (Repeat), singles, all.
Random: set the playback order, respectively, can be set to
open (Random Play) and off (the current list of the order of
play).
Background play: the press * # key is set to open, the mobile
phone in the other user interface (video player, except for
video, camera or recording menu interface) can also play
music.
Help: You can view the music player interface shortcuts
operation.
15
Stop: Stop the currently playing song.
6.6 Sound recorder
6.6.1 New record：Start recording.
6.6.2 List：Enter the list of recordings.
6.6.3 Settings：You can set the audio quality.
6.7 FM radio
This phone has FM radio function, can be used to listen to
the radio. A frequency on the button [points), the next key (the
previous frequency). Press the left soft key to enter the
following options:
Channel list: Edit the channel name and frequency.
Manual input:View the list of channels.
Auto search: the automatic search radio stations and save the
search channel to channel list.
Settings: you can set the recording format and quality.
Note: FM reception quality and quantity depend on the specific
location.
16
7 SOS setting
7.1 SOS switch setting
You can select to switch on or switch off the SOS function
7.2 SOS number
You can save 5 phone numbers to the SOS emergency calling
7.3 SOS message
You can edit the SOS message content
7.4 Alarm sound
You can turn on or turn off the alarm sound while pressing
SOS button
7.5 Low battery reminder
You can select to turn on or turn off the Low battery reminder.
8 Settings
Main menu, select "Settings", you can set up your phone
menu options.
8.1 Boost
17
You can increase the speaker volume by turn on this
function
8.2 Family number
8.2.1 status
Open Status or close Status
8.2.2 Number setting
Add to Family number ，Return to the main screen, press
the MI or M2 family to dial phone numbers.
8.3 User Profiles
This phone provides a General mode,silent Mode,
Meeting mode and Outdoor mode.
For each mode, you can Activate, customize or reset
8.3.1 General
8.3.1.1 Activate you can activate the general mode
8.3.1.2 Customize
- Alert type: you can select four ways of Alert: ring only,
vibration only, vibration and ring, vibration then ring.
- Ring type : you can select two ways of ringing: repeat, Beep
once
18
- Ring tone: Set a ringing tone.
- Ring tone volume: set the ringtone volume by pressing the
up key or downkey
- Message: Set the Message tone.
- Keypad: set the keypads sound mode
- keytone volume: set the keytone volume by pressing the up
key or downkey
8.3.2 silent mode
Like the General model
8.3.3 meeting mode
Like the General model
8.3.3 outdoor mode
Like the General model
8.4 Phone settings
8.4.1 Time and date:the date and time set corresponding.
19
8.4.2 Language: set the phone menu display language.
8.4.3 Pref.input method: You can set the editing language,
Association options, the default input method
8.4.4 Display:Set the "wallpaper" "power on/power off
display"and "show date and time".
8.4.5 Dedicated keys: set shortup functions to the up key and
down key
8.4.6 Flight mode:Set the normal mode or flight mode.
8.4.7 Incoming call report: set to spell the phone numbers
while incoming call
8.5 Security Settings
8.5.1 SIM Security
security of SIM card
You can set the phone's menu security options, in order to
avoid the illegal use of SIM card. PIN code to prevent the
illegal use of your SIM card. If the current PIN code has been
closed, select Open to open the PIN code protection, the next
boot will ask for your PIN code; if the current PIN code is
already open, choose to turn off the PIN code protection can
be turned off, select Security Settings -> SIM card lock ->
Change password -> PIN code, you can set up a new PIN
20
code, please follow the prompts in order to enter the old PIN,
new PIN code and repeat the new PIN code.
SIM card lock: turn on or turn off the SIM card lock. Need to
enter the PIN code.
Fixed Dialing
Mode: turn on or turn off fixed dialing mode, the PIN2 code.
The fixed dialing list: can be added to the fixed dialing list.
Restricted dialing: the need to network operator support.
Specific details, please consult your local network operators.
Change Password: Change Password. Including the
modification of the PIN, PIN2.
8.5.2 Phone security
The phone lock can prevent your phone from unauthorized
use.
Select the phone lock can open the phone lock password
protection, the next boot will ask for your phone lock code;
again to enter a password you can turn off the phone lock
password protection.
Change Password: Modify the phone password.
Note: The default phone lock code is 1122, you should change
your PIN.
21
8.6 Restore the factory settings
In this menu, enter the phone lock code to determine the
mobile phone-related parameters can be set to return to the
initial value. Phone information is still retained.
Note: The default phone lock code is 1122, you should change
your PIN.
9 File manager
Used for a variety of documents and data storage
management. The phone memory card can be used for
capacity expansion.
Select the memory card (memory card is inserted), the
following options:
Open: Go to the next level of the folder list interface
Format: to format the current memory.
Details: You can view the memory space information.
View different folders, select "Options" as follows operations:
Open: Open the folder, and view the folder content.
New Folder: Create a new folder.
Rename: change the name of the folder.
Delete: delete the folder.
22
10 Organizer
10.1 Calendar
Press the left key to enter the calendar display, the first
line shows the year, month, day, second row shows the week,
the middle section shows the specific date of a month.
In the option, you can jump to date you are looking for or
go to today
10.2 Calculator
provide users with the calculator function, can add,
subtract, multiply, and divide can do the simple calculation.
10.3 Alarm
This phone provides three alarm clocks available to users,
users may need to be set. Enter the alarm clock editing
interface:
use the number keys 4 and 6 to select on / off status.
set the alarm clock
Snooze Time: use number keys 4 and 6 Select the default
value or 1-10 minutes.
Repeat: the option to turn off the numeric keys 4 and 6 \ a daily,
weekly, monthly, annually.
23
Alarm clock tone: You can set the alarm tone.
10.4 World clock: set the time to the preferred city
10.5 Bluetooth
Power: Setting the power of Bluetooth.
Visibility: Setting the visibility of Bluetooth. When it’s off, other
phones can’t search this phone though it has opened
Bluetooth.
My device: Searching the devices which has turned on
Bluetooth nearby.
My name: The name shows on other phones when Bluetooth
is on and the phone is searched.
Loading...
