2/2014

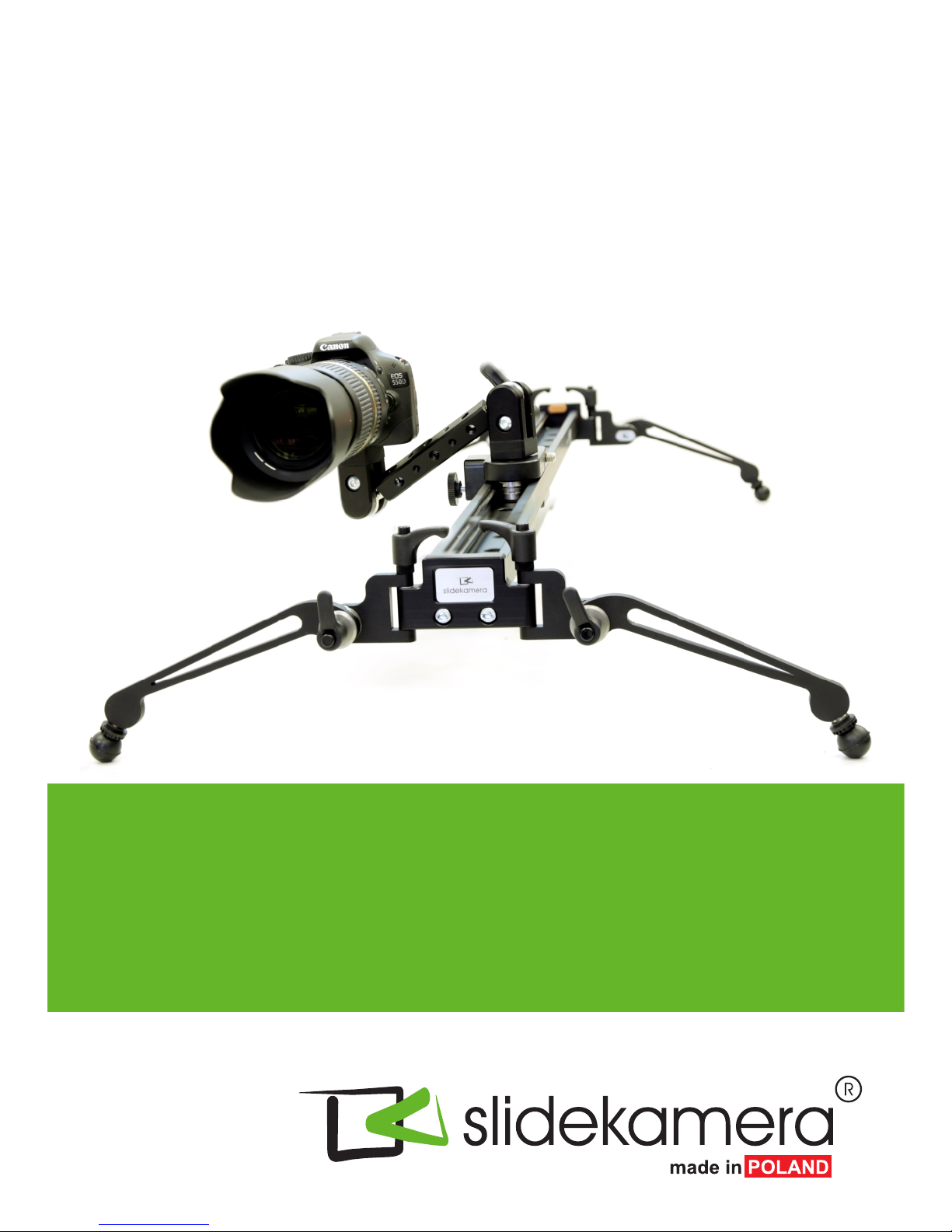

Slide Kamera SP series slider is a professional equipment perfect for smooth shots
during the camera movement. Suitable for light cameras and photo cameras of a total
weight up to 4kg. Specially designed cart that moves along the rail carries the camera
and leads it towards the object that is being filmed.
User Manual
Slide Kamera SP series slider
BASIC, PRO
Pdf version of the manual available for download: www.slidekamera.eu
Before you start your work with Slide Kamera S series slider we strongly recommend to read the manual carrefully.
Please note that using the device in a manner inconsistent with the manual can cause damage or malfunction
the manufacturer is not responsible for.
Photos of the products may slightly differ from the actual product due to constant modifications
and improvements introduced by the manufacturer.
Slide Kamera ®
High Engineering Technology CNC s.c.
Sebastian Pawelec Karol Mikulski
Glina 45
82-522 Sadlinki
Vat Identification Number: 581-188-33-32
Slide Kamera Office
80-175 Gdańsk (Poland)
Ul. Kartuska 386
tel./fax (+48) 58 710 41 04
e-mail: biuro@slidekamera.pl / office@slidekamera.eu
www.slidekamera.pl / www.slidekamera.eu
In case of damage during transport you are required to submit:
R proof of purchase
R protective styrofoam inserts included in the set in case of new product delivery
1
If you fail to comply with the abovementioned conditions, the manufacturer reserves the right
to refuse the complaint.
Slide Kamera SP series slider
Slide Kamera SP series slider
2
Table of contents
1. Elements and construction of Slide Kamera SP series slider..............................................................................3
2. Product description............................................................................................................................................5
2.1. Cart................................................................................................................................................................. 5
2.2. Rail and mounting ports...................................................................................................................................5
2.3. Side feet...........................................................................................................................................................6
3. Specification.......................................................................................................................................................6
4. Mounting.............................................................................................................................................................7
4.1. Mounting video head on SP series slider cart....................................................................................................7
4.1.1. Mounting video head directly on SP series slider cart.....................................................................................7
or Manfrotto MN577 adapter.........................................................................................................................7
4.2. Mounting Slide Kamera SP series slider on Slide Kamera HST series tripods............................................9
4.2.1. Mounting Slide Kamera SP series slider directly on Slide Kamera HST series tripods...................................9
AKC-3 adapter or Manfrotto MN577 adapter.................................................................................................9
4.3. Mounting Slide Kamera SP series slider on Slide Kamera heads...................................................................10
4.3.1. Mounting SP series slider directly on Slide Kamera rotational heads............................................................11
or Manfrotto MN577 adapter.......................................................................................................................11
5. Slide Kamera HDN/HDN PRO DC drive for Slide Kamera SP series sliders......................................................12
5.1. Mounting Slide Kamera HDN/HDN PRO DC drive on SP series slider.............................................................13
6. Transport..........................................................................................................................................................14
7. Maintenance.....................................................................................................................................................14
8. Terms of warranty..............................................................................................................................................15
4.1.2. Mounting video head on SP series slider cart with the use of Slide Kamera AKC-3 adapter
4.2.2. Mounting Slide Kamera SP series slider on Slide Kamera HST series tripods using Slide Kamera
4.3.2. Mounting Slide Kamera SP series slider on Slide Kamera heads using Slide Kamera AKC-3 adapter
1. Elements and construcion of Slide Kamera SP series slider
Once you receive the shipment please make sure that all the elements of Slide Kamera SP series slider are inside.
Set includes:
R rail (length of rail depends on the model)
- SP-600: 600mm
- SP-1000: 1000mm
R f-BASIC SO or f-PRO SP side feet with level adjustment
(side feet type depends on slider model)
R central mounting port with 3/8'' and 1/4'' holes
R two mounting ports on both ends of the rail with 3/8'' holes
R cart with 3/8'' threaded hole and a level
R AF-11 SL reduction 1/4"-3/8" mandrel
R AF-12 SL reduction 3/8" mandrel
R standstill brake
R user manual
Slide Kamera SP series slider construction:
Central mounting port with 3/8'' and 1/4'' holes [3]
Two mounting ports on both ends of the rail with 3/8'' holes
f-PRO SP side feet [5]
f-BASIC SP side feet with level adjustment [6]
Rubber bumpers [7]
Level [8]
Four M4 holes [9]
AF-12SL reduction 3/8" thread [10]
AF-11SL reduction 1/4"-3/8" thread [11]
Standstill brake [12]
Rail [1]
Cart with 3/8" threaded hole and a level [2]
[4]
It is forbidden to remove and reinstall the cart. All attempts to do so may cause damage
to the rollers, the manufacturer is not responsible for.
3
Model
Length of
rail
Central mounting
port with 3/8''
and 1/4'' holes
Mounting ports
with 3/8'' hole
Side Feet
Type
Brake
SP-600 BASIC
600 mm
1
2
BASIC
included
SP-600 PRO
600 mm12
PRO
included
SP-1000 BASIC
1000 mm12
BASIC
included
S-1000 PRO
1000 mm
1
2
PRO
included
Slide Kamera SP series slider
37
7
4
1
2
12
11
10
8
1
3
4
5
4
36
9
SP slider PRO:
SP slider BASIC:
9
2
4
4
3
Slide Kamera SP series slider
2
2
2. Product description
Slide Kamera SP
series slider is
a professional
equipment
perfect
for
smooth shots
during
the camera
movement.
Suitable for
light
cameras
and photo
cameras of a total
weight
up to
4kg.
Specially
designed cart that moves
along
the
rail
carries the camera and
leads
it towards the
object
that is
being filmed.
Number
of
mounting holes
allowing
to mount
various accessories
in
a
variety of combinations provide
universality of our
device and provide
the
user
with great configuration
possibilities.
2.1.
Cart
The cart was designed basing on high quality components, what guarantees excellent smoothness and stability
of motion.
The
cart is equipped with
three bearinged
rollers
made
of
stainless steel (INOX).
Additionally,
rollers
are placed inside the
cart
in
a
way that provides
perfect protection against
damage. The cart
is
equipped
with
3/8'’
threaded
hole,
four
M4 threaded
holes
(Slide Kamera
and
Manfrotto
spacing)
and two
1/4'' holes
for mounting
accessories in
various
combinations.
Level [1]
Four M4 holes
[2]
3/8" hole [3]
1/4"
hole
[4]
Standstill brake
[5]
Stainless steel rod (INOX) [6]
2.2. Rail and mounting ports
Aluminium construction
of the
rail
guarantees
stregth
and lightness
of the
device.
There are two
stainless steel
(INOX) rods
inside
the rail.
It is
also
equipped
with a
central
mounting port
with 3/8''
and 1/4''
holes, and two
mounting
ports on both ends of the
rail
with
3/8'' holes that allow to
mount
the
slider
on two tripods.
Length
of rail
depends on SP slider
model you select.
Available lengths:
600mm, 1000mm.
Aluminium rail
[1]
Stainless steel rod (INOX)
[2]
Central mounting port with 3/8'' and 1/4'' holes
[3]
Mounting ports on both ends of the rail with 3/8'' holes
[4]
3
1
32
5
4
2
4
6
5
1
3
4
4
Top view
Bottom view
Slide Kamera SP series slider
2.2. Side feet
Depending on the model you select, the device is equipped with two types of side feet: f-BASIC SP and f-PRO SP
with level adjustment. Aluminium side feet provide stability on uneven and chaallenging ground. 3/8'’ holes
in f-PRO SP feet allow to mount the device on two tripods or monopods, what considerably increases stability
of support. Additionally, side feet protect the cart from falling out of the rail. Side feet are equipped with rubber
bumpers that protect the cart against any damage.
3. Specification
Application: smooth shots during the camera movement
Length of rail: SP-600: 600mm
SP-1000: 1000mm
Weight: SP-600 STANDARD: 2,4kg
SP-600 PRO:2,8kg
SP-1000 STANDARD: 3,0kg
SP-1000 PRO: 3,4kg
Width of rail: 50mm
Maximum width of side feet: f- BASIC SP: 210mm
f-PRO SP: 520mm
Safety payload: 4kg
Rail mounting ports: central mounting port with 3/8'' and 1/4'' holes
two side ports with 3/8" holes
Cart mounting ports: 3/8" threaded hole
four M4 mounting holes
two 1/4'' holes
Level: 1 bubble level on the cart
Material: aluminium rail with two stainless steel (INOX) bars inside
Color: black
f-BASIC SP side feet
f-PRO SP side feet
626
2
1
Mounting port at the end of rail
with 3/8'’ hole
Central mounting port
with 3/8'’ and 1/4'’ holes
1/4'’ hole [1]
3/8'’ hole [2]
Slide Kamera SP series slider
4. Mounting
4.1. Mounting video head on SP series slider cart
SP series slider cart is equipped with a number of mounting holes that allow to mount the video head either directly
using a proper reduction AF-12 SL or AF-11 SL, or through Slide Kamera AKC-3 adapter or Manfrotto MN577
adapter, using four M4x12 screws.
4.1.1. Mounting video head directly on SP series slider cart
3/8 " threaded hole built in the cart plate allows to mount video heads with either 1/4" or 3/8 " thread on the cart
with the use of a proper reduction that comes in the set. In order to mount the video head, screw a proper reduction
into 3/8" threaded hole on the cart plate then, connect the video head.
AF-12SL reduction 3/8 " mandrel with a cross-cut for a flat wrench [1]
AF-11SL reduction 1/4 "- 3/8" mandrel with a cross-cut for a flat wrench [2]

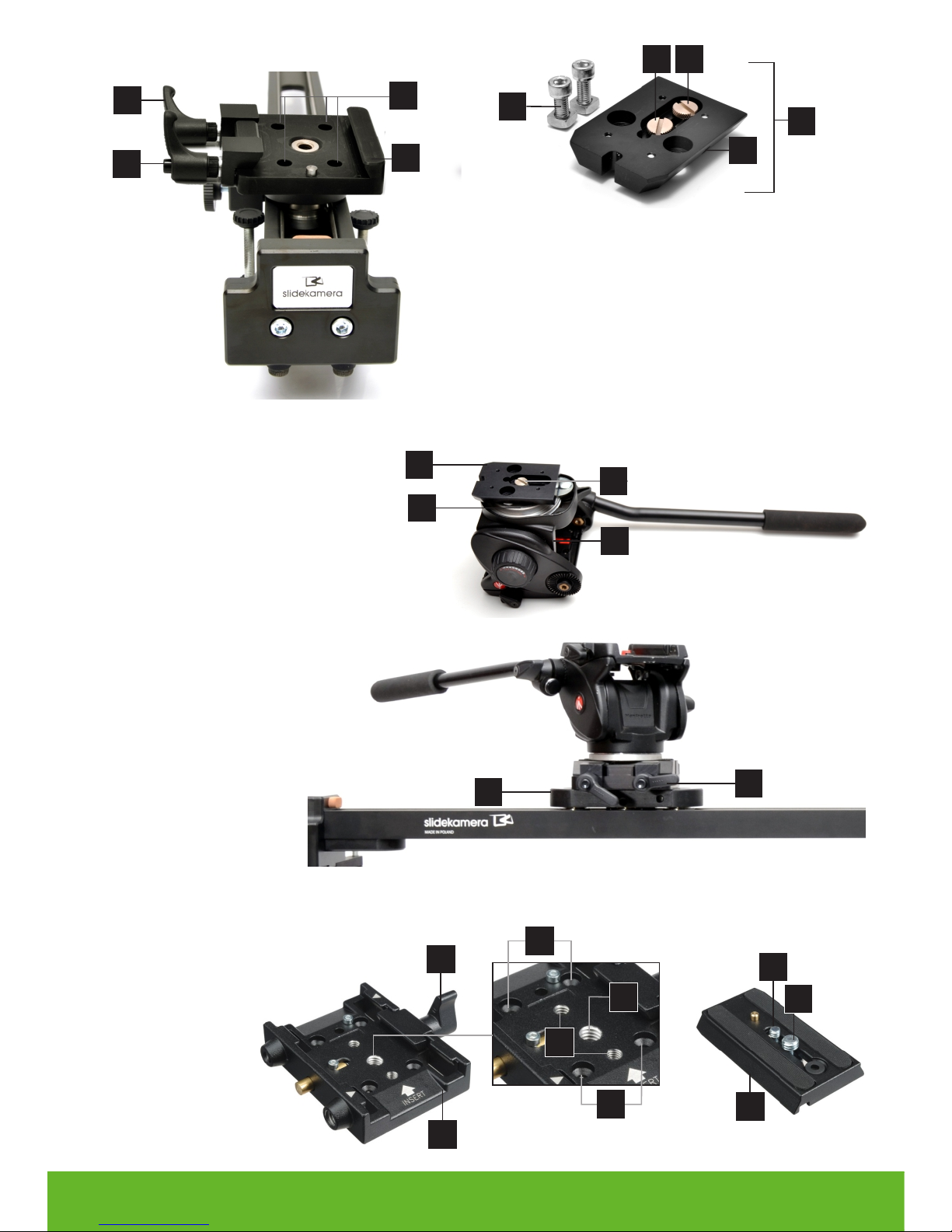

4.1.2. Mounting video head on SP series slider cart using Slide Kamera AKC-3 adapter
or Manfrotto MN577 adapter
Slide Kamera AKC-3 adapter allows to attach accessories used during photo-video realisations
very quickly without tedious and time consuming mounting and dismounting. In this case, AKC-3 adapter
facilitates mounting video head on SP series slider cart. In order to mount AKC-3 adapter base on slider cart remove
AF-12SL reduction 3/8" mandrel with a cross-cut for a flat wrench and AF-11SL reduction 1/4"-3/8" mandrel
from the cart plate. Release the clamping knobs [3] and slide out AK-101 sliding plate [2] from AKC-3 adapter base
[1]. Screw Slide Kamera AKC-3 adapter base to the cart plate using four M4x12 screws [4] (3mm Allen key).
M4 holes spacing allows also for mounting Manfrotto MN577 adapter with MN501PL plate on SP series slider cart.
Method of mounting is the same as in case of mounting AKC-3 adapter. Elements of Manfrotto MN577 adapter
are presented on the next page.
Number of mounting holes in both the cart and lower mounting ports allow to mount various accessories in a variety
of combinations thus providing universality of our product as well as provide the user with great configuration
possibilities.
1
2
7
Slide Kamera SP series slider
Screw Slide Kamera AK-101 sliding plate to the camera head base equipped with 1/4" or 3/8" threaded hole using
a suitable Slide Kamera photographic screw 1/4" or 3/8".
Slide Kamera AK-101 sliding plate [1]
Video head base [2]
Slide Kamera 3/8'’ photographic screw [3]
Video head [4]
Slide the head with AK-101 plate into AKC-3 adapter base and lock the clamping knobs.
Slide Kamera cart [5]
Clamping knobs [6]
Elements of Manfrotto MN577 adapter with MN501PL plate
Manfrotto MN577 adapter [1]
Manfrotto MN501PL plate [2]
Four M4 holes [3]
Clamping knob [4]
1/4" screw [5]
3/8" screw [6]
1/4" threaded hole [7]
3/8" threaded hole [8]
1
2223
6
8
4
5
5
7
6
8
4
1
Remove the screws: 2 x M8 [5] with square nuts
from Slide Kamera AK-101 sliding plate and:
R 1/4" photographic screw [6] in the case of mounting
a head equipped with 3/8" hole
R 3/8" photographic screw [7] in the case of mounting
a head equipped with 1/4" hole
R grub screw locking 1/4" and 3/8" screws [8]
33
33
2
1
2
5
6
4
8
7
3
3
Slide Kamera SP series slider
1
2
3
3
4
4.2. Mounting Slide Kamera SP series slider on Slide Kamera HST series tripods
Slide Kamera SP series slider is designed for Slide Kamera HST series tripods. Method of mounting in case
of HST-2 and HST-3 tripod is the same. Slide Kamera SP series slider can be mounted on the tripod either directly,
using Manfrotto half ball or Slide Kamera HSZ-2 quick mounting screw, or indirectly, using a proper adapter:
Slide Kamera AKC-3 or Manfrotto MN577, that allow to change the accesories used in photo-video productions
in a vary fast and easy way.
4.2.2. Mounting Slide Kamera SP series slider on Slide Kamera HST series tripods
with the use of Slide Kamera AKC-3 adapter or Manfrotto MN577 adapter
Slide Kamera AKC-3 adapter or Manfrotto MN577 adapter allows to mount and dismount Slide Kamera SP series
slider on/from the tripod in a very fast and easy way. Method of mounting both adapters is the same, photos below
present Slide Kamera AKC-3 adapter in use.
In order to mount AKC-3 adapter slide AK-101 sliding plate out of the AKC-3 adapter base. Remove all screws
except for the 1/4'' [1] and 3/8''[2] photographic screws and the grub [3] that locks them.
Slide Kamera 1/4'’ photographic screw [1]
Slide Kamera 3/8'’ photographic screw [2]
Grub screw locking 1/4" and 3/8" screws [3]
4.2.1. Mounting Slide Kamera SP series slider directly on Slide Kamera
HST series tripod
Slide Kamera SP series slider can be mounted directly on HST series tripod with the use of Slide Kamera
HSZ-2 quick mounting screw [1] or Manfrotto half ball [2]. Whereas HSZ-2 quick mounting screw allows
to mount the slider on the tripod rigidly, Manfrotto half ball gives the possibility to level the slider.
In order to mount SP slider on the tripod, first mount either HSZ-2 screw or Manfrotto half ball on the tripod
and then screw 3/8" screw [3] into 3/8" hole of central mounting port [4] of Slide Kamera SP series slider.
9
2
1
3
Slide Kamera SP series slider
23
2
1
1
2
5
6
4
8
7
3
3
Elements of Manfrotto MN577 adapter with MN501PL plate
Manfrotto MN577 adapter [1]
Manfrotto MN501PL plate [2]
Four M4 holes [3]
Clamping knob [4]
1/4" screw [5]
3/8" screw [6]
1/4" threaded hole [7]
3/8" threaded hole [8]
Mount Slide Kamera AK-101 sliding plate to central mounting port using Slide Kamera 1/4” and 3/8” photographic
screws.
Slide Kamera 1/4'’ photographic screws [1]
Slide Kamera 3/8'’ photographic screws [2]
Slide Kamera AK-101 sliding plate [3]
Mount Slide Kamera AKC-3 adapter base to HST-2 or HST-3 tripod socket using Manfrotto half ball or Slide Kamera
HSZ-2 quick mounting screw. Whereas HSZ-2 quick mounting screw allows to mount the device on the tripod
rigidly, Manfrotto half ball gives the possibility to level the slider.
Unlock AKC-3 adapter clamping knobs, slide AK-101 sliding plate, mounted to the central port of the slider,
into AKC-3 adapter base, thus connecting Slide Kamera SP series slider with Slide Kamera HST series tripod. Lock
the clamping knobs.
Slide Kamera SP series slider [1]
Slide Kamera AKC-3 adapter [2]
Slide Kamera HST -2 tripod [3]
4.3. Mounting Slide Kamera SP series slider on Slide Kamera heads
Slide Kamera SP series slider can be also mounted on Slide Kamera heads. Method of mounting for all heads
is the same. The device can be mounted either directly, using AF-12 LG reduction 3/8'' mandrel or indirectly, using
Slide Kamera AKC-3 adapter or Manfrotto MN577 adapter. Adapters allow to mount and dismount the devices
quickly and effortlessly. Central mounting port with 1/4" and 3/8" holes allows also for mounting the device on other
video heads available on the market.
10
21
22
23
Slide Kamera SP series slider
2
4
3
5
1
4.3.1. Mounting SP series slider directly on Slide Kamera rotational heads
In order to mount Slide Kamera SP series slider directly on Slide Kamera rotational head remove all screws
from the head mounting plate except for the central screw: AF-12 LG reduction 3/8" thread. Next, screw
the reduction into 3/8" hole of central mounting port of the slider. Method of mounting presented
on the example of Slide Kamera HGO-2 rotational head.
AF-12 LG reduction 3/8'' mandrel [1]
Central mounting port of SP slider [2]
Slide Kamera HGO-2 rotational head [3]
Slide Kamera AF-16 quick mounting adapter [4]
Slide Kamera HST-2 tripod [5]
4.3.2. Mounting Slide Kamera SP series slider on Slide Kamera heads
with the use of Slide Kamera AKC-3 adapter or Manfrotto MN577 adapter
Mounting of Slide Kamera SP series slider will be presented on the example of Slide Kamera HG-5 oil pan and tilt
head. In order to mount Slide Kamera slider on Slide Kamera head remove all screws from the head mounting plate
and mount a proper adapter base: Slide Kamera AKC-3 or Manfrotto MN577. Method of mounting the adapters
is the same. Photos below present the example of AKC-3 adapter in use.
Slide out the AK-101 sliding plate from the AKC-3 adapter, remove all screws except for the 3/8'' and 1/4''
photographic screws and the grub screw that locks them. Screw AKC-3 adapter base to Slide Kamera HG-5
head mounting plate using four M4x12 screws (provided with Slide Kamera AKC-3 adapter).
Slide Kamera HG-5 head mounting plate [1]
Four M4x12 screws [2]
Slide Kamera AKC-3 adapter base [3]
Slide Kamera HG-5 pan and tilt head [4]
7
Slide Kamera serii S
11
4
3
1
2
Slide Kamera SP series slider
1
2
3
5
4
6
1 2
3
4
Mount Slide Kamera AK-101 sliding plate to central mounting port using Slide Kamera 1/4” and 3/8” photographic
screws. Unlock AKC-3 adapter clamping knobs, slide AK-101 sliding plate mounted to the central port of the slider
into AKC-3 adapter base, thus connecting Slide Kamera SP series slider with Slide Kamera head. Lock
the clamping knobs.
Central mounting port [1]
Slide Kamera AK-101 sliding plate [2]
Slide Kamera AKC-3 adapter base [3]
Slide Kamera HG-5 oil pan and tilt head [4]
Slide Kamera HST-3 tripod [5]
Clamping knobs [6]
5. Slide Kamera HDN/HDN PRO DC drive for Slide Kamera SP series sliders
Slide Kamera HDN/HDN PRO DC drive for Slide Kamera SP series sliders, is equipment specially designed
for smooth shots in motion ranging from 2mm/s to 55mm/s as well as Timelapse photos. HDN/HDN PRO DC drive
for Slide Kamera SP series sliders consists of an intuitive controller: HDN-ST or HDN-ST PRO and a power unit
HDN-ZN-2. Speed stability of our drive ensures perfect smoothness of motion both horizontally and at a certain
angle. Quiet operation reduces the noises to the minimum on the recorded material. Additionaly, the device is very
light, its weight does not exceeds 1kg. Slide Kamera HDN DC drive is available in two versions: HDN and HDN PRO
with photocamera synchronization.
HDN-ST PRO controller [1]
HDN-ZN-2 power unit [2]
Shutter release available in HDN PRO version [3]
100÷240V AC adapter [4]
7
12
Central mounting port with 1/4" and 3/8" holes allows also for mounting Slide Kamera SP series
slider on other video heads available on the market.
Slide Kamera SP series slider
2
1
22
HDN/HDN PRO drive can be supplied from either AC adapter or three R6/AA batteries. It is designed in a way
to allow simple connection / disconnection of the drive at any time, ie, the cameraman can perform alternately hand
held camera movement and use the drive. Drive controller is equipped with 1/4" mounting hole that allows to mount
it on devices with the use of Slide Kamera AF-17 articulated arm or 11" Magic Arm.
5.1. Mounting Slide Kamera HDN/HDN PRO DC drive on SP series slider
To mount Slide Kamera HDN/HDN PRO DC drive on Slide Kamera SP series slider unscrew standstill brake
from the cart using 5mm Allen wrench and screw the drive instead. It is important that the drive is in parallel position
in relation to the cart plate. Make sure that the arm with the motor is lifted (the spring should be compressed)
before you mount the drive.
When using the drive, make sure to unlock standstill brake [1] integrated with HDN-ZN-2 power unit. In order
to shoot without using the drive lift the motor arm and lock it in this position with the clamping knob [2]. The cart
will move freely.
7
Slide Kamera serii S
13
Slide Kamera SP series slider
14
It is crucial that during transport the cart is immobilized and side feet assembled.
Slide Kamera SP series slider
Cover
Slide Kamera SP 600mm BASIC/PRO
Slide Kamera PSK-1
Slide Kamera SP 1000mm BASIC/PRO
Slide Kamera PSK-3
6. Transport
Slide Kamera SP series slider is a very precise device allowing to obtain excellent visual effects. However,
some of the elements of our device are susceptible to damage. These are the guide rails, which are in direct contact
with the rollers and the rollers themselves. Even the smallest damage (hitting, scratching) can cause performance
deterioration of the device. During the transportation it is crucial to secure the abovementioned elements
in the most efffective way.
It is recommended to transport the Slide Kamera SP series slider in Slide Kamera PSK cover that allows
to transport Slide Kamera sliders with accessories safely, in any way so that the rails and rollers are protected
against damage.
Slide Kamera PSK cover is made of waterproof polyester fabric of high durability, resistant to abrasion and weather
conditions. It is equipped with inside straps that secure Slide Kamera slider during transport. Sides of PSK cover
are filled with 1cm Nexus foam.
7. Maintenance
R Use a soft cloth to clean. Never use abrasive or caustic products, which could cause the damage
of the protective coatings
R To remove any impurities, you can use compressed air
R Do not lubricate the rollers, or rails along which the rollers move
R In case of an excessive clearance of the cart please contact Slide Kamera service
R Do not leave the device in the sun because the grease may flow out from the roller bearings
what can lead to a serious damage
Slide Kamera SP series slider
7
Slide Kamera serii S
15
8. Terms of warranty
All Slide Kamera products are covered manufacturer's warranty for a period of 12 months from the date of sale.
Warranty covers any design faults or of the material of the product which resulted in the product malfunctioning.
The warranty covers the repair, or, if the repair proves impossible, replacement of the product with a new one.
Hovewer, the cost of repair of the product cannot overrun the catalogue value of the product. The warranty
does not cover damage and / or product defects resulting from the improper usage, as well as not following product
maintenance specifications.
Warranty excludes:
R unauthorized attempts to repair or modify
R mechanical damage caused during transport and operation of such features, scratches, dents, pits, dirt,
etc ...
R flooding, moisture
To obtain warranty service the purchaser should deliver the damaged product together with a proof of purchase
and proof of payment (invoice, cash register receipt). The product will be accepted for warranty service
on condition that it is delivered with correctly filled in complaint form and properly protected during transport.
You can download the complaint form from: www.slidekamera.pl / www.slidekamera.eu.
After the warranty period is exceeded any spare parts can be purchased directly from the manufacturer
or in any selected points of sale.
The manufacturer runs also a post warranty service: HET-CNC s.c., 80-175 Gdańsk (Poland), Ul. Kartuska 386
Any changes in design and repairs are made only and exclusively by the manufacturer.
Failure to comply with the recommended guidelines outlined in this manual
will result in loss of warranty.
Slide Kamera SP series slider
16
Slide Kamera SP series slider
7
Slide Kamera serii S
17
Slide Kamera SP series slider
18
Slide Kamera SP series slider
Loading...
