51
TO ORDER: 405-235-2184 OR 800-727-6642 OR HAGARPARTS.COM
KEY PART # DESCRIPTION KEY PART # DESCRIPTION

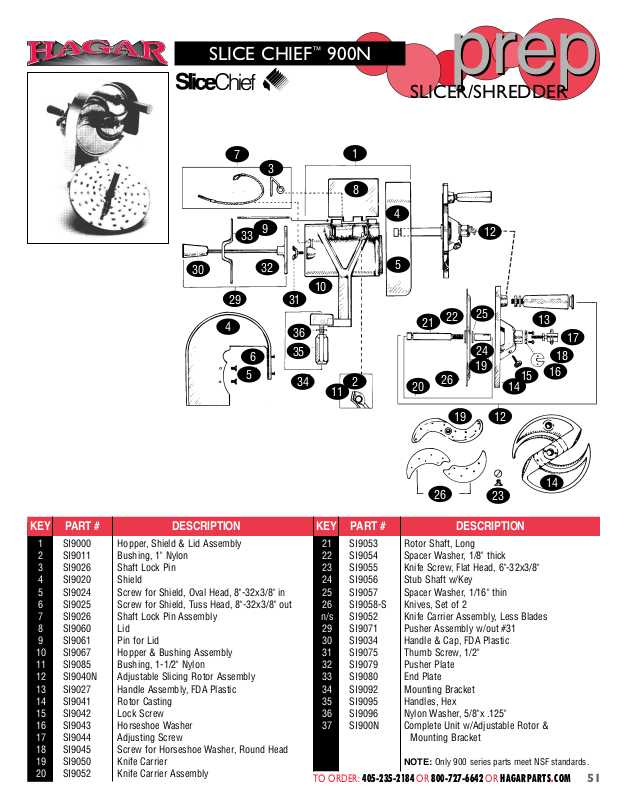

SLICE CHIEF™900N
SLICER/SHREDDER
12
1
13
14
15
16
17
18
19
20
21
22
2
3
4
5
6
7
8
9
10
11
23
24
25
26
29
30
31
32
33
34
35
36
4
5
14
26
19
12
1 SI9000 Hopper, Shield & Lid Assembly
2 SI9011 Bushing, 1" Nylon
3 SI9026 Shaft Lock Pin
4 SI9020 Shield
5 SI9024 Screw for Shield, Oval Head, 8"-32x3/8" in
6 SI9025 Screw for Shield, Tuss Head, 8"-32x3/8" out
7
SI9026 Shaft Lock Pin Assembly
8
SI9060 Lid
9
SI9061 Pin for Lid
10
SI9067 Hopper & Bushing Assembly
11
SI9085 Bushing, 1-1/2" Nylon
12
SI9040N Adjustable Slicing Rotor Assembly
13
SI9027 Handle Assembly, FDA Plastic
14
SI9041 Rotor Casting
15
SI9042 Lock Screw
16
SI9043 Horseshoe Washer
17
SI9044 Adjusting Screw
18
SI9045 Screw for Horseshoe Washer, Round Head
19
SI9050 Knife Carrier
20
SI9052 Knife Carrier Assembly
21 SI9053 Rotor Shaft, Long
22 SI9054 Spacer Washer, 1/8" thick
23 SI9055 Knife Screw, Flat Head, 6"-32x3/8"
24 SI9056 Stub Shaft w/Key
25 SI9057 Spacer Washer, 1/16" thin
26 SI9058-S Knives, Set of 2
n/s
SI9052 Knife Carrier Assembly, Less Blades
29
SI9071 Pusher Assembly w/out #31
30
SI9034 Handle & Cap, FDA Plastic
31
SI9075 Thumb Screw, 1/2"
32
SI9079 Pusher Plate
33
SI9080 End Plate
34
SI9092 Mounting Bracket
35
SI9095 Handles, Hex
36
SI9096 Nylon Washer, 5/8"x .125"
37
SI900N Complete Unit w/Adjustable Rotor &
Mounting Bracket
NOTE: Only 900 series parts meet NSF standards.
