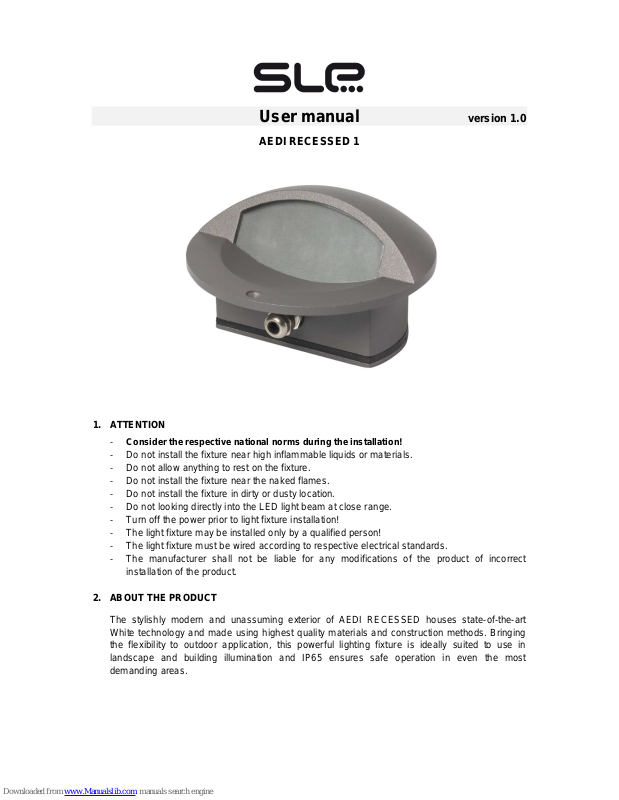

User manual
version 1.0

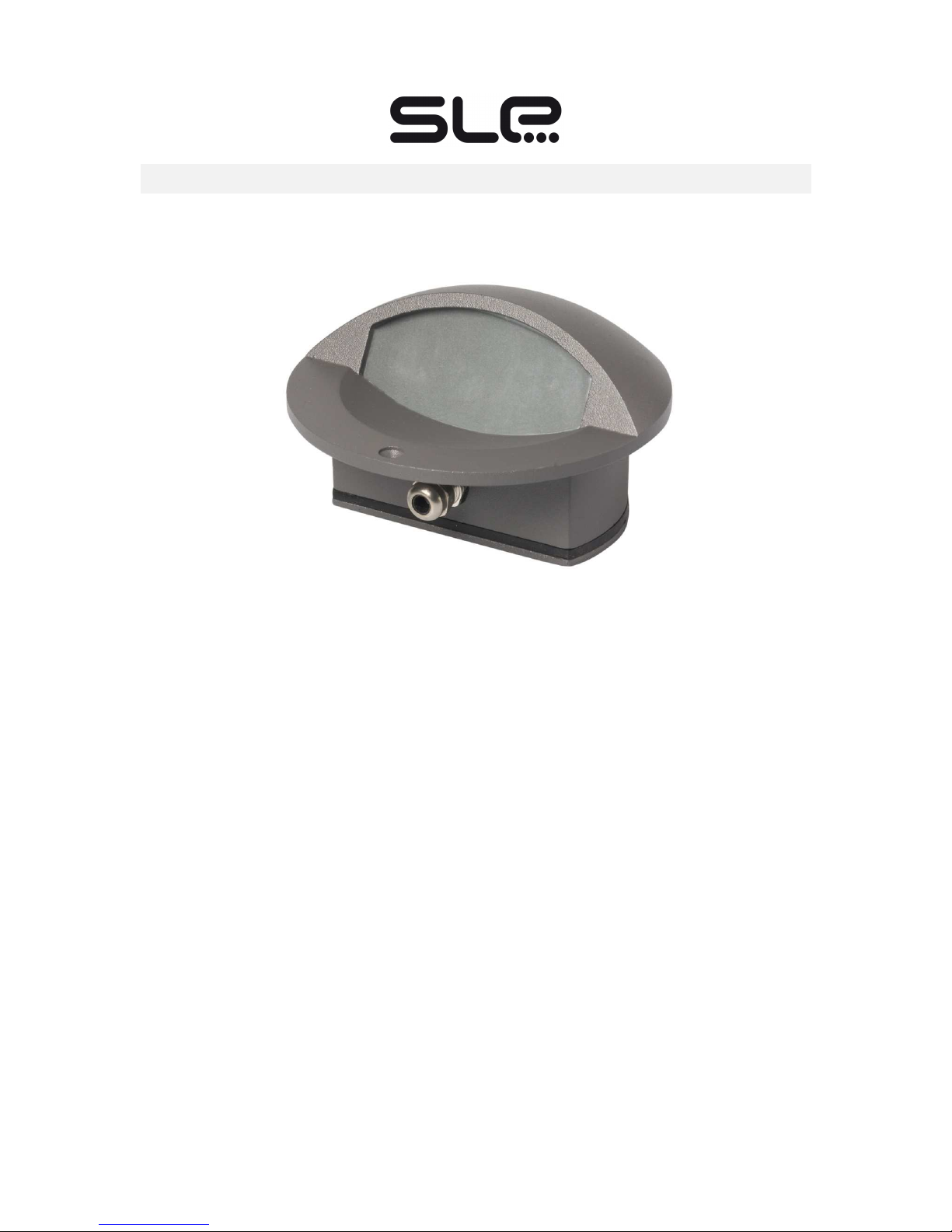

AEDI RECESSED 1
1. ATTENTION
-
Consider the respective national norms during the installation!
- Do not install the fixture near high inflammable liquids or materials.
- Do not allow anything to rest on the fixture.
- Do not install the fixture near the naked flames.
- Do not install the fixture in dirty or dusty location.
- Do not looking directly into the LED light beam at close range.
- Turn off the power prior to light fixture installation!
- The light fixture may be installed only by a qualified person!
- The light fixture must be wired according to respective electrical standards.
- The manufacturer shall not be liable for any modifications of the product of incorrect
installation of the product.
2. ABOUT THE PRODUCT
The stylishly modern and unassuming exterior of AEDI RECESSED houses state-of-the-art
White technology and made using highest quality materials and construction methods. Bringing
the flexibility to outdoor application, this powerful lighting fixture is ideally suited to use in
landscape and building illumination and IP65 ensures safe operation in even the most
demanding areas.
Page 2
2
3. TECHNICAL SPECIFICATIONS
ITEM AEDI RECESSED 1
Mounting：：：：
Recessed
Optical systems:
None
LED Device
:
OSRAM LEDs
LED color variants:
3000K / 4000K / 5700K
Lumen Output:
Up to 60lm
Input Voltage：：：：
12-24 V DC
Power cable connection:
Outdoor cable H05RR-F 2 x 1,5mm (L=0,5m)
Power Consumption：：：：
Max. 5W
Service lifetime:
70,000 hrs. / L70 /@ 25°C
Operating ambient temp.:
-20°C/+40°C
Materials:
Housing:
die cast
alumin
ium
Cover: Plastic
IP Rating:
IP 65
Dimension：
130 x 90 x 125 mm
Weight：：：：
0,8 kg
Accessories on request:
Power supply 230V AC / 12-24 V DC
4. INSTALLATION – CONNECTION
AEDI RECESSED 1:
Page 3
3

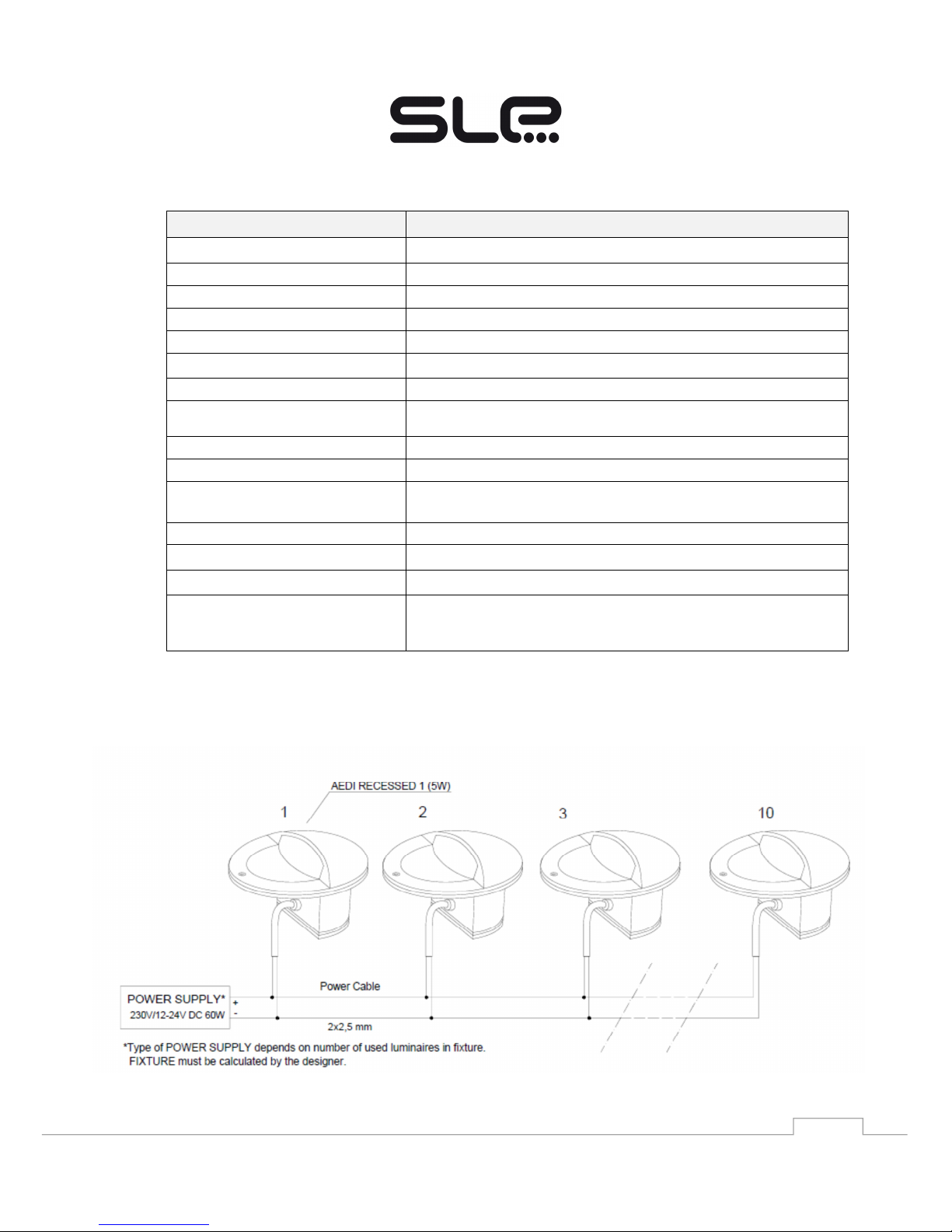

The maximum length of the cable (2 x core 2,5mm) between POWER SUPPLY and the last
luminaire cannot exceed more than 80 m.

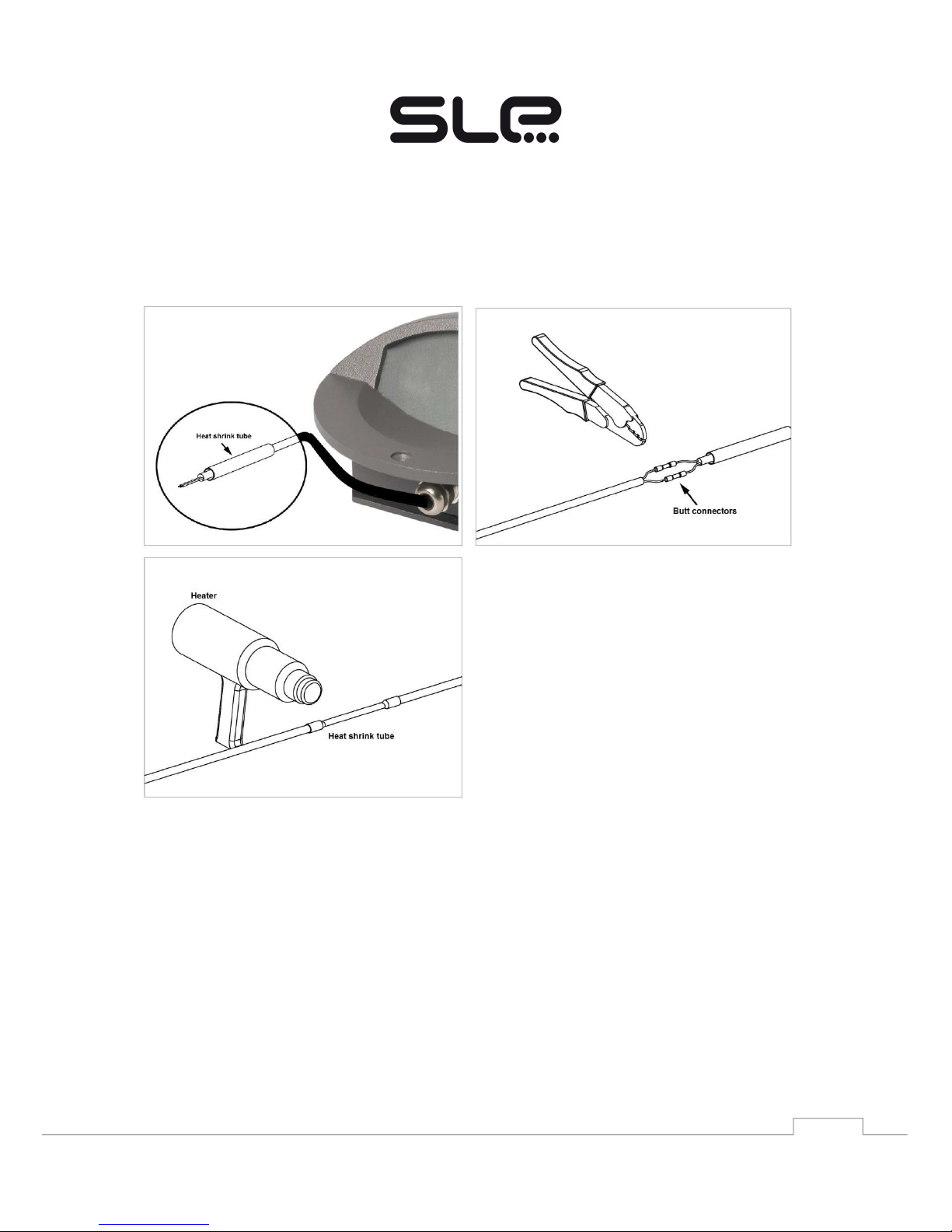

The joining procedure:
1. 2.
3.
Page 4
4

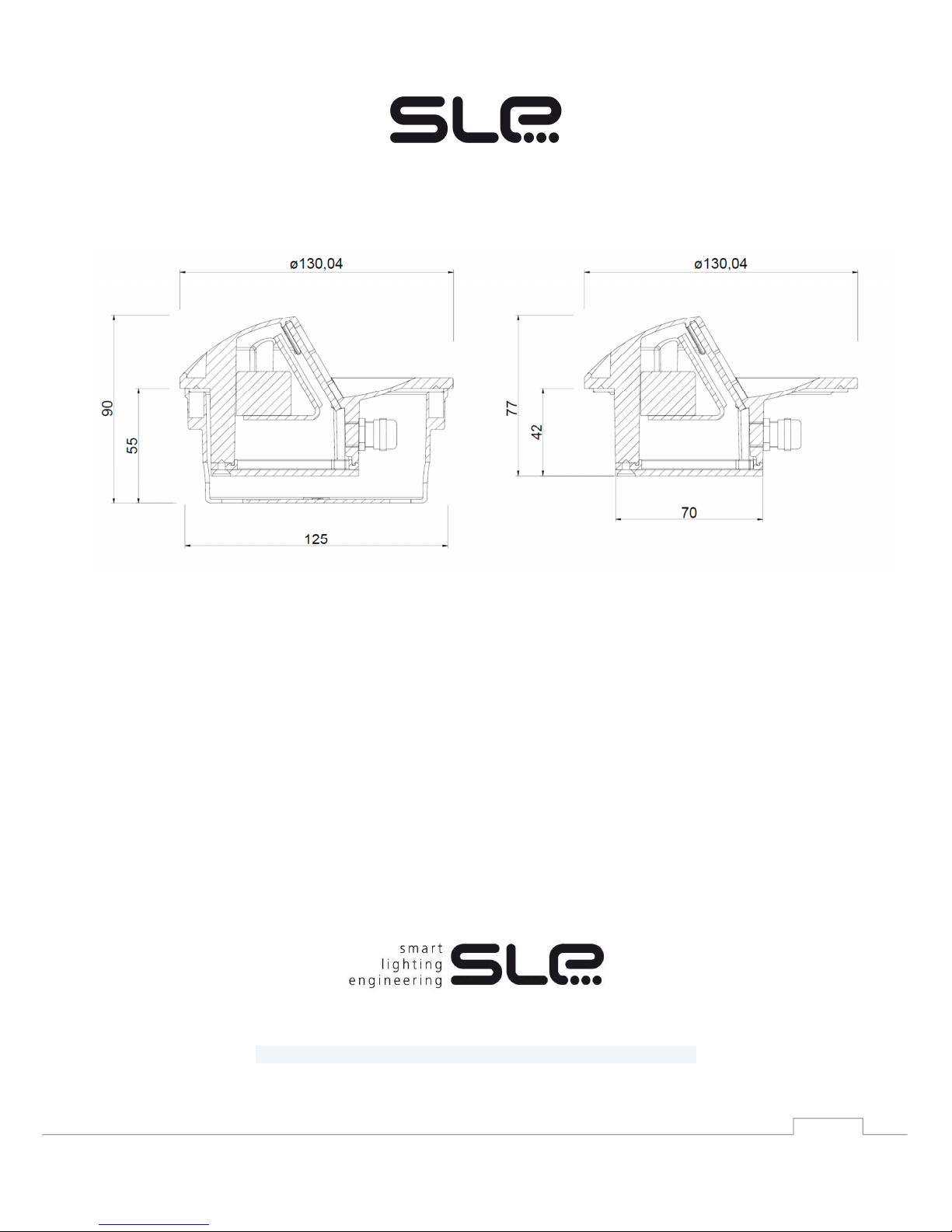

5. DIMENSIONS:
6. MAINTANANCE:
Clean the front transparent cover at least every 1-2 months. Use a moist, lint-free cloth. Never
use alcohol or solvents.
WWW.SLEPROJECTS.COM
© 2014 SLE . All specifications subject to change without notice
