SLAMTEC RPLIDAR A2M8 Datasheet

ww

w.slamtec.com

Shanghai Slamtec.Co.,Ltd

RPLIDAR A2

Low Cost 360 Degree Laser Range Scanner

Introduction and Datasheet

Model: A2M7

A2M8

OPTMAG

4K-8K

2018-03-23 rev

.1.1

CONTENTS ................................................................................................................................................... 1

INTRODUCTION ......................................................................................................................................... 3

SYSTEM CONNECTION ........................................................................................................................................ 4

MECHANISM ....................................................................................................................................................... 5

SAFETY AND SCOPE ............................................................................................................................................ 6

DATA OUTPUT .................................................................................................................................................... 6

HIGH SPEED SAMPLING PROTOCOL AND COMPATIBILITY ................................................................................. 7

APPLICATION SCENARIOS ................................................................................................................................... 7

SPECIFICATION ........................................................................................................................................... 9

MEASUREMENT PERFORMANCE ......................................................................................................................... 9

LASER POWER SPECIFICATION ............................................................................................................................ 9

OPTICAL WINDOW ........................................................................................................................................... 10

COORDINATE SYSTEM DEFINITION OF SCANNING DATA ................................................................................ 10

COMMUNICATION INTERFACE .......................................................................................................................... 11

MISC ................................................................................................................................................................ 14

SELF-PROTECTION AND STATUS DETECTION ................................................................................. 15

SDK AND SUPPORT ................................................................................................................................. 16

MECHANICAL DIMENSIONS ................................................................................................................. 17

REVISION HISTORY ................................................................................................................................. 18

APPENDIX .................................................................................................................................................. 19

IMAGE AND TABLE INDEX ................................................................................................................................. 19

Contents

3 / 19

The RPLIDAR A2 is the next generation low cost 360 degree 2D laser scanner

(LIDAR) solution developed by SLAMTEC. It can take up to 8000 samples of laser

ranging per second with high rotation speed. And equipped with SLAMTEC

patented OPTMAG technology, it breakouts the life limitation of traditional LIDAR

system so as to work stably for a long time.

The system can perform 2D 360-degree scan within a 12-meter range. The

generated 2D point cloud data can be used in mapping, localization and

object/environment modeling.

The typical scanning frequency of the RPLIDAR A2 is 10hz (600rpm). Under this

condition, the resolution will be 0.9°. And the actual scanning frequency can be

freely adjusted within the 5-15hz range according to the requirements of users.

The RPLIDAR A2 adopts the low-cost laser triangulation measurement system

developed by SLAMTEC, which makes the RPLIDAR A2 has excellent performance

in all kinds of indoor environment and outdoor environment without direct

sunlight exposure. Meanwhile, before leaving the factory, every RPLIDAR A2 has

passed the strict testing to ensure the laser output power meet the standards of

FDA Class I.

Introduction

4 / 19

System connection

The RPLIDAR A2 consists of a range scanner core and the mechanical powering

part which makes the core rotate at a high speed. When it functions normally, the

scanner will rotate and scan clockwise. And users can get the range scan data via

the communication interface of the RPLIDAR and control the start, stop and

rotating speed of the rotate motor via PWM.

Figure 1-1 RPLIDAR System Composition

The RPLIDAR A2 comes with a rotation speed detection and adaptive system. The

system will adjust the angular resolution automatically according to the actual

rotating speed. And there is no need to provide complicated power system for

RPLIDAR. In this way, the simple power supply schema saves the BOM cost. If the

actual speed of the RPLIDAR is required, the host system can get the related data

via communication interface.

The detailed specification about power and communication interface can be

found in the following sections.

Range Scanner Core

Mechanical

Powering Part

Communication and

Power Interface

5 / 19

Mechanism

The RPLIDAR A2 is based on laser triangulation ranging principle and adopts the

high-speed vision acquisition and processing hardware developed by SLAMTEC.

The system ranges up to 8000 times per second.

Figure 1-2 The RPLIDAR Working Schematic

During every ranging process, the RPLIDAR emits modulated infrared laser signal

and the laser signal is then reflected by the object to be detected. The returning

signal is then sampled by vision acquisition system in RPLIDAR and the DSP

embedded in RPLIDAR starts processing the sample data and outputs distance

value and angle value between object and RPLIDAR via communication interface.

When drove by the motor system, the range scanner core will rotate clockwise

and perform the 360-degree scan for the current environment.

𝒅

6 / 19

Figure 1-3 The Obtained Environment Map from RPLIDAR Scanning

Safety and Scope

The RPLIDAR A2 system uses a low power infrared laser as its light source, and drives it by using modulated pulse. The laser emits light in a very short time frame which can ensure its safety to human and pet, and it reaches Class I laser safety standard.

The modulated laser can effectively avoid the interference from ambient light and sunlight during ranging scanning process, which makes RPLIDAR work excellent in all kinds of indoor environment and outdoor environment without sunlight.

Data Output

During the working process, the RPLIDAR will output the sampling data via the

communication interface. And each sample point data contains the information in

the following table. If you need detailed data format and communication protocol,

please contact SLAMTEC.

*Note：The LIDAR scan image is not

directly relative to the environment

showed here. Illustrative purpose only.

Class I

7 / 19

Figure 1-4 The RPLIDAR Sample Point Data Information

Figure 1-5 The RPLIDAR Sample Point Data Frames

The RPLIDAR outputs sampling data continuously and it contains the sample point

data frames in the above figure. Host systems can configure output format and

stop RPLIDAR by sending stop command. For detailed operations please contact

SLAMTEC.

High Speed Sampling Protocol and Compatibility

The RPLIDAR A2 adopts the newly extended high speed sampling protocol for

outputting the 8000 times per second laser range scan data. Users are required to

update the matched SDK or modify the original driver and use the new protocol

for the 8000 times per second mode of RPLIDAR A2. Please check the related

protocol documents for details.

Application Scenarios

The RPLIDAR can be used in the following application scenarios:

o General robot navigation and localization

Data Type

Unit

Description

Distance

mm

Current measured distance value between the rotating core of the RPLIDAR and the sampling point

Heading

degree

Current heading angle of the measurement

Start Flag

(Bool)

Flag of a new scan

Checksum

The Checksum of RPLIDAR return data

…

(dሾn − 1ሿ, θሾn − 1ሿ)

(dሾnሿ, θሾn

ሿ

)

(dሾ0ሿ, θሾ0

ሿ

)

(dሾ1ሿ, θሾ1

ሿ

)

…

Start Flag

A new scan

8 / 19

o Environment scanning and 3D re-modeling o Service robot or industrial robot working for long hours o Home service /cleaning robot navigation and localization o General simultaneous localization and mapping (SLAM) o Smart toy’s localization and obstacle avoidance

9 / 19

Measurement Performance

 For Model A2M7/A2M8 Only

Figure 2-1 RPLIDAR Performance

Note: the triangulation range system resolution changes along with distance.

Laser Power Specification

 For Model A2M7/A2M8 Only

Figure 2-2 RPLIDAR Optical Specification

Note: the laser power listed above is the peak power and the actual average power

is much lower than the value.

Specification

Item

Unit

Min

Typical

Max

Comments

Distance Range

Meter(m)

0.15

-

12

Based om white objects with 70% reflectivity

Angular Range

Degree

-

0-360

-

Distance Resolution

mm

<0.5

<1.5 meters

<1% of the distance

All distance range*

Angular Resolution

Degree

0.45

0.9

1.35

10Hz scan rate

Sample Duration

Millisecond(ms )

-

0.25

-

Sample Frequency

Hz

2000

4000

8000

Scan Rate

Hz 5 10

15

The rate is for a round of scan. The typical value is measured when RPLIDAR takes 400 samples per scan

Item

Unit

Min

Typical

Max

Comments

Laser wavelength

Nanometer(nm)

775

785

795

Infrared Light Band

Laser power

Milliwatt (mW)

- 3 5

Peak power

Pulse length

Microsecond(us)

60

87

90

-

Laser Safety Class

- - FDA Class I

-

10 / 19

Optical Window

To make the RPLIDAR A2 working normally, please ensure proper space to be left

for its emitting and receiving laser lights when designing the host system. The

obscuring of the host system for the ranging window will impact the performance

and resolution of RPLIDAR A2. If you need cover the RPLIDAR A2 with translucent

materials or have other special needs, please contact SLAMTEC about the

feasibility.

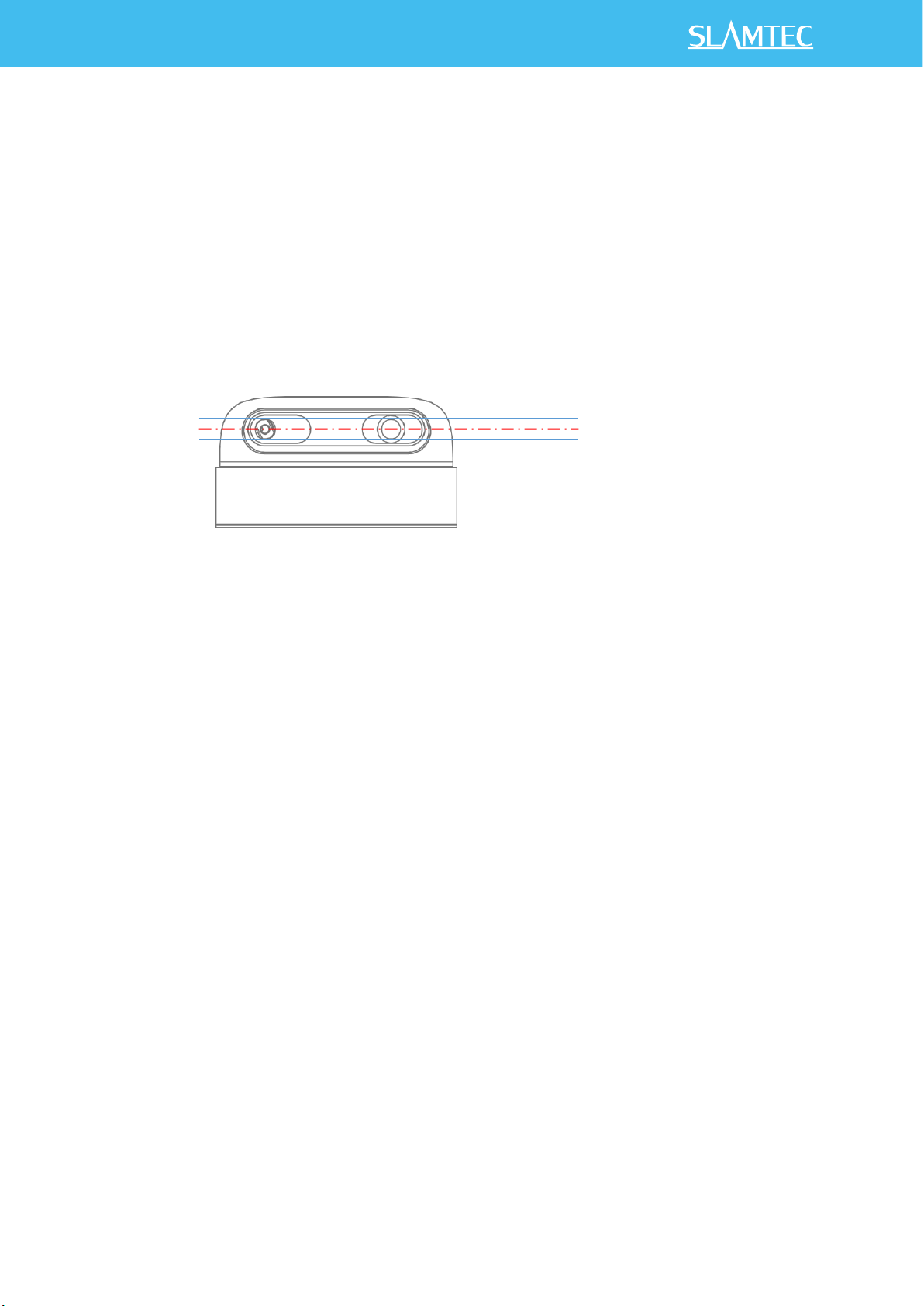

Figure 2-3 RPLIDAR Optical Window

You can check the Mechanical Dimensions chapter for detailed window

dimensions.

Coordinate System Definition of Scanning Data

The RPLIDAR A2 adopts coordinate system of the left hand. The dead ahead of

the sensors is the x axis of the coordinate system; the origin is the rotating center

of the range scanner core. The rotation angle increases as rotating clockwise. The

detailed definition is shown in the following figure:

Optical Window

11 / 19

Figure 2-4 RPLIDAR Scanning Data Coordinate System Definition

Communication interface

The RPLIDAR A2 uses separate 5V DC power for powering the range scanner core

and the motor system. And the standard RPLIDAR A2 uses XH2.54-5P male socket.

Detailed interface definition is shown in the following figure:

Figure 2-5 RPLIDAR Power Interface Definition

θ ሾ0,360)

Interface Lead

Red

XH2.54-5P

VCC

TX

RX

GND

MOTOCTL

12 / 19

Figure 2-6 RPLIDAR External Interface Signal Definition

Power Supply Interface

RPLIDAR A2 takes the only external power to power the range scanner core and

the motor system which make the core rotate. To make the RPLIDAR A2 work

normally, the host system needs to ensure the output of the power and meet its

requirements of the power supply ripple.

 For Model A2M7/A2M8 Only

Figure 2-7 RPLIDAR Power Supply Specification

Data communication interface

Color

Signal Name

Type

Description

Min

Typical

Max

Red

VCC

Power

Total Power

4.9V

5V

5.5V

Yellow

TX

Output

Serial port output of the scanner core

0V

3.3V

3.5V

Green

RX

Input

Serial port input of the scanner core

0V

3.3V

3.5V

Black

GND

Power

GND

0V

Blue

MOTOCTL

Input

Scan motor /PWM Control Signal (active high, internal pull down)

0V

3.3V

5V

Item

Unit

Min

Typical

Max

Remark

Power Voltage

V

4.9 5 5.5

If the voltage exceeds the max value, it may damage the core

Power Voltage Ripple

mV - 20

50

High ripple may cause the core working failure.

System Start Current

mA - 1200

1500

The system startup requires relatively higher current.

Power Current

mA

TBD

200

220

5V Power，power off

TBD

450

600

5V Power，power on

13 / 19

The RPLIDAR A2 takes the 3.3V-TTL serial port (UART) as the communication

interface. The table below shows the transmission speed and the protocol

standard.

Figure 2-8 RPLIDAR Serial Port Interface Specifications

Note: the RX input signal of A2M4 is current control type. In order to ensure the reliable signal identification inside the system, the actual control node voltage of this pin will not be lower than 1.6v.

Scanner Motor Control

The RPLIDAR A2 is embedded with a motor driver which has speed tuning feature.

Users can control the start, the stop and the rotating speed for the motor via

MOTOCTL in the interface. MOTOCTL can be supplied using PWM signal with

special frequency and duty cycle, and in this mode, the rotating speed is decided

by the duty cycle of the input MOTOCTL PWM Signal.

The following table describes the requirement for the input PWM signal of

MOTOCTL:

Item

Unit

Min

Typical

Max

Comments

Band rate

bps

-

115200

-

Working mode

- - 8N1

-

8n1

Output high voltage

Volt (V)

2.9 - 3.5

Logic High

Output low voltage

Volt (V)

- - 0.4

Logic Low

Input high voltage

Volt (V)

1.6*

-

3.5

Logic High

Input low voltage

Volt (V)

-0.3

-

0.4

Logic Low

Item

Unit

Min

Typical

Max

Comments

High level voltage

V

3.0V

3.3V

5V

-

14 / 19

Figure 2-9 RPLIDA Specification for PWM Signal of MOTOCTL

Note: the typical value is tested when the scanner rotating frequency is 10Hz. With

the same rotating speed, the PWM duty cycle of every RILIDAR A2 may vary

slightly. If a precise rotating speed is required, users can perform a closed-loop

control.

If the host system only need to control the start and stop of the motor, please use

the direct current signal in high level and low level to drive MOTOCTL. Under this

condition, when the MOTOCTL is the low level signal, the RPLIDAR A2 will stop

rotating and scanning; when the MOTOCTL is the high level signal, the RPLIDAR

A2 will rotated at the highest speed.

MISC

 For Model A2M7/A2M8 Only

Figure 2-10 RPLIDAR MISC Specification

PWM frequency

Hz

24,500

25,000

25,500

Square Signal

Duty cycle range

-

0%

60%*

100%

Typical value is the duty cycle of high pulse width when the scanner frequency is at10hz

Item

Unit

Min

Typical

Max

Comments

Weight

Gram (g)

TBD

190

TBD

Temperature range

Degree Celsius (oC)

0

20

45

15 / 19

To ensure the laser of RPLIDAR always working in the safety range (<3mW) and

avoid any other damage caused by device, the RPLIDAR comes with laser power

detection and sensor healthy check feature. It will shut down the laser and stop

working automatically when any of the following errors has been detected.

o Laser transmit power exceeds limited value o Laser cannot power on normally o Scan speed of Laser scanner system is unstable o Scan speed of Laser scanner system is too slow o Laser signal sensor works abnormally

The host systems can check the status of the RPLIDAR via the communication

interface and restart the RPLIDAR to try to recover work from error.

Self-protection and Status Detection

16 / 19

SLAMTEC provides debug GUI tool and SDK (available for Windows, x86 Linux and

Arm Linux) to speed up the product development for users. Please contact

SLAMTEC for detail information.

Figure 4-1 the Debugging GUI of RPLIDAR

SDK and Support

17 / 19

The mechanical dimensions of the RPLIDAR A2 are shown as below:

Figure 5-1 RPLIDAR Mechanical Dimensions

Note: the 4 M3 screws in the bottom should be no longer than 4mm, or the internal module would be damaged.

Mechanical Dimensions

18 / 19

Revision history

Date

Version

Description

2016-11-15

0.1

Initial version for A2M7/A2M8

2017-05-11

0.2

Fix model type error.

2017-05-15

1.0

Release A2M7/A2M8 Version

2018-03-23

1.1

Updated the version number to 1.1; Updated the scan range from 8m to 12m and the sample frequency from 4000-4100 to 4k -8k.

19 / 19

Image and Table Index

FIGURE 1-1 RPLIDAR SYSTEM COMPOSITION ..................................................................................................... 4

FIGURE 1-2 THE RPLIDAR WORKING SCHEMATIC ............................................................................................... 5

FIGURE 1-3 THE OBTAINED ENVIRONMENT MAP FROM RPLIDAR SCANNING ................................................... 6

FIGURE 1-4 THE RPLIDAR SAMPLE POINT DATA INFORMATION ........................................................................ 7

FIGURE 1-5 THE RPLIDAR SAMPLE POINT DATA FRAMES ................................................................................... 7

FIGURE 2-1 RPLIDAR PERFORMANCE .................................................................................................................. 9

FIGURE 2-2 RPLIDAR OPTICAL SPECIFICATION .................................................................................................... 9

FIGURE 2-3 RPLIDAR OPTICAL WINDOW .......................................................................................................... 10

FIGURE 2-4 RPLIDAR SCANNING DATA COORDINATE SYSTEM DEFINITION ..................................................... 11

FIGURE 2-5 RPLIDAR POWER INTERFACE DEFINITION ....................................................................................... 11

FIGURE 2-6 RPLIDAR EXTERNAL INTERFACE SIGNAL DEFINITION ..................................................................... 12

FIGURE 2-7 RPLIDAR POWER SUPPLY SPECIFICATION ....................................................................................... 12

FIGURE 2-8 RPLIDAR SERIAL PORT INTERFACE SPECIFICATIONS ....................................................................... 13

FIGURE 2-9 RPLIDA SPECIFICATION FOR PWM SIGNAL OF MOTOCTL .......................................................... 14

FIGURE 2-10 RPLIDAR MISC SPECIFICATION ................................................................................................... 14

FIGURE 4-1 THE DEBUGGING GUI OF RPLIDAR ................................................................................................. 16

FIGURE 5-1 RPLIDAR MECHANICAL DIMENSIONS............................................................................................. 17

Appendix

SLAMTEC RPLIDAR A2M8 Datasheet

Specifications and Main Features

Frequently Asked Questions

User Manual
