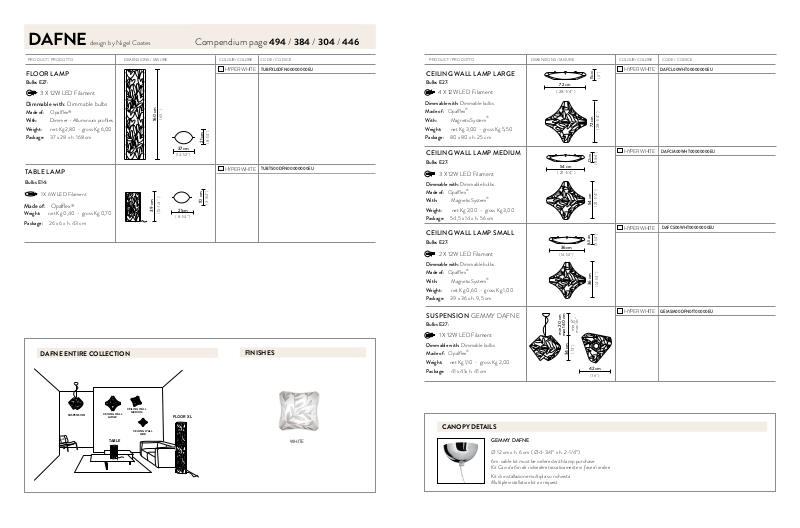

DAFNE
design by Nigel Coates
Compendium page 494 / 384 / 304 / 446
PRODUCT / PRODOTTO DIMENSIONS / MISURE COLOUR / COLORE CODE / CODICE
FLOOR LAMP
HYPER WHITE
TUBFXL0DFN00000000EU
Bulbs E27:
3 X 12W LED Filament
Dimmable with: Dimmable bulbs
Made of: Opalflex
With: Dimmer - Alluminium profiles
Weight: net Kg 2,80 - gross Kg 6,00
Package: 37 x 28 x h. 168 cm
TABLE LAMP
Bulbs E14:
1 X 6W LED Filament
Made of: Opalflex
Weight: net Kg 0,40 - gross Kg 0,70
Package: 26 x 6 x h. 43 cm
®
( 63 ” )
160 cm
21 cm
10 cm
( 8-1/4” )
( 3-3/4” )
HYPER WHITE
TUBTS00DFN00000000EU
37 cm
( 14-1/2” )
®
39 cm
( 15-1/4 ” )
21cm
( 8-1/4” )
PRODUCT / PRODOTTO DIMENSIONS / MISURE
CEILING WALL LAMP LARGE
Bulbs E27:
4 X 12W LED Filament
Dimmable with: Dimmable bulbs
Made of: Opalflex
With: MagneticSystem
Weight: net Kg 3,00 - gross Kg 5,50
Package: 80 x 80 x h. 25 cm
®
®
72 cm
( 28-1/4” )
CEILING WALL LAMP MEDIUM
Bulbs E27:
3 X 12W LED Filament
Dimmable with: Dimmable bulbs
Made of: Opalflex
With: MagneticSystem
Weight: net Kg 2,00 - gross Kg 3,00
Package: 54,5 x 14 x h. 56 cm
®
®
54 cm
( 21-1/4” )
CEILING WALL LAMP SMALL
Bulbs E27:
2 X 12W LED Filament
Dimmable with: Dimmable bulbs
Made of: Opalflex
With: MagneticSystem
Weight: net Kg 0,60 - gross Kg 1,00
Package: 39 x 36 x h. 9,5 cm
®
®
36 cm
( 14-1/4” )
15 cm
72 cm
12 cm
54 cm
8,5 cm
36 cm
(3-1/4” )
( 4-3/4” )
( 21-1/4” )
( 14-1/4” )
( 6” )
( 28-1/4” )
COLOUR / COLORE
HYPER WHITE
HYPER WHITE
HYPER WHITE
CODE / CODICE
DAFCL00WHT00000000EU
DAFCM00WHT00000000EU
DAFCS00WHT00000000EU
DAFNE ENTIRE COLLECTION
SUSPENSION
CEILING WALL
LARGE
TABLE
CEILING WALL
MEDIUM
CEILING WALL
MINI
FLOOR XL
FINISHES
WHITE
SUSPENSION GEMMY DAFNE
Bulbs E27:
1 X 12W LED Filament
Dimmable with: Dimmable bulbs
Made of: Opalflex
Weight: net Kg 1,10 - gross Kg 2,00
Package: 41 x 41x h. 41 cm
®
CANOPY DETAILS
GEMMY DAFNE
Ø 12 cm x h. 6 cm ( Ø 4-3/4” x h. 2-1/4”)
6m. cable kit must be ordered with lamp purchase
Kit Cavi da 6m da richiedere tassativamente in fase di ordine
Kit di installazione multipla su richiesta
Multiple installation kit on request
min 8”
min 20 cm
max 140 cm
( 13” )
34 cm
max 55”
42cm
( 16” )
HYPER WHITE
GEMSM00DFN01T00000EU
