Page 1
SKY01
FPV GOGGLES
USER MANUAL
Page 2

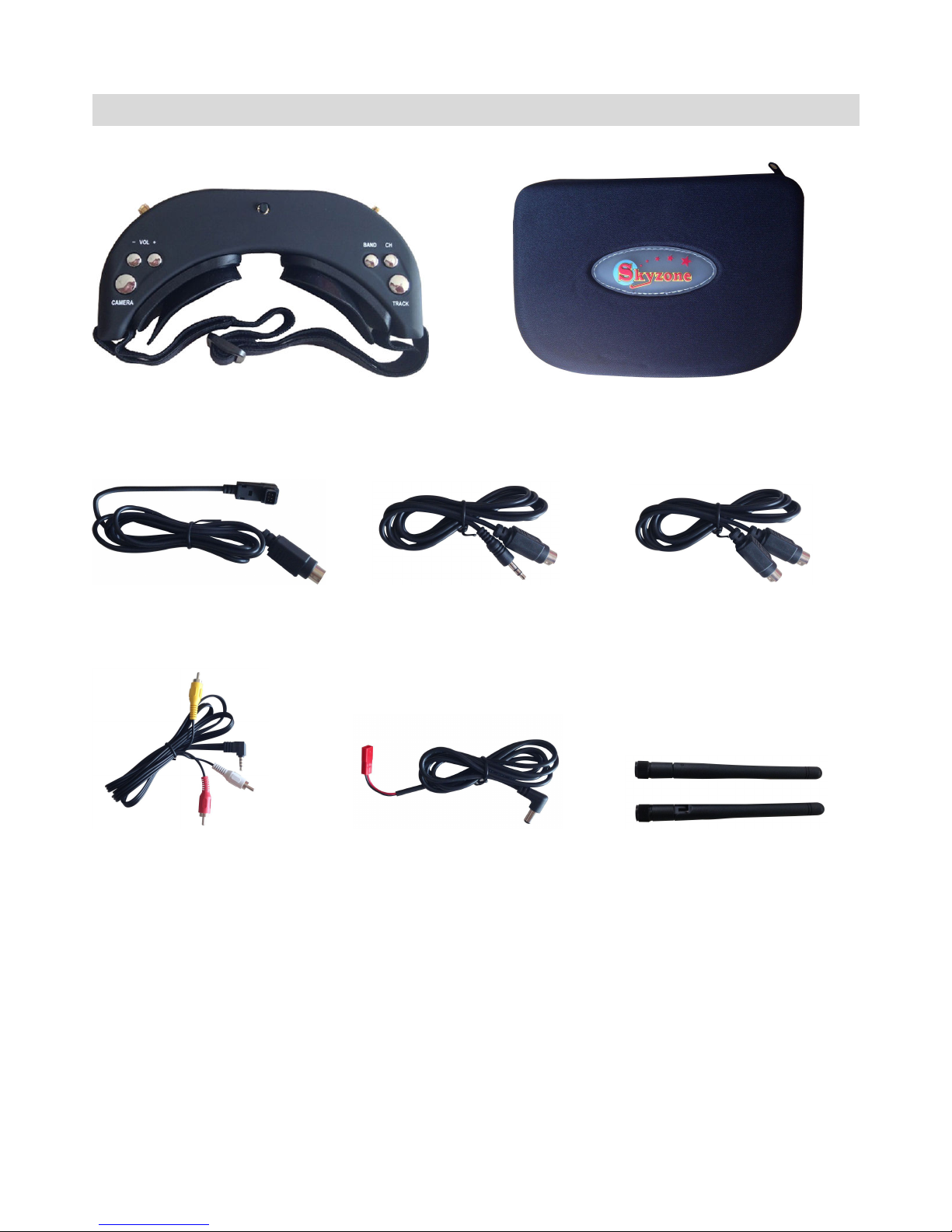

System Content
FPV GOGGLE Carry case
Futaba data cable JR data cable WFLY data cable
AV cable Power cable 5.8G 2dBi antenna X 2
Page 3

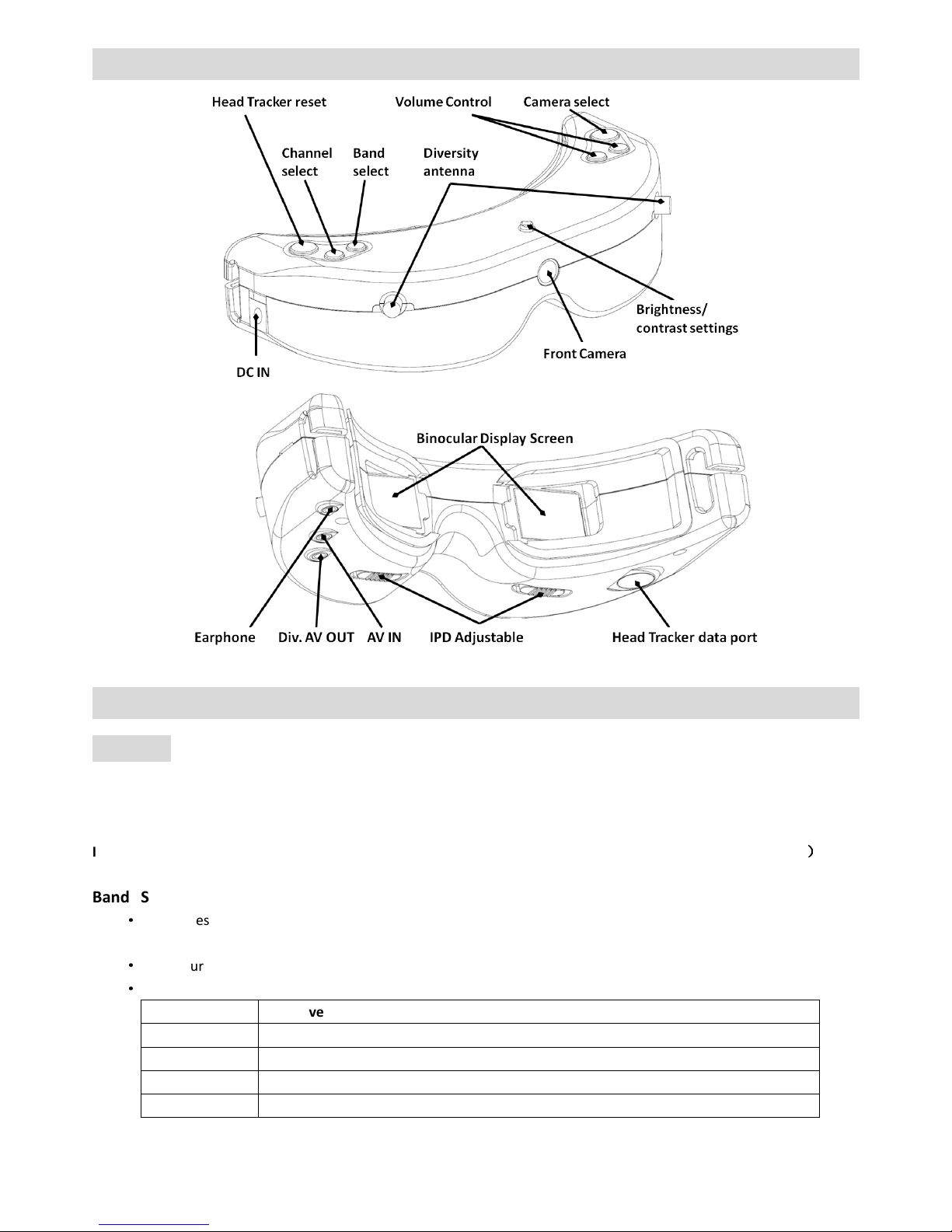

Function Diagram
Operation Instruction
Wireless
The FPV Google with Built-in 5.8Ghz Diversity Receiver and diversity Antenna inputs for best reception. It working in
diversity mode to achieve good signal utilization and improve the image quality.
It supports 4 Bands and total 32channels (Bands selection and Resulting Frequencies see details in Specifications
））））
Bands Setup
·
Long Press Button "BAND" to enter Bands setup (beeps indicating the current band) and press the Button "Band"
again within 3 seconds to select the Bands. Different beeps refer to different Bands.
·
It'll return to normal working mode after 1 short beep if there is no operation within 3 seconds.
·
Beep Receiver BAND
1 short beep Band 1
2 short beep Band 2
3 short beep Band 3
4 short beep Band 4
Channel Setup
Page 4
·
Press Button "CH" once to select from CH1 to CH8. Different beeps refer to different channels.
Beep Receiver Channel
1 short beep CH1
2 short beep CH2
3 short beep CH3
4 short beep CH4
5 short beep CH5
6 short beep CH6
7 short beep CH7
8 short beep CH8
Head Tracker
PPM Channel Setup
·
Press and Hold Button "TRACK", then connect power to enter Head Tracker Setup Menu (Release as soon as beep).
Head Tracker beeps indicating the current PPM Channel. See details below.
·
Short Press "TRACK" Button to select different PPM Channels. Long Press the button to enter Pan Tracking Range
setting mode.
·
Beep PPM Channel
1 short beep Pan CH5,Tilt CH6 (Factory default)
2 short beep Pan CH5,Tilt CH7
3 short beep Pan CH5,Tilt CH8
4 short beep Pan CH6,Tilt CH7
5 short beep Pan CH6,Tilt CH8
6 short beep Pan CH7,Tilt CH8
Pan Tracking Range Setting
·
1 long beep refers to 90 degrees, 2 long beeps refer to 180 degrees
·
Short Press "TRACK" button to change the working Range with corresponding beep
·
Long press "TRACK" to return (with 1 short beep) PPM channel setup mode.
Please disconnect the power after setup and then reconnect to enter normal working mode.
Short press "TRACK" button is ok to setup head tracker into Center position while working.
Front Camera
·
The Front Camera is Wide-Angle Camera with 680X480(VGA) Resolution and good low Illumination. It's very
convenient to view around without taking off the Goggles.
·
Press "Camera" button to open the Front Camera.
Volume
·
Each boot is automatically set to the lowest volume to avoid sudden loud boot.
·
A long beep indicates that you have reached the MAX or MIN Volume. .
Display Setup
Page 5
Interpupillary distance（（（（IPD））））
Adjustable
·
Pull the IPD Adjuster to adjust the interpupillary distance

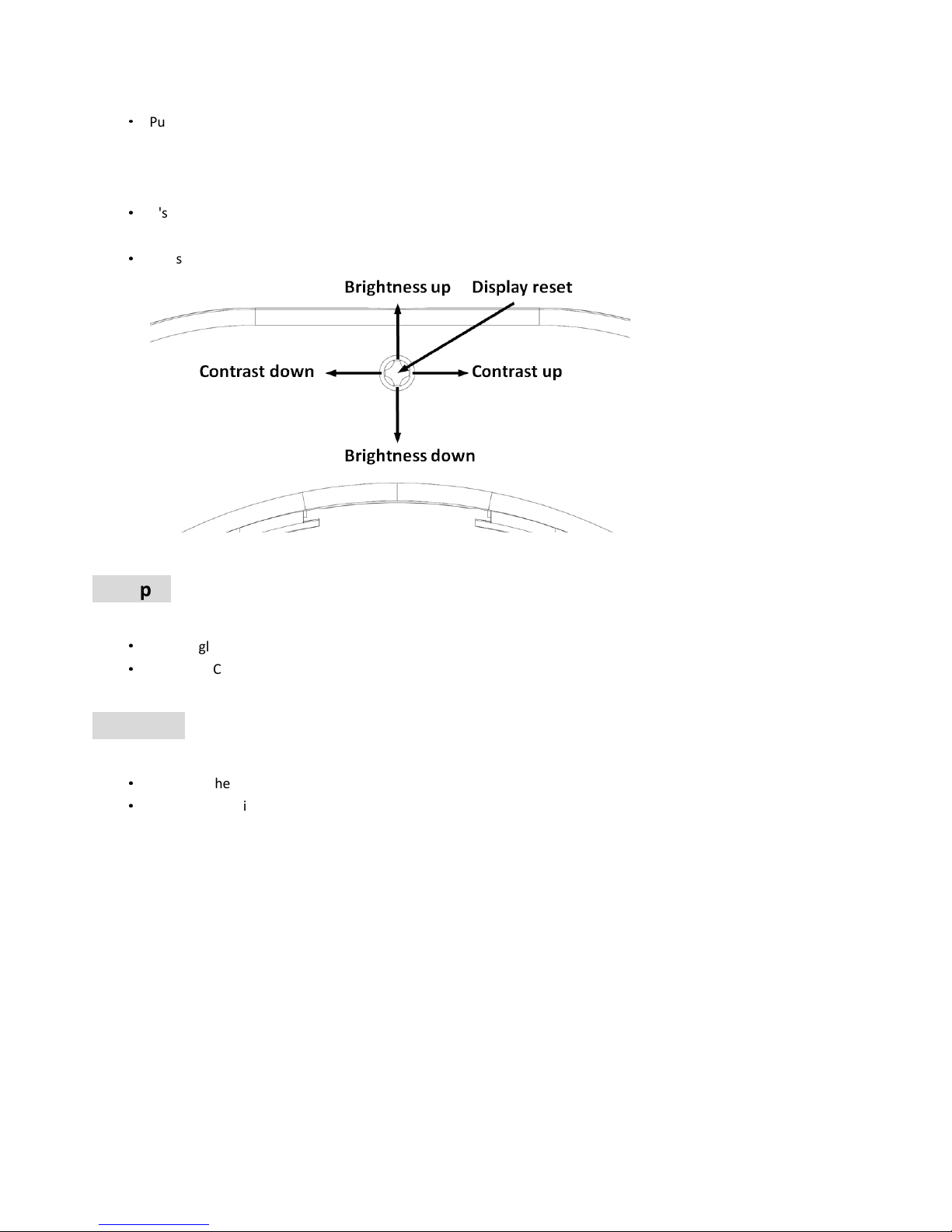

Brightness/ contrast settings
·
It's easy to setup the Brightness/Contrast with the 5-direction switch. Short press is to adjust gradually, long
press is to adjust continuously. It will auto saved if there is no operation within 5 seconds.
·
Press Center button 3 seconds to setup Brightness/Contrast to factory default.
AV input
·
The goggles support AV IN. The wireless model will close when the AV IN is connected to save power.
·
The Front Camera is ok for use under AV IN mode.
AV output
·
AV Out is the diversity Video and Audio output
·
Earphone port is audio output for connecting earphones.
Page 6
Specifications
Binocular Display
FOV 30 degrees (Diagonal)
Resolution 854X480(WVGA), 1,229,760 color sub-pixels
Brightness
350cd/
㎡㎡㎡㎡
Interpupillary
distance
（（（（
IPD
））））
60-68mm Adjustable
Wireless Receiver
ISM 5.8GHz 32 Channel, Diversity receiver.
Band
CH 1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
1 5865M 5845M 5825M 5805M 5785M 5765M 5745M 5725M
2 5733M 5752M 5771M 5790M 5809M 5828M 5847M 5866M
3 5705M 5685M 5665M 5645M 5885M 5905M 5925M 5945M
4 5740M 5760M 5780M 5800M 5820M 5840M 5860M 5880M
Sensitivity
-90dBm
±±±±
1dBm
Antenna port
2 X SMA,50ohm
Video Standard
NTSC/PAL
Video output level
1.0Vp-p Typ / 75ohm
Audio output level
1.0Vp-p Typ / 10Kohm
Front Camera
FOV 120 degrees (Diagonal)
Resolution 640X480(VGA)
FOCAL LENGTH
f=0.95mm
F/NO
F/NO=2.0
Head Tracker Sensor Magnetic, Inertial and gyro
Output
PPM 8 channel, Optional 5-6CH,5-7CH,5-8CH,6-7CH,6-8CH,7-8CH
AV Port
Diversity Video
、、、、
Audio output
EAR OUT(3.5mm3P)
32
ΩΩΩΩ
/75mW or 16
ΩΩΩΩ
/105mW, With volume control
AV IN(3.5mm4P)
Video
、、、、
Audio input
Power Supply
DC IN
DC 7
～～～～
28V/ 1A
Power Consumption 12V input: 4.3W
Dimensions
168(L)X92.5(W)X41(H)mm (Not include prominent part)
Weight
g
Operating Temperature
0
℃～
℃～℃～
℃～
+55
℃℃℃℃
