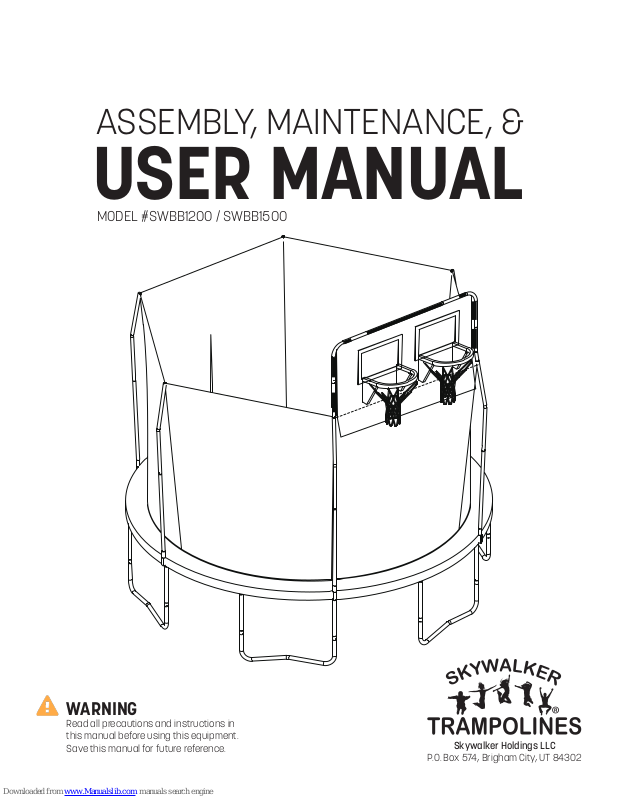

Page 1
ASSEMBLY, MAINTENANCE, &
USER MANUAL
MODEL #SWBB1200 / SWBB1500
WARNING
Read all precautions and instructions in
this manual before using this equipment.
Save this manual for future reference.
Skywalker Holdings LLC
P.O. Box 574, Brigham City, UT 84302
Page 2
TABLE OF CONTENTS
Part List.....................................................................................................................................................................................3
Part Identification - Trampoline..........................................................................................................................4-5
Part Identification - Games.........................................................................................................................................6
Exploded Drawing........................................................................................................................................................7-11
Limited Warranty...............................................................................................................................................................12
STOP EVERYTHING YOU'RE DOING AND REGISTER YOUR TRAMPOLINE
Find our warranty registration online by typing in: www.skywalkertrampolines.com/registration/
You'll need to have the following information handy:
• Name • Email address
• Address • Trampoline model number
• Phone number • Trampoline serial number
• Date of purchase • Retailer the trampoline was purchased from
HEY WE'VE GOT SOMETHING REALLY IMPORTANT TO SAY
And that is... check us out online! We've got assembly videos (for those of you who prefer movies over books), FAQs
(so you know you're not the only one who messed up), fascinating blog posts (did you know jumping burns more
calories than running?), and most importantly... find us on social media! Because we want to be your friend. We'd love
to hear from you, friend.
Website: skywalkertrampolines.com
Facebook: facebook.com/skywalkertrampolines
YouTube: youtube.com/c/SkywalkerTrampolines
Pinterest: pinterest.com/swtrampolines
Twitter: twitter.com/swtrampolines
Instagram: instagram.com/skywalker_trampolines
IMPORTANT
Trampolines and enclosures are susceptible
to winds. Be sure to secure your trampoline
and enclosure. Wind damage is not covered
in the warranty of your trampoline.
WARNING
CHOKING HAZARD- Small
parts not for children
under 3 years.
2
WARNING
Adult assembly required.
Page 3
PART LIST
Key No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Qty.
1
1
2
2
1
2
2
2
4
6
2
4
2
2
3
1
1
Description
Middle Tube 1 with Foam
Middle Tube 2 with Foam
Corner Tube with Foam
Curved Tube with Foam
Backboard
Rim
Net
String (1.2m)
Support Block
Screw (2 spare parts)
Bolt
M5 Washer
M5 Nut
Basketball
String (0.5m)
Screw driver
Wrench
ORDERING REPLACEMENT PARTS
We get it... sometimes things happen. But the fun shouldn’t stop just because you need a new bolt or screw! To order
replacement parts, check out our website at: www.skywalkertrampolines.com or call our toll-free Customer Care
Hotline at 1-866-603-Jump (5867), Monday - Friday, 8 a.m. until 5 p.m. Mountain Time (excluding holidays).
Our customer service team will ask you a few questions in order to get the replacement part sent out as soon as
possible. We’re not trying to complicate your life, we promise.
When calling, make sure to have the following information ready:
• The model # of the product (see the front cover of this manual)
• The key # and description of the part (see the part list above)
• The quantity needed (only you know the answer to that one!)
BEFORE YOU BEGIN
Thanks for choosing Skywalker Trampolines! We’re just as excited as you are to help your family live an active (but
most importantly FUN) lifestyle. This model is one of our favorites, and we’re confident you’ll love it too. To make
things easier for you, we’ve listed important information that you (and your little outdoor adventurers) need to know.
Make sure you brush up on the warnings, instructions, assembly, maintenance, and use of your new product...
because there will be a pop quiz at the end! (Okay, not REALLY, but if you’re still reading this, props to you! You’re
awesome).
3
Page 4
PART IDENTIFICATION - GAMES
Before you begin, take a look at the drawings below to make sure you have all the parts! The numbers in the squares
to the left (key numbers) will help you identify the parts during assembly.
1
4
Middle Tube 1
with Foam (x1)
Curved Tube
with Foam (x2)
2
5
Middle Tube 2
with Foam (x1)
Backboard (x1)
3
Corner Tube
with Foam (x2)
Rim (x2)
6
7
10
Net (x2)
Self-tapping
Screw (x6)
8
11-1 11-2
String (1.2m) (x2)
M5x38mm Bolt (x2) M5x44mm Bolt (x2)
4
9
Support Block (x4)
Page 5

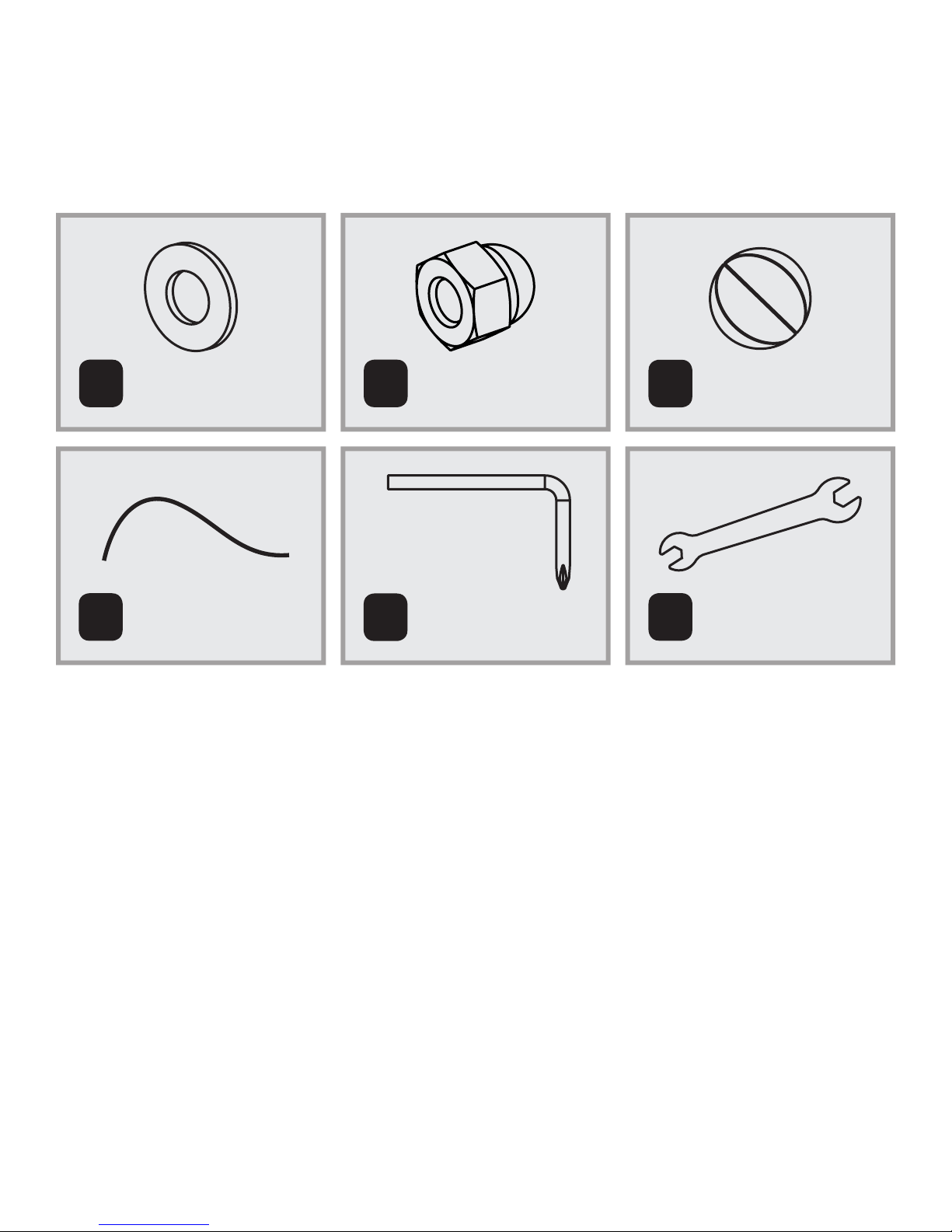

12 13
M5 Washer (x4) M5 Nut (x2)
14
Basketball (x2)
15
String (0.5m) (x3)
16
Screw Driver (x1)
17
Wrench (x1)
5
Page 6

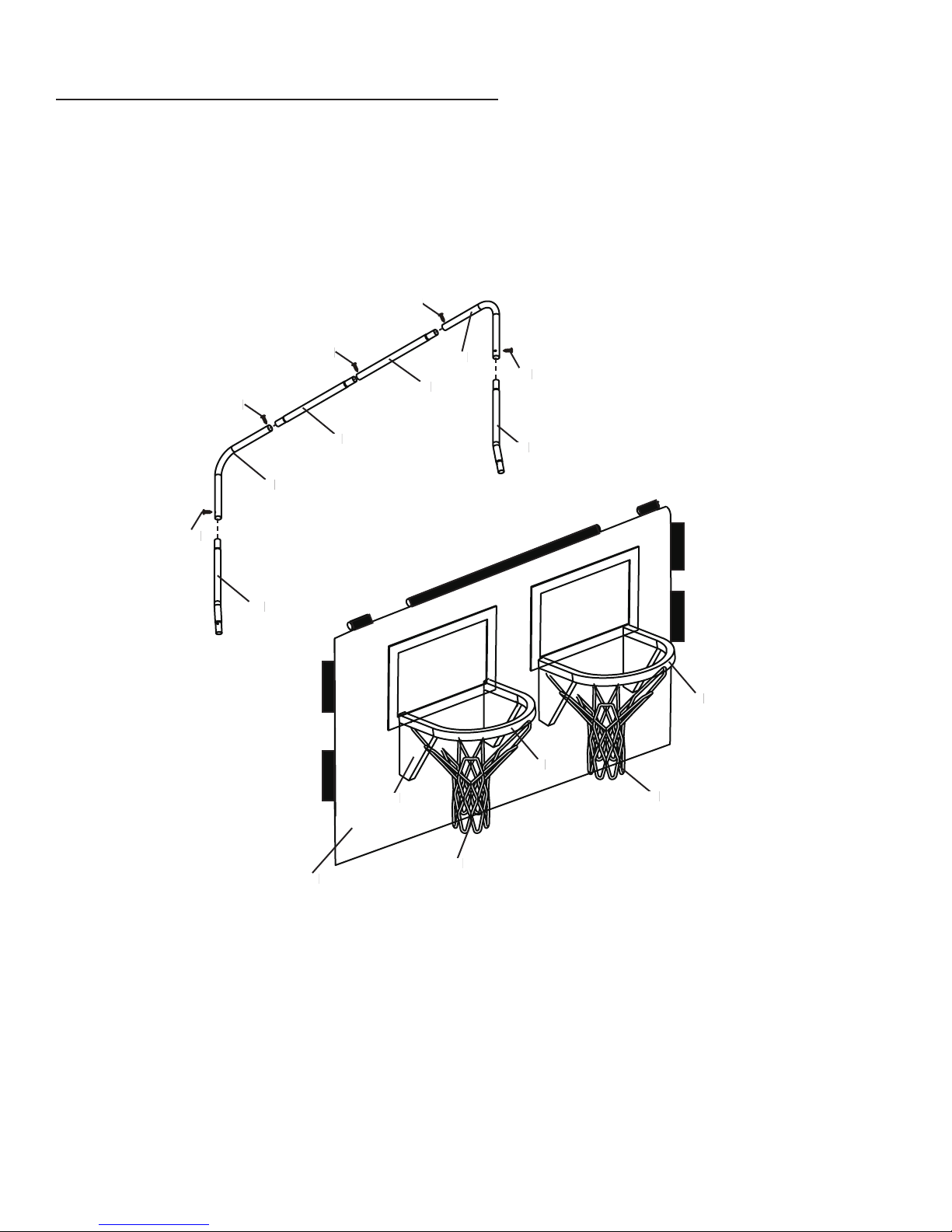

EXPLODED DRAWING
(10)
(10)
(10)
(4)
(3)
(10)
(3)
(2)
(1)
(9)
(10)
(4)
(6)
(6)
(7)
(5)
(7)
6
Page 7
ASSEMBLY
STEP 1
Next, insert the middle tube 1 with
foam (1) into middle tube 2 with
foam (2) as shown, and secure
using one self-tapping screw (10).
Middle Tube 1
1
with Foam (x1)
STEP 2
Middle Tube 2
2
with Foam (x1)
(1) (2)
Place the backboard (5) on the ground, and insert the assembled middle
tube with foam into the top sleeve as shown.
Self-tapping
10
Screws (x1)
(10)
Backboard (x1)
5
You’ve got this!
7
Page 8
ASSEMBLY

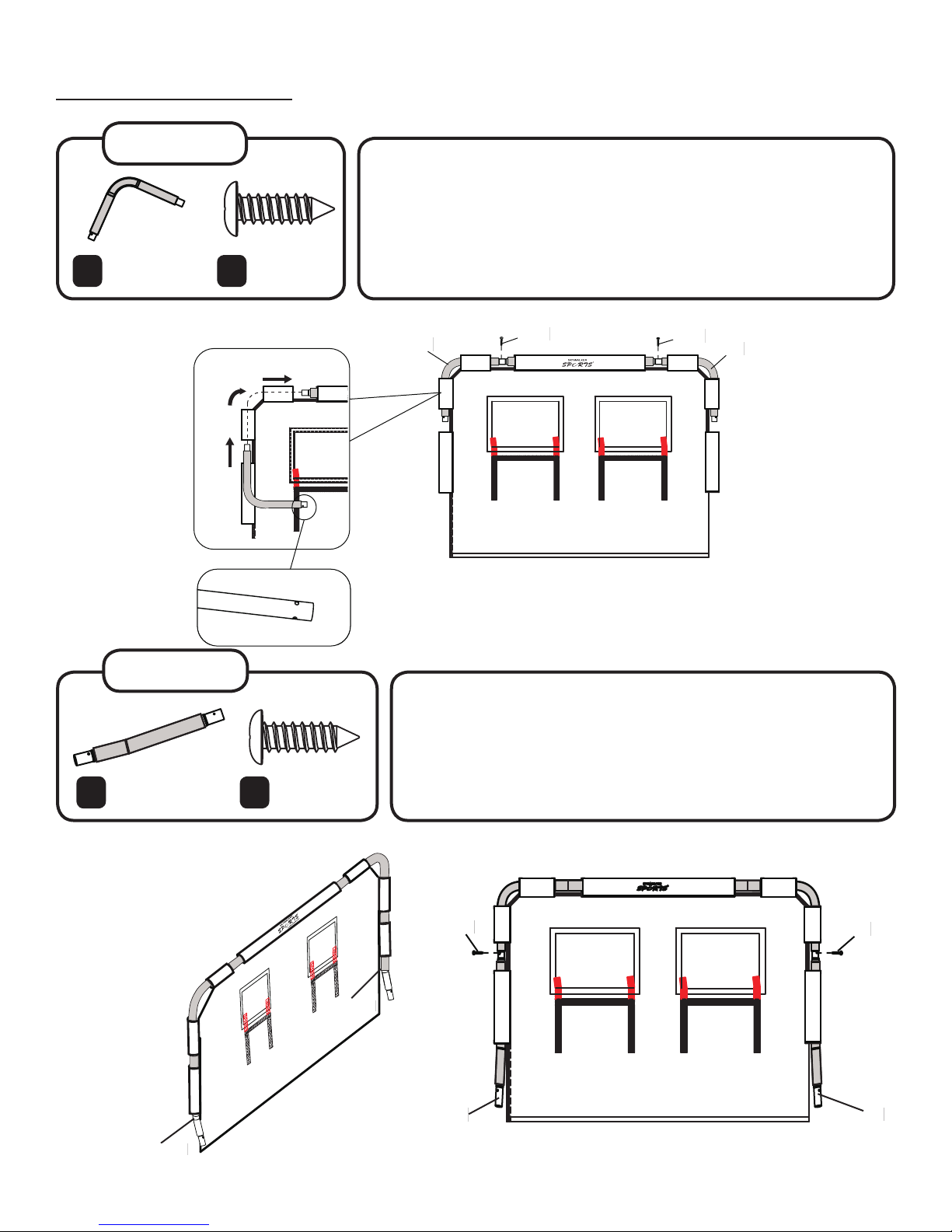

STEP 3
Corner Tube
3
with Foam (x2)
10
Insert the corner tubes with foam (3) into the sleeve as shown, and
secure on each side using two self-tapping screws (10).
Note: One end of the corner tube has one hole, and the other end has
two holes. You are connecting the end with one hole.
Self-tapping
Screws (x2)
Curved Tube
4
with Foam (x2)
STEP 4
10
Two holes
Self-tapping
Screws (x2)
(3)
If you want the hoops to face inwards: Insert the curved tube
(4) into the sleeve, making sure the bent side curves toward the
back. Secure using two self-tapping screws (10). If you want the
hoops to face outwards: Insert the curved tube into the sleeve,
making sure the bent side curves towards the front. Secure
using two self-tapping screws.
(10)
(10)
(3)
Bent side
Bent side
(10)
(4)
(10)
(4)
8
Page 9
6

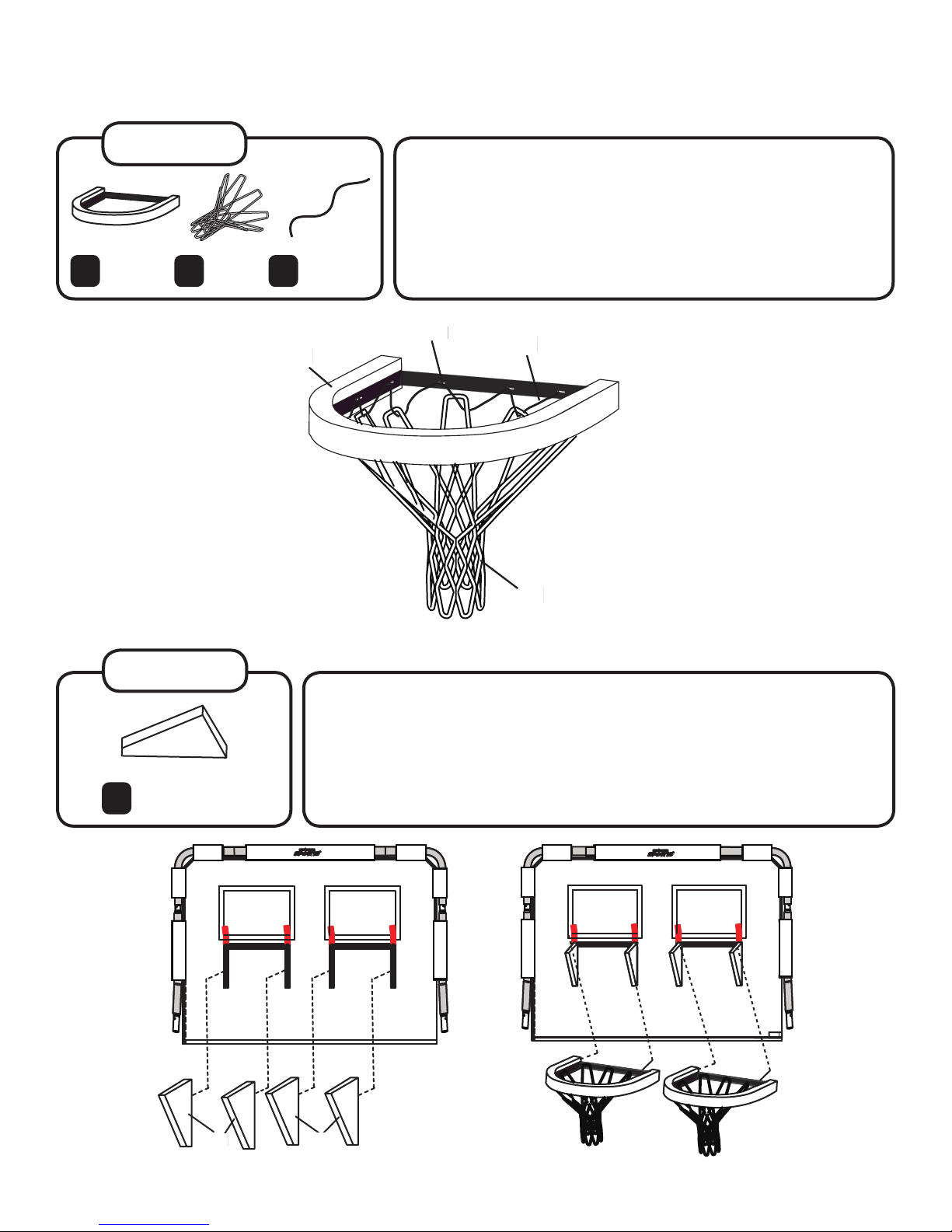

STEP 5
Rim (x2)
7
Net (x2)
String (1.2m)
8
(x2)
Take one end of the string (8) and tie a knot at the end. Begin
threading the other end of the string through the left hole on
the rim (6). Weave the string in and out of the holes on the rim
and the net (7) to attach completely. Make sure to regularly
tighten the string. Once you’ve made it all the way around the
rim, tie a knot at the end of the string to secure.
STEP 6
Hole
(6)
(8)
(7)
Attach the 4 support blocks (9) to the backboard (5) using the provided
velcro.
Then, attach the ring with net to the backboard. You’re almost done!
Support Block (x4)
9
(9)
(9)
9
Page 10
ASSEMBLY

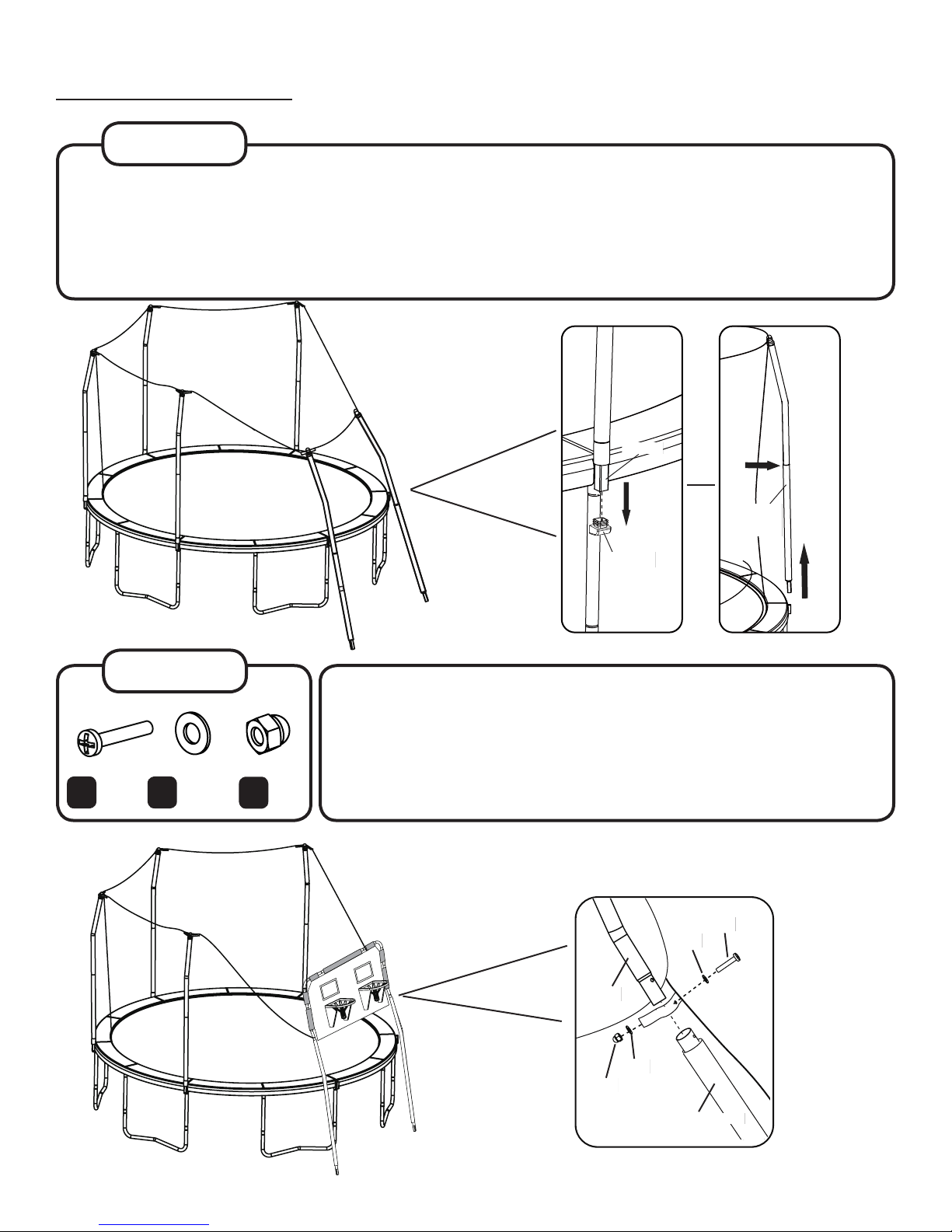

STEP 7
To attach the game to your trampoline you will need to lower the two enclosure poles you will be mounting to.
(Additional poles may also need to be lowered in order to release some of the tension from the enclosure net.)
Remove the pole caps from the two chosen enclosure poles.
Helpful tip: When removing the enclosure poles, pull back on the middle of the poles!
Socket
Enclosure
pole
11
Bolt
(x2)
STEP 8
Washer
12
(x4)
13
Nut
(x2)
End cap
Slide the basketball hoop onto the upper tubes and align the holes of the
upper poles, basketball hoop, and the enclosure net and attach together
with the two bolts (11-1 or 11-2),four washers (12) and two nuts (13).
Note: Depending on the model of your trampoline the poles of the game may slide into the
enclosure poles rather than onto. Attachment works both ways and will not change the
assembly method.
Note: There are two size of bolts (11) for this step to accomodate varying models. Please choose
the appropriate one.
(11)
(12)
(3)
(12)
(13)
Enclosure pole
10
Page 11

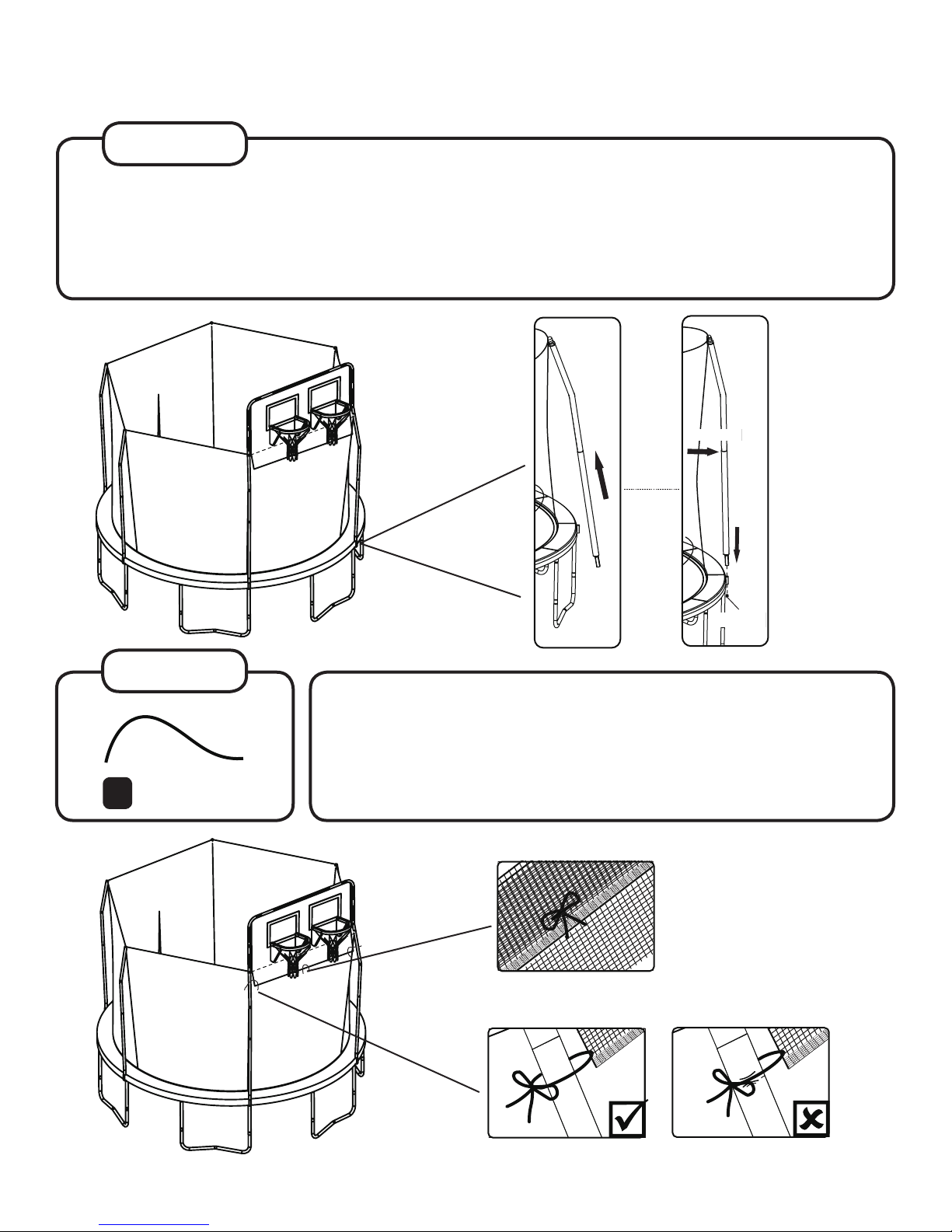

STEP 9
Now with two people (one on each side of the game) raise the enclosure poles together and place them in
their T-sockets. If you have any other enclosure poles down, place them back up now as well.
STEP 10
Pull back
End cap
To secure the bottom of the game, slide the 3 pieces of string (0.5m) (15)
through the netting of the game (one one each corner and one in the
middle.)
String (0.5m) (x3)
15
Tie the strings to the poles and enclosure net as shown. Note: If you tie the
strings too tight... you might cut the foam!
11
Page 12
LIMITED WARRANTY
Skywalker Holdings, LLC warrants its products to be free from defects in material and workmanship under normal
use and service conditions. The steel frame is warranted for three (3) years after the date of purchase. All other
parts are warranted for one (1) year after the date of purchase. Warranty coverage extends only to the original retail
purchaser from the date of original purchase. This warranty is only valid concerning products used for residential
use. Products used for commercial use, such as schools and daycares, will not be covered.
WHAT IS NOT COVERED?
Weather Damage: The warranty does not cover damage due to the effects or acts of nature, such as
earthquakes, wind, hurricanes, tornadoes, lightening, rain, fire, snow, excessive heat and cold conditions
and/or sun damage. During the winter months the trampoline soft materials will need to be removed and
stored in a dry place out of the snow. If left unprotected in the winter months, some components such as
springs, jump mat, spring pad and enclosure, may become damaged, voiding this warranty.
Fading and Rust: Our products are fully galvanized. Skywalker does not warranty against rust or
corrosion. Some areas may have higher air salt content, higher humidity, heavier rain and heavier snow.
Skywalker does not warranty against fading. We suggests customers use a UV protectant on the frame
pad to extend the life of the product.
Loss or damage to Product Due to: Loss or damage caused during shipping or caused by abuse, misuse,
improper or abnormal usage or authorized repair are not covered by this warranty and may also void the
warranty.
Unauthorized Replacement Parts: The warranty will become void if any defects or damages are
associated with the use of unauthorized replacement parts. All replacement parts must be obtained from
an authorized agent.
Assembly Service: The warranty does not cover acts or omissions provided by a third-party assembly
service. It is the customer’s responsibility to check all boxes and confirm all components are included and
in their proper condition before installation occurs.
INSPECTION AND REPLACEMENT PARTS:
Your trampoline SHOULD BE INSPECTED UPON UNPACKING AND SET UP AND THEREAFTER ON A REGULAR BASIS.
1.
WORN, DAMAGED OR BROKEN PARTS SHOULD BE REPLACED IMMEDIATELY AND BEFORE USE.
Call the Skywalker Trampoline Customer Service Department at 1-866-603-5867 to file a warranty claim. Be
2.
prepared to provide the following information: name, shipping address, a copy of your original sales receipt, a brief
description of the problem and cause, trampoline model number and serial number. We may also ask for photos of
the damaged/defective parts.
After reviewing your information and examining your photos, Skywalker Trampolines will make the determination if
3.
this part is covered by this warranty. If so, a replacement part will be sent to you.
NOTE: All requested information must be provided in order to review your warranty claim.
To order replacement parts for your product please visit www.skywalkertrampolines.com
Skywalker Holdings, LLC, PO Box 574, Brigham City, UT 84302 USA.
Printed in China © 2017 Skywalker Holdings, LLC
12
Page 13
NOTE: SKYWALKER HOLDINGS, LLC IS NOT RESPONSIBLE OR LIABLE FOR INDIRECT, SPECIAL OR CONSEQUENTIAL
DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCT OR OTHER
DAMAGES WITH RESPECT TO ANY ECONOMIC LOSS, LOSS OF PROPERTY, LOSS OF REVENUE OR PROFITS, LOSS OF
ENJOYMENT OR USE, COST OF REMOVAL, INSTALLATION OR OTHER CONSEQUENTIAL DAMAGES. SOME STATES DO
NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. ACCORDINGLY, THE ABOVE
LIMITATION MAY NOT APPLY TO YOU.
THE WARRANTY EXTENDED HEREUNDER IS IN LIEU OF ALL OTHER WARRANTIES AND ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE IS LIMITED IN ITS SCOPE AND DURATION TO THE TERMS
SET FORTH HEREIN. SOME STATES OR COUNTRIES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
LASTS. ACCORDINGLY, THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY STATE TO STATE OR COUNTRY TO COUNTRY.
THIS WARRANTY IS VALID ONLY IN THE COUNTRY THE PRODUCT WAS PURCHASED.
