Skywalker JTEC8B,SWTC15,SWJD15 User Manual
ASSEMBLY, MAINTENANCE, &
USER MANUAL
MODEL #JTEC8B
WARNING
Read all precautions and instructions in
this manual before using this equipment.
Save this manual for future reference.
Maximum user weight 175 lbs.
Skwalker Holdings LLC
P.O. Box 574, Brigham City, UT 84302
TABLE OF CONTENTS
Part List...........................................................................................................................................................................3
Part Identification...............................................................................................................................................4-5
Exploded Drawing....................................................................................................................................................6
Assembly..................................................................................................................................................................7-17
Maintenance and Care Information...........................................................................................................18
Double Toss Game.................................................................................................................................................18
Instructions for Use..............................................................................................................................................19

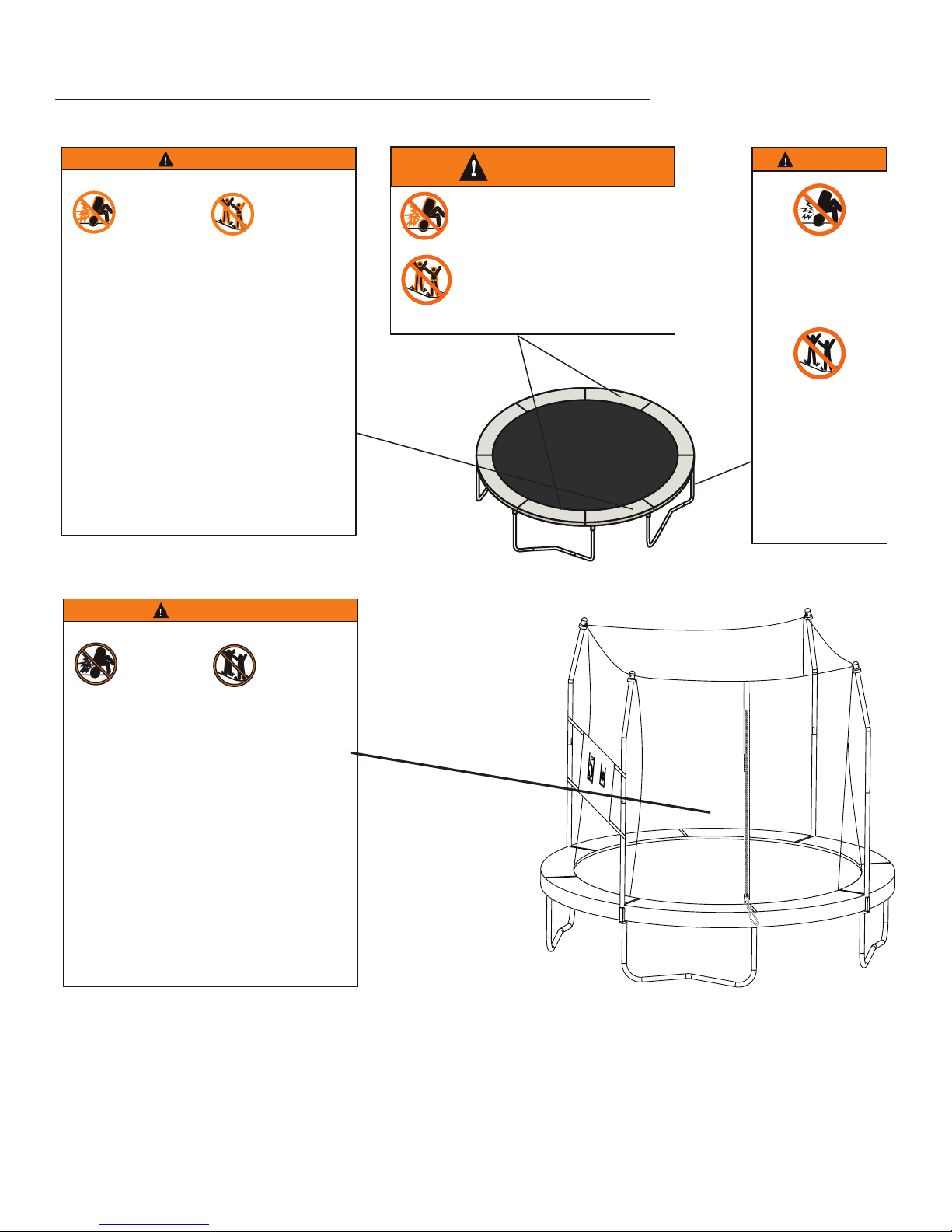

Warning Label Placement...............................................................................................................................20
Methods of Accident Prevention.................................................................................................................21
Instructions and Model Lessons......................................................................................................22-23
Trampoline Safety Information....................................................................................................................24
Enclosure Safety Information......................................................................................................................25
Limited Warranty....................................................................................................................................................26
STOP EVERYTHING YOU'RE DOING AND REGISTER YOUR TRAMPOLINE
Find our warranty registration online by typing in: www.skywalkertrampolines.com/registration/
You'll need to have the following information handy:
• Name • Email address
• Address • Trampoline model number
• Phone number • Trampoline serial number
• Date of purchase • Retailer the trampoline was purchased from
HEY WE'VE GOT SOMETHING REALLY IMPORTANT TO SAY
And that is... check us out online! We've got assembly videos (for those of you who prefer movies over books), FAQs
(so you know you're not the only one who messed up), fascinating blog posts (did you know jumping burns more
calories than running?), and most importantly... find us on social media! Because we want to be your friend. We'd love
to hear from you, friend.
Website: skywalkertrampolines.com
Facebook: facebook.com/skywalkertrampolines
YouTube: youtube.com/c/SkywalkerTrampolines
Pinterest: pinterest.com/swtrampolines
Twitter: twitter.com/swtrampolines
Instagram: instagram.com/skywalker_trampolines
IMPORTANT
Trampolines and enclosures are susceptible
to winds. Be sure to secure your trampoline
and enclosure. Wind damage is not covered
in the warranty of your trampoline.
WARNING
CHOKING HAZARD- Small
parts not for children
under 3 years.
2
WARNING
Adult assembly required.
PART LIST
Key No. Qty. Description
1 4 T-joint (may be pre-installed to top tube)
2 4 Socket (may be pre-installed to top tube)
3 4 Leg Brace
4 1 Enclosure Net
5 1 Jump Mat
6 1 Frame Pad
7 56 Springs
8 8 Foam
9 4 Straight Tube
10 4 Curved Tube
11 4 End Cap
12 4 Pole Cap
13 14 Self-tapping Screw (2 spare parts)
14 4 M5x44mm Bolt
15 1 Screw Driver
16 1 Spring Tool
17 6 Sand Bag
18 1 Double Toss Game
19 8 Top Tube
# 1 User Manual & Safety Placard
# 1 Set of ASTM Frame Labels
ORDERING REPLACEMENT PARTS
We get it... sometimes things happen. But the fun shouldn’t stop just because you need a new bolt or screw! To order
replacement parts, check out our website at: www.skywalkertrampolines.com or call our toll-free Customer Care
Hot-line at 1-866-603-Jump (5867), Monday - Friday, 8 a.m. until 5 p.m. Mountain Time (excluding holidays).
Our customer service team will ask you a few questions in order to get the replacement part sent out as soon as
possible. We’re not trying to complicate your life, we promise.
When calling, make sure to have the following information ready:
• The model # of the product (see the front cover of this manual)
• The key # and description of the part (see the part list above)
• The quantity needed (only you know the answer to that one!)
BEFORE YOU BEGIN
Thanks for choosing Skywalker Trampolines! We’re just as excited as you are to help your family live an active (but
most importantly FUN) lifestyle. This model is one of our favorites, and we’re confident you’ll love it too. To make
things easier for you, we’ve listed important information that you (and your little outdoor adventurers) need to know.
Make sure you brush up on the warnings, instructions, assembly, maintenance, and use of your new product...
because there will be a pop quiz at the end! (Okay, not REALLY, but if you’re still reading this, props to you! You’re
awesome).
3
PART IDENTIFICATION
Before you begin, take a look at the drawings below to make sure you have all the parts! The numbers in the squares
to the left (key numbers) will help you identify the parts during assembly.
T-joint (may be pre-
1 2
installed) (x4)
4
Enclosure Net (x1)
5
Socket (may be
pre-installed) (x4)
Jump Mat (x1) Frame Pad (x1)
3
6
Leg Brace (x4)
7
10
Springs (x56)
Curved Tube (x4)
8
11
Foam (x8)
End Cap (x4)
4
9
12
Straight Tube (x4)
Pole Cap (x4)
Self-tapping
13 14
Screw (x16)
M5x44mm Bolt (x4)
15
Screw Driver (x1)
16
19
Spring Tool (x1)
Top Tube (x8)
17
Sand Bag (x6)
18
Double Toss
Game (x1)
5
EXPLODED DRAWING
(8)
(13)
(8)
(14)
(10)
(9)
(12)
(13)
(8)
(8)
(14)
(12)
(9)
(4)
(12)
(14)
(10)
(9)
(14)
(12)
(8)
(10)
(13)
(8)
(8)
(13)
(8)
(6)
(13)
(19)
(2)
(19)
(13)
(5)
(19)
(1)
(13)
(7)
(1)
(19)
(2)
(11)
(3)
(2)
(19)
(13)
(1)
(13)
(19)
(3)
(19)
(11)
(2)
(11)
(1)
(13)
(19)
(3)
6
ASSEMBLY
READ THIS BEFORE YOU BEGIN
• You’ll probably need at least 2 adults and 2 hours to assemble your trampoline (of course, that depends on what
model you have, and whether or not you’re secretly a superhero).
• We’ve provided a Phillip’s screw driver and two adjustable wrenches to help with assembly, but you’re more than
welcome to use your own tools. Many find that using a power drill and a rubber mallet makes things easier.
• Use gloves to protect your hands from pinch points during assembly. Plus, it’s an up-and-coming fashion trend.
• The assembly steps refer to parts by their descriptions and key numbers (see the part list on page 3).
• The assembly steps are written in a specific order, and if you don’t follow them exactly... you may end up having to
start all over again. We promise we won’t say, “I told you so” but really... we told you so.
• Most importantly... YOU’VE GOT THIS. YOU’RE THE BEST TRAMPOLINE ASSEMBLER AROUND. This may not be the
easiest thing you’ve ever done... but it will be worth it. Trust us.
And if you’re a visual learner, check out our assembly videos!
Visit: youtube.com/c/SkywalkerTrampolines
STEP 1
Register your trampoline! For info on warranty registration, see page 2.
STEP 2
Insert one top tube (19) with T-joint (1) into one
top tube with socket (2). Make sure the holes
in the tubes face the ground! Now repeat this
step for the remaining top tubes with T-joints
T-joint (pre-
1
installed) (x4)
Socket (pre-
2
installed) (x4)
Top Tube (x8)
19
and top tubes with sockets. Make sure the
T-joints and sockets are alternating!
T-joint
(2)
Holes face
the ground
(19)
(1)
Holes face
the ground
7
(19)
Socket
ASSEMBLY
STEP 3
Leg Brace (x4)
3
(13)
13
Self-tapping Screws (x8)
(3)
Insert a leg brace (3) into a T-joint and socket at the
same time, and tighten with two self-tapping screws
(13).
Now that you’re a pro at Step 2, repeat this step until
you have 4 frame pieces assembled.
(13)
(1)
STEP 4
This step is a breeze! (But it is a good idea to grab a friend to help). Just flip the 4 frame pieces so that the legs
are now supporting the frame. Now connect 2 frame pieces together. Continue connecting frame pieces until
you have a free-standing frame. (And it might even resemble a trampoline now!)
Remember: Make sure the T-joints and sockets are alternating!
T-joint
T-joint
Socket
T-joint
Socket
T-joint
Socket
T-joint
Socket
Socket
T-joint
Socket
8
