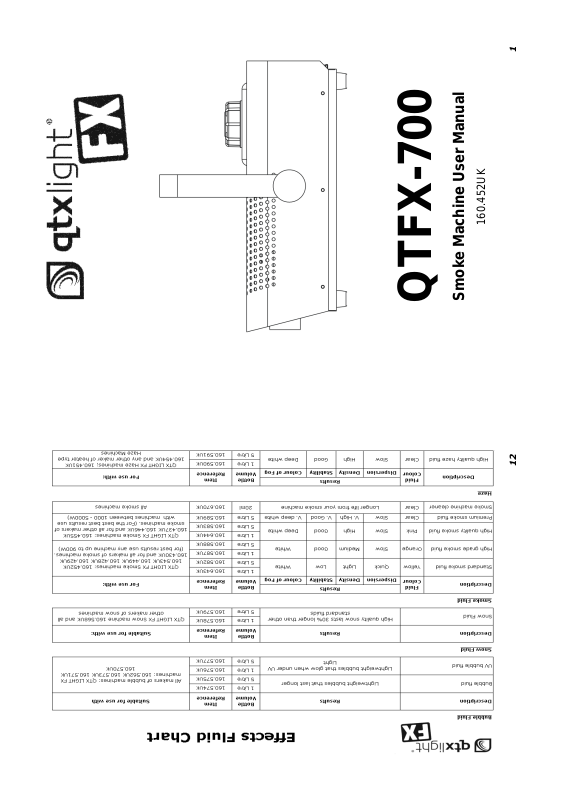

Page 1
1
160.452UK
QTFX-700
Smoke Machine User Manual
12
Page 2
2
11
is not covered by the warranty!
operating! Damage caused by misuse
Caution! Please read this manual carefully before
High performance heating element
7000 Cu Ft (198m³) per minute
Stylish metal housing
Removable tank for easy maintenance
Small, robust and lightweight housing
A small, stylish 700W smoke machine with a high quality heater block and
pump. The unit can produce smoke quickly due to the low reheat time and
includes a wired remote control. This is an ideal product for mobile DJs and
travelling bands that require a cost effective and reliable solution when
performing.
Features :
User Manual – QTFX-700 160.452UK
QTFX-700 Smoke Machine – For indoor use only
1. General Introduction :
Supplied with remote control
Page 3
10
3
High quality
smoke
Long lasting
high quality
smoke
5 Litre
Standard grade smoke
fluid
160.643UK 1 Litre
User Manual – QTFX-700 160.452UK
Please check the contents to ensure that the product has been received in
good condition.
QTFX-700W Smoke Machine x 1pcs User’s Guide x 1pcs
Power Cord x 1pcs Remote control x 1pcs
2. Package Contents :
If you find any accessory is missing or the machine has arrived with any
problems, please contact your local dealer at once. Do not try to fix this
item yourself or you will lose the warranty. Please keep the original package
and invoice for any possible replacement or returned demand.
For the QTFX700 smoke machine we strongly recommend the following
fluids which have been specifically formulated to perform best in any
smoke machines with a power rating up to 900W
3. Recommended Fluid:
QTX Ref Code Description Size Results
160.582UK
5 Litre
High grade smoke fluid
160.587UK 1 Litre
160.588UK
Please disposal of the unserviceable device according to the current
Power supply 230Vac, 50Hz
Fuse F5A
Power 700W
Re-heat time 4 min (approx)
Smoke Output 7000 Cu Ft (198m³) / min
Tank capacity 0.8 Litres
Dimensions 210 x 220 x 335mm
Weight 3.3kg
User Manual – QTFX-700 160.452UK
12. Technical specification :
13. Disposal :
statutory requirements.
Page 4
4
9
1) IEC Power socket
2) Fuse holder
3) Remote control socket
4) Fluid tank
5) Fixation screw
6) Fluid level
User Manual – QTFX-700 160.452UK
recommended smoke fluid
1. Unpack the fog machine
User Manual – QTFX-700 160.452UK
4. Setup :
2. Unscrew the top cap of the tank and remove to fill with the
fed down to the bottom of the bottle so a consistent flow of fluid is
supplied to the machine
3. Replace the bottle and screw the cap securely ensuring the pipe is
4. Connect the remote control
5. Connect the IEC mains plug and power up
button is pressed during the heat up time. When the machine is
ready the LED light on the remote control will illuminate
6. Heat up time is usually between 3-6 minutes. Please ensure no
a chance to flow through the heater block making it ready to use..
7. Press the button on the remote control for 5 seconds so the fluid has
recommended to produce smoke with small pauses in between so
that the temperature is maintained and the thermostat doesn’t
switch off.
8. After this you will be able to use the smoke machine. It is
Page 5
8
5
when the device is not in use or before cleaning.
The fixture may be mounted in any position provided there is adequate
room for ventilation and the fluid can not leak.
It is important never to obstruct the front of the machine, fan or vents
pathway. Mount the fixture using a clamp.
Adjust angle of the fixture loosening both knobs and tilting the fixture.
After finding desired position, re-tighten both knobs.
When selecting installation location, take into consideration refilling the
tank and routine maintenance. Safety cables must always be used.
Never mount in places where the fixture will be exposed to rain, high
humidity, extreme temperatures changes or restricted ventilation.
User Manual – QTFX-700 160.452UK
5. Mounting instruction :
For your safety, please kindly pay attention to all of the warnings listed
below:
Always plug in the power plug last and disconnect from the mains
6. Caution! To prevent Mortal Electrical Risk and Long Life Operation :
moisture or dusty environments.
Do not install and operate the device in rain or extreme heat,
This device is for indoor use only and in a dry environment.
temperature if the device has been exposed to drastic temperature
fluctuations.
Do not switch on immediately but wait until it reaches to room
operating
Do not shake the device and avoid brute force when installing or
the power.
Do not use the device during thunderstorms and please disconnect
User Manual – QTFX-700 160.452UK
11. Rear Layout:
Page 6
6
7
Disconnect from the main power supply first, then remove the fuse holder
above the IEC Socket to reveal the fuse. Replace the correct fuse rating as
stated on lighting or user guide. Then, lock the fuse holder cover back into
place.
To maintain optimum performance and minimize wear, the item should be
cleaned frequently. Usage and environment are contributing factors in
determining frequency. As a general rule, fixtures should be cleaned after
use to avoid dust build-up and blockages, which can result in poor
performances, overheating and breakages. Be sure to power off fixture
before conducting maintenance.
Unplug fixture from power. Use a vacuum or air compressor and a soft
brush to remove dust collected on external vents and internal components.
Clean the external case when the fixture is cold with a dry cloth or tissue,
and drag dirt and grime to the outside case.
To ensure a continuing high performance it is recommended to use water
or smoke cleaning fluid (160.670) to clean the internal workings. Simply
empty the tank of any smoke fluid. Fill with water or smoke cleaning fluid
then operate two full cycles to clean the internal pipes this should be done
once every 2 months to ensure continuing high performance
User Manual – QTFX-700 160.452UK
9. Replacing Fuse :
10. General Maintenance :
a soft and clean cloth.
Do not use solvents or aggressive detergent to clean the device. Use
User Manual – QTFX-700 160.452UK
authorization.
Do not modify the device or the connected power cord without
Use appropriate safety-rope for safety.
(160.670)
Clean the machine regularly using water or smoke cleaning fluid
Use the plug to connect to the main power supply as following.
7. Connect with power supply - The ground wire must be connected :
Wire Connection International signal
Blue Neutral N
Brown Live L
Yellow /Green Earth
If the unit is not functioning properly
8.1 Check if main power is on and fuse hasn’t blown
8.2 The remote control is plugged in correctly in to the socket
8.3 Check there is fluid in the tank
8.4 Check that the pipe is pushed down to the bottom of the tank
8.5 Check the correct fluid has been used.
8.6 If there is a block use distilled water or smoke machine cleaning fluid.
8. Quick Trouble Shooting :
