Professional 12V and 24V power supplies for LED tape

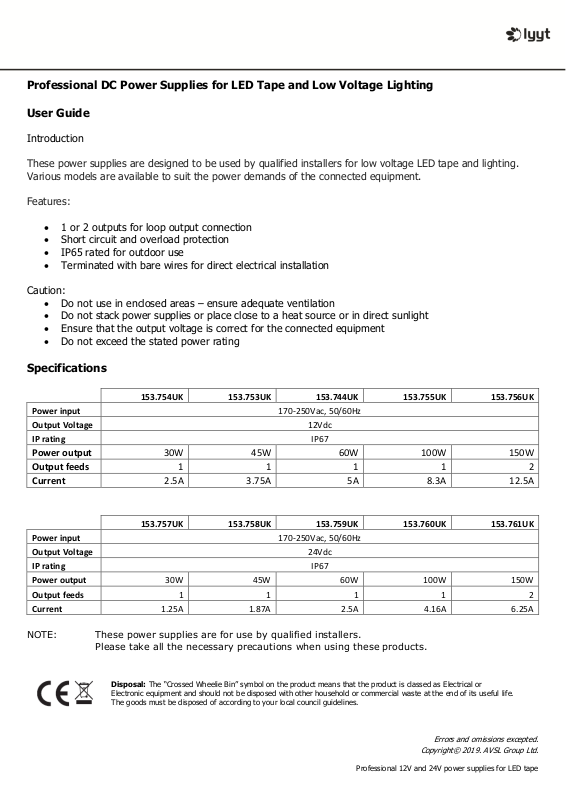

Professional DC Power Supplies for LED Tape and Low Voltage Lighting
User Guide
Introduction
These power supplies are designed to be used by qualified installers for low voltage LED tape and lighting.
Various models are available to suit the power demands of the connected equipment.
Features:
• 1 or 2 outputs for loop output connection
• Short circuit and overload protection
• IP65 rated for outdoor use
• Terminated with bare wires for direct electrical installation
Caution:
• Do not use in enclosed areas – ensure adequate ventilation
• Do not stack power supplies or place close to a heat source or in direct sunlight
• Ensure that the output voltage is correct for the connected equipment
• Do not exceed the stated power rating
Specifications
153.754UK
153.753UK
153.744UK
153.755UK
153.756UK
Power input
170-250Vac, 50/60Hz
Output Voltage
12Vdc
IP rating
IP67
Power output
30W
45W
60W
100W
150W
Output feeds 1 1 1 1
2
Current
2.5A
3.75A
5A
8.3A
12.5A
153.757UK
153.758UK
153.759UK
153.760UK
153.761UK
Power input
170-250Vac, 50/60Hz
Output Voltage
24Vdc
IP rating
IP67
Power output
30W
45W
60W
100W
150W
Output feeds 1 1 1 1
2
Current
1.25A
1.87A
2.5A
4.16A
6.25A
NOTE: These power supplies are for use by qualified installers.
Please take all the necessary precautions when using these products.
Disposal: The “Crossed Wheelie Bin” symbol on the product means that the product is classed as Electrical or
Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life.
The goods must be disposed of according to your local council guidelines.
Errors and omissions excepted.
Copyright© 2019. AVSL Group Ltd.
