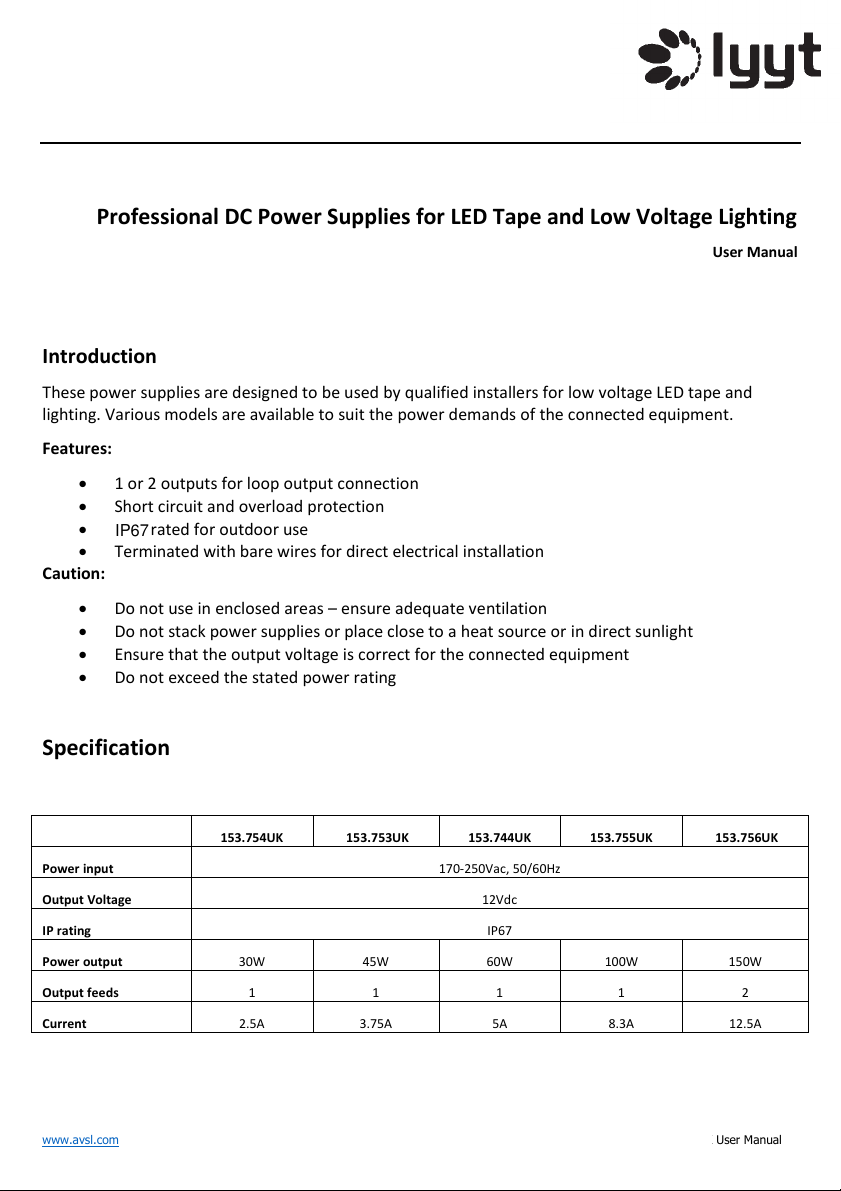

Page 1
153.754UK
153.753UK
153.744UK
153.755UK
153.756UK
Power input
170-250Vac, 50/60Hz
Output Voltage
12Vdc
IP rating
IP67
Power output
30W
45W
60W
100W
150W
Output feeds 1 1 1 1
2
Current
2.5A
3.75A
5A
8.3A
12.5A
Professional DC Power Supplies for LED Tape and Low Voltage Lighting
User Manual
Introduction
These power supplies are designed to be used by qualified installers for low voltage LED tape and
lighting. Various models are available to suit the power demands of the connected equipment.
Features:
• 1 or 2 outputs for loop output connection
• Short circuit and overload protection
IP67
IP67
IP67
Ｗ
• IP65 rated for outdoor use
• Terminated with bare wires for direct electrical installation
Caution:
• Do not use in enclosed areas – ensure adequate ventilation
• Do not stack power supplies or place close to a heat source or in direct sunlight
• Ensure that the output voltage is correct for the connected equipment
• Do not exceed the stated power rating
Specification
www.avsl.com 153.743UK User Manual

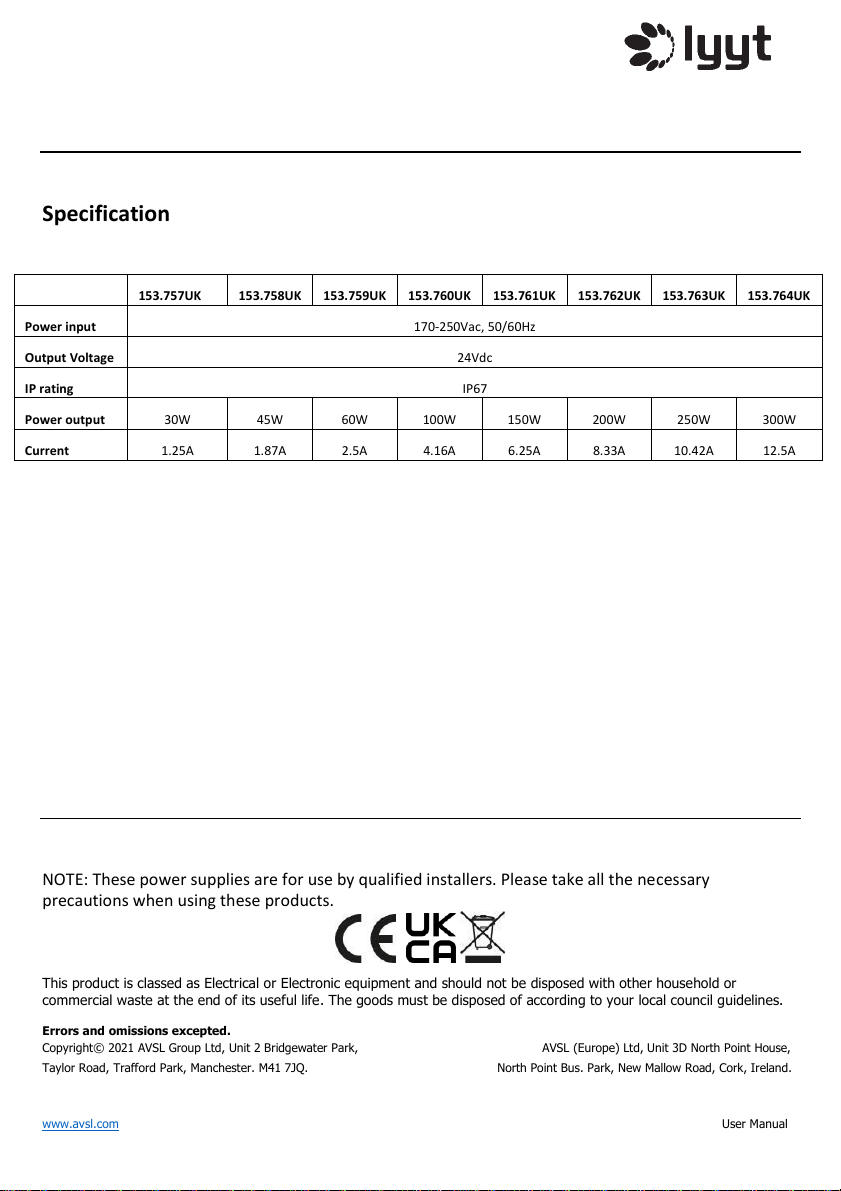

Page 2
153.757UK
153.758UK
153.759UK
153.760UK
153.761UK
153.762UK
153.763UK
153.764UK
Power input
170-250Vac, 50/60Hz
Output Voltage
24Vdc
IP rating
IP67
Power output
30W
45W
60W
100W
150W
200W
250W
300W
Current
1.25A
1.87A
2.5A
4.16A
6.25A
8.33A
10.42A
12.5A
Specification
NOTE: These power supplies are for use by qualified installers. Please take all the necessary
precautions when using these products.
This product is classed as Electrical or Electronic equipment and should not be disposed with other household or
commercial waste at the end of its useful life . The goods must be disposed of according to your local council guidelines.
Errors and omissions excepted.
Copyright© 2021 AVSL Group Ltd, Unit 2 Bridgewater Park, AVSL (Europe) Ltd, Unit 3D North Point House,
Taylor Road, Trafford Park, Manchester. M41 7JQ. North Point Bus. Park, New Mallow Road, Cork, Ireland.
www.avsl.com 153.743UK User Manual
