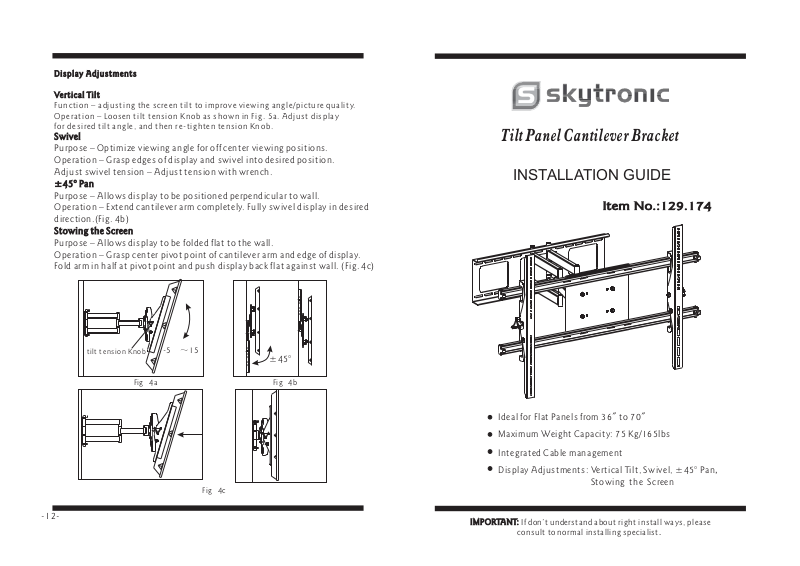

Display Adjustments
Display Adjustments
Vertical Tilt
Vertical Tilt
Function – adjusting the screen tilt to improve viewing angle/picture quality.
Operation – Loosen tilt tension Knob as shown in Fig. 5a. Adjust display
for desired tilt angle, and then re-tighten tension Knob.
Swivel
Swivel
Purpose – Optimize viewing angle for off center viewing positions.
Operation – Grasp edges of display and swivel into desired position.
Adjust swivel tension – Adjust tension with wrench.
±°
45 Pan
45 Pan
±°
Purpose – Allows display to be positioned perpendicular to wall.
Operation – Extend cantilever arm completely. Fully swivel display in desired
direction.(Fig. 4b)
Stowing the Screen
Stowing
the Screen
Purpose–Allowsdisplaytobefoldedflattothewall.
Operation – Grasp center pivot point of cantilever arm and edge of display.
Fold arm in half at pivot point and push display back flat against wall. (Fig. 4c)

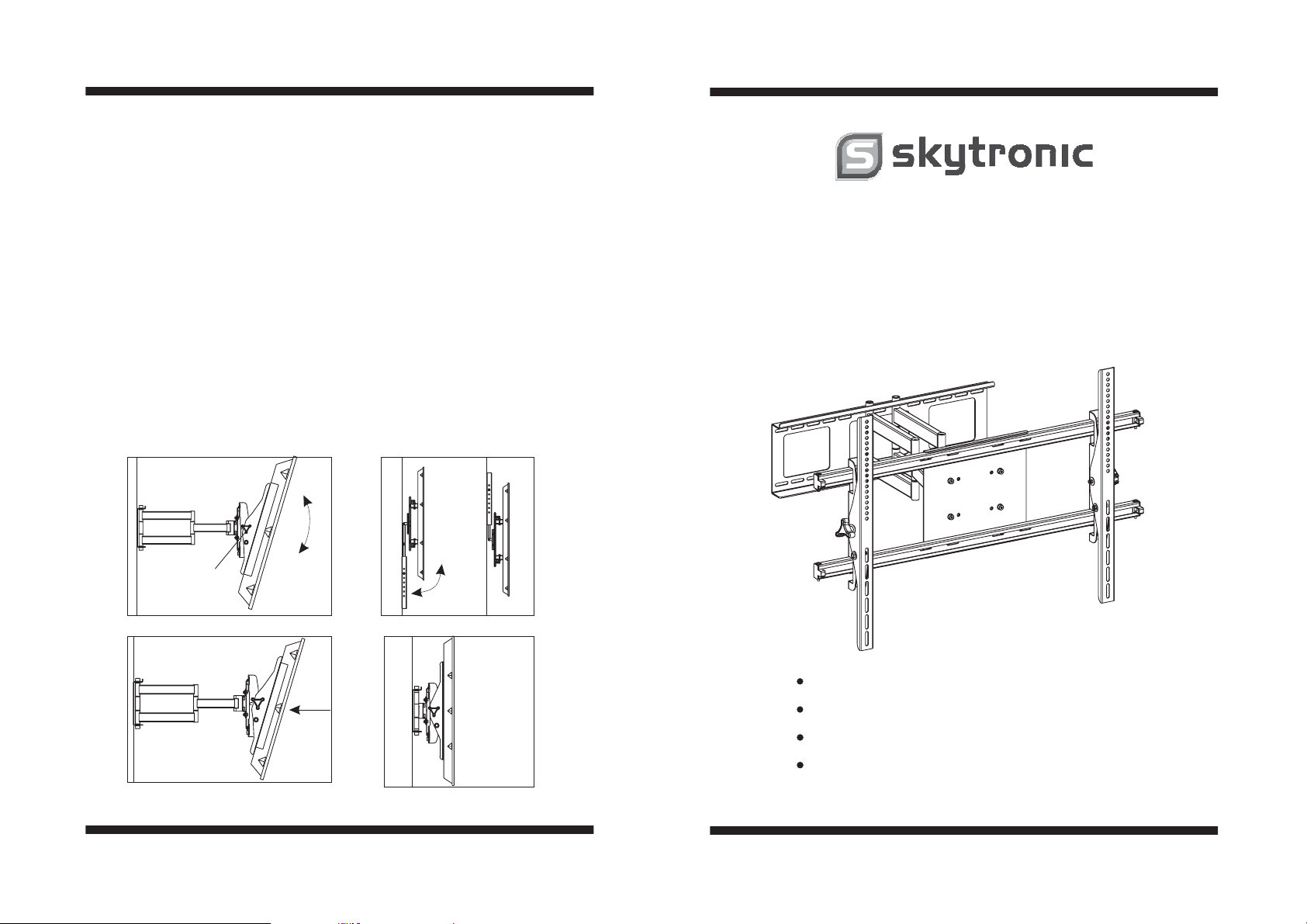

Tilt Panel Cantilever Bracket
INSTALLATION GUIDE
Item No.:129.174Item No.:129.174
-12-
tilt tension Knob
Fig 4a
-5 15～
Fig 4c
±°45
Fig 4b
Ideal for Flat Panels from 36 to 70""
Maximum Weight Capacity: 75 Kg/165lbs
Integrated Cable management
Display 45±°Adjustments: Vertical Tilt, Swivel, Pan
Stowing the Screen
IMPORTANT: If don’t understand about right install ways, please
IMPORTANT:
consult to normal installing specialist.
,
Page 2
SAFETY WARNING:
SAFETY WARNING:

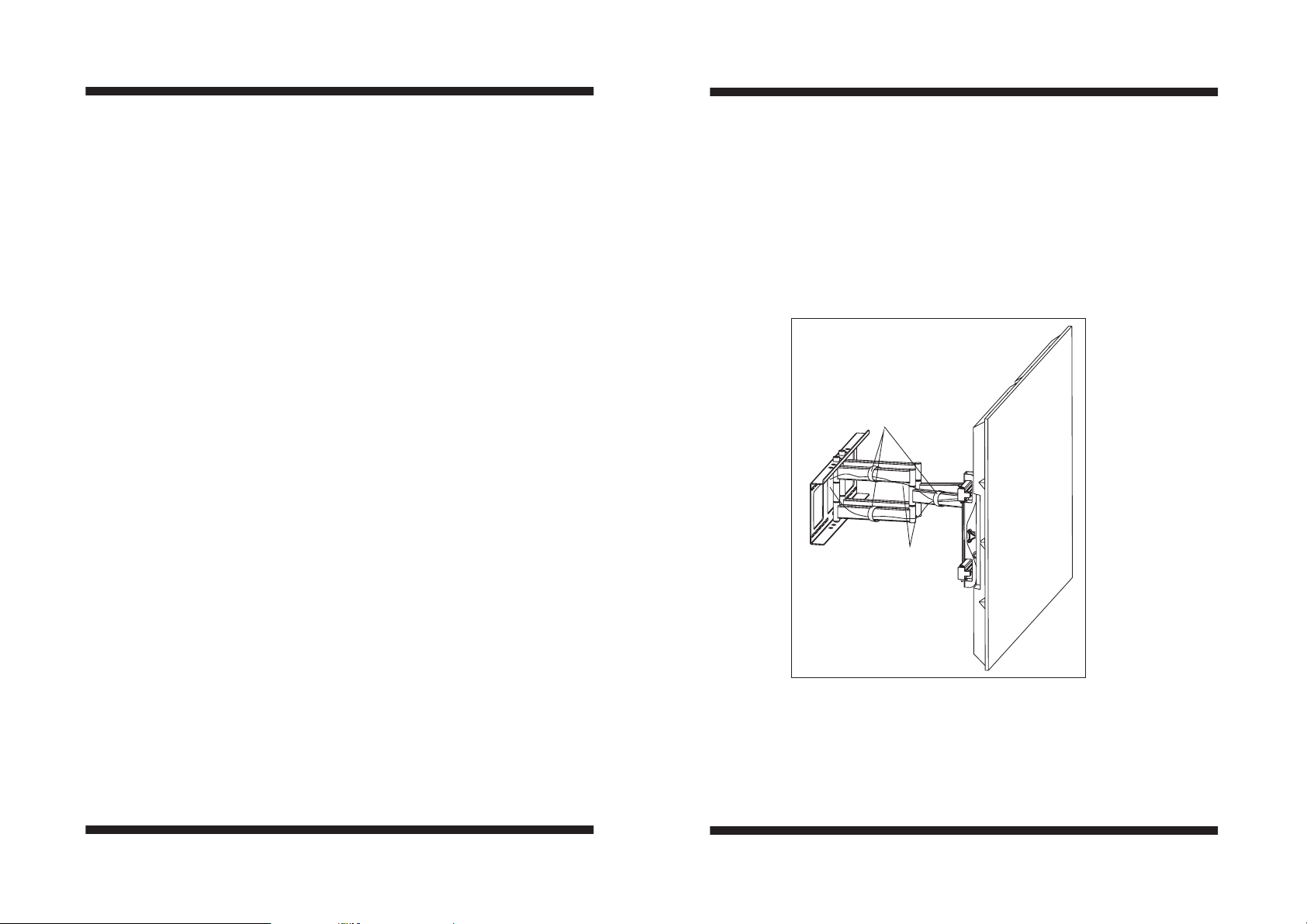

Step 4:
Using Cable Management
Step 4: Using Cable Management
1.This Product LCD /Plasma Wall Mount Bracket are intended for use only within
the maximum weights indicated. See apparatus instructions .Use with products
heavier than the maximum weights indicated may result in instability causing
possible injury.
2.This product should only be installed by someone of good mechanical aptitude,
has experience with basic building construction, and fully understands this
manual.
3.Make sure that the supporting wall surface will safely support the combined
load of the equipment and all attached hardware and components.
4.Never exceed the Maximum Load Capacity.
5.If mounting to wood wall stud wall construction, make sure that mounting
screws are anchored into the center of the studs. Use of a stud finder is highly
recommended.
6.Always use an assistant or mechanical lifting equipment to safely lift and
position equipment.
7.Tighten screws firmly, but do not over tighten. Over tightening can damage the
items, greatly reducing their holding power.
8.Around the mount location, there should be no cables, water lines or gas pipes
etc.
9.This product is only for wooden wall, brick wall, and concrete wall.
Remove the Cord cincture(10) from box. ord cincture
Cantilever Arm in needful location. As shown in Fig. 4a
to
Make sure cords have enough slack to allow full movement of the
Note:
Note:
arm.
Use C bind Route cords
10
R
oute cords
-2-
Fig 4a
-11-
Page 3
Supplied parts：Supplied parts：
1
7
5
2
1
8
9
4
3
O
Q
10
Fig 2b

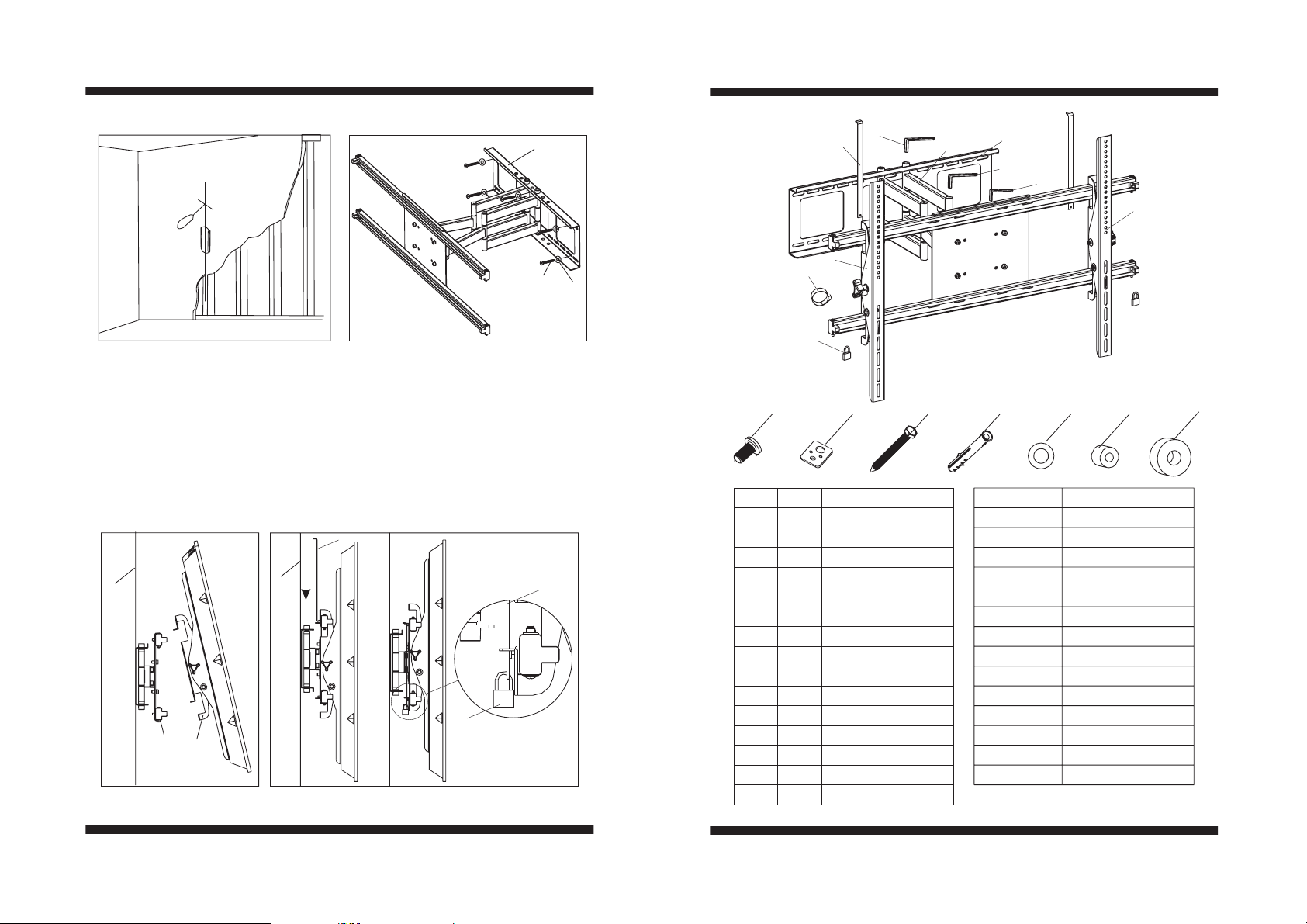

Step 3: Hanging display
Step 3: Hanging display
Firstly lift the bracket mounted display over the wall mount. And then hook the
brackets over the top of the wall mount. Rotate the display let the bottom of the
brackets hook over the bottom of wall mount, as shown in Fig.3a. Then use the
Safety plate
and turn it tightly, see Fig.3b. Set up the lock at last.
Warning: Some TV require two people to lift, as we are not responsible for any
Warning:
personal injury or product damage due to mishandling.
Wall
(5) through top of Bracket and into foot of Bracket, to secure the assembly,
5
Wall
1
3,4
Fig 3a Fig 3b
Fig. 2c
5
6
6
A-M
ID Description
Qty
1
1
2
3
4
5
6
7
8
9
10
A
B
C
D
E
1
1
1
2
2
1
1
1
3
4
4
4
4
4
N
Wall mount
Cantilever Arm
Left Bracket
Right Bracket
Safety plate
PadLock
5x5 Wrench
4x4 Wrench
3x3 Wrench
Cord cincture
M4 mm×12 bolt
Mmm5×12 bolt
M× mm6 12 bolt
M× mm8 12 bolt
M× mm4 25 bolt
ID
PO
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
Q
Qty
4
4
4
4
4
4
4
4
4
6
6
6
8
8
Description
M5× mm25 bolt
M6× mm25 bolt
M× mm8 25 bolt
M× mm4 40 bolt
M5×40mm bolt
M6×40mm bolt
M8×40mm bolt
1/4 -20×5/8 bolt""
Square washer
Long bolt
Wall anchor
Long bolt washer
9/16 Spacer"
1/2 Spacer"
R
S
-10-
-3-
Page 4
Mounting to Wooden Stud
Mounting to Wooden Stud
WARNING
We are not responsible for any personal injury or product damage due to mishandling,
incorrect mounting, incorrect assembly or incorrect use of this product.
The supplied wall mounting hardware is not for use on steel stud walls or cold
Note:
cinder block walls. If you are uncertain about the nature of your wall, please consult a
qualified contractor. If the hardware you required is not included please contact your
local hardware store .
Caution : This Product LCD /Plasma Wall Mount Bracket is intended for use
only with the maximum weights indicated .See apparatus instructions .Use with
products heavier than the maximum weights indicated may result in instability causing
possible injury .
Step 1: Attach bracket to TV
Step 1: Attach bracket to TV
CheckyourTVmanualtoconfirmthediameterofbolttobeusedorchoosean
appropriate bolt according to size, height and position of the holes on your TV. See
pages 5-7 of these instructions for examples.
For correct installing, make sure that hook of every bracket must facing down. Use
selected bolts, spacers and washers for installing bracket at the back of display.
Adjust two brackets to equal heights and level. Oncealigned, tightly securethe
bolts.
IMPORTANT:
IMPORTANT
equipments and injure of person. Don't use electric drill to fasten any bolts.
Don't force the bolt into the hole, which will cause a damage of
Determine the location where you want the display mounted on the wall. Use
stud finder to locate and mark the center of the two studs. (Fig. 2b) Remove
Plasma from box.
NOTE:
The cantilever arm and wall plate are five mounting positions.
NOTE:
The center position is shown Fig.2c. Cantilever arm must be mounted with
one mounting hole separating them.
Align center mounting holes of wall plate with center marks on studs. Using
the wall plate as a template, mark the 6 mounting holes and center J box hole.
Install J box as required.
NOTE:
NOTE:
Electrical outlets should only be installed by a qualified electrician.
Drill 6 mounting holes with 5mm bit. Mounting holes should be 80mm deep.
Mount cantilever assembly to wall using the 6 long bolts(O) and washers(Q).
(Fig.2c)
Mounting to Masonry/Concrete
Mounting to Masonry/Concrete
Determine the location where you want the display mounted on the wall.
Remove Plasma from box. Using the wall plate as a template, mark the 6
mounting holes and center J box hole. Install J box as required.
NOTE:
Electrical outlets should only be installed by a qualified electrician.NOTE:
Drill 6 mounting holes with10mm masonry bit. Mounting holes should be a
minimum of 80mm deep. Insert 6 wall anchors into holes, and tap flush with
hammer. Mount cantilever assembly to wall using the 6 long bolts(O) and
washers(Q)(Fig.2c).
-4-
-9-
Page 5

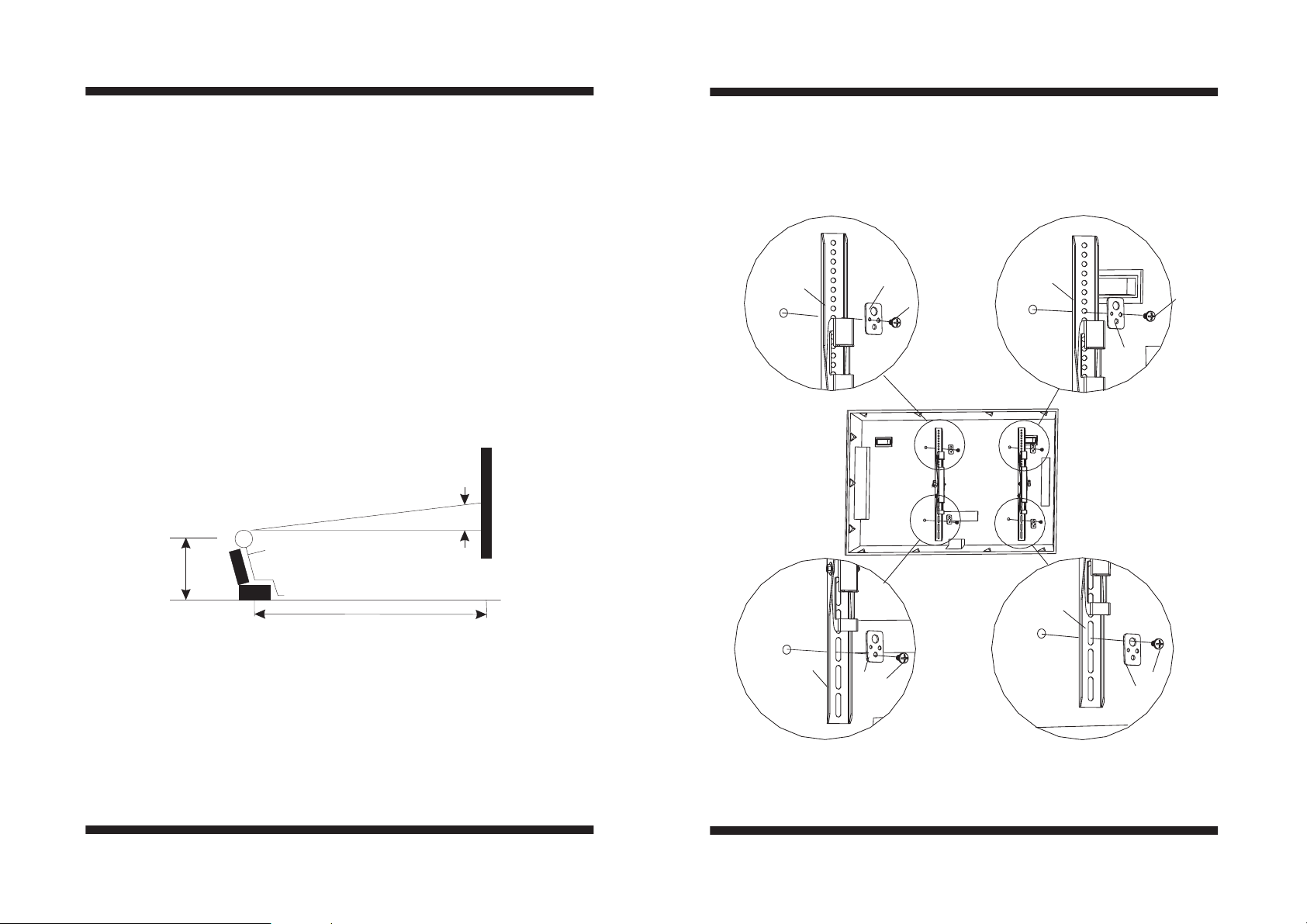

Step 2: mount to wall
AttachStep 2: Attach mount to wall
Following examples shows how to use bolts, spacers and square washers.
First, determine the height of stand
The best height of stand is parallel to eyelevel of a person who sitting on a couch.
Normally, the horizontal distance of eyelevel isabout 4’ from ground level.
The following two conditions are for determining the perfect height of stand:
1) the distancebetween wall and couch(Fig 2a).
2) the distanceof eyelevel from ground level plus the distancemeasured from
eyelevel of a person sitting on couch with viewing angle of 15 (Fig 2a).
For example:
1) the distance of ‘a’is 5’-7’, the distance of ‘b’ is about 1’
2) the distance of ‘a’is 8’-13’, the distance of ‘b’ is about 3’
3) the distance of ‘a’is 14’-17’, the distance of ‘b’ is about 4’
The perfect height of stand centre will be anywhere within b, where you feel
comfortable for viewing.
15 degree
viewing angle
°
b
eyelevel
1.Somedisplays have vertical backs. No spacer is required. Install the bracket directly
to the back of display by using bolts andsquare washers provided. As shown in Fig.1a.
M4 Fig bit M5 Fig bit
4
N
A
3
B
N
a
Fig 2a
After determining the height of stand, follow the installation instructions in below
to install wall mount to different kinds of wall -wooden, brick and concrete.
-8-
3
4
N
CM,
M8 Fig bitM6,1/4 -20 5/8 Fig bit＂＂
D
N
Fig 1a
-5-
Page 6

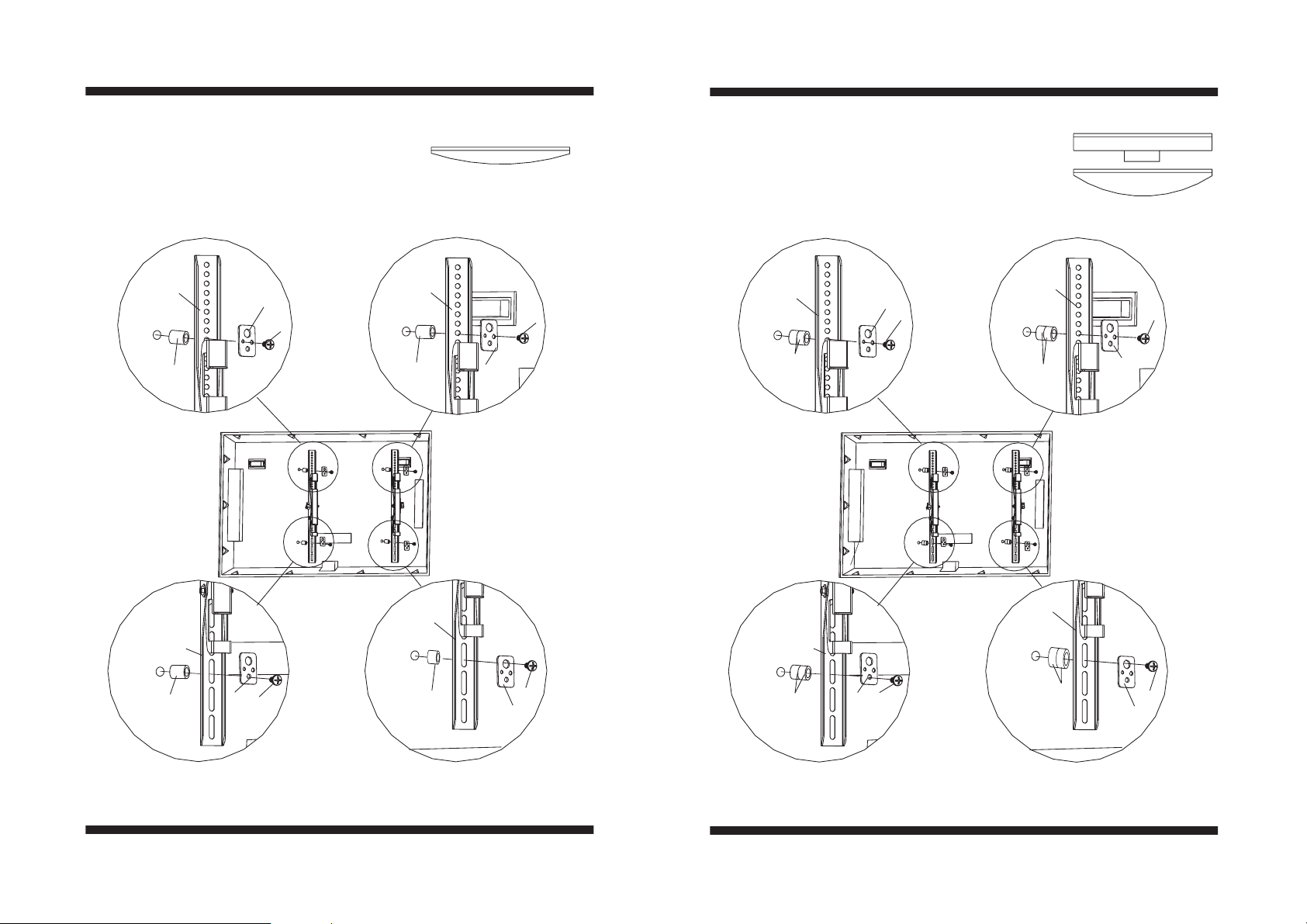

2. Some displays have curved backs with recessed
mounting lands(Fig.a). It will require the use of
spacer. For this display, install a 9/16” spacer(R)
and 1/2” spacer(S) between display and the bracket.
As shown in Fig 1b.
3. For display with protruding HDTV tune or deeply curved
backs(Fig b), two 9/16” spacers(R)and 1/2” spacers(S)
should be used. Stack two spacers and then install them
Fig a
M5 Fig bitM4 Fig bit
between display and the bracket. As shown in Fig 1c.
M4 Fig bit
M5 Fig bit
Fig b
4
R
4
R
N
E
N
G
3
F
R
3
S
N
H
N
4
R
4
R
N
I
N
K
3
J
R
3
S
N
L
N
-6-
M6 Fig bit
Fig 1b
M8 Fig bit
M6 Fig bit M8 Fig bit
Fig 1c
-7-
