Page 1
STM-2300 Mixer 2Ch/MP3
172.740
USER’S MANUAL
Page 2

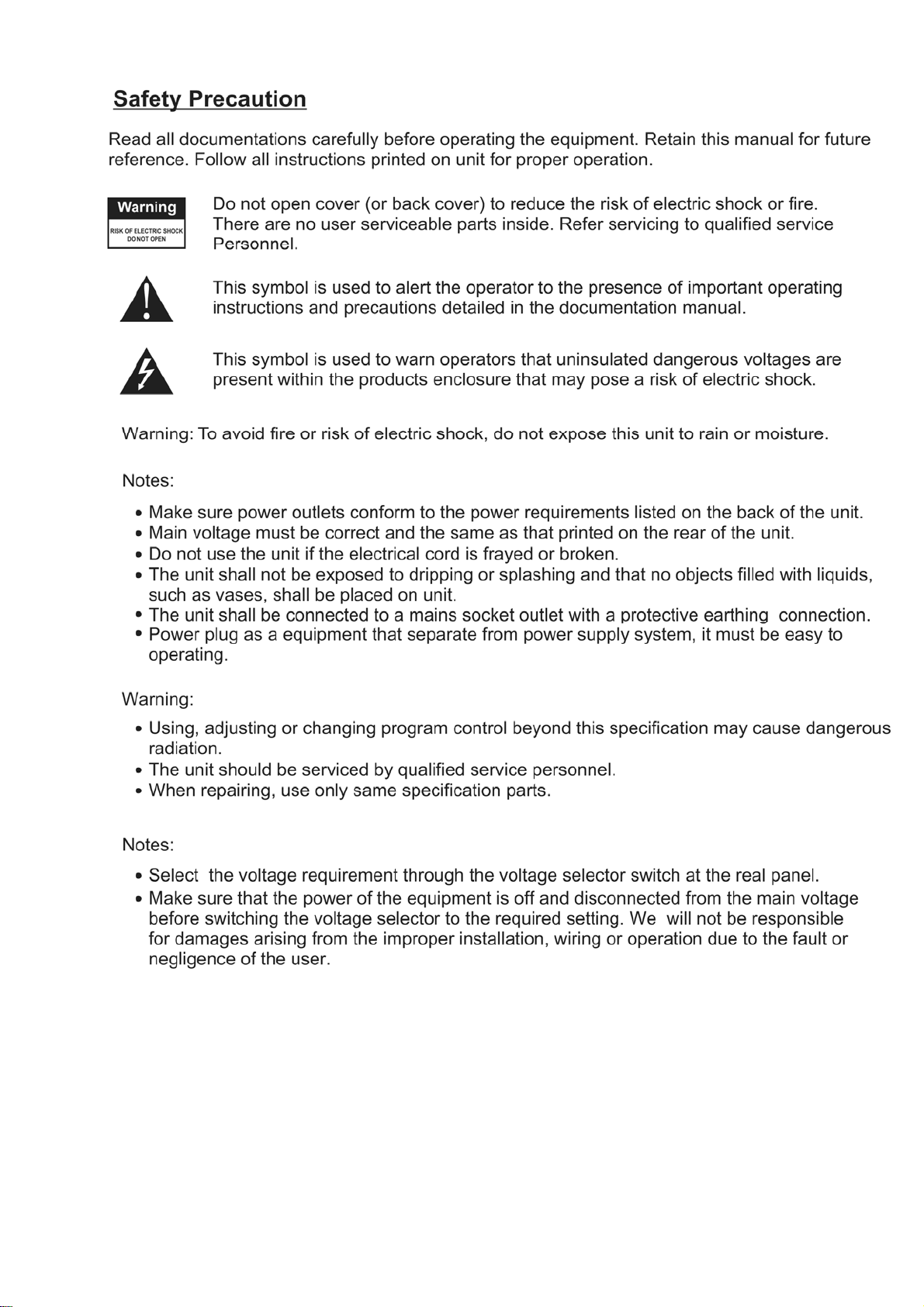

Page 3

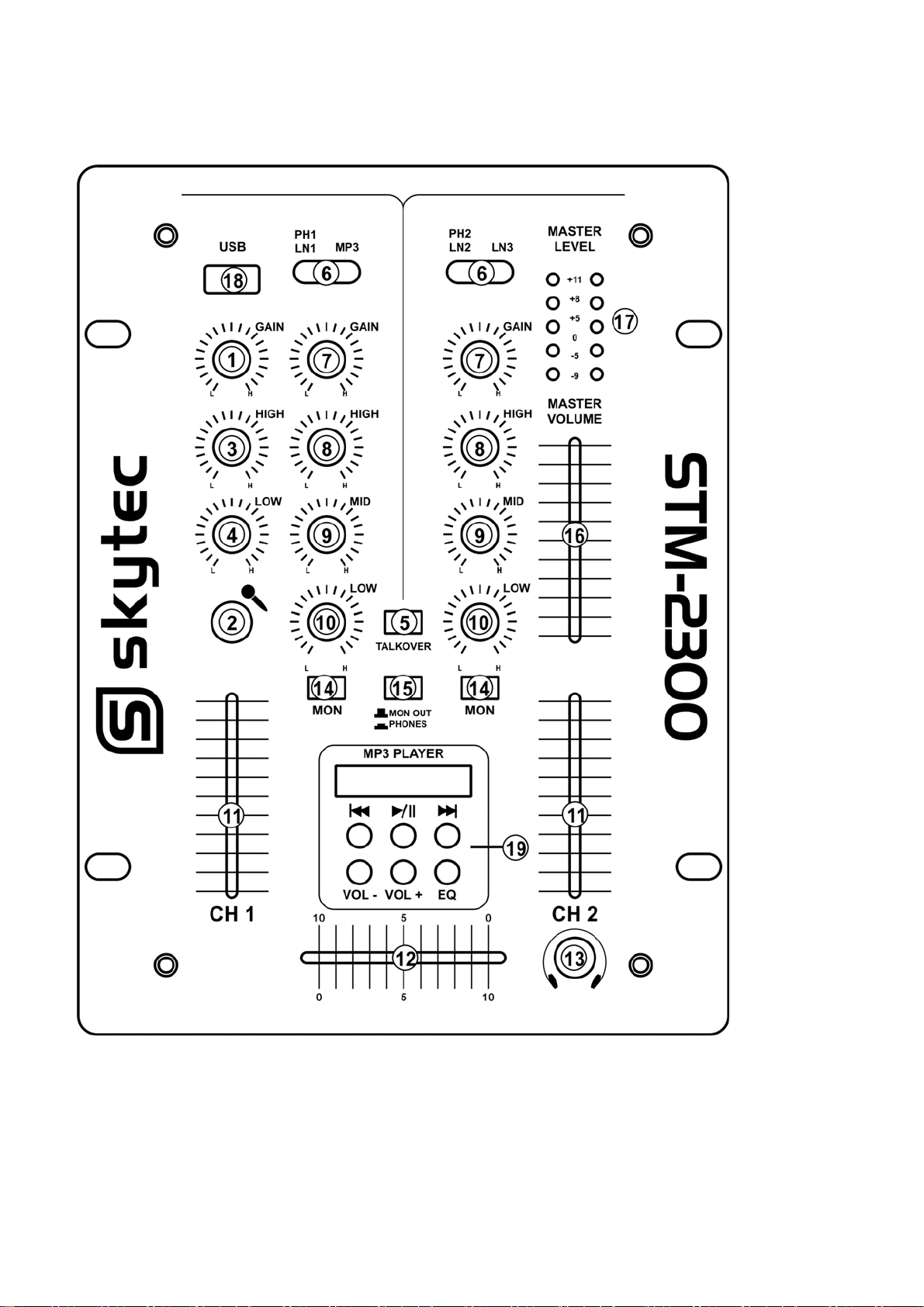

TopandFrontPanels
1. Mic 1 Socket
Connect your microphone with 1/4” jack plug here.
2. MIC Level Control
With this knob, you can adjust the microphone volume。
Page 4
3. MIC Treble
Used to increase or lower the microphone’s higher frequencies.
4. MIC Bass
Used to increase or lower the microphone’s lower frequencies.
5. Talkover Button
Press this button if you want to use your microphone. When the button is pressed, all other signal sources will be
attenuated by 14dB, so that the microphone can be clearly heard. In the OFF position, all signals returns to their
original level.
6. Phono/Line Switch
Use this switch to select the input to be sent to the individual channel.
7. Gain Control
Use this knob to set the level of input channel.
8. Treble Control
Used to increase or lower the HIGHS of the input channel.
9. Middle Control
Used to increase or lower the MIDS of the input channel.
10. Bass Control
Used to increase or lower the LOWS of the input channel
11. Channel Fader
Used to adjust the level of each channel.
12. Crossfader
Mixes the signals of one channel with another. If the crossfader is in the center position. Both channels can be
heard.
13. Headphone Socket
Connect your headphone with impedance between 8 and 600 Ohms to this connector.
14. Cue Button
Use this button in order to select the channel(s) to be monitored by headphones.
15. PHONE/MON OUT Button
Press this button to sected phones out or monitor out.
16. Master Control
Adjust the level of the master-output.
17. Master Level Display
The LED display shows the level of the left and right master output
18. USB STICK SOCKET
USB stick input.
19. USB CONTROLS
USB player transport controls
a: |<< : Use this button to re-start the track or to select the previous track.
b: Play/Pause: Each time you press this button, the operation changes from play to pause or from pause to play.
c: >>|: Use this button to select the next track.
d: VOL-: Use this button to
e: VOL+(28): Use this button to
f: EQ(29):Allow you to select the effect.
g: LED DISPLAY(30):
control level down.
control level UP.
Display to MP3's information.
Page 5

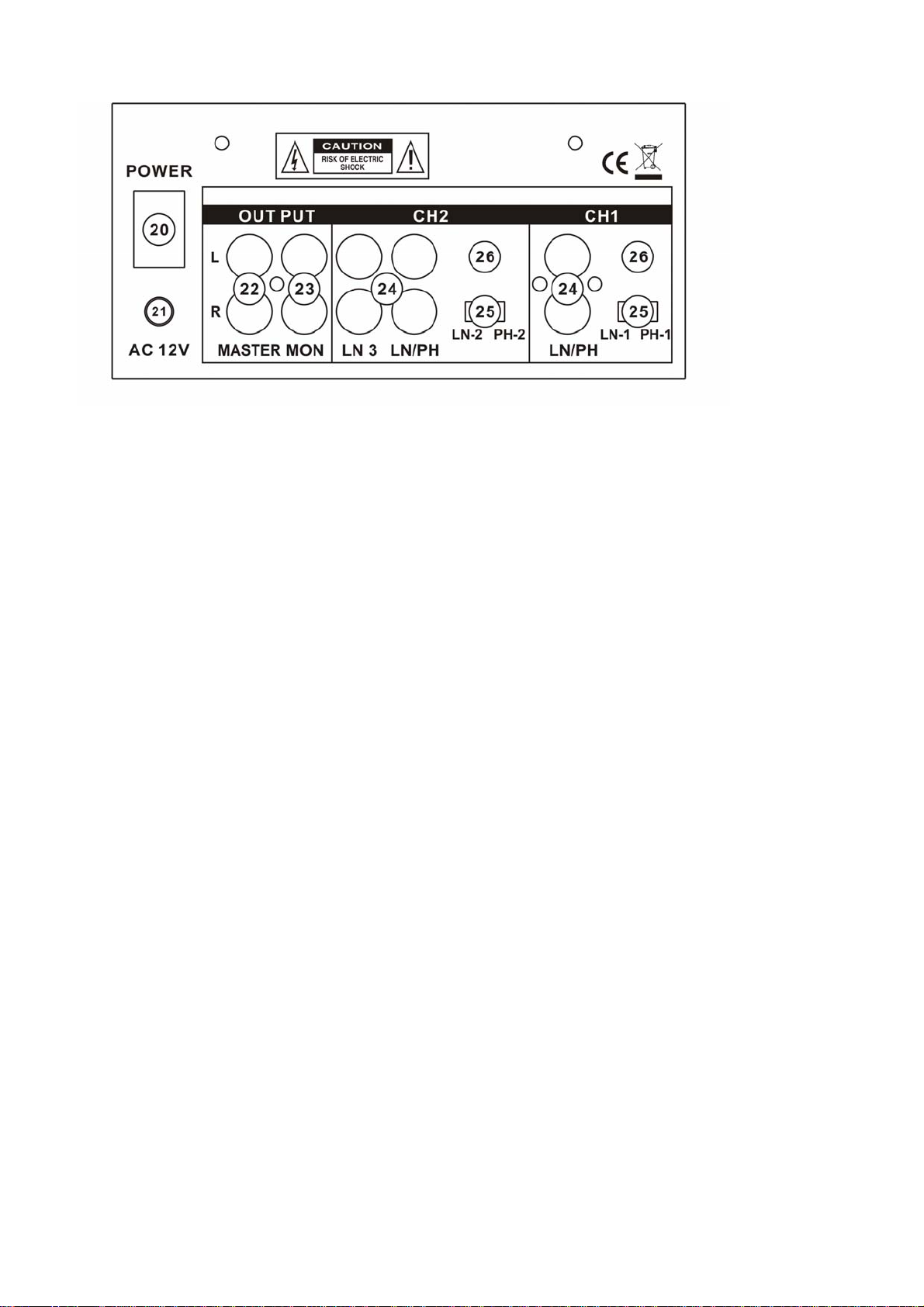

BACKPANELDESCRIPTION
20. Power Switch
Press down the button to turn on this unit. The LED will illuminate when the power is on.
21. AC Connection
This unit comes with a 12V AC adapter. Plug into the 12V AC jack before plugging it into a proper power source.
22. Master Output
Master output connects to the main amplifier (DJ final mix after crossfader section), accepts RCA jacks。
23. MON Output
To connect your AUX unit. These jacks are RCA types. Which are suitable for connection of a recording device.
Its level is not influenced by the master/channel control.
24. Phono/Line Inputs Sockets
These inputs, for ch1-ch2 and accept RCA-plug connectors. Use phono input socket for phonograph turntables.
Use line socket for CD/MP3 players. Line level musical instruments with stereo outputs such as rhythm machines or
samplers should also be connected with the line input socket.
25. Inputs Switch
Set these switches based on what is plugged into Phono/ Line input jacks
26. GND
Connect the earth cable from the turntables. This helps to reduce humming and pop noise.
Page 6
SPECIFICATION
INPUTS:
Microphone……………………………………………………………………..3mv / 2.2 kΩ
Phono…………………………………………………………………………….3.2mv / 47 kΩ
Line……………………………………………………………………………...150mv / 47 kΩ
OUTPUTS:
Main……………………………………………………………………………0 dB / 1V 600Ω
MON………………………………………………………………………………0 dB / 1V 600Ω
PHONE......................................................................................................................300MW/16-32Ω
Tone Control
Treble……………………………………………………………………………...+12dB/-12dB
Middle……………………………………………………………………………..+12dB/-12dB
Bass………………………………………………………………………………..+12dB/-12dB
GENERAL:
Frequency response……………………………………………………..20Hz～20 KHz ±2dB
Distortion………………………………………………………………………………...<0.02%
S/N Ratio………………………………………………………………………better than 70 dB
Page 7
Key Features
CE Declaration of Conformity
Importer: TRONIOS BV
Bedrijvenpark Twente 415
7602 KM - ALMELO
Tel : 0031546589299
Fax : 0031546589298
The Netherlands
Product number:
Product Description: Skytec,
Regulatory Requirement:
EN 55013
EN 55020
EN 61000-3-2/-3-3
The product meets the requirements stated in the above mentioned Standards. This
certificate does not cover the aspects that may be relevant such as performance and
fitness for purpose.
Almelo,
172.740
STM-2300 Mixer 2Ch/MP3
EN 61558
30-07-2013
Signature :
Page 8
www.tronios.com
Copyright © 2013 by TRONIOS the Netherlands
