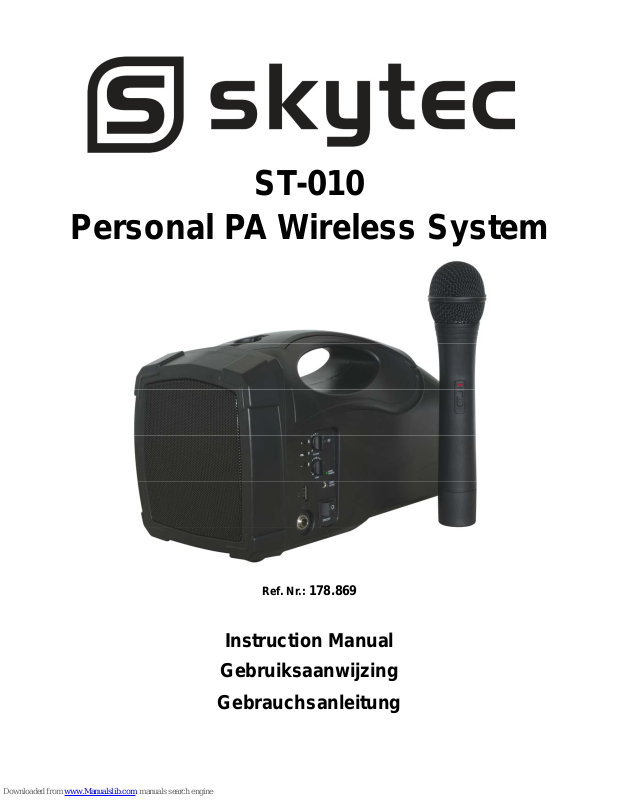

Skytec ST-010 Instruction Manual

ST-010

Personal PA Wireless System

Ref. Nr.: 178.869

Instruction Manual

Gebruiksaanwijzing

Gebrauchsanleitung

ENGLISH 178.869
We appreciate for your purchasing this SKYTEC VHF wireless amplifier system. Please read

the manual thoroughly and keep this manual in a safe place for future reference.

Note:
Users are not permitted to disassemble the device in any way. Any unauthorized repairs or
acess without written approval from our distributor or dealer will void the product warranty. If
you have any question, please feel free to contact with our distributors or dealers respectively.

Basic Features of the Amplifier System:
This amplifier consists of SMD electronic components & SMT technology which breed the best
quality in the industry. It’s specially designated for teaching, promotion, lecture, auction,
assembly, etc. It has a high sensitivity ,frequency steady, anti-howl, intelligent rechargeable
power operating. It has a elegant portable design and it is your premium partner.

Caution:

1. Please plug in & charge the built-in rechargeable battery continuously 8 hours without interruption
before you proceed to operate at the first time..

2. Please keep it away from the high power wireless transmit device in order to avoid the signal
interference.

3. Please keep it 60cm away from the computer or TV in order to avoid the magnetic interference.

4. Please do not dispose the amplifier near any flammable source. For example, a burning candle.

5. Do not cover the amplifier by newspaper, napkin, curtain in order to make sure it has a ventilation
environment while operating it.

6. Please recycle the batteries and stop operating the amplifier while it occurs to the following cases:

A. The power cable or the power source is damaged;
B. Litter or spilt water into the amplifier;
C. Components are damaged or out of order;
Above-mentioned problems should send to service center or the authorized technicians for repair.

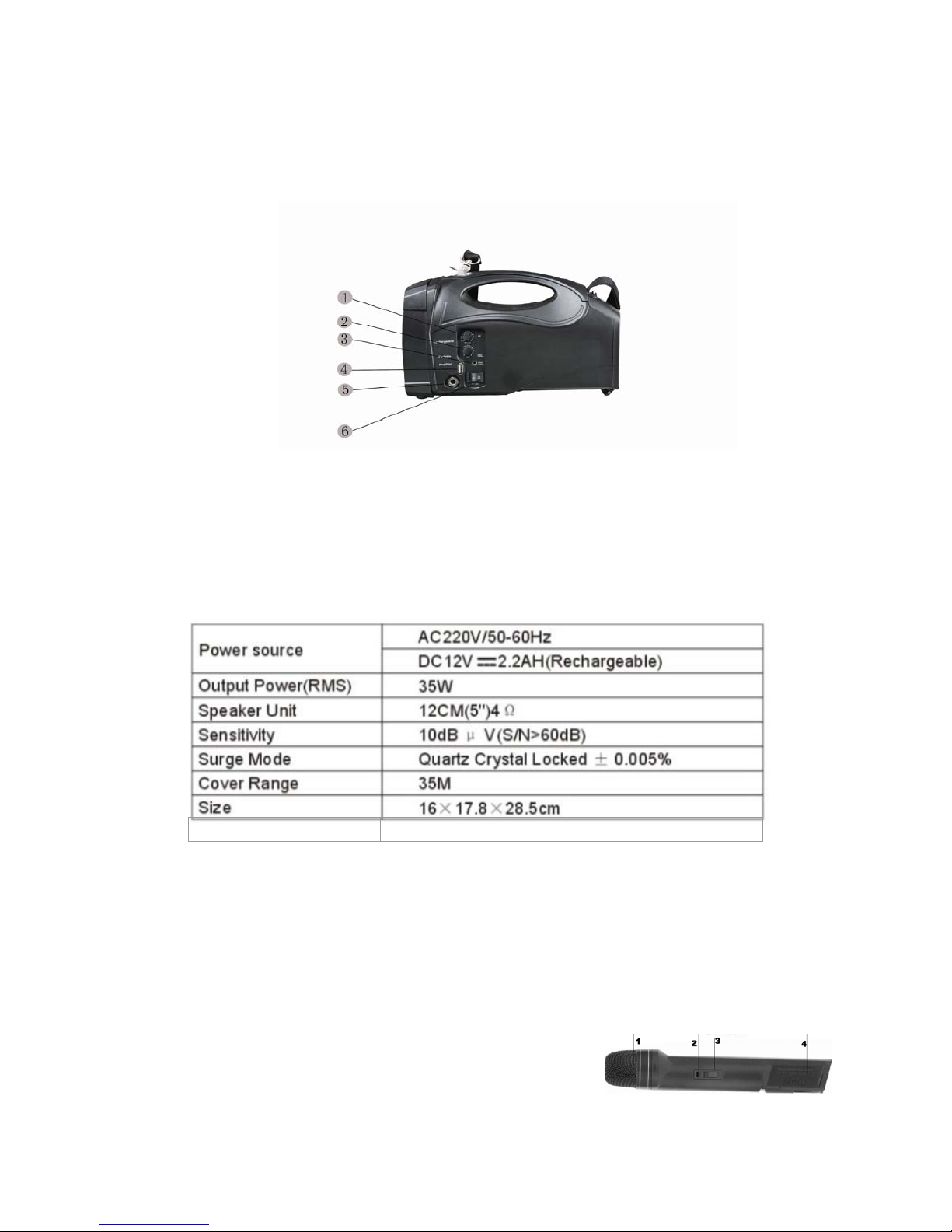

Description of the amplifier:

1.Volume Control 4.USB socket

2.Tone Control 5.Wired mic input

3.Audio Output 6.Power On/Off

Packing Included:

1. Amplifier :1 pcs

2. Strap: 1 pcs

3. Wireless Handheld Microphone: 1pcs; (Optionlal 1pcs headset mic + 1 pcs clip mic)

4. 9V Battery: 1 pcs

5. User Manual: 1 pcs

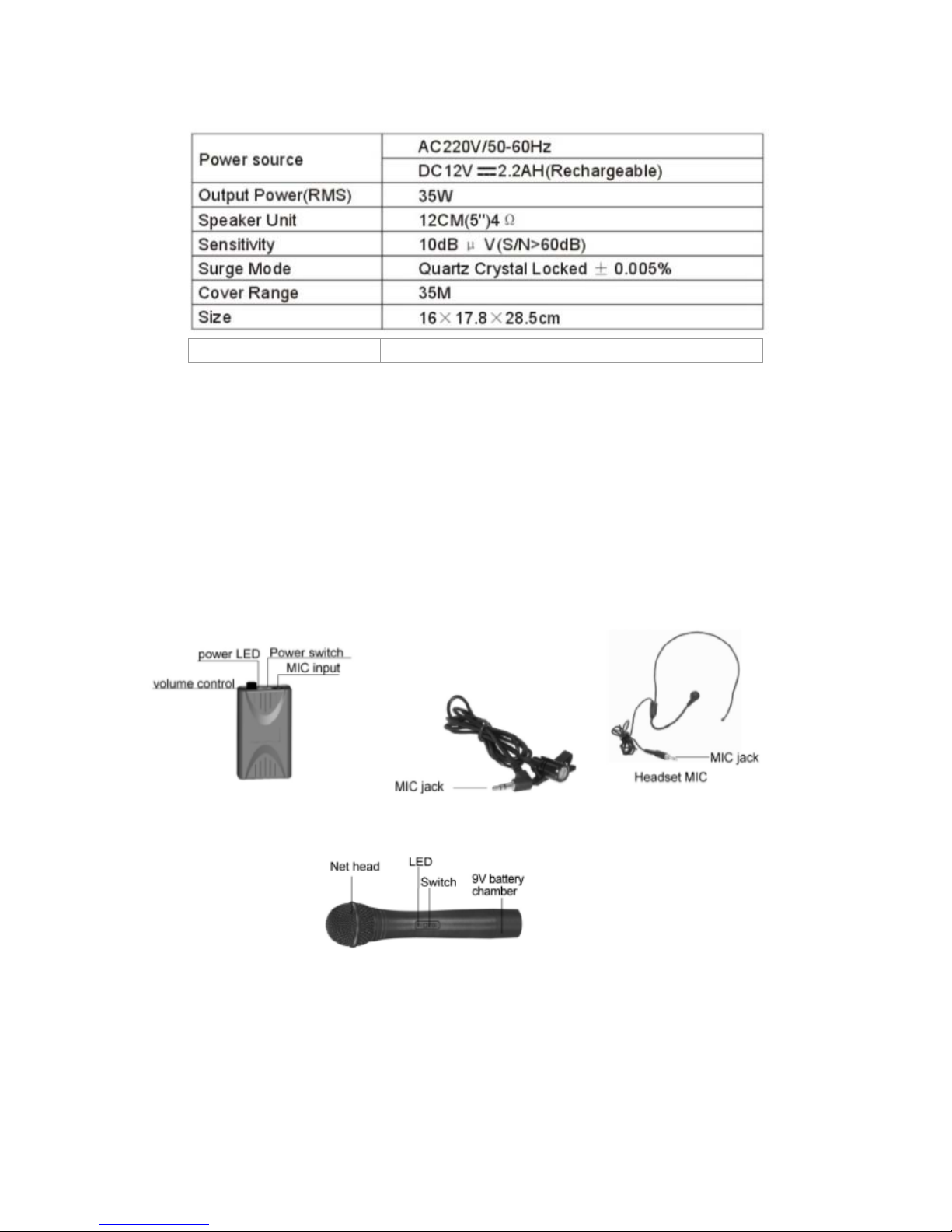

SPECS :

A. Operation of the Amplifier:

Firstly, make sure the amplifier is available in the current power voltage.

1. Using AC power supply:

Connecting with AC power, please switch to POWER ON position, and the power indicator turns
green ,it shows the amplifier works normally(If suddenly AC power is cut off, the built –in rechargeable
will supply power automatically);

2. Using DC power supply:

Switch to POWER ON position, and the power indicator turns green, it works normally, it has a low
power warning set, if it ‘s low battery, it will provides a “BEEP” sound to inform the users to charge the
amplifier.

Caution

Please switch to POWER OFF position when you finish using the amplifier,

otherwise, it will influence battery life span .

B. Operation of wireless transmitter:

1. Open the cover ,install the 9V battery with correct polarity.(9V normal battery and 8.4V
rechargeable battery can be used simultaneously),then close the cove.

2. Plug the clip mic or headset mic into the MIC socket.

3. Switch to ON position, indicator turns red(Clip mic), the indicator flash up then black out(Handheld
mic) ,it means can work normally ,please turn off the power after using it.

4. The best way to sett the voice volume of amplifier to 2/3 position and then you can adjust the
volume of the transmitter to meet your needs.

Frequency 201.400MHz

Caution:

1. If the transmitter is ON, but the LED indictor is dim or off, it means the battery is low or you have
placed the battery wrong polarity.

2. Please take out the battery if you do not want to use it for a long period。

Charging and maintenance of the amplifier

1. Turn off the amplifier while charging, the POWER CHARGING indicator turns red ,it should be
charged 8 hours continuously.

2. The battery life span will be shorten when the battery is used frequently or over-charge excessively.

3. Please charge the amplifier every other three months if it is not used for a long period,8 hours per
time.

Operation of Audio Output:

Connecting the external speaker to the audio output socket.
Operation of Wired Microphone:
Connecting the wired mic to the “Wired MIC Input” socket, then adjust the volume to meet your needs.

Operation of Bass & Treble volume control:

Adjust the Bass and Treble according to your favor, if it sounds harsh howl, please turn down the
Treble.

Troubleshooting:

The problems might be Reasons and Resolutions

The power indicator is dim It indicates the battery low,please change to AC supply and

charge it immediately;

1．Turn down the volum of amplifier

2. Turn the tone control to Bass

Hash Howl

3.Adjust the distand between amplifier and microphone ,do
not face the speaker of amplifier while using it

1．Battery low of the amplifier or transmitter;

2. The microphone cord might be damaged;

Noise

3.Interference by same frequency (201.400MHz);

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about
the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be
changed without prior notice.

WARRANTY CONDITIONS

The date the product leaves the importer is considered to be the date the warranty begins. The law obliges the retailer to offer a two year quarantee to the
enduser. Only companies approved by Tronios are allowed to work on the equipment. During warranty period (defective) equipment must be returned to
the dealer by pre-paid mail in the original box. Potentiometers have a limited lifetime and are not covered by the manufacturer for more than normal use.
For all service enquiries,refer to your local distributor,as he is best able to help you.

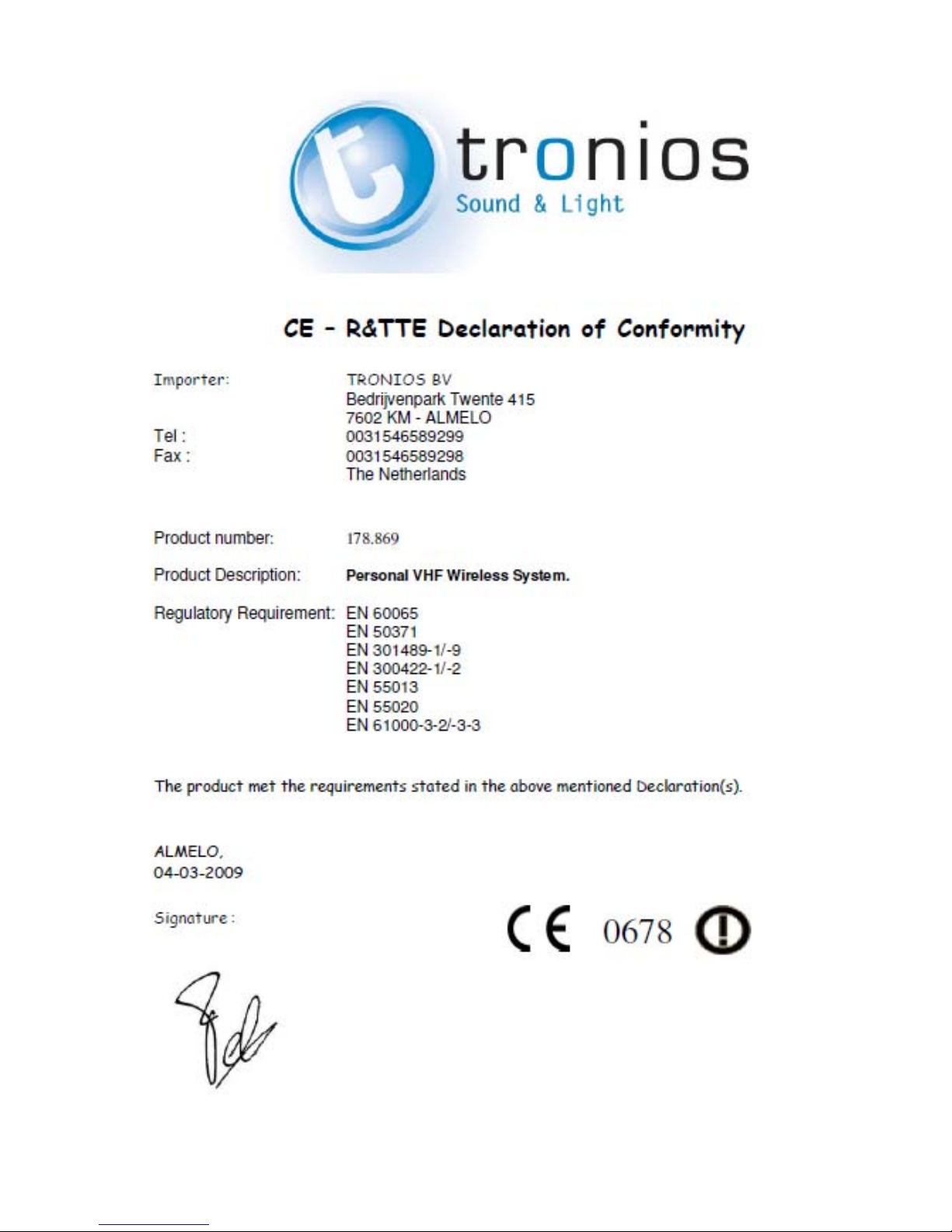

CE0678 Netherlands, Germany

Only for use in the Netherlands & Germany. In Germany the use is not licencefree and apply to the Authorities (BnetzA)
