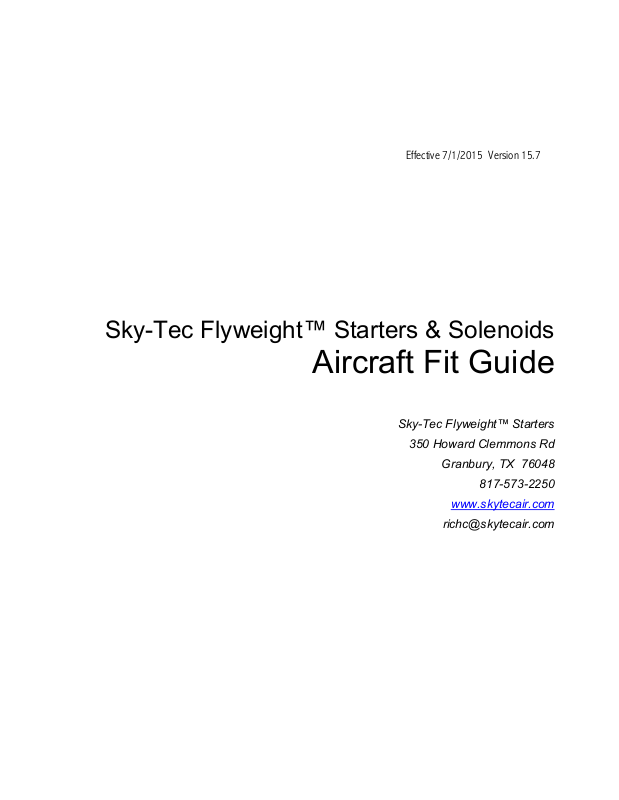

Page 1
Sky-Tec Flyweight™ Starters & Solenoids
Aircraft Fit Guide
Sky-Tec Flyweight™ Starters
350 Howard Clemmons Rd
Granbury, TX 76048
817-573-2250
www.skytecair.com
Effective 7/1/2015 Version 15.7
Page 2
Sky-Tec Flyweight™ Starter Fit Guide
Do not use this guide unless you have read P.2 Data in this document is NOT FAA approved. For FAA PMA Eligibility see skytecair.com/eligibility.htm
www.skytecair.com 817-573-2250 2
Caution:
Please Read Before Using This Guide
1. This document is NOT the FAA-approved Applicable Models List. Matters of certification eligibility can be found at
www.skytecair.com/eligibility.htm
2. This document is simply intended as a
guide
for fitting most aircraft by type. However, due to variances between aircraft due
to manufacturing changes, modifications, cumulative years of maintenance and/or conversion,
it is nearly impossible to
definitively recommend the correct starter for any particular aircraft based on make/model alone
. So
please only use this document
AS A GUIDE ONLY
. When in doubt, call the Sky-Tec factory for confirmation. Installation of
the wrong starter will void the factory warranty. Sky-Tec will not warrant starter wear or damage on starters (or
engines) where a starter is installed incorrectly (including wrong ring gear teeth or wrong voltage, etc.) or is used in an
inappropriate application.
3. There may still be a starter to fit an aicraft whose entry shows “no starter available”. Many older aicraft have been converted
and upgraded. Confirm the engine make/model before determining a Sky-Tec is or is not applicable.
4. Please note the use of ring gear tooth count (on Lycoming engines) and aircraft voltage in the model numbers of all Sky-Tec
starters. If your aircraft ring gear teeth and/or voltage do not match the numbers in the model recommended for your
aircraft, DO NOT ORDER THE STARTER without first contacting Sky-Tec or adjusting your model number accordingly.
5. Recommendations are suggested for aircraft with factory standard equipment. Factory or after-market installed options such
as air conditioning may affect the applicability of the Recommended Starter. Piper singles with air conditioning must utilize the
NL-series starters.
6. Please do not assume ring gear tooth count (on Lycoming engines). Through the years, mechanics have been known to
replace ring gears with whatever model they had laying around their shops at the time the work was performed. Therefore it
is imperative that the installer CONFIRM RING GEAR TOOTH COUNTS ON ALL LYCOMING INSTALLATIONS.
7. IF YOU ARE UNSURE WHETHER THE STARTER YOU RECEIVE IS CORRECT, PLEASE DO NOT MOUNT IT. Call the factory first.
Mounting the starter will preclude you from returning the starter to Sky-Tec as new/unused. Mounting the starter places ‘bite
marks’ around the mounting holes and will have to be treated as
used
starters (no new exchange will be permitted).
8. Never use a XLT, PM or LS (permanent magnet) starter on a helicopter. Sky-Tec ONLY recommends HT starters for use on
helicopters.
9. And finally, this list is only as comprehensive as we could attempt to make it. We realize there are omissions and variances.
We’ve done our best to include the majority of general aviation aircraft models. If you cannot find what you are looking for (or
what you are looking for is not where you’d expect it), we encourage you to speak with the factory to find the best starter for
your particular application.
Page 3
Sky-Tec Flyweight™ Starter Fit Guide
Do not use this guide unless you have read P.2 Data in this document is NOT FAA approved. For FAA PMA Eligibility see skytecair.com/eligibility.htm
www.skytecair.com 817-573-2250 3
Page 4
Sky-Tec Flyweight™ Starter Fit Guide
Do not use this guide unless you have read P.2 Data in this document is NOT FAA approved. For FAA PMA Eligibility see skytecair.com/eligibility.htm
www.skytecair.com 817-573-2250 4
Table of contents
Starter Model Cross Reference by OEM Manufacturer............................................................................................................. 5
Lycoming Engines ..........................................................................................................................................................................................................5
Lycoming Engines (cont.) ..............................................................................................................................................................................................6
Continental Engines........................................................................................................................................................................................................ 6
Recommended Starter/Solenoids by Aircraft Manufacturer ....................................................................................................... 7
Aero Commander............................................................................................................................................................................................................ 7
Aeronca .......................................................................................................................................................................................................................... 7
Aerostar Aircraft............................................................................................................................................................................................................. 7
American Champion........................................................................................................................................................................................................ 7
American General ........................................................................................................................................................................................................... 7
Aviat Aircraft................................................................................................................................................................................................................... 8
Beechcraft ...................................................................................................................................................................................................................... 8
Beechcraft (cont) ........................................................................................................................................................................................................... 9
Bell ................................................................................................................................................................................................................................. 9
Bellanca........................................................................................................................................................................................................................ 10
Brittain-Norman............................................................................................................................................................................................................ 10
Cessna.......................................................................................................................................................................................................................... 10
Cessna (Cont.)..............................................................................................................................................................................................................11
Champion Aircraft......................................................................................................................................................................................................... 12
Cirrus Design................................................................................................................................................................................................................ 12
Commander Aircraft......................................................................................................................................................................................................12
Culver ...........................................................................................................................................................................................................................12
Diamond Aircraft........................................................................................................................................................................................................... 13
Enstrom........................................................................................................................................................................................................................13
Ercoupe........................................................................................................................................................................................................................ 13
Extra............................................................................................................................................................................................................................. 13
Found ........................................................................................................................................................................................................................... 13
Grob.............................................................................................................................................................................................................................. 13
Grumman American ...................................................................................................................................................................................................... 14
Hiller............................................................................................................................................................................................................................. 14
Lake.............................................................................................................................................................................................................................. 14
Luscombe Aircraft Co. ..................................................................................................................................................................................................14
Maule............................................................................................................................................................................................................................ 15
Meyers.......................................................................................................................................................................................................................... 15
Mooney......................................................................................................................................................................................................................... 16
Navion ..........................................................................................................................................................................................................................16
Partenavia .................................................................................................................................................................................................................... 16
Piper............................................................................................................................................................................................................................. 17
Robinson ......................................................................................................................................................................................................................19
Rockwell........................................................................................................................................................................................................................19
Schweizer .....................................................................................................................................................................................................................20
Siai Marchetti................................................................................................................................................................................................................ 20
Socata ..........................................................................................................................................................................................................................20
Stinson .........................................................................................................................................................................................................................20
Taylorcraft ....................................................................................................................................................................................................................20
Varga............................................................................................................................................................................................................................ 21
Zenair ........................................................................................................................................................................................................................... 21
Notes............................................................................................................................................................................................................................22
Page 5
Sky-Tec Flyweight™ Starter Fit Guide
Do not use this guide unless you have read P.2 Data in this document is NOT FAA approved. For FAA PMA Eligibility see skytecair.com/eligibility.htm
www.skytecair.com 817-573-2250 5
Starter Model Cross Reference by OEM Manufacturer
PLEASE READ THIS CAUTION BEFORE USING THE TABLE BELOW!
THE PRIMARY SOURCE OF FIT DATA IS THE AIRCRAFT FIT GUIDE THAT BEGINS ON THE NEXT PAGE. USE THIS CROSS REFERENCE TABLE ONLY IF
NO OTHER AIRFRAME DATA IS AVAILABLE OR TO REPLACE LISTED MANUFACTURER’S STARTER WITH A SKY-TEC.
AS WITH ALL STARTER MODEL RECOMMENDATIONS IN THIS GUIDE, PLEASE FAMILIARIZE YOURSELF WITH NUMBERED ITEMS ON PAGE 2 OF THIS
FIT GUIDE. THESE RECOMMENDATIONS ARE ONLY A GUIDE. THE INSTALLING MECHANIC HAS ULTIMATE RESPONSIBILITY FOR ENSURING THAT
THE STARTER IS FULLY COMPATIBLE WITH THE AIRFRAME AND ENGINE BEFORE INSTALLING THE STARTER.
Lycoming Engines
Manufacturer
Mfr PN
Lycoming PN
Volts
Pitch
Weight
Installed On
Replace With
Weight
31A21210
31A21210
12V.
10/12
11.4
320, 360, 540, 235, 540
122-NL
9.3
ERB-8011
N/A
24V.
12/14
9.5
235,290,320,340,360,540
149-NL/ec
9.3
ERB-8012
N/A
24V.
10/12
9.5
320, 340, 360, 540
122-NL/ec
9.3
ERZ-8011
N/A
12V.
12/14
9.5
235,290,320,340,360,540
149-NL
9.3
ERZ-8012
N/A
12V.
10/12
9.5
320, 340, 360, 540
122-NL
9.3
MHB-4001
76212
24V.
12/14
18.3
320, 340, 360, 540
149-NL/ec
9.3
MHB-4002
75700
24V.
12/14
18.3
TIO-541-E
149-24HT/ec
8.9
MHB-4003
76214
24V.
12/14
18.3
360
149- NL/ec
9.3
MHB-4005
78791
24V.
12/14
18.3
TIGO-541
149-24HT/ec
8.9
MHB-4007
LW-11936
24V.
12/14
18.3
540
149-NL/ec
9.3
MHB-4008
LW-12023
24V.
12/14
18.3
TVO-435, VO-435
149-24HT/ec
8.9
MHB-4009
LW-12159
24V.
12/14
18.3
LTIO-540
149-NLR/ec
9.3
MHB-4010
LW-14208
24V.
12/14
18.3
320, 340, 360, 540
149-NL/ec
9.3
MHB-4011
LW-14212
24V.
12/14
18.3
TIO-541-E
149-24HT/ec
8.9
MHB-4012
LW-14210
24V.
12/14
18.3
360
149-NL/ec
9.3
MHB-4013
LW-14213
24V.
12/14
18.3
540
149-NL/ec
9.3
MHB-4014
LW-14214
24V.
12/14
18.3
LTIO-540
149-NLR/ec
9.3
MHB-4015
LW-15483
24V.
10/12
18.3
235
122-NL/ec
9.3
MHB-4016
LW-15572
24V.
12/14
18.3
320, 340, 360, 540
149-NL/ec
9.3
MHB-4016A
31B22462
24V.
10/12
18.3
720
122-NL/ec
9.3
MHB-4016A
31B22462
24V.
10/12
18.3
720
122-NL/ec
9.3
MHB-4017
LW-15576
24V.
12/14
18.3
TIO-541-E
149-24HT/ec
8.9
MHB-4018
LW-15577
24V.
12/14
18.3
540
149-NL/ec
9.3
MHB-4019
LW-15574
24V.
12/14
18.3
360
149-NL/ec
9.3
MHB-4020
LW-18990
24V.
12/14
18.3
360
149-NL/ec
9.3
MHB-6014
31B22477
24V.
12/14
8.3
540
149-NL/ec
9.3
MHB-6016
31B22474
24V.
12/14
8.3
720
149-NL/ec
9.3
MHB-6018
31B22476
24V.
12/14
8.3
235
149-NL/ec
9.3
MHB-EO-26102
LW-14447
24V.
12/14
18.3
360
149-NL/ec
9.3
MHJ-4004
77879
24V.
10/12
18.3
720
122-NL/ec
9.3
MHJ-4005
LW-12787
24V.
10/12
18.3
720
122-NL/ec
9.3
MMU-4001
LW-16207
24V.
10/12
18.3
235
122-XLT
9.3
MMU-6001
31B22475
24V.
10/12
8.3
320, 340, 360, 540
122-NL/ec
9.3
MZ-4204
76210
12V.
10/12
18.3
235, 290, 320
122-NL
9.3
MZ-4205
76213
12V.
12/14
18.3
360
149-NL
9.3
MZ-4206
76211
12V.
12/14
18.3
235,290,320,340,360,540
149-NL
9.3
MZ-4207
75699
12V.
12/14
18.3
TIO-541-A
149-24HT/ec
8.9
MZ-4216
LW-10556
12V.
12/14
18.3
LIO-320,LO-360,LIO-360
149-NLR
9.3
MZ-4217
LW-14209
12V.
12/14
18.3
360
149-NL
9.3
MZ-4218
LW-14207
12V.
12/14
18.3
235,290,320,340,360,540
149-NL
9.3
MZ-4219
LW-14211
12V.
12/14
18.3
TIO-541-A
149-24HT/ec
8.9
MZ-4220
LW-14215
12V.
12/14
18.3
LIO-320,LO-360,LIO-360
149-NLR
9.3
MZ-4221
LW-15573
12V.
12/14
18.3
360
149-NL
9.3
MZ-4222
LW-15571
12V.
12/14
18.3
235,290,320,340,360,540
149-NL
9.3
MZ-4223
LW-15575
12V.
12/14
18.3
TIO-541-A
149-24HT/ec
8.9
MZ-4224
LW-16460
12V.
12/14
18.3
320
149-NL
9.3
MZ-4225
LW-18047
12V.
12/14
18.3
360
149-NL
9.3
MZ-4226
LW-18989
12V.
12/14
18.3
360
149-NL
9.3
MZ-6204
31A22473
12V.
10/12
8.3
235, 290, 320
149-NL
9.3
MZ-6220
31A22472
12V.
12/14
8.3
LIO-320,LO-360,LIO-360
149-NLR
9.3
MZ-6222
31A22470
12V.
12/14
8.3
235,290,320,340,360,540
149-NL
9.3
MZ-6224
31A22471
12V.
12/14
8.3
320
149-NL
9.3
SRB-9021
N/A
24V.
12/14
7.6
235,290,320,340,360,540
149-24LS
8.3
SRB-9022
N/A
24V.
10/12
7.6
320, 340, 360, 540
122-NL/ec
9.3
SRB-9031
N/A
24V.
12/14
7.6
235,290,320,340,360,540
149-24PM
8.3
SRB-9032
N/A
24V.
10/12
7.6
320, 340, 360, 540
122-NL/ec
9.3
SRZ-9021
N/A
12V.
12/14
7.6
235,290,320,340,360,540
149-12LS
8.3
SRZ-9022
N/A
12V.
10/12
7.6
235, 290, 320
122-NL
9.3
SRZ-9031
N/A
12V.
12/14
7.6
235,290,320,340,360,540
149-12PM
8.3
Prestolite,
Electrosystems,
Kelly
Aerospace,
Hartzell Engine
Technologies
SRZ-9032
N/A
12V.
10/12
7.6
235, 290, 320
122-NL
9.3
Page 6
Sky-Tec Flyweight™ Starter Fit Guide
Do not use this guide unless you have read P.2 Data in this document is NOT FAA approved. For FAA PMA Eligibility see skytecair.com/eligibility.htm
www.skytecair.com 817-573-2250 6
Lycoming Engines (cont.)
Manufacturer
Mfr PN
Lycoming PN
Volts
Pitch
Weight
Installed On
Replace With
Weight
1109669
69953
24V.
10/12
18.3
235, 290, 320
122-NL/ec
9.3
Delco-Remy
1113471
72279
12V.
10/12
18.3
720
122-NL
9.3
31A21198
31A21198
12V.
12/14
11.4
235, 320
149-NL
9.3
31B21064
31B21064
24V
12/14
11.4
360, 540
149-NL/ec
9.3
31B21211
31B21211
12V.
10/12
11.4
235, 320
122-NL
9.3
Lycoming
PM1201
31A22206
12V.
12/14
11.5
320, 360, 540
149-NL
9.3
PM1203
31A22361
12V.
10/12
11.5
235, 320
122-NL
9.3
PM2401
31B22207
24V.
12/14
11.5
320, 360, 540
149-NL/ec
9.3
PM2403
31B22362
24V.
10/12
11.5
235,320
122-NL/ec
9.3
PM2404
31B22553
24V.
12/14
11.5
LTIO-540
149-NLR/ec
9.3
Lamar
PM1204
31A22552
12V.
12/14
11.5
320, 360, 540
149-NL
9.3
Continental Engines
Manufacturer
Mfr PN
Volts
If Installed On:
Then
Wt.
O300-D through IO360
C12ST3
6.5 O300-D through IO360
C12ST3
6.5
O-470 through IO470
C12ST4
7.6 O-470 through IO470
C12ST4
7.6
1109471
12V.
IO-520 through TSIO-550
C12ST5
9.3
537241
12V.
IO-520 through TSIO-550
C12ST5
9.3
O300-D through IO360
C12ST3
6.5 O300-D through IO360
C12ST3
6.5
O-470 through IO470
C12ST4
7.6 O-470 through IO470
C12ST4
7.6
1109681
12V.
IO-520 through TSIO-550
C12ST5
9.3
535856
12V.
IO-520 through TSIO-550
C12ST5
9.3
O300-D through IO360
C12ST3
6.5 O300-D through IO360
C12ST3
6.5
O-470 through IO470
C12ST4
7.6 O-470 through IO470
C12ST4
7.6
1109684
12V.
IO-520 through TSIO-550
C12ST5
9.3
539910
12V.
IO-520 through TSIO-550
C12ST5
9.3
O300-D through IO360
C12ST3
6.5 O300-D through IO360
C12ST3
6.5
O-470 through IO470
C12ST4
7.6 O-470 through IO470
C12ST4
7.6
1108249
12V.
IO-520 through TSIO-550
C12ST5
9.3
626960
12V.
IO-520 through TSIO-550
C12ST5
9.3
O300-D through IO360
C12ST3
6.5 O300-D through IO360
C12ST3
6.5
O-470 through IO470
C12ST4
7.6 O-470 through IO470
C12ST4
7.6
646275
12V.
IO-520 through TSIO-550
C12ST5
9.3
627842
12V.
IO-520 through TSIO-550
C12ST5
9.3
O300-D through IO360
C24ST3
6.5 O300-D through IO360
C12ST3
6.5
O-470 through IO470
C24ST4
7.6 O-470 through IO470
C12ST4
7.6
Delco-Remy
1108234
24V.
IO-520 through TSIO-550
C24ST5
9.3
628482
12V.
IO-520 through TSIO-550
C12ST5
9.3
XT-1207
12V.
O300-D through IO360
C12ST3
6.5 O300-D through IO360
C12ST3
6.5
O-470 through IO470
C12ST4
7.6 O-470 through IO470
C12ST4
7.6
IO-520 through TSIO-550
C12ST5
9.3
629176
12V.
IO-520 through TSIO-550
C12ST5
9.3
CT-2407
24V.
O300-D through IO360
C12ST3
6.5 O300-D through IO360
C12ST3
6.5
O-470 through IO470
C12ST4
7.6 O-470 through IO470
C12ST4
7.6
Lamar
IO-520 through TSIO-550
C12ST5
9.3
637847
12V.
IO-520 through TSIO-550
C12ST5
9.3
O300-D through IO360
C12ST3
6.5
O-470 through IO470
C12ST4
7.6
634592
12V.
IO-520 through TSIO-550
C12ST5
9.3
O300-D through IO360
C12ST3
6.5
O-470 through IO470
C12ST4
7.6
646236
12V.
IO-520 through TSIO-550
C12ST5
9.3
O300-D through IO360
C12ST3
6.5
O-470 through IO470
C12ST4
7.6
646238
12V.
IO-520 through TSIO-550
C12ST5
9.3
O300-D through IO360
C12ST3
6.5
O-470 through IO470
C12ST4
7.6
655565
12V.
IO-520 through TSIO-550
C12ST5
9.3
O300-D through IO360
C24ST3
6.5
O-470 through IO470
C24ST4
7.6
627841
24V.
IO-520 through TSIO-550
C24ST5
9.3
O300-D through IO360
C24ST3
6.5
O-470 through IO470
C24ST4
7.6
634433
24V.
IO-520 through TSIO-550
C24ST5
9.3
O300-D through IO360
C24ST3
6.5
O-470 through IO470
C24ST4
7.6
655566
24V.
IO-520 through TSIO-550
C24ST5
9.3
O300-D through IO360
C24ST3
6.5
O-470 through IO470
C24ST4
7.6
Teledyne
Continental
656181
24V.
IO-520 through TSIO-550
C24ST5
9.3
Page 7
Sky-Tec Flyweight™ Starter Fit Guide
Do not use this guide unless you have read P.2 Data in this document is NOT FAA approved. For FAA PMA Eligibility see skytecair.com/eligibility.htm
www.skytecair.com 800-476-7896 7
Recommended Starter/Solenoids by Aircraft Manufacturer
Aero Commander
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
500
LYC O-540-A2B
149-Tooth Ring Gear
24
149-NL/ec
560
LYC GO-480
No fit
100 DARTER
LYCOMING O-320-A2B
149-Tooth Ring Gear
12
149-NL
100 LARK
LYCOMING O-360-A2F
149-Tooth Ring Gear
12
149-NL
500A
CONT IC-470-M
CONT Starter Adapter
24
C24ST4
700 (Fuji Commander)
LYC TIO-540
149-Tooth Ring Gear
24
149-NL/ec
Aeronca
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
11AC CHIEF
CONT A65-8
No fit unless upgraded to -12 Engine
11BC CHIEF
CONT C-85
No fit unless upgraded to -12 Engine
11CC SUPER CHIEF
CONT C85-8F
No fit unless upgraded to -12 Engine
15AC SEDAN
CONT O-300
Pull-Start
12
KCST2
15
65TC
CONT A65-7
No fit unless upgraded to -12 Engine
7AC CHAMP
CONT A65-8
No fit unless upgraded to -12 Engine
7AC CHAMPION
CONTINENTAL
No fit unless upgraded to -12 Engine
7AC CHAMPION
CONTINENTAL
No fit unless upgraded to -12 Engine
7ACA
FRANKLIN 2A-120
No fit
7BCM CHAMP
CONT C-85
No fit unless upgraded to -12 Engine
7CCM CHAMP
CONT C90-12
Pull-Start
12
KCST2
15
7DC CHAMP
CONT C85-8
No fit unless upgraded to -12 Engine
7EC CHAMP
CONT C-90-12F
Pull-Start
12
KCST2
15
C-2
CONT?
No fit unless upgraded to -12 Engine
K SCOUT
CONT?
No fit unless upgraded to -12 Engine
Aerostar Aircraft
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
601P
LYC IO-540-S1A5
149-Tooth Ring Gear
24
149-NL/ec
700P - Left Engine
LYC LTIO-540-U2A
149-Tooth Ring Gear
24
149-NLR/ec
700P - Right Engine
LYC TIO-540-U2A
149-Tooth Ring Gear
24
149-NL/ec
American Champion
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
ADVENTURE 7GCAA
LYC O-320-B2B
122-Tooth Ring Gear
12
122-12XLT 1
AER FC-90 TRI-TRAVELER
CONT C-90
Pull-Start
12
KCST2
15
AERONCA 7EC TRAVELER
CONT C-90
Pull-Start
12
KCST2
15
AURORA 7ECA
LYC O-235-K2C
122-Tooth Ring Gear
12
122-12XLT 1
CITABRIA 7GCAA
LYC O-320-B2B
149-Tooth Ring Gear
12
149-12XLT 1
CITABRIA 7KCAB
LYC IO-320
149-Tooth Ring Gear
12
149-12XLT 1
EXPLORER 7GCBC
LYC O-320
149-Tooth Ring Gear
12
149-12XLT 1
SCOUT 8GCBC
LYC O-360-C2E
149-Tooth Ring Gear
12
149-NL
American General
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
AG5B TIGER
LYC O-360-A4K
149-Tooth Ring Gear
24
149-NL/ec
A24, M24, S24
Page 8
Sky-Tec Flyweight™ Starter Fit Guide
Do not use this guide unless you have read P.2 Data in this document is NOT FAA approved. For FAA PMA Eligibility see skytecair.com/eligibility.htm
www.skytecair.com 800-476-7896 8
Aviat Aircraft
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
EAGLE II
LYC AEIO-360
149-Tooth Ring Gear
12
149-12LS or 149-12XLT
A-1 HUSKY
LYC O-360-C1G
149-Tooth Ring Gear
12
149-12PM
1
A22NM
A-1B HUSKY
LYC O-360-A1P
149-Tooth Ring Gear
12
149-12PM 1
PITTS S-1-11B
LYC IO-540
149-Tooth Ring Gear
12
149-NL
A8SO
PITTS S-1S
LYC AEIO-360
149-Tooth Ring Gear
12
149-12LS or 149-12XLT
PITTS S-2C
LYC AEIO-540
149-Tooth Ring Gear
12
149-NL
PITTS S-1
LYC AEIO-360-A1E
149-Tooth Ring Gear
12
149-12LS or 149-12XLT
PITTS S-2
LYC AEIO-540-D4A5
149-Tooth Ring Gear
12
149-NL
Beechcraft
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
19A
LYC O-320
149-Tooth Ring Gear
12
149-NL
B19
LYC O-320
149-Tooth Ring Gear
12
149-NL
23 Musketeer
LYC O-320
149-Tooth Ring Gear
12
149-NL
A23 Musketeer II
CONT IO-346-A
Cont Starter Adapter
12
C12ST3
A23A Musketeer II
CONT IO-346-A
Cont Starter Adapter
12
C12ST3
A23-19
LYC O-320
149-Tooth Ring Gear
12
149-NL
A23-24 Super Musketeer III
LYC IO-360
149-Tooth Ring Gear
12
149-NL
B23
LYC O-360
149-Tooth Ring Gear
12
149-NL
C23 Sundowner
LYC O-360
149-Tooth Ring Gear
12
149-NL
A24
LYC IO-360
149-Tooth Ring Gear
12
149-NL
A24R
LYC IO-360
149-Tooth Ring Gear
12
149-NL
B24R Sierra 200
LYC IO-360
149-Tooth Ring Gear
12
149-NL
C24R Sierra 200
LYC IO-360
149-Tooth Ring Gear
12
149-NL
35-C33, E33, F33
CONT IO-470-K
CONT Starter Adapter
V
CvST4
A12, M12, S12 or
A24, M24, S24
35-C33A, E33A, E33C
CONT IO-520
CONT Starter Adapter
12
C12ST5
A12, M12, S12
G33 Bonanza
CONT IO-470-N
CONT Starter Adapter
12
C12ST4
A12, M12, S12
35-33 Debonair
CONT IO-470-J
CONT Starter Adapter
12
C12ST4
A12, M12, S12
35-A33 Bonanza
CONT IO-470-J
CONT Starter Adapter
12
C12ST4
A12, M12, S12
35-B33 Bonanza
CONT IO-470-K
CONT Starter Adapter
12
C12ST4
A12, M12, S12
H35 Bonanza
CONT O-470-G
CONT Starter Adapter
12
C12ST4
A12, M12, S12
J35 Bonanza
CONT IO-470-C
CONT Starter Adapter
12
C12ST4
A12, M12, S12
K35, M35
CONT IO-470-C
CONT Starter Adapter
12
C12ST4
A12, M12, S12
N35
CONT IO-470-N
CONT Starter Adapter
12
C12ST4
A12, M12, S12
P35
CONT IO-470-N
CONT Starter Adapter
12
C12ST4
A12, M12, S12
S35
CONT IO-520B or BA
CONT Starter Adapter
12
C12ST5
A12, M12, S12
V35, V35A, V35B
CONT IO-520B or BA or BB
CONT Starter Adapter
V
CvST5
A12, M12, S12 or
A24, M24, S24
36, A36
CONT IO-520 or IO-550
CONT Starter Adapter
V
CvST5
A12, M12, S12 or
A24, M24, S24
A36TC Bonanza
TSIO-520-U or TSIO-520-UB
CONT Starter Adapter
24
C24ST5
A24, M24, S24
B36TC Bonanza
CONT TSIO-520-UB
CONT Starter Adapter
24
C24ST5
A24, M24, S24
G36 Bonanza
CONT IO-550-B
CONT Starter Adapter
24
C24ST3
A24, M24, S24
Page 9
Sky-Tec Flyweight™ Starter Fit Guide
Do not use this guide unless you have read P.2 Data in this document is NOT FAA approved. For FAA PMA Eligibility see skytecair.com/eligibility.htm
www.skytecair.com 800-476-7896 9
Beechcraft (cont)
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
50 B50 TWIN BONANZA
LYC GO-435
No Fit
50 C50 TWIN BONANZA
LYC GO-480
No Fit
50 D50 A,B,C,E
LYC GO-480
No Fit
50 E50, F50, G50
LYC GSO-480
No Fit
50 H50 & J50
LYC IGSO-480
No Fit
95 TRAVEL AIR
LYC O-360
122-Tooth Ring Gear
24
122-NL/ec
A24, M24, S24
95 B95 TRAVEL AIR
LYC O-360-A1A
122-Tooth Ring Gear
24
122-NL/ec
A24, M24, S24
95 B95A,D95A
LYC IO-360-B1A
122-Tooth Ring Gear
24
122-NL/ec
A24, M24, S24
95 E95 TRAVEL AIR
LYC IO-360-B1B
122-Tooth Ring Gear
24
122-NL/ec
A24, M24, S24
95-C55 BARON
CONT IO-520
CONT Starter Adapter
24
C24ST4
A24, M24, S24
D55 BARON
CONT IO-520
CONT Starter Adapter
24
C24ST4
A24, M24, S24
95-C55A BARON
CONT IO-520
CONT Starter Adapter
24
C24ST5
A24, M24, S24
D55A BARON
CONT IO-520
CONT Starter Adapter
24
C24ST5
A24, M24, S24
E55 BARON
CONT IO-520
CONT Starter Adapter
24
C24ST5
A24, M24, S24
E55A BARON
CONT IO-520
CONT Starter Adapter
24
C24ST5
A24, M24, S24
58, 58A BARON
CONT IO-520 OR IO-550
CONT Starter Adapter
24
C24ST5
A24, M24, S24
58P BARON
TSIO-520-L or TSIO-520-LB
CONT Starter Adapter
24
C24ST5
A24, M24, S24
58PA BARON
TSIO-520-L or TSIO-520-LB
CONT Starter Adapter
24
C24ST5
A24, M24, S24
58TC BARON
TSIO-520-L or TSIO-520-LB
CONT Starter Adapter
24
C24ST5
A24, M24, S24
58TCA BARON
TSIO-520-L or TSIO-520-LB
CONT Starter Adapter
24
C24ST5
A24, M24, S24
60 A60 B60 DUKE
LYC TIO-541
149-Tooth Ring Gear
24
149-24HT/ec
65, A65, 65N QUEEN AIR
LYC IGSO-480, -540
No Fit
76 DUCHESS L Engine
LYC O-360-A1G6D
149-Tooth Ring Gear
V
149-NL if 12V, or
149-NL/ec if 24V
76 DUCHESS R Engine
LYC LO-360-A1G6D
149-Tooth Ring Gear
V
149-NLR if 12V, or
149-NLR/ec if 24V
77 SKIPPER
LYC O-235-L2C
122-Tooth Ring Gear
12
122-XLT
T-34 MENTOR
CONT O-470
CONT Starter Adapter
V
C(V)ST4
T-34 MENTOR
CONT IO-520
CONT Starter Adapter
V
C(V)ST5
Bell
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
214B
LYC T-550-8D
No Fit
214B-1
LYC T-550-8D
No Fit
47G2
LYC VO-435-A1B
No Fit
47G2A
LYC VO-435-A1E
No Fit
47G2A1
LYC VO-435-A1E
No Fit
47G3B1
LYC TVO-435-G1A
No Fit
47G3B2
LYC TVO-435-G1A
No Fit
47G3B2A
LYC TVO-435-G1A
No Fit
47G4 , 4A
LYC VO-540-B1B3
No Fit
47G5 , 5A
LYC VO-435-B1A
No Fit
47J2
LYC VO-540-B1B
No Fit
47J2A
LYC VO-540-B1B3
No Fit
Page 10
Sky-Tec Flyweight™ Starter Fit Guide
Do not use this guide unless you have read P.2 Data in this document is NOT FAA approved. For FAA PMA Eligibility see skytecair.com/eligibility.htm
www.skytecair.com 800-476-7896 10
Bellanca
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
14-12-F3 CRUISAIR
FRANK 6AC264F3
12
F12ST1
14-13 CRUISEMASTER
FRANK 6A4-150-B3
12
F12ST1
14-19 CRUISEMASTER
LYC O-435-A
No Fit
14-19-2 CRUISEMASTER
CONT O-470-K
CONT Starter Adapter
12
C12ST4
14-19-3,A 260A,B,C.
CONT IO-470-F
CONT Starter Adapter
12
C12ST4
17-30 VIKING
CONT IO-520-K
CONT Starter Adapter
12
C12ST5
M12, S12
17-30A/B SUPR VIKING
CONT IO-520-K
CONT Starter Adapter
12
C12ST5
17-31A
LYC IO-540-K1E5
149-Tooth Ring Gear
12
149-NL
17-31ATC
LYC IO-540-K1E5
149-Tooth Ring Gear
12
149-NL
17-31TC
LYC IO-540-K1E5
149-Tooth Ring Gear
12
149-NL
7ACA CHAMP
FRANKLIN 2A-120-B
No Fit
7ECA
LYC O-235-C1
122-Tooth Ring Gear
12
122-12XLT
7GCAA
LYC O-320-A2D
149-Tooth Ring Gear
12
149-12XLT
7GCBC
LYC O-320-A2D
149-Tooth Ring Gear
12
149-12XLT
7KCAB
LYC A/IO-320-E2B
149-Tooth Ring Gear
12
149-12XLT
8GCBC F/P SCOUT
LYC O-360-C2E
149-Tooth Ring Gear
12
149-12XLT
8KCAB 150 DECATHALON
LYC IO-320-E2B
149-Tooth Ring Gear
12
149-12XLT
8KCAB 180 DECATHALON
LYC AEIO-360-H1A
149-Tooth Ring Gear
12
149-12PM
SUPR DECATHLON 8KCAB
LYC AEIO-360-H1B
149-Tooth Ring Gear
12
149-12PM
T250 ARIES
LYC IO-540-C4B5
149-Tooth Ring Gear
V
149-NL
Brittain-Norman
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
ISLANDER (BN2B-20)
(2) LYC IO-540-K1B5
149-Tooth Ring Gear
24
149-NL/ec
ISLANDER (BN2B-26)
(2) LYC O-540-E4C5
149-Tooth Ring Gear
24
149-NL/ec
TRI ISLANDER
(3) LYC O-540-E4C5
149-Tooth Ring Gear
24
149-NL/ec
Cessna
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
120 (‘46-’49)
CONT C85-12
Pull-Start
12
KCST2
15
140 (‘46-’51)
CONT C85-12
Pull-Start
12
KCST2
15
150 (‘59-’67)
CONT O-200-A
Pull-Start
12
KCST2
15
150 (’69-’77)
CONT O-200-A
Key-Start
12
C12ST2
A12, M12
152 (‘78-’85)
LYC O-235
122-Tooth Ring Gear
24
122-NL/ec
A24, M24, S24
170 (‘48-’56)
CONT C-145
Pull-Start
12
KCST2
15
A12, M12
172 (’55-’59)
CONT O-300-A or O-300-B
Pull-Start
12
KCST2
15
A12, M12
172A (’60) thru 172B (’61)
CONT O-300-C
Pull-Start
12
KCST2
15
A12, M12
172C (’62) thru 172H (’67)
CONT O-300-D
CONT Starter Adapter
12
C12ST3
172D Powermatic ‘63
CONT GO-300
CONT Starter Adapter
12
C12ST3
172I (‘68)
LYC O-320
149-Tooth Ring Gear
12
149-NL
172J – Never introduced – Became the 177 (a little trivia for you)
172K (‘69-’70)
LYC O-320
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
172L (‘71-’72)
LYC O-320
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
172M (‘73-’76)
LYC O-320
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
172N (‘77-’80)
LYC O-320
149-Tooth Ring Gear
V
149-NL
A12, M12, S12,
M24, S24
R172K XP (’77-’81)
CONT IO-360
CONT Starter Adapter
V
C(V)ST3
A12, M12, S12
172P (‘81-86)
LYC O-320
149-Tooth Ring Gear
24
149-NL/ec
A24, M24, S24
Page 11
Sky-Tec Flyweight™ Starter Fit Guide
Do not use this guide unless you have read P.2 Data in this document is NOT FAA approved. For FAA PMA Eligibility see skytecair.com/eligibility.htm
www.skytecair.com 800-476-7896 11
Cessna (Cont.)
172Q (‘83-’85)
LYC O-360
149-Tooth Ring Gear
24
149-NL/ec
A24, M24, S24
172RG (‘80-’85)
LYC O-360
149-Tooth Ring Gear
24
149-NL/ec
A12, M12 (!?)
172R (‘95-current)
LYC IO-360
149-Tooth Ring Gear
24
149-NL/ec
1, 14
172S (‘98-current)
LYC IO-360
149-Tooth Ring Gear
24
149-NL/ec
1, 14
175 (‘58-’62)
CONT GO-300-A
Pull-Start-CR Starter
12
KCST2/SR
15
A12, M12
177 (‘68-78)
LYC O-320 or LYC O-360
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
177RG (’71-78)
LYC IO-360
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
180 (‘53-’69)
CONT O-470
CONT Starter Adapter
12
C12ST4
A12, M12, S12
180 (‘70-81)
CONT O-470
CONT Starter Adapter
V
C12ST4 if 12V
A12, M12, S12,
A24, M24, S24
182 (‘56-’69)
CONT O-470
CONT Starter Adapter
12
C12ST4
A12, M12, S12,
182N (‘70-’86)
CONT O-470
CONT Starter Adapter
V
C12ST4 if 12V
A12, M12, S12,
A24, M24, S24
T182 (’81-’85)
LYC O-540
149-Tooth Ring Gear
V
149-NL if 12V
A12, M12, S12,
A24, M24, S24
R182 RG (’78-’86)
LYC O-540
149-Tooth Ring Gear
24
149-NL/ec
5
A24, M24, S24
182S (’96-2000)
LYC IO-540
149-Tooth Ring Gear
24
149-NL/ec
1, 14
182T (2001-current)
LYC IO-540
149-Tooth Ring Gear
24
149-NL/ec
1, 14
T182T (2001-current)
LYC IO-540
149-Tooth Ring Gear
24
149-NL/ec
1, 14
185 (‘61-’66)
CONT IO-470
CONT Starter Adapter
12
C12ST4
A12, M12, S12
185E ‘66
CONT IO-520
CONT Starter Adapter
12
C12ST5
A12, M12, S12
A185 (’67-’85)
CONT IO-520
CONT Starter Adapter
V
C12ST5
C24ST3
A12, M12, S12,
A24, M24, S24
185F ‘84
CONT IO-520
CONT Starter Adapter
V
C12ST5
C24ST3
A12, M12, S12,
A24, M24, S24
188 (‘66-’79)
CONT 470 & CONT 520
CONT Starter Adapter
V
C12ST5
C24ST3
A12, M12, S12,
A24, M24, S24
190 ‘47-’53
CONT W-670-23
No Fit A12, M12
205 (‘63-’64)
CONT IO-470
CONT Starter Adapter
12
C12ST4
A12, M12, S12
206 (‘64-’77)
CONT IO-520
CONT Starter Adapter
12
C12ST5
A12, M12, S12
206H (see T206H)
LYC 540
149-Tooth Ring Gear
24
149-24PM 1
P206 (’65-’70)
CONT IO-520
CONT Starter Adapter
12
C12ST5
A12, M12, S12
207 (’69-’84)
CONT IO-520
CONT Starter Adapter
V
C12ST5
C24ST3
A12, M12, S12,
A24, M24, S24
210 (’60-’86)
CONT IO-470
CONT Starter Adapter
V
C12ST4
C24ST4
A12, M12, S12,
A24, M24, S24
P210 (’78-’86)
CONT TSIO-520
CONT Starter Adapter
24
C24ST5
A24, M24, S24
303 CRUSADER
CONT L/TSIO-520-AE
CONT Starter Adapter
V
C(V)ST5
310 (‘55-’75)
CONT O-470 & 520
CONT Starter Adapter
V
C(V)ST4
320
CONT TSIO-470
CONT Starter Adapter
V
C(V)ST4
335 ‘80
CONT TSIO-520-EB
CONT Starter Adapter
V
C(V)ST5
336 SKYMASTER SL
CONT IO-360
CONT Starter Adapter
V
C(V)ST5
337 (’66-‘71+)
CONT IO-360
CONT Starter Adapter
24
C24ST3
A24, M24, S24
340
CONT TSIO-520-NB
CONT Starter Adapter
V
C(V)ST5
400
CONT TSIO-550-C
CONT Starter Adapter
24
C24ST5
401A,B
CONT TSIO-520-E
CONT Starter Adapter
V
C(V)ST5
402 (’69-’71)
CONT TSIO-520
CONT Starter Adapter
V
C(V)ST5
404 TITAN
CONT GTSIO-520
CONT Starter Adapter
24
C24ST5
411A ‘67&’68
CONT GTSIO-520
CONT Starter Adapter
24
C24ST5
414 (’77-’85)
CONT TSIO-520
CONT Starter Adapter
24
C24ST5
421 (’67-’81)
CONT GTSIO-520
CONT Starter Adapter
24
C24ST5
T206
LYC O-540-series
149-Tooth Ring Gear
24
149-24PM 1
T207 (’69-’84)
CONT TSIO-520
CONT Starter Adapter
V
C(V)ST5
A12, M12, S12
T210 (’66-’86)
CONT TSIO-520
CONT Starter Adapter
V
C(V)ST5
A12, M12, S12,
A24, M24, S24
T310 (’69-‘75)
CONT TSIO-520
CONT Starter Adapter
24
C24ST5
T337B (’67-‘69+)
CONT TSIO-360
CONT Starter Adapter
24
C24ST5
A24, M24, S24
TP206 (’66-’70)
CONT IO-520
CONT Starter Adapter
V
C(V)ST5
A12, M12, S12
TR182 RG (’79-’86)
LYC O-540
149-Tooth Ring Gear
V
149-NL/ec
TU206A (’66-’86)
CONT TSIO-520
CONT Starter Adapter
12
C12ST5
A12, M12, S12
U206 (’65-’86)
CONT IO-520
CONT Starter Adapter
12
C12ST5
A12, M12, S12
400 CORVALIS
CONT IO-550
CONT Starter Adapter
24
C24ST5
Page 12
Sky-Tec Flyweight™ Starter Fit Guide
Do not use this guide unless you have read P.2 Data in this document is NOT FAA approved. For FAA PMA Eligibility see skytecair.com/eligibility.htm
www.skytecair.com 800-476-7896 12
Champion Aircraft
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
7EC
CONT C-90-12F
Pull-Start
12
KCST2
15
7EC/FC TRAVELER
CONT C-90-12F
Pull-Start
12
KCST2
15
7ECA CITABRIA (100)
CONT O-200
Pull-Start
12
KCST2
15
7ECA CITABRIA (115)
LYC O-235-C1
122-Tooth Ring Gear
12
122-12XLT
7GCAA
LYC O-320-A2D
149-Tooth Ring Gear
12
149-12XLT
7GCB
LYC O-320-A2B
122-Tooth Ring Gear
13
122-12XLT
7GCBC
LYC O-320-A2D
149-Tooth Ring Gear
12
149-12XLT
7KCAB CITABRIA
LYC IO-320-E2A
149-Tooth Ring Gear
12
149-12XLT
FC 115 TRI-TRAVELER
LYC O-235-C1
122-Tooth Ring Gear
12
122-12XLT
LANCER
CONTINENTAL
Pull-Start
12
KCST2
15
Cirrus Design
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
SR 20
CONT IO-360
CONT Starter Adapter
24
C24ST5
SRV-G2
CONT IO-360
CONT Starter Adapter
24
C24ST5
SR 22
CONT IO-550
CONT Starter Adapter
24
C24ST5
VK30
CONT TSIO-550
CONT Starter Adapter
24
C24ST5
Commander Aircraft
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
112
LYC IO-360
149-Tooth Ring Gear
12
149-NL
114
LYC IO-540
149-Tooth Ring Gear
12
149-NL
114B
LYC IO-540-T4B5
149-Tooth Ring Gear
V
149-NL for 12V
149-NL/ec for 24V
A12, M12, S12
A24, M24, S24
500
LYC O-540
149-Tooth Ring Gear
24
149-24HT
520
LYC GO-435
No Fit
560
LYC GO-480
No Fit
685
CONT GTSIO-520-
CONT Starter Adapter
24
C24ST5
112TC-A ALPINE
LYC TO-360
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
114A GRAN TURISMO
LYC IO-540
149-Tooth Ring Gear
V
149-NL for 12V
149-NL/ec for 24V
A12, M12, S12
A24, M24, S24
114TC
LYC TIO-540
149-Tooth Ring Gear
V
149-NL for 12V
149-NL/ec for 24V
A12, M12, S12
A24, M24, S24
500A
CONT IO-470
CONT Starter Adapter
24
C24ST4
500B
LYC IO-540
149-Tooth Ring Gear
24
149-NL/ec
500S SHRIKE
LYC IO-540
149-Tooth Ring Gear
24
149-NL/ec
500U, 560A-F, 680, 720
No Fit
Culver
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
LAR 90 CADET/LARK
FRANKLIN 4AC199E3
No Fit
LCA CADET
CONT A75-8
No fit unless upgraded to -12 Engine
V 2
CONT C85-12J
Pull-Start
12
KCST2
15
Page 13
Sky-Tec Flyweight™ Starter Fit Guide
Do not use this guide unless you have read P.2 Data in this document is NOT FAA approved. For FAA PMA Eligibility see skytecair.com/eligibility.htm
www.skytecair.com 800-476-7896 13
Diamond Aircraft
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
DA20-C1
CONT IO-240-B
12
C12ST2/S
DA40-180
LYC IO-360-MIA
149-Tooth Ring Gear
24
149-24LS 1
Enstrom
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
280
LYC HIO-360
149-Tooth Ring Gear
V
149-12HT for 12V
149-24HT for 24V
F28
LYC HIO-360
149-Tooth Ring Gear
V
149-12HT for 12V
149-24HT for 24V
Ercoupe
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
415
CONT C-75
No Fit
415C
CONT A-65-8
No Fit
415 C-D
CONT C-85-12
Pull-Start KCST2
15
415D
CONT C-75-12F
Pull-Start KCST2
15
415G
CONT C-85-12F
Pull-start KCST2
15
ALON A-2
CONT C-90-16F
Pull-start KCST2
15
F-1 FORNEY
CONT C-90-12F
Pull-start KCST2
15
MOONEY M-10 CADET
CONT C-90
Pull-start KCST2
15
Extra
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
200
LYC AEIO-360
149-Tooth Ring Gear
12
149-NL 1
300
LYC AEIO-540
149-Tooth Ring Gear
12
149-NL 1
80 CANUCK
CONT C-85-12F
Pull-start KCST2
15
AIRSHARK I (AMPHIB)
LYC IO-360
149-Tooth Ring Gear
12
149-NL
B (B85C)
CONT C-85-12F
Pull-start KCST2
15
Found
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
BUSH HAWK
LYC IO-540
149-Tooth Ring Gear
24
149-NL/ec
Grob
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
115 BAVARIAN
LYC O-320-D2A
149-Tooth Ring Gear
24
149-24PM 1
Page 14
Sky-Tec Flyweight™ Starter Fit Guide
Do not use this guide unless you have read P.2 Data in this document is NOT FAA approved. For FAA PMA Eligibility see skytecair.com/eligibility.htm
www.skytecair.com 800-476-7896 14
Grumman American
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
AA1 YANKEE
LYC O-235-C2C
122-Tooth Ring Gear
12
122-12XLT
A12, M12, S12
AA1A
LYC O-235-C2C
122-Tooth Ring Gear
12
122-12XLT
A12, M12, S12
AA1B
LYC O-235-C2C
122-Tooth Ring Gear
12
122-12XLT
A12, M12, S12
AA1C LYNX
LYC O-235-L2C
122-Tooth Ring Gear
12
122-12XLT
A12, M12, S12
AA1C T-CAT
LYC O-235-L2C
122-Tooth Ring Gear
12
122-12XLT
A12, M12, S12
AA5 TRAVELER
LYC O-320-E2G
149-Tooth Ring Gear
12
149-12XLT
A12, M12, S12
AA5A CHEETAH
LYC O-320-E2G
149-Tooth Ring Gear
12
149-12XLT
A12, M12, S12
AA5B TIGER
LYC O-360-A4K
149-Tooth Ring Gear
12
149-12LS
A12, M12, S12
TR2 AA1B
LYC O-235-C2C
122-Tooth Ring Gear
12
122-12XLT
A12, M12, S12
GA7 COUGAR
LYC O-320-D1D
149-Tooth Ring Gear
12
149-NL A12
AG5B TIGER
LYC O-360-A4K
149-Tooth Ring Gear
24
149-NL/ec
A24, M24, S24
Hiller
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
UH12E & E4
LYC VO-540-C2A
149-Tooth Ring Gear
V
149-(V)HT
UH12L4
LYC TIVO-540-A2A
149-Tooth Ring Gear
V
149-(V)HT
Lake
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
C-1 AMPHIBIAN
LYC O-320-A2A
149-Tooth Ring Gear
12
149-NL
CIV AMPHIBIAN
LYC O-360-A1A
149-Tooth Ring Gear
12
149-NL
LA-4
LYC O-360-A1A
149-Tooth Ring Gear
12
149-NL
LA-4 200 BUCCANEER
LYC IO-360-A1B
149-Tooth Ring Gear
V
149-NL (12V)
149-NL/ec (24V)
LA-4 200EP BUCCANEER
LYC IO-360-A1B
149-Tooth Ring Gear
V
149-NL (12V)
149-NL/ec (24V)
LA-4 250 RENEGADE
LYC IO-540-C4B5
149-Tooth Ring Gear
V
149-NL (12V)
149-NL/ec (24V)
LA-4 TURBO LAKE
LYC IO-360-A1B6
149-Tooth Ring Gear
V
149-NL (12V)
149-NL/ec (24V)
LA-4-180
LYC O-360-A1A
149-Tooth Ring Gear
V
149-NL (12V)
149-NL/ec (24V)
Lancair Columbia
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
LC40, LC41, LC42, T240
CONT IO-550
CONT Starter Adapter
24
C24ST5
Luscombe Aircraft Co.
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
8, 8A, 8C, 8D
CONT A-50, A-65-8, A-75
No Fit
8E
CONT C-85-12
Pull-Start KCST2
15
8F
CONT C-90-12F
Pull-Start KCST2
15
11A SEDAN ‘48-’50
CONT C-165
Pull-Start KCST2/SR
15
SPARTAN 185 11-E
CONT IO-360-ES
CONT Starter Adapter
V
C(V)ST3
Page 15
Sky-Tec Flyweight™ Starter Fit Guide
Do not use this guide unless you have read P.2 Data in this document is NOT FAA approved. For FAA PMA Eligibility see skytecair.com/eligibility.htm
www.skytecair.com 800-476-7896 15
Maule
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
M4 JETESON ‘62-’67
CONT O-300-A
Pull-start
12
KCST2
15
A12, M12, S12
M4-180 ASTRO ROCKET
FRANK 6A-335-B1
Franklin
12
F12ST1
A12, M12, S12
M4-210 ROCKET
CONT IO-360-A
CONT Starter Adapter
12
C12ST3
A12, M12, S12
M4-220 STRATA ROCKET
FRANK 6A-350-C1
Franklin
12
F12ST1
A12, M12, S12
M5-180C
CONT O-360-C1F
CONT Starter Adapter
12
C12ST3
A12, M12, S12
M5-210 LUNAR ROCKET
CONT IO-360-D
CONT Starter Adapter
12
C12ST3
A12, M12, S12
M5-210TC
LYC TO-360-C1A6D
149-Tooth Ring Gear
12
149-12LS
A12, M12, S12
M5-220C
FRANK 6A350C1
Franklin
12
F12ST1
A12, M12, S12
M5-235C
LYC O-540-J1A5D
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
M6-235 SUPER ROCKET
LYC IO-540-J1A5D
149-Tooth Ring Gear
V
149-NL if 12V
149-NL/ec if 24V
A12, M12, S12,
A24, M24, S24
M7-235/MT7-235
LYC IO-540-J1A5D
149-Tooth Ring Gear
V
149-NL if 12V
149-NL/ec if 24V
A12, M12, S12,
A24, M24, S24
M7-260C ORION
LYC IO-540-V4A5
149-Tooth Ring Gear
V
149-NL if 12V
149-NL/ec if 24V
A12, M12, S12,
A24, M24, S24
MX7-160
LYC O-320-B20
?-Tooth Ring Gear
V
149-12XLT if 12V
149-24XLT if 24V
A12, M12, S12,
A24, M24, S24
MX7-180
LYC O-360-C1F
149-Tooth Ring Gear
V
149-NL if 12V
149-NL/ec if 24V
A12, M12, S12,
A24, M24, S24
MX7-235
LYC O-540-J1A5D
149-Tooth Ring Gear
V
149-NL if 12V
149-NL/ec if 24V
A12, M12, S12,
A24, M24, S24
MX7-260
LYC IO-540-V4A5
149-Tooth Ring Gear
V
149-NL if 12V
149-NL/ec if 24V
A12, M12, S12,
A24, M24, S24
MXT7-180
LYC O-360-C1F
149-Tooth Ring Gear
12
149-12LS
A12, M12, S12,
A24, M24, S24
Meyers
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
200A
CONT IO-470-D
CONT Starter Adapter
12
C12ST4
200B
CONT IO-470-D
CONT Starter Adapter
12
C12ST4
200D
CONT IO-520-A
CONT Starter Adapter
12
C12ST5
MICCO SP20
LYC IO-360-CIE6
149-Tooth Ring Gear
V
149-NL
Page 16
Sky-Tec Flyweight™ Starter Fit Guide
Do not use this guide unless you have read P.2 Data in this document is NOT FAA approved. For FAA PMA Eligibility see skytecair.com/eligibility.htm
www.skytecair.com 800-476-7896 16
Mooney
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
201 M20J
LYC IO-360-A3B6D
149-Tooth Ring Gear
V
149-NL
A2A CADET
CONT C-90-16F
Pull-Start
12
KCST2
15
M10 CADET
CONT C-90-16F
Pull-Start
12
KCST2
15
M18 MITE
LYC O-145-B2
No Fit
M20 ‘55-’57
LYC O-320
122-Tooth Ring Gear
12
122-NL
A12, M12, S12
M20A
LYC O-360-A1A
122-Tooth Ring Gear
12
122-NL
A12, M12, S12
M20B MARK 21
LYC O-360-A1A
?-Tooth Ring Gear
12
?-NL
A12, M12, S12
M20C MARK 21
LYC O-360-A1D
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
M20C RANGER
LYC O-360-A1D
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
M20D
LYC O-360-A1D
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
M20E CHAPARRAL
LYC IO-360-A1A
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
M20E SUPER 21
LYC IO-360-A1A
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
M20F EXECUTIVE 21
LYC IO-360-A1A
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
M20G STATESMAN
LYC O-360-A1D
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
M20J MSE
LYC IO-360-A3B6D
149-Tooth Ring Gear
V
149-NL if 12V
149-NL/ec if 24V
A12, M12, S12,
A24, M24, S24
M20K 231
CONT TSIO-360-GBA
CONT Starter Adapter
V
C12ST3 if 12V
C24ST3 if 24V
A12, M12, S12,
A24, M24, S24
M20K 252 TSE
CONT TSIO-360-MB1
CONT Starter Adapter
24
C24ST3
A24, M24, S24
M20M TLS BRAVO
LYC TIO-540-AF1A
149-Tooth Ring Gear
24
149-24LS
1
A24, M24, S24
M20R OVATION
CONT IO-550-G
CONT Starter Adapter
24
C24ST4
A24, M24, S24
M20S EAGLE
CONT IO-550-G
CONT Starter Adapter
24
C24ST4
A24, M24, S24
Navion
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
G/G-1
CONT IO-470-H
CONT Starter Adapter
12
C12ST4
H RANGEMASTER
CONT IO-520-B
CONT Starter Adapter
12
C12ST5
NAVION D
CONT O-470
CONT Starter Adapter
12
C12ST4
Partenavia
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
P68B
LYC IO-360-A1B6
149-Tooth Ring Gear
24
149-NL/ec
A24, M24, S24
P68C
LYC IO-360-A1B6
149-Tooth Ring Gear
24
149-NL/ec
A24, M24, S24
P68C OBSERVER
LYC IO-360-A1B6
149-Tooth Ring Gear
24
149-NL/ec
A24, M24, S24
P68C TC
LYC TIO-360-C1A6D
149-Tooth Ring Gear
24
149-NL/ec
A24, M24, S24
Page 17
Sky-Tec Flyweight™ Starter Fit Guide
Do not use this guide unless you have read P.2 Data in this document is NOT FAA approved. For FAA PMA Eligibility see skytecair.com/eligibility.htm
www.skytecair.com 800-476-7896 17
Piper
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
J3 CUB
CONT A-65-8
No Fit
J4-A CUB COUPE
CONT A-65
No Fit
J4-CUB
CONT A-50-1
No Fit
J4-E
CONT A-75
No Fit
J4-F
LYC O-145
Pull-Start C12ST2/SR
J5A-75
CONT A75-8
No Fit
PA11
CONT C-90
Pull-Start
12
KCST2
15
PA11 CUB SPECIAL
CONT A-65
No Fit
PA12 CRUISER
LYC O-235
122-Tooth Ring Gear
12
122-NL
PA12 SUPER CRUISER
LYC O-235-C
122-Tooth Ring Gear
12
122-NL
PA14 CRUISER
LYC O-235-C1
122-Tooth Ring Gear
12
122-NL
PA15 VAGABOND
LYC O-145-B2
122-Tooth Ring Gear
12
122-NL
PA16 CLIPPER
LYC O-235-C1
122-Tooth Ring Gear
12
122-NL
PA17 VAGABOND
CONT A-65-8
No Fit
PA18-108
LYC O-235-C1
122-Tooth Ring Gear
12
122-NL
PA18-125 SUPER CUB
LYC O-290-D
122-Tooth Ring Gear
12
122-NL
PA18-135 SUPER CUB
LYC O-290-D2
122-Tooth Ring Gear
12
122-NL
PA18-150 SUPER CUB
LYC O-320-A2A
122-Tooth Ring Gear
12
122-NL
PA18-90 SUPER CUB
CONT C-90-F
Pull-Start
12
KCST2
15
PA20-125 PACER
LYC O-290-D
122-Tooth Ring Gear
12
122-NL
PA20-135 PACER
LYC O-290-D2
122-Tooth Ring Gear
12
122-NL
PA22 TRI-PACER
LYC O-290-D
122-Tooth Ring Gear
12
122-NL
PA22-108 COLT
LYC O-235-C1B
122-Tooth Ring Gear
12
122-NL
PA22-125
LYC O-290-D
122-Tooth Ring Gear
12
122-NL
PA22-135 TRI-PACER
LYC O-290-D2
122-Tooth Ring Gear
12
122-NL
PA22-150 TRI-PACER
LYC O-320-A1A
122-Tooth Ring Gear
12
122-NL
PA22-160 TRI-PACER
LYC O-320-B2A
122-Tooth Ring Gear
12
122-NL
PA23-150 APACHE
LYC O-320
122-Tooth Ring Gear
12
122-NL
A12, M12, S12
PA23-160G&H APACHE
LYC O-320-B3B
122-Tooth Ring Gear
12
122-NL
A12, M12, S12
PA23-235 APACHE
LYC O-540
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
PA23-23B AZTEC
LYC O-540-A1B5
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
PA23C AZTEC
LYC IO-540-C4B5
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
PA23C&D TURBO AZTEC
LYC IO-540-J4A5
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
PA23D&E AZTEC
LYC IO-540-C4B5
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
PA23E TURBO AZTEC
LYC TIO-540-C1A
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
PA23F AZTEC
LYC IO-540
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
PA23F TURBO AZTEC
LYC TIO-540-C1A
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
PA24 260 T COMANCHE
LYC IO-540-N1A5
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
PA24-180 COMANCHE
LYC O-360-A1A
?-Tooth Ring Gear
12
?-NL
A12, M12, S12
PA24-250 COMANCHE
LYC O-540-A1A5
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
PA24-260B COMANCHE
LYC O-540-D
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
PA24-260C COMANCHE
LYC IO-540-N
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
PA24-260TC COMMANCHE
LYC IO-540-N1A5
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
PA24-400 COMANCHE
LYC IO-720-A1A
122-Tooth Ring Gear
12
122-NL
A12, M12, S12
PA25 235 C,D. PAWNEE
LYC O-540-B2B5
149-Tooth Ring Gear
12
149-NL
PA25 260C,D PAWNEE
LYC O-540-G1A5
149-Tooth Ring Gear
12
149-NL
PA25-150 PAWNEE
LYC O-320-A2A
122-Tooth Ring Gear
12
122-NL
Page 18
Sky-Tec Flyweight™ Starter Fit Guide
Do not use this guide unless you have read P.2 Data in this document is NOT FAA approved. For FAA PMA Eligibility see skytecair.com/eligibility.htm
www.skytecair.com 800-476-7896 18
Piper (cont.)
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
PA28-140 CHEROKEE
LYC O-320-E2A
122-Tooth Ring Gear
12
122-NL
A12, M12, S12
PA28-140 CRUISER
LYC O-320-E2D
122-Tooth Ring Gear
12
122-NL
A12, M12, S12
PA28-140B,C,D,E.
LYC O-320-E2A
122-Tooth Ring Gear
12
122-NL
A12, M12, S12
PA28-150 CHEROKEE
LYC O-320-A2B
122-Tooth Ring Gear
12
122-NL
A12, M12, S12
PA28-150C CHEROKEE
LYC O-320-A2B
122-Tooth Ring Gear
12
122-NL
A12, M12, S12
PA28-151 WARRIOR
LYC O-320-D3D
?-Tooth Ring Gear
12
?-NL
A12, M12, S12
PA28-160 CHEROKEE
LYC O-320-B2B
?-Tooth Ring Gear
12
?-NL
A12, M12, S12
PA28-160C CHEROKEE
LYC O-320-B2B
?-Tooth Ring Gear
12
?-NL
A12, M12, S12
PA28-161 WARRIOR II
LYC O-320-D3D
?-Tooth Ring Gear
12
?-12XLT
A12, M12, S12
PA28-180 ARCHER
LYC O-360-A4M
?-Tooth Ring Gear
12
?-NL
A12, M12, S12
PA28-180 D,E,F,G
LYC O-360-A3A
?-Tooth Ring Gear
12
?-NL
A12, M12, S12
PA28-180 R&RB ARROW
LYC IO-360-BE
149-Tooth Ring Gear
12
149-NL
18
A12, M12, S12
PA28B&C-180 CHEROKEE
LYC O-360-A3A
149-Tooth Ring Gear
V
149-NL (12V)
149-NL/ec (24V)
18
A12, M12, S12
PA28-181 ARCHER II
LYC O-360-A4M
149-Tooth Ring Gear
V
149-NL (12V)
149-NL/ec (24V)
18
A12, M12, S12
PA28-181 ARCHER III
LYC IO-360-A4M
149-Tooth Ring Gear
24
149-NL/ec
18
A12, M12, S12
PA28-200R ARROW II
CONT TSIO-360-F
CONT Starter Adapter
V
C(V)ST3
A12, M12, S12
PA28-200R&RB ARROW
LYC IO-360-C1C
149-Tooth Ring Gear
12
149-NL
18
A12, M12, S12
PA28-201T T DAKOTA
CONT TSIO-360-FB
CONT Starter Adapter
V
C(V)ST3
A12, M12, S12
PA28-235 CHARGER
LYC O-540-B4B5
149-Tooth Ring Gear
12
149-NL
18
A12, M12, S12
PA28-235 PATHFINDER
LYC O-540-B4B5
149-Tooth Ring Gear
12
149-NL
18
A12, M12, S12
PA28-235B CHEROKEE
LYC O-540-B4B5
149-Tooth Ring Gear
12
149-NL
18
A12, M12, S12
PA28-235 C,D,E,F.
LYC O-540-B4B5
149-Tooth Ring Gear
12
149-NL
18
A12, M12, S12
PA28-236 DAKOTA
LYC O-540-J3A5D
149-Tooth Ring Gear
V
149-NL
18
A12, M12, S12
PA28R ARROW III,IV
LYC IO-360-C1C6
149-Tooth Ring Gear
12
149-NL
18
A12, M12, S12
PA28R-201T T ARROW 3
CONT TSIO-360-F
CONT Starter Adapter
12
C12ST3
18
A12, M12, S12
PA28RT-201 ARROW IV
LYC IO-360-C1C6
149-Tooth Ring Gear
12
149-NL
18
A12, M12, S12
PA28RT-201T ARROW3/4
CONT TSIO-360-FB
CONT Starter Adapter
12
C12ST3
18
A12, M12, S12
PA30B TURBO TWIN CO
LYC IO-320-C1A
149-Tooth Ring Gear
12
149-12XLT
PA30B TWIN COMMANCHE
LYC IO-320-B1A
149-Tooth Ring Gear
12
149-12XLT
PA30C TURBO TWIN CO
LYC IO-320-C1A
149-Tooth Ring Gear
12
149-12XLT
PA30C TWIN COMMANCHE
LYC IO-320-B1A
149-Tooth Ring Gear
12
149-12XLT
PA31-300 NAVAJO
LYC IO-540-M1A5
149-Tooth Ring Gear
24
149-NL/ec
10
A24, M24, S24
PA31-310 B&C NAVAJO
LYC TIO-540-A2C
149-Tooth Ring Gear
24
149-NL/ec
10
A24, M24, S24
PA31-310 NAVAJO TURB
LYC TIO-540-A1A
149-Tooth Ring Gear
24
149-NL/ec
10
A24, M24, S24
PA31-325 NAVAJO (Left Engine)
LYC TIO-540-F2BD
149-Tooth Ring Gear
24
149-NL/ec
A24, M24, S24
PA31-325 NAVAJO (Right Engine)
LYC LTIO-540-F2BD
149-Tooth Ring Gear
24
149-NLR/ec
10
A24, M24, S24
PA31-350 CHIEFTAN (Left Engine)
LYC TIO-540-J2BD
149-Tooth Ring Gear
24
149-NL/ec
A24, M24, S24
Page 19
Sky-Tec Flyweight™ Starter Fit Guide
Do not use this guide unless you have read P.2 Data in this document is NOT FAA approved. For FAA PMA Eligibility see skytecair.com/eligibility.htm
www.skytecair.com 800-476-7896 19
Piper (cont.)
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
PA31-350 CHIEFTAN (Right Engine)
LYC LTIO-540-J2BD
149-Tooth Ring Gear
24
149-NLR/ec
10
A24, M24, S24
PA31P-350 MOJAVE (Left Engine)
LYC TIO-540
149-Tooth Ring Gear
24
149-NL/ec
A24, M24, S24
PA31P-350 MOJAVE (Right Engine)
LYC L/TIO-540
149-Tooth Ring Gear
24
149-NLR/ec
10
A24, M24, S24
PA32-260 ‘74-’78 Cherokee 6
LYC O-540-E4B5
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
PA32-260C,D,E Cherokee 6
LYC O-540-E4B5
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
PA32-300 ‘73&’74 6 (Lance)
LYC IO-540-K1G5D
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
PA32-300B,C,D,E. 6 (Lance)
LYC IO-540-K1G50
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
PA32-301 SARATOGA
LYC IO-540-K1G5
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
PA32-301T SARATOGA
LYC TIO-540-S1AD
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
PA32R TURBO LANCE
LYC IO-540-S1AD
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
PA32R&RT LANCE II
LYC IO-540-K1G5D
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
PA32R-300 LANCE
LYC IO-540-K1G5D
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
PA32R-301
SARATOGA SP
LYC IO-540-K1G5D
149-Tooth Ring Gear
V
149-NL
A12, M12, S12,
A24, M24, S24
PA32R-301T SARATOGA
LYC TIO-540-S1AD
149-Tooth Ring Gear
V
149-NL
A12, M12, S12,
A24, M24, S24
PA34 200 SENECA I (Left Engine)
LYC IO-360-C1E6
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
PA34 200 SENECA I (Right Engine)
LYC L/IO-360-C1E6
149-Tooth Ring Gear
12
149-NLR
A12, M12, S12
PA34-200T SENECA II
CONT LT/TSIO-360-E
CONT Starter Adapter
12
C12ST3
A12, M12, S12
PA34-220T SENECA III
CONT LT/TSIO-360-KB
CONT Starter Adapter
12
C12ST3
A12, M12, S12
PA36-300 BRAVE
LYC IO-540-K1G5
149-Tooth Ring Gear
V
149-NL
PA36-375 BRAVE
LYC IO-720-D1CD
?-Tooth Ring Gear
V
?-NL
PA38 TOMAHAWK
LYC O-235-L2C
122-Tooth Ring Gear
12
122-12XLT
PA39 TWIN COMANCHE (Left Eng)
LYC IO-320
149-Tooth Ring Gear
12
149-NL
PA39 TWIN COMANCHE (Rt Eng)
LYC LIO-320
149-Tooth Ring Gear
12
149-NLR
PA44-180 SEMINOLE (Left Eng)
LYC TO-360
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
PA44-180 SEMINOLE (Rt Eng)
LYC LTO-360
149-Tooth Ring Gear
12
149-NLR
A12, M12, S12
PA46 MALIBU MIRAGE
LYC TIO-540-AE2A
149-Tooth Ring Gear
24
149-NL/ec
13
A24, M24, S24
PA46-310P MALIBU
CONT TSIO-520-B
CONT Starter Adapter
24
C24ST5
A24, M24, S24
PA60-60X AEROSTAR
LYC IO-540 -series
149-Tooth Ring Gear
24
149-NL/ec
PA60-700P AEROSTAR (L Engine)
LYC LTIO-540
149-Tooth Ring Gear
24
149-NLR/ec
PA60-700P AEROSTAR (R Engine)
LYC TIO-540
149-Tooth Ring Gear
24
149-NL/ec
Robinson
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
R22-All
LYC O-360
149-Tooth Ring Gear
12
149-12HT-h
1, 12
R44-Raven I
LYC O-540
149-Tooth Ring Gear
12
149-12HT-h
1, 12
R44-Raven II
LYC IO-540
149-Tooth Ring Gear
24
149-24HT-h
1, 12
Rockwell
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
100 DARTER
LYC O-320-A2B
?-Tooth Ring Gear
12
?-12XLT
100-180 LARK
LYC O-360-A2F
149-Tooth Ring Gear
12
149-12LS
112 COMMANDER
LYC IO-360
149-Tooth Ring Gear
12
149-NL
A12, M12, S12
114 COMMANDER
LYC IO-540
149-Tooth Ring Gear
V
149-NL
A12, M12, S12,
A24, M24, S24
Page 20
Sky-Tec Flyweight™ Starter Fit Guide
Do not use this guide unless you have read P.2 Data in this document is NOT FAA approved. For FAA PMA Eligibility see skytecair.com/eligibility.htm
www.skytecair.com 800-476-7896 20
Schweizer
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
200 (269A)
LYC HIO-360-B1A
149-Tooth Ring Gear
12
149-12HT
300 (269B)
LYC HIO-360-A1A
149-Tooth Ring Gear
12
149-12HT
300C (F269C)
LYC HIO-360-D1A
149-Tooth Ring Gear
24
149-24HT
Siai Marchetti
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
SF260D
LYC O-540-E4A5
149-Tooth Ring Gear
24
149-24HT
149-NL
Socata
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
RALLYE 100ST/100T
CONT O-200-A
Pull-Start
12
KCST2
15
RALLYE 150 ST
LYC O-320-E2A
122-Tooth Ring Gear
12
122-NL
RALLYE 180 GT
LYC O-360-A3A
149-Tooth Ring Gear
RALLYE 235 GT/E
LYC O-540-B4B5
149-Tooth Ring Gear
TB9 TAMPICO 12V
LYC O-320-D2A
149-Tooth Ring Gear
TB10 TOBAGO 12V
LYC O-360-A1AD
149-Tooth Ring Gear
TB200 TOBAGO XL 12V
LYC IO-360-A1B6
149-Tooth Ring Gear
TB20 TRINIDAD 12V
LYC IO-540-C4D5D
149-Tooth Ring Gear
TB 21TC TRINIDAD 12V
LYC TIO-540-AB1AD
149-Tooth Ring Gear
TB 10 TOBAGO 24V
LYC O-360-A1AD
149-Tooth Ring Gear
TB 200 TOBAGO XL 24V
LYC IO-360-A1B6
149-Tooth Ring Gear
TB 20 TRINIDAD 24V
LYC IO-540-C4D5D
149-Tooth Ring Gear
TB 21TC TRINIDAD 24V
LYC TIO-540-AB1AD
149-Tooth Ring Gear
TB30 EPSILON
LYC AEIO-540-L1B5D
149-Tooth Ring Gear
TB360 TANGARA
(2) LYC O-360-A1G6
149-Tooth Ring Gear
Some
were
12V
-
Some
were
24V
149-NL (12V)
-
149-NL/ec (24V)
17
GA-7 Cougar
LYC O-320
149-Tooth Ring Gear
12
149-NL A12
Stinson
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
105
CONT A-80-6
No Fit
108
FRANK 6A4-150-B31
Franklin
12
No Fit
108-1 ‘46 & ‘47
FRANK 6A4-150-B23
Franklin
12
No Fit
108-2/2 VOYAGER&S/W
FRANK 6A4-165-B3
Franklin
12
No Fit
10A
FRANK 4AC199E2
Franklin
12
No Fit
76/L5 SENTINEL
LYCOMING
?-Tooth Ring Gear
V
No Fit
SR10 RELIANT
LYCOMING
No Fit
Taylorcraft
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
BC-12, BC-12D
CONT A-65, A-65-8A
No Fit
BL65
LYC O-145-B2
Pull-Start KCST2
15
F19
CONT C-85
Pull-Start KCST2
15
F19 SPORTSMAN 100
CONT O-200A
Pull-Start KCST2
15
F21
LYC O-235-L2C
122-Tooth Ring Gear
12
122-12XLT
F21B
LYC O-235-L2C
122-Tooth Ring Gear
12
122-12XLT
Page 21
Sky-Tec Flyweight™ Starter Fit Guide
Do not use this guide unless you have read P.2 Data in this document is NOT FAA approved. For FAA PMA Eligibility see skytecair.com/eligibility.htm
www.skytecair.com 800-476-7896 21
Varga
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
2180
LYC O-360-A4AD
149-Tooth Ring Gear
12
149-12LS
2150A KACHINA
LYC O-320-A2C
?-Tooth Ring Gear
12
?-12XLT
Zenair
Aircraft Model
Engine
Start Type
Volts
Recommended Starter
Note
Eligible Solenoid(s)
Note
STOL CH 801
LYC O-360
149-Tooth Ring Gear
12
149-12XLT
TRI ZENITH CH 300
LYC O-320
?-Tooth Ring Gear
12
?-12XLT
ZENITH CH 200/250
LYC O-320
?-Tooth Ring Gear
12
?-12XLT
ZENITH CH 2000
LYC O-235-N2C
?-Tooth Ring Gear
12
?-12XLT
Page 22
Sky-Tec Flyweight™ Starter Fit Guide
Do not use this guide unless you have read P.2 Data in this document is NOT FAA approved. For FAA PMA Eligibility see skytecair.com/eligibility.htm
www.skytecair.com 800-476-7896 22
Notes
1. Sky-Tec Starter is the original equipment starter
2. Modification of oil cooler bracket may be required
3. If oil cooler is in front of engine, choose PM model
4. BCE-6 (battery cable extension) may be required
5. Baffle modification required
6. Cowl bumper bracket modification required
7. If using RV-7 “Snorkel” induction, may have to use 149-12LS (was used by Van’s to form the snorkel)
8. Airframe manufacturer mounted the aircraft starter contactor (“firewall” solenoid) directly to the OEM Starter – you will
need to straighten mouting tabs and relocate to suitable place on the firewall
9. Aircraft with sandcast TCM 520 engines (alternator in rear) are notoriously difficult to crank smoothly. TCM utilized a
32:1 starter Adapter on sandcast motors that no known starter is especially good at cranking. Sky-Tec makes no
claims that our ST3 starter will crank sandcast TCM520 engines any better than anyone else’s starter. The ST5 series
starter may do a better job if sufficient power is available to the starter.
10. PA-31 right engine installations may require the use of an installation spacer, Sky-Tec PN 25099, and may require the
installer to drill-out the threads on the alternator boss of the starter. See the starter installation instructions and
http://www.skytecair.com/images/P2/PA31_NLR_Install.jpg for details and more information.
11. Some Robinson Helicopters originally configured with Prestolite starters utilized a firewall-mounted starter contactor
relay. The 149-NL starter can be installed on those ships that still have the firewall-mounted starter contactor relay.
Robinson Helicopters originally configured with B&C starters or Sky-Tec HT starters cannot utilize the 149-NL starter as
the aircraft has no installed/certified firewall-mounted starter contactor relay and the NL starter S-terminal is not
accessible for this function. However, 149-NL/ec starters (due for availability late 2007) may be used as their Sterminal is accessible for dual function as the starter contactor relay. Confused yet? Call Sky-Tec now.
12. Robinson Helicopters originally configured with B&C starters utilized a proprietary aluminum starter-alternator strap that
is used only on these aircraft (Robinson PN B299-3). When replacing the B&C starter with any Sky-Tec starter, you
must also order and replace the aluminum starter-alternator strap with the standard length steel starter-alternator
strap P/N 74323
13. One customer has called the factory to claim the NL will not fit on his Mirage. Dozens (if not hundreds) of other Mirage
owners have used the NL starter for years with no installation issues.
14. Cessna OEM production replaced the Lamar series starters with Sky-Tec starting in 2006.
Via SB07-80-01, Cessna recommends purchasing MK172-80-01 or MK182-80-01, which includes all parts required to
do a first class upgrade to the Sky-Tec 149-NL/ec starter. Order the starter separately.
15. The KCST2 is an STC eligible kit requiring modification to the engine & airframe for installation.
16. NO FIT on aircraft with electronic tach sensors mounted to the nose of OE Electrosystems Starter.
17. Socata changed from 14 to 28 volt electrical systems determined by serial number (applicable to all models):
Serial Numbers 823 to 849 plus s/n 888 are 24Volt. All serial numbers 947 and higher are also 24Volt.
18. Air-conditioned Lycoming-powered Piper singles MUST use NL-series starters ONLY. Use 149-NL/ec for 24V aircraft.
Loading...
