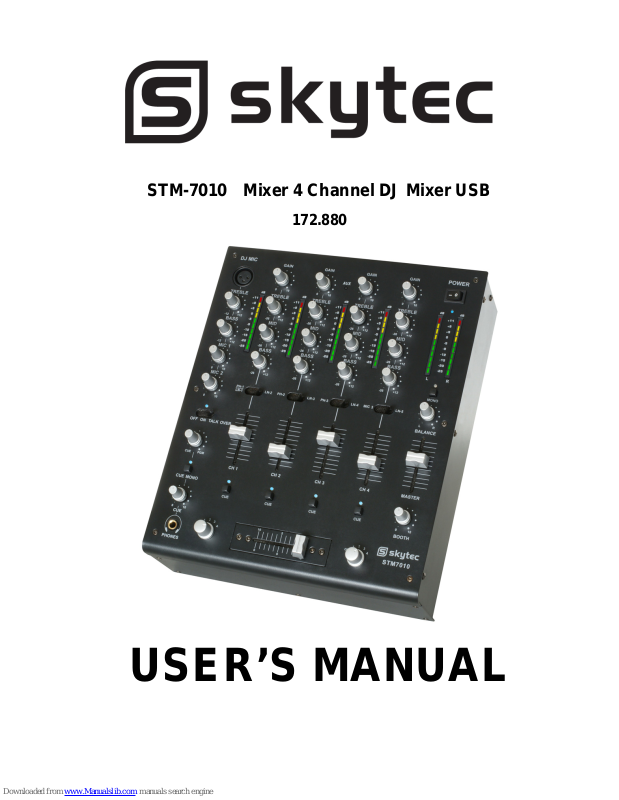

STM-7010 Mixer 4 Channel DJ Mixer USB
172.880
USER’S MANUAL
Page 2
Page 3
TopandFrontPanels
Page 4
FEATURES：
1. MICPHONES:
DJ/Mc have their own dedicated level control. microphones have individual 2 band eq section
2. T ALKOVE R
There are talk over, MIC on and MIC off function. The Sound Pressure Level of audio from input sources will be
decreased while TALK OVER mode is set
3. CHANNEL GAIN
This rotary control adjusts the input level
4. AUX INPUT
Music can input the mixer with 3. 5mm audio line.
5. CHANNEL LEVEL FADERS
These are used to adjust the output level for each channel.
6. XF ASSIGN
Two of the XF ASSIGN knobs allows the mixing of one source into another in your unit is removable and can be easily
replaced if needed.
7. CHANNEL SELECTO RS
These are used to switch between Line input and Phono、mic、USB input on each channel .
8. MASTER:
This controls the overall output from the mixer, master output to the PA System
9. DISPLAY:
The unit has two LED displays Left output, Right output The left and right output display shows the
output level of the mixer
10. USB IN/OUT
The USB jack can connect to PC.
11. BALANCE OUTPUT
The mixer support L/R balance output.
12. POWER:
power switch
13. PHONES LEVEL
This controls the output volume of the he adp ho nes. Care should be taken not to have this set to high as
it could result in damage to both the hearing of the user and the headphones. The channel to be monitored is
selected via the cue assign control.
14. CUE SELECTOR
Select each channel of the CUE signal
15. HEADPHONE
1/4' jack headphone out
16. POWER INPUT
Please ensure the correct voltage is selected for your country. Failure to set the correct voltage Will cause damage to
the unit.
Page 5
17. RCA MASTER OUTPUTS
Left & Right line level Unbalanced RCA outputs.
18. BOOTH OUT
Line level Unbalanced BOOTH connectors.
19. REC OUT
Line level Unbalanced RCA connectors.
20. CHANNEL 4
Line5 input/mic3 JACKS
21. CHANNEL 3
PH3/USB/Line4
22. CHANNEL 2
PH2/AUX/line3
23. CHANNEL 1
PH1-LN1/line2
24. MIC1 and MIC2 level
25. BOOTH OUT level
26. MASTER BALANCE CONTROL
Let you adjust master balance
27. MASTER MONO/STEREO SELECTOR
Select mono mode or stereo mode
28. Let you adjust the volume of high、mid、low Frequency on each channel
29.
HEADPHONE CUE/PGM CONTROL
Allow you to listen simultaneously or separately to the CUE material or the active program
Page 6
SPECIFICATION
INPUTS:
DJ MIC………………………………………………………………………..……1.5mv/1K Ohm balanced
Phono………………………………………………………………………………..…………3mv/680 Ohm
LINE………………………………………………………………………………………….150mv/27K Ohm
OUTPUTS:
REC……………………………………………………………………………………………350mv/5K6 Ohm
MASTER………………………………………………………………………………………… 1V/5K6 Ohm
GENERAL:
Frequency Response…………………………………………………… …………….20Hz-20KHz @ ±2dB
THD…………………………………………………………………………………………………..……… 0.1%
S/N Ratio………………………………………………………………………………………………….>80 d B
Headphone Impedance………………… ………………………………………………………………32 Ohm
Page 7
CE Declaration of Conformity
Importer: TRONIOS BV
Bedrijvenpark Twente 415
7602 KM - ALMELO
Tel : 0031546589299
Fax : 0031546589298
The Netherlands
Product number:
172.880
Product Description:
Skytec, STM-7010 Mixer 4 Ch DJ Mixer USB
Regulatory Requirement:
EN 61558
EN 55013
EN 55020
EN 61000-3-2/-3-3
The product meets the requirements stated in the above mentioned Standards. This
certificate does not cover the aspects that may be relevant such as performance and
fitness for purpose.
Almelo,
30-07-2013
Signature :
Page 8
