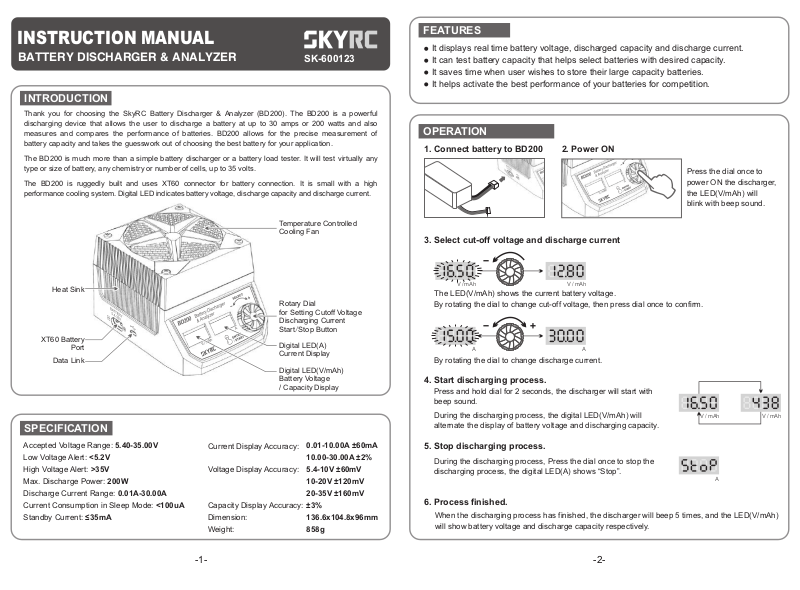

SKYRC SK-600123, BD200 User guide

INSTRUCTIONMANUAL

BATTERY DISCHARGER & ANALYZER

INTRODUCTION

Thank you for choosing the SkyRC Battery Discharger & Analyzer (BD200). The BD200 is a powerful
discharging device that allows the user to discharge a battery at up to 30 amps or 200 watts and also
measures and compares the performance of batteries. BD200 allows for the precise measurement of
battery capacity and takes the guesswork out of choosing the best battery for your application.

The BD200 is much more than a simple battery discharger or a battery load tester. It will test virtually any
type or size of battery, any chemistry or number of cells, up to 35 volts.

The BD200 is ruggedly built and uses XT60 connector for battery connection. It is small with a high
performance cooling system. Digital LED indicates battery voltage, discharge capacity and discharge current.

SK-600123

Temperature Controlled
Cooling Fan

FEATURES

It displays real time battery voltage, discharged capacity and discharge current.
It can test battery capacity that helps select batteries with desired capacity.
It saves time when user wishes to store their large capacity batteries.
It helps activate the best performance of your batteries for competition.

OPERATION

1. Connect battery to BD200

3. Select cut-off voltage and discharge current

2. Power ON

Press the dial once to
power ON the discharger,
the LED(V/mAh) will
blink with beep sound.

Heat Sink

XT60 Battery

Port

DataLink

SPECIFICATION

Accepted Voltage Range: 5.40-35.00V

Low Voltage Alert: <5.2V

High Voltage Alert: >35V

Max. Discharge Power: 200W

Discharge Current Range: 0.01A-30.00A

Current Consumption in Sleep Mode: <100uA

Standby Current: ≤35mA

V / mAh V / mAh

The LED(V/mAh) shows the current battery voltage.

Rotary Dial
for Setting Cutoff Voltage
Discharging Current
Start/Stop Button

Digital LED(A)
Current Display

Digital LED(V/mAh)
Battery Voltage
/ Capacity Display

Current Display Accuracy:

Voltage Display Accuracy:

Capacity Display Accuracy:

Dimension:

Weight:

0.01-10.00A ±60mA

10.00-30.00A ±2%

5.4-10V ±60mV

10-20V ±120mV

20-35V ±160mV

±3%

136.6x104.8x96mm

858g

By rotating the dial to change cut-off voltage, then press dial once to confirm.

A A

By rotating the dial to change discharge current.

4. Start discharging process.

Press and hold dial for 2 seconds, the discharger will start with
beep sound.

During the discharging process, the digital LED(V/mAh) will
alternate the display of battery voltage and discharging capacity.

5. Stop discharging process.

During the discharging process, Press the dial once to stop the
discharging process, the digital LED(A) shows “Stop”.

6. Process finished.

When the discharging process has finished, the discharger will beep 5 times, and the LED(V/mAh)
will show battery voltage and discharge capacity respectively.

-1- -2-

V / mAh V / mAh

A

MAXIMUM DISCHARGE POWER CHART

2S
3S
4S
5S
6S
7S
8S
2S
3S
4S
5S
6S
7S
8S
6S
7S
8S

9S
10S
11S
12S
13S
14S
15S
16S
17S
18S
19S
20S

Min. Cut-off
Voltage

6.0

9.0

12.0

15.0

18.0

21.0

24.0

6.2

9.3

12.4

15.5

18.6

21.7

24.8

5.4

6.3

7.2

8.1

9.0

9.9

10.8

11.7

12.6

13.5

14.4

15.3

16.2

17.1

18.0

Voltage

8.40

12.60

16.80

21.00

25.20

29.40

33.60

8.70

13.05

17.40

21.75

26.10

30.45

34.80

9.00

10.50

12.00

13.50

15.00

16.50

18.00

19.50

21.00

22.50

24.00

25.50

27.00

28.50

30.00

Min. Discharge Current (A)
Discharging power: 200W

23.80

15.87

11.90

9.52

7.93

6.80

5.95

22.98

15.32

11.49

9.19

7.66

6.56

5.74

22.22

19.04

16.66

14.81

13.33

12.12

11.11

10.25

9.52

8.88

8.33

7.84

7.40

7.01

6.66

Battery
Type

LiPo

LiHV

NiMH

No. of
Cell

Max. Discharge Current (A)
Discharging power: 200W

30.00

22.20

16.60

13.30

11.10

9.52

8.33

30.00

21.50

16.12

12.90

10.75

9.21

8.06

30.00

30.00

27.77

24.69

22.22

20.20

18.51

17.09

15.87

14.81

13.88

13.07

12.34

11.69

11.11

PC SOFTWARE

PC software supplied with the BD200 is easy to use, intuitive. There
are two discharge mode: 1. Constant Power; 2. Constant Current.
The software can automatic sensing of battery cell count and
recommends a minimum safe discharge voltage. Discharge tests
may be viewed in Amp Hours, Watt Hours or Minutes. Results can
be graphed as Voltage vs. Amp hours, Watt hours, Minutes.

OPTIONAL PARTS

Following charging cables are not included in the package.
You need purchase them separately.

Banana Plug
(SK-600023-08)

Dean Plug
(SK-600023-09)

Tamiya Plug
(SK-600023-10)

LiPoPal (SK-500007)

The LiPoPal can check the voltage of each cell of
a lithium battery pack and remaining capacity in
percentage % during discharging process.

SAFETY NOTE

Improper usage may lead to fire, property damage and physical injury.

Never discharge a battery below its recommended cutoff voltage. Over-discharge may damage battery and cause
FIRE or EXPLOSION.
Never discharge a battery at a higher discharge rate than it is designed for.
Never leave the discharger unattended when it is connected to battery. If any malfunction is found,
TERMINATE THE PROCESS AT ONCE.
Place the discharger and battery on a non-flammable surface, and keep away from inflammables.
Never discharge swollen, leaky, or damaged batteries.
Batteries shall be discharged within a room temperature range of 10-40℃.
Disconnect the battery and discharger once discharging has finished.
Recharge batteries immediately with an appropriate battery charger after discharge process is completed.
Some battery types do not like to remain discharged for extended periods of time.

ERROR MESSAGE

When there is an error, digital LED will display the error code

Over-temperature protection.

Input voltage is too high. This discharger accepts battery voltage from 5.4
to 35V, if voltage higher than 35V, it will stop working and show error
message.

Input voltage is too low. This discharger accepts battery voltage from 5.4
to 35V, if voltage lower than 5.4V, it will stop working and show error
message.

-3- -4-
