SKYRC SK-100149, e680 User guide

Download

680

Multi-Chemistry Charger / Discharger / Power Supply

Instruction Manual

[Version 1.1]

Table of Contents

Introduction Special Features Warning and Safety Notes Program Flow Chart Explanation of Buttons Power and Battery Connection Charge Operation Lithium Battery Program (LiPo/LiFe/Lilon/LiHV) NiMH/NiCd Battery Program Pb Lead-acid Battery Program Dji Mavic Battery Program DC Power Supply Battery Memory Set and Call Out System Setting Battery Voltage Meter Battery Resistance Meter Warning and Error Message The Set Contains Recommended Accessories Specification Conformity Declaration Commonly Used Terms Warranty and Service

WARNING:

This charger is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the charger. Do not recharge non-rechargeable batteries!

During charging, the battery must be placed in a well-ventilated area! Never leave the charger unattended when charging the battery.

Introduction

Congratulations on your choice of SKYRC e680 Multi-Chemistry Charger/Discharger/Power Supply. This unit is simple to use, but the operation of a sophisticated automatic charger such as SKYRC e680 does require some knowledge on the part of the user. These operating instructions are designed to ensure that you quickly become familiar with its functions. It is therefore important that you read right through the Operating Instructions, Warning and Safety Notes before you attempt to use your new charger for the first time. We hope you have many years of pleasure and success with your new battery charger.

SkyRC e680 is a high-performance, micro processor control charge / discharge / power supply with battery management suitable for use with all current battery types. It is with integral equalizer for six-cell LithiumPolymer (LiPo), Lithium iron phosphate (LiFe), Lithium-ion (LiIon) and Lithium High Voltage (LiHV) battery with max. 8A charge current and 80W charge power. For PB battery, e680 adds AGM and cold charge modes. It can charge AGM battery, and Pb battery can be charged in cold charge mode in cold days.

This charger can be powered by 11-18V DC or 100-240V AC power source via the built in switch-mode power supply. Besides that, e680 is able to power DC equipment such as tire sander, LED pit light and motor checker, etc. The new features and functions will be listed and explained in detail in the following pages.

Please BE SURE to read these INSTRUCTIONS, WARNING and SAFETY NOTES before you use the charger for the first time.

Mishandling batteries and battery chargers is extremely dangerous, which may cause fire and explosion.

e680

01 ·

Introduction

Please read this entire operating manual completely and attentively before using this product, as it covers a wide range of information on operating and safety. Or please do use this product in company with a specialist!

LCD Display

Scroll Through the Main Menu Stop Any Charge Processes

Alter Values See the Status of Individual Cells in Balance Charge Mode

Resume or Start Charge Processes

DC Input

AC Socket 100-240V

Temperature Sensor Port

Balance Lead Socket

Output Socket 4mm Banana Plug

Cooling Fan

· 02

e680

Special Features

DC Power Supply

SkyRC e680 Charger is integrated with DC power supply function, whose output is

13.8V, and output power ranges from 10W to 80W.

Support Charging DJI Mavic Battery

SkyRC e680 charger supports charging DJI Mavic battery.

PB AGM and Cold Charge

For PB battery, e680 adds AGM and cold charge modes. It can charge AGM battery, and Pb battery can be charged in cold charge mode in cold days.

Optimized Operating Software

SkyRC e680 features the so-called AUTO function that set the feeding current during the process of charging or discharging. Especially for lithium batteries, it can prevent the overcharging which may lead to an explosion due to the user's fault. It can disconnect the circuit automatically and alarm once detecting any malfunction. All the programs of this product were controlled through two way linkage and communication, to achieve the maximum safety and minimize the trouble. All the settings can be configured by users!

Battery Memory (Data Store/Load)

The charger can store up to 10 different charge/discharge profiles for your convenience. You can keep the data pertaining to program setting of the battery of continuous charging or discharging. Users can call out these data at any time without any special program setting.

Terminal Voltage Control(TVC)

The charger allows user to change the end voltage. (for expert user only)

Internal Independent Lithium Battery Balancer

SkyRC e680 employs an individual-cell-voltage balancer. It isn't necessary to connect an external balancer for balance charging.

Balancing Individual Cells Battery Discharging

During the process of discharging, SkyRC e680 can monitor and balance each cell of the battery individually. Error message will be indicated and the process will be ended automatically if the voltage of any single one cell is abnormal.

Adaptable to Various Type of Lithium Battery

SkyRC e680 is adaptable to various types of lithium batteries, such as LiPo, LiIon, LiFe and the new LiHV batteries.

e680

03 ·

Special Features

Fast and Storage Mode of Lithium Battery

Purposes to charge lithium battery varies, 'fast' charge reduce the duration of charging, whereas 'store' state can control the final voltage of your battery, so as to store for a long time and protect useful time of the battery.

Re-Peak Mode of NiMH/NiCd Battery

In re-peak charge mode, the charger can peak charge the battery once, twice or three times in a row automatically. This is good for making certain the battery is fully charged.

Delta-peak Sensitivity for NiMH/NiCd

Delta-peak sensitivity for NiMH/NiCd battery: The automatic charge termination program based on the principle of the Delta-peak voltage detection. When the battery's voltage exceeds the threshold, the process will be terminated automatically.

Cyclic Charging/Discharging

1 to 5 cyclic and continuous process of charge > discharge or discharge > charge is operable for battery refreshing and balancing to stimulate the battery's activity.

Automatic Charging Current Limit

You can set up the upper limit of the charging current when charging your NiMH or NiCd battery, it is useful for the NiMH battery of low impedance and capacity in the 'AUTO' charging mode.

Battery Meter

The user can check battery voltage and battery internal resistance.

Battery Internal Resistance Meter

The user can check battery's total internal resistance and each cell's internal resistance.

Capacity Limit

charging capacity is

The time. If the charging automatically when you set the maximum value.

Temperature Threshold*

The battery's internal chemical reaction will cause the temperature of the battery to rise. If the temperature limit is reached, the process will be terminated.

This function is available by connecting optional temperature probe, which is not included in the package.

Processing Time Limit:

You can also limit the maximum process time to avoid any possible defect.

capacity

always

calculated

exceeds the

charging

the

limit, the process

current multiplied

will

terminated

· 04

e680

Warning and Safety Notes

These warnings and safety notes are particularly important. Please follow the instructions for maximum safety; otherwise the charger and the battery can be damaged or at worst it can cause a fire.

Never leave the charger unattended when it is connected to its power supply. If any malfunction is found, TERMINATE THE PROCESS AT ONCE and refer to the operation manual.

Keep the charger well away from dust, damp, rain, heat, direct sunshine and vibration. Never drop it.

The allowable AC input voltage is 100~240V AC and DC 11-18V.

This charger and the battery should be put on a heat-resistant, noninflammable and nonconductive surface. Never place them on a car seat, carpet or similar. Keep all the inflammable volatile materials away from operating area.

Make sure you know the specifications of the battery to be charged or discharged to ensure it meets the requirements of this charger. If the program is set up incorrectly, the battery and charger may be damaged .It can cause fire or explosion due to overcharging.

Standard Battery Parameters

Nominal Voltage

Max Charge Voltage

Storage Voltage

Allowable Fast Charge

Min. Discharge Voltage

LiIon

LiPo

3.7V/cell

3.6V/cell

4.2V/cell

4.1V/cell

3.7V/cell

3.8V/cell

≦1C

3.0-3.3V/cell 2.9-3.2V/cell

LiFe

3.3V/cell

3.6V/cell

3.3V/cell

≦4C

2.6-2.9V/cell

LiHV

3.7V/cell

4.35V/cell

3.85V/cell

≦1C

3.1-3.4V/cell

NiCd

1.2V/cell

1.5V/cell

n/a

1C-2C

0.1-1.1V/cell 0.1-1.1V/cell

NiMH

1.2V/cell

1.5V/cell

n/a

1C-2C

2.0V/cell

2.46V/cell

n/a

≦0.4C

1.8V/cell

Be very careful to choose the correct voltage for different types of battery otherwise you may cause damage to the batteries. Incorrect settings could cause the cells to fire or explode.

e680

05 ·

Warning and Safety Notes

Never attempt to charge or discharge the following types of batteries.

A battery pack which consists of different types of cells (including different manufacturers) A battery that is already fully charged or just slightly discharged. Non-rechargeable batteries (Explosion hazard). Batteries that require a different charge technique from NiCd, NiMh, LiPo or Gel cell (Pb, Lead acid). A faulty or damaged battery. A battery fitted with an integral charge circuit or a protection circuit. Batteries installed in a device or which are electrically linked to other components. Batteries that are not expressly stated by the manufacturer to be suitable for the currents the charger delivers during the charge process.

Please bear in mind the following points before commencing charging:

Did you select the appropriate program suitable for the type of battery you are charging? Did you set up adequate current for charging or discharging? Have you checked the battery voltage? Lithium battery packs can be wired in parallel and in series, i.e. a 2 cell pack can be 3.7V (in parallel) or 7.4V (in series). Have you checked that all connections are firm and secure? Make sure there are no intermittent contacts at any point in the circuit.

Charging

During charge process, a specific quantity of electrical energy is fed into the battery. The charge quantity is calculated by multiplying charge current by charge time. The maximum permissible charge current varies depending on the battery type or its performance, and can be found in the information by the battery manufacturer. Only batteries that are expressly stated to be capable of quickcharge are allowed to be charged at rates higher than the standard charge current.

Connect the battery to the terminal of the charger: red is positive and black is negative. Due to the difference between resistance of cable and connector, the charger can not detect resistance of the battery pack, the essential requirement for the charger to work properly is that the charge lead should be of adequate conductor cross-section, and high quality connectors which are normally goldplated should be fitted to both ends.

Always refer to the manual by battery manufacturer about charging methods, recommended charging current and charging time. Especially, the lithium battery should be charged according the charging instruction provided by the manufacturer strictly.

· 06

e680

Warning and Safety Notes

Attention should be paid to the connection of lithium battery especially.

Do not attempt to disassemble the battery pack arbitrarily.

Please get highlighted that lithium battery packs can be wired in parallel and in series. In the parallel connection, the battery s capacity is calculated by multiplying single battery capacity by the number of cells with total voltage stay the same. The voltages imbalance may cause fire or explosion .Lithium battery is recommended to charge in series.

Discharging

The main purpose of discharging is to clean residual capacity of the battery, or to reduce the battery voltage to a defined level. The same attention should be paid to the discharging process as charging. The final discharge voltage should be set up correctly to avoid deep-discharging. Lithium battery can not be discharged to lower than the minimum voltage, or it will cause a rapid loss of capacity or a total failure. Generally, lithium battery doesn't need to be discharged. Please pay attention to the minimum voltage of lithium battery to protect the battery.

Some rechargeable batteries have a memory effect. If they are partly used and recharged before the whole charge is accomplished, they remember this and will only use that part of their capacity next time. This is a memory effect. It is said that NiCd and NiMH batteries are suffering from memory effect. NiCd has more memory effect than NiMH.

e680

07 ·

Program Flow Chart

BATT/PROGRAM LiPo BATT

ENTER

BATT/PROGRAM LiFe BATT

ENTER

BATT/PROGRAM LiIo BATT

ENTER

BATT/PROGRAM LiHV BATT

ENTER

BATT/PROGRAM

NiMH BATT

ENTER

BATT/PROGRAM

NiCd BATT

ENTER

BATT/PROGRAM

Pb BATT

ENTER

BATT/PROGRAM

DJI Mavic BATT

ENTER

BATT/PROGRAM

BATT METER

ENTER

BATT/PROGRAM BATT RESISTANCE

ENTER

BATT/PROGRAM SYSTEM SETTING->

ENTER

Stop

BATT PROG

BATT/PROGRAM BATT MEMORY

ENTER

LiPo BALANCE CHG

2.0A 7.4V (2S)

LiFe BALANCE CHG

2.0A 6.6V (2S)

Lilo BALANCE CHG

2.0A 7.2V (2S)

LiHV BALANCE CHG

2.0A 7.6V (2S)

NiMH CHARGE CURRENT 2.0A

NiCd CHARGE CURRENT 2.0A

Pb NORMAL CHG

2.0A 2.0V (1P)

LH3S CHARGE TURN ON BATTERY

4.20 4.19 4.19 V

0.00 0.00 0.00 V

5 3 3 mΩ 5 0 0 mΩ

DC SUPPLY: 10W CHARGE POWER: 50W

Version HW:1.00 FW: 1.00

[ BATT MEMORY 1 ] ENTER SET->

ENTER CHARGER LOAD……

[ BATT MEMORY 2 ] ENTER SET->

[ BATT MEMORY 2 ] C:1.0A D:1.0A

ENTER CHARGER LOAD……

[ BATT MEMORY 3 ] ENTER SET->

Pb NORMAL CHG

2.0A 2.0V (1P)

Pb AGM CHG

0.1A 2.0V (1P)

ENTER>3Seconds

INC

DEC

TATAL: 16mΩ

ENTER

INC

DEC

LiPo CHARGE

2.0A 7.4V (2S)

LiFe CHARGE

2.0A 6.6V (2S)

Lilo CHARGE

2.0A 7.2V (2S)

LiHV CHARGE

2.0A 7.6V (2S)

NiMH Auto CHARGE CURRENT 2.0A

NiCd Auto CHARGE CURRENT 2.0A

Pb AGM CHG

0.1A 2.0V (1P)

LH3S STORAGE TURN ON BATTERY

MAIN 12.58V H4.20V L4.19V

Safety Timer ON 120Min

Load Factory Set Enter

BATT TYPE LiPo

[ BATT MEMORY 1 ] C:4.9A D:2.2A

LiPo BALANCE CHG

4.9A 7.4V(2S)

BATT TYPE NiMH

[ BATT MEMORY 2 ] NiMH 2.4V (2S )

NiMH CHARGE CURRENT 1.0A

BATT TYPE Pb

ENTER CHARGER LOAD……

ENTER>3Seconds

Pb COLD CHG

0.1A 2.0V (1P)

LiPo FAST CHG

2.0A 7.4V (2S)

LiFe FAST CHG

2.0A 6.6V (2S)

Lilo FAST CHG

2.0A 7.2V (2S)

LiHV FAST CHG

2.0A 7.6V (2S)

NiMH DISCHARGE

0.1A CUT: 1.0V

NiCd DISCHARGE

0.1A CUT: 1.0V

INC

Pb COLD CHG

0.1A 2.0V (1P)

DEC

Capacity Cut-Off ON 5000mAH

DC Input Low Cut-Off 11.0V

BATT VOLTAGE

7.4V ( 2S )

[ BATT MEMORY 1 ] LiPo 7.4V (2S )

LiPo CHARGE

4.9A 7.4V(2S)

BATT VOLTAGE

2.4V (2S)

SAVE PROGRAM SAVE….

ENTER

NiMH Auto CHARGE CURRENT 1.2A

BATT VOLTAGE

4.0V (2P)

[ BATT MEMORY 3 ] C:3.3A D:1.5A

Pb DISCHARGE

1.5A 4.0V(2P)

LiPo STORAGE

2.0A 7.4V (2S)

LiFe STORAGE

2.0A 6.6V (2S)

Lilo STORAGE

2.0A 7.2V (2S)

LiHV STORAGE

2.0A 7.6V (2S)

NiMH RE-PEAK 1

NiCd RE-PEAK 1

Pb DISCHARGE

0.1A 2.0V (1P)

Temp Cut-Off ON 50°C 122°F

Key Beep ON Buzzer ON

CHARGE CURRENT

4.9A

SAVE PROGRAM SAVE….

ENTER

LiPo FAST CHG

4.9A 7.4V(2S)

CHARGE CURRENT

3.3A

SAVE PROGRAM

ENTER

NiMH DISCHARGE

1.0A CUT: 2.0V

CHARGE CURRENT

3.3A

[ BATT MEMORY 3 ] Pb 4.0V (2P )

LiPo DISCHARGE

2.0A 7.4V (2S)

LiFe DISCHARGE

2.0A 6.6V (2S)

Lilo DISCHARGE

2.0A 7.2V (2S)

LiHV DISCHARGE

2.0A 7.6V (2S)

NiMH CYCLE CHG>DCHG 1

NiCd CYCLE CHG>DCHG  1

Temperature Unit Celsius

NiCd Sensitivity D.Peak  4mV

DISCHG CURRENT

2.2A

SAVE PROGRAM ENTER

LiPo STORAGE

4.9A 7.4V(2S)

TRICKLE 100mA

DISCHG VOLTAGE

1.1V/CELL

NiMH RE-PEAK 2

DISCHG CURRENT

1.5A

SAVE PROGRAM SAVE….

ENTER

Rest Time CHG>DCHG 10Min

NiMH Sensitivity D.Peak  4mV

DISCHG VOLTAGE

3.0V/CELL

TVC=YOUR RISK

4.20V

LiPo DISCHARGE

2.2A 7.4V(2S)

PEAK DELAY 1Min

DISCHG CURRENT

2.2A

NiMH CYCLE DCHG>CHG 1

DISCHG VOLTAGE

1.7V/CELL

SAVE PROGRAM

ENTER

· 08

e680

Explanation of Buttons

BATT PROG / STOP Button: It is used to stop the progress or go back to previous step/screen DEC Button: It is used to go through the menus and decrease the parameter value INC Button: It is used to go through the menus and increase the parameter value ENTER / START Button: It is used to enter parameter or store parameter on screen.

When you are willing to alter the parameter value in the program, press the START/ENTER button to make it blink then change the value by pressing DEC and INC button. The value will be stored by re-pressing the START/ENTER button. If there is another parameter can be altered in the same screen, when you confirm the first parameter value, the next parameter value will start to blink which means it is ready to alert.

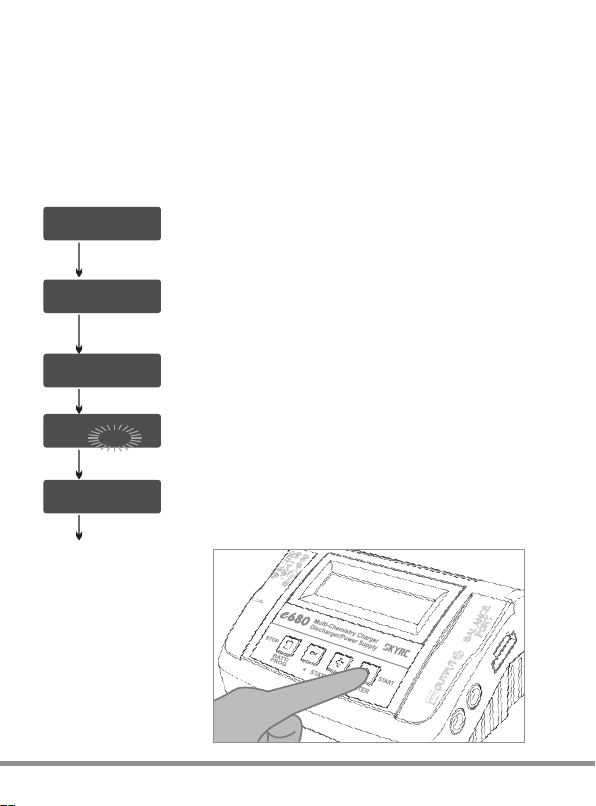

When you are willing to start the progress, press and hold the START/ENTER button for 3 seconds. When you are willing to stop the progress or go back to previous step/screen, press the BATT PROG/STOP button once.

When you power on the charger, it will enter LiPo Battery balance program directly. You could change the mode (balance mode, normal charge mode, fast charge mode, store mode or discharge mode), enter the desired charging/discharging mode, set the referred parameter and start the progress.

If you have no request for LiPo Battery program, please press the BATT PROG/STOP button to enter BATT PROGRAM screen.

e680

09 ·

Power and Battery Connection

1. Connecting to power source

There are two kinds of inputs for SKYRC e680, DC 11-18V and AC 100-240V.

AC 100-240V power source connection.

12V DC Battery / DC power supply connection.

XT60

· 10

e680

Lithium Battery Pack

Power and Battery Connection

2. Connecting the battery

TO AVOID SHORT CIRCUITS, ALWAYS CONNECT THE CHARGE LEADS TO THE CHARGER FIRST, AND THEN TO THE BATTERY.

WARNING!

REVERSE THE SEQUENCE WHEN DISCONNECTING THE PACK.

1) LiPo Battery Connection

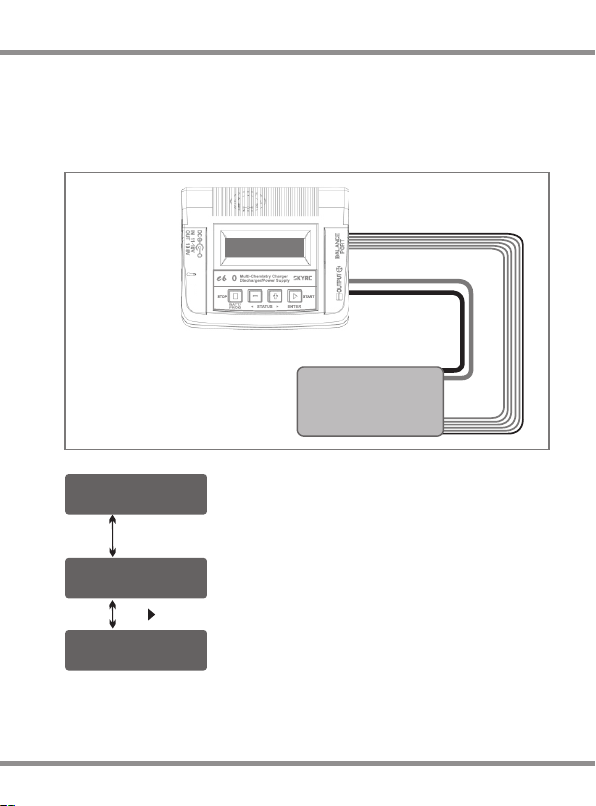

The balance wire of the battery must be connected to the charger. Always remember to keep right polarity in the connection. Please refer to the wiring diagram above,which shows a correct way for your LiPo battery connection in

the balance charge mode. In the other modes, there is no request to connect the balance wire to the balance socket in the charger. But we suggest to charge your battery in balance mode for better performance.

2) NiMH/NiCd or Pb Battery Connection

e680

NiMH

11 ·

Charge Operation

Charging Program

Depends on different battery type, the operation programs are different.

Batt Type

LiPo LiHV Lilon LiFe

NiMH NiCd

Operation Program

CHARGE

DISCHARGE

STORAGE

FAST CHG

BAL CHARGE

CHARGE

AUTO CHG

DISCHARGE

RE-PEAK

CYCLE

NORMAL CHG

AGM CHG

COLD CHG

DISCHARGE

This charging mode is for charging LiPo/LiHV/LiFe/LiIon battery in normal mode.

This mode is for discharging LiPo/LiHV/LiFe/LiIon battery.

This program is for charging or discharging lithium battery which will not be used for long time.

The charging capacity may be a bit smaller than normal charging but the process time will be reduced.

This mode is for balancing the voltage of lithium-polymer battery cells while charging.

The charger will charge NiMH and NiCd batteries using the charge current set by the user.

In this program the charger detects the condition of the battery which is connected to the output and automatically charges the battery.

Note: you should set up the upper limit of the charge current to avoid damage by excessive feeding current. Some batteries of low resistance and capacity can lead to higher current.

This mode is for discharging NiMH/NiCd battery.

In re-peak charge mode, the charger can peak charge the battery once, twice or three times in a row automatically. This is good for confirming the battery is fully charged, and for checking how well the battery receives fast charges.

1 to 5 cyclic and continuous process of charge>discharge or discharge>charge is operable for battery refreshing and balancing to stimulate the battery's activity.

This mode is for charging Pb battery.

This mode is for charging AGM battery.

This mode is for charging Pb battery in cold days when the temperature is 5℃ to -20℃.

This mode is for discharging Pb battery.

Description

· 12

e680

Lithium Battery Program (LiPo/LiFe/Lilon/LiHV)

(1)

A memory profile is available for setting and storing pertinent information for 10 different program sets. Once a battery program is stored into memory, it will be retained until changed again manually. Recalling a program memory number makes the charger instantly ready to go!

(2)

If you do not wish to use the battery program memories, this charger can be manually set before each use.

The following flowchart shows how the program is set manually:

BATT/PROGRAM

LiPo BATT

STAR T/ EN TER

LiPo BALANCE

2.0A 11.1V (3S)

STAR T/ EN TER

LiPo BALANCE

2.0A 11.1V (3S)

STAR T/ EN TER

LiPo BALANCE

2.0A 11.1V (3S)

STAR T/ EN TER

LiPo BALANCE

2.0A 11.1V (3S)

STAR T/ EN TER > 3 Sec onds

BATT/PROGRAM Select

Press INC and DEC to go through all the programs and press START/ENTER to enter LiPo BATT Program.

Mode Select

Press INC and DEC to go through all the modes and press START/ENTER to enter LiPo Balance Charge Mode.

Battery Setting

Press START/ENTER, the present value will start to blink. Press INC and DEC to change the value and press START/ENTER to confirm your setting. At the same time, the battery pack’s cell count will start to blink, press INC and DEC to change the value and press START/ ENTER to confirm your setting.

Program Start

Press and hold START/ENTER for 3 seconds to start the program.

e680

13 ·

Lithium Battery Program(LiPo/LiFe/Lilon/LiHV)

BATTERY CHECK

WAIT...

R:3SER S:3SER

CANCEL(STOP)

The charger is detecting the battery cell.

R shows the number of cells detected by the charger and S is the number of cells set by you on the previous screen. If the two numbers are not identical, press STOP to go back to the previous screen to recheck the number of cells of the battery pack that you set before going ahead.

R:3SER S:3SER

CONFIRM(ENTER)

STAR T/ EN TER

Lp3s 1.5A 12.14V

BAL 000:50 00022

R shows the number of cells detected by the charger and S is the number of cells set by you on the previous screen. If the two numbers are identical, press START/ENTER to start the charging process.

Charging Status Monitor

During charge process, real-time status will be shown as seen on the left.

[ END: FINISH ]

16.8V 2600mAh

Program Complete

Once the battery is fully charged, the screen will read “END: FINISH” and the charger will emit a ringing sound. The

[ Time: 00: 45: 32 ]

16.8V 2600mAh

charger also displays battery voltage, charged capacity and elapsed time.

Program Stop

During the charging process, press STOP to stop the charging process.

Video Tutorial

· 14

Please scan and watch the tutorial video about how to charge LiPo battery in balance mode.

e680

Lithium Battery Program (LiPo/LiFe/Lilon/LiHV)

VARIOUS INFORMATION DURING THE PROCESS

Press INC or DEC during the charging or discharging process to view further pertinent information on the LCD screen.

Lp3s 1.5A 12.14V

BAL 000:50 00022

INC

4.07 4.06 4.11 V

0.00 0.00 0.00 V

INC

Fuel= 90%

Cell= 4.10V

Lp3s 1.5A 12.14V

BAL 000:50 00022

DEC

End Voltage

12.6V(3S)

DEC

IN Power Voltage

12.56V

DEC

Ext. Temp ---Int. Temp 37°C

DEC

Temp Cut-Off 　　　 50C

DEC

Safety Timer ON 200min

DEC

Capacity Cut-Off ON 5000mAh

Real-time status: battery type, battery cell count, charge current, battery pack total voltage,working mode, elapsed time and charged capacity.

Voltage of each cell in the battery pack when the battery is connected with balance lead.

Charged capacity percentage and average cell voltage of the battery pack.

Final voltage when the program ends.

Input voltage.

Internal temperature. Temperature probe needs to be connected to show external temperature.

Cut-off temperature.

Safety timer ON and duration of time in minutes.

Capacity cut-off ON and value of the set capacity limit.

e680

15 ·

NiMH/NiCd Battery Program

NiMH/NiCd:

This program is only suitable for charging/discharging NiMH/NiCd batteries. The e680 offers the following NiMH/NiCd charge modes: Charge, Auto Charge, Discharge, Re-Peak and Cycle.

Selecting the Battery Type:

After powering on the e680, press the INC or DEC button repeatedly until you reach the appropriate program for the battery type you wish to charge. For this example we have chosen the “NiMH BATT“ or “NiCd BATT” program. Now press the ENTER button to enter the desired program.

BEFORE YOU BEGIN CHARGING YOUR BATTERY, MAKE SURE YOU ARE CHARGING NIMH/NICD BATTERIES. CHARGING LIPO BATTERY

WARNING!

UNDER NIMH/ NICD BATTERY PROGRAM WILL CAUSE FIRE.

NiMH/NiCd Charge Mode:

BEFORE YOU BEGIN CHARGING YOUR BATTERY, MAKE SURE YOU HAVE RE AD A ND UND ERS TO OD A LL OF THE WARN I NG S AN D S AFE TY INFORMATION CONTAINED ON PAGES 05-07.

After selecting the correct battery type, if the screen does not read “CHARGE”, use the DEC or INC buttons to change it to the “CHARGE” mode.

NiMH CHARGE

CURRENT 2.0A

STAR T/ EN TER

NiMH 2.0A 5.42V

CHG 002:22 00106

NiMH/NiCd Auto Charge Mode:

In this mode, the charger automatically detects the connected NiMH or NiCD battery and determines the proper full charge and cut-off thresholds. Setting the upper charge current limit for safe levels based on your battery specifications will ensure safe charging of your specific battery. If you are unsure of the maximum allowable charge rates, set the charger to a maximum of 1C (battery mAh/1000, e.g. 3200mAh = 3.2A).

· 16

Press the ENTER button and the amp rate value will begin blinking. Use the DEC or INC button to adjust the value to the desired rate. Follow the instructions provided on your battery when setting the charge current. Press and hold the ENTER button for 3 seconds to start charging.

Once charging has commenced, the charger will display the following real-time information: battery type, charging current, battery voltage, working mode, elapsed time and charged capacity. Once the battery is fully charged, the screen will read "END: FINISHED" and the charger will emit a ringing sound. You can press the STOP button at any time during the charging process to stop charging.

e680

NiMH/NiCd Battery Program

NiMH Auto CHARGE CURRENT 1.3A

After selecting the correct battery type, use the INC or DEC button to change the charge mode to the “Auto CHARGE” setting. Press the START button and the amp rate value will begin

STAR T/ EN TER

flashing. Use the INC or DEC button to adjust the value to the desired rate. Follow the instructions provided on your battery when setting the upper charge amperage rate. Press and hold the START button for 3 seconds to start charging.

NiMH 1.3A 5.42V AUT 002:22 00106

Once charging has commenced, the charger will display the following real-time information: battery type, charging current, battery voltage, elapsed time and charged capacity. Once the battery is fully charged, the screen will read “END: FINISHED” and the charger will emit a ringing sound. You can press the STOP button at any time during the charging process to stop charging.

NiMH/NiCd Discharge Mode:

NiMH DISCHARGE

1.3A CUT:9.6V

After selecting the correct battery type, use the INC or DEC button to select the “DISCHARGE” mode. Press the START button and the amp rate value will begin flashing. Use the INC or DEC buttons to adjust the value to the desired discharge rate. Press the START button again and the voltage cut-off will begin to flash. Use the INC or DEC button to adjust the value to the desired rate.

Follow the instructions provided on your battery when setting the voltage cut-off. The e680 will stop discharging when the battery has reached the preset voltage cut-off.

NiMH 1.3A 10.42V AUT 002:22 00106

Press and hold the START button for 3 seconds to start discharging. Once discharging has commenced, the charger will display the following real-time information: battery type, discharging current, battery voltage, working mode,elapsed time and discharged capacity.

e680

17 ·

NiMH/NiCd Battery Program

[ TIME: 00:04:04 ]

9.6V 00640mAh

NiMH/NiCd Re-Peak Mode:

Applicable to NiMH and NiCD batteries only, in re-peak mode the charger can peakcharge the battery once, twice, or three times in a row automatically. This process is good for confirming that the battery is fully charged and for verifying how well the battery can accept a fast charge. A five-minute cool-down delay occurs after each repeak charge.

IN RE-PEAK MODE, THE e680 USES THE CHARGE AMPERAGE AND VOLTAGE SETTINGS ENTERED IN CHARGE MODE.

NiMH RE-PEAK 2

STAR T/ EN TER

NiMH 1.3A 10.42V RPC 004:04 00686

When discharging is complete, the screen will read “END: CUTOFF-VOL” and the charger will emit a ringing sound.

The charger will display the elapsed time, end voltage and the discharged capacity in mAh.

You can press the STOP button at any time during the discharging process to stop the discharge process.

After selecting the correct battery type, use the INC or DEC button to select the “RE-PEAK” mode. Press the START button and the Re-peak cycle number 1 begins to flash on the screen. Use the INC or DEC button to scroll through the cycle count and set a number between 1 and 3. Press and hold the START button for 3 seconds to start the re-peak process.

Once the Re-Peak process has begun, the charger will display the following real-time information: battery type, charging current, battery voltage, elapsed time and charged capacity. Once the Re-Peak process has completed, the screen will read “END: RE-PEAK” and the charger will emit a ringing sound. The charger will display the charge/discharge capacity for each cycle. Using the + and - buttons, you can scroll through the history data of each cycle.

· 18

e680

NiMH/NiCd Battery Program

NiMH/NiCd Cycle Mode:

The e680 makes cycling of NiMH/NiCd batteries easy. The process of discharging and recharging (cycling) can be performed automatically with one simple step and will improve the performance of NiMH/NiCd batteries. We strongly recommend cycling any battery that has been discharged and stored for a period of time. This will increase the remaining usable battery life and also improve the battery performance.

NiMH CYCLE DCHG > CHG 2

STAR T/ EN TER

NiMH CYCLE CHG > DCHG 5

After selecting the correct battery type, use the INC or DEC button to select the “CYCLE” mode. The Cycle Mode gives you two cycling options: “DCHG>CHG” or “CHG>DCHG“. The “DCHG>CHG” option will first discharge the battery and then recharge the battery.

The “CHG>DCHG” option will first charge the battery and then discharge the battery. If this screen does not show your desired cycling option, press the START button once and this setting will begin flashing. Use the INC or DEC button to change this setting.

Pressing the START button again will cause the cycle count to begin flashing. Use the INC or DEC button to change this to the number of cycles you want the e680 to run. The e680 can cycle the battery a maximum of 5 times consecutively. Press and hold the START button for 3 seconds to start the Cycle Mode.

NiMH 0.5A 9.6V D > C 004:04 00034

Once cycling has commenced, the charger will display the following real-time information: battery type, charging/ discharging current, battery voltage, working mode,elapsed time and charged/discharged capacity. You will also see “D>C“ or “C>D“. This will indicate which cycling order you have chosen. Either “D“ or “C“ will be flashing. This flashing indicates which part of the cycle is currently being executed.

Once the cycling process is complete, the screen will read “END: CYCLE” and the charger will emit a ringing sound. The e680 will display the charged/discharged capacity for each cycle. Using the + and - buttons, you can scroll through this data for each cycle.

e680

19 ·

Pb Lead-acid Battery Program

Additional NiMH/NiCd Process Information:

During the NiMH/NiCd battery charging/discharging process the e680 can display a variety of information. Using the INC or DEC buttons, you can also view the following information:

NiMH Sensitivity D.Peak 4mV/CELL

Delta Peak Voltage Sensitivity setting

In Power Voltage

12.56V

Input Voltage

Ext. Temp ---Int. Temp 37 C

Safety Timer ON 200min

External*/ internal temperature

Safety timer setting

Temp Cut-off

50 C/122 F

Capacity Cut-Off ON 5000mAh

Temperature cut-off

Capacity limit setting

Pb Lead-Acid Battery Program

Pb (Lead-Acid):

BATT/PROGRAM Pb BATT

Pb Charge Mode:

After selecting the correct battery type, use the INC or DEC button to change it to the “CHARGE“ mode. Press the START button and the amp rate value will begin flashing. Use the INC or DEC buttons to adjust the value to the desired charge rate. The amp rate should be set to 1/10th of capacity. For example, if you are charging a 20Ah battery the charge rate should be set to 2A. Follow the instructions provided on your battery when setting the amp rate.

· 20

This program is only suitable for charging Pb(lead-acid) batteries with nominal voltage ranging from 2 to 20V which are significantly different from NiMH/NiCd batteries. Pb batteries are suggested to charge with a low current of 0.1C and cannot be used for fast charging. Please follow the instructions provided by the battery manufacturer.

The e680 offers the following Pb charge modes: Charge, AGM, COLD and Discharge.

e680

Pb Lead-acid Battery Program

Pb Charge

1.5A 12.0V(6P)

Press the START button again and the nominal battery pack voltage will begin flashing. Use the INC or DEC button to set the voltage and the number of cells. Press and hold the START button for 3 seconds to start charging.

P-6 1.5A 13.56V CHG 002:22 00106

Once charging has commenced, the charger will display the following real-time information: battery type, charging current, battery voltage, working mode, elapsed time and charged capacity. When charging is complete, the screen will read “FINISHED” and the charger will emit a ringing sound.

Pb AGM CHARGE Mode: After selecting the correct battery type, use the INC or DEC button to change it to the “AGM CHARGE“ mode. Press the START button and the amp rate value will begin flashing. Use the INC or DEC buttons to adjust the value to the desired charge rate. The amp rate should be set to 1/10th of capacity. For example, if you are charging a 20Ah battery the charge rate should be set to 2A. Follow the instructions provided on your battery when setting the amp rate.

Pb AGM CHG

1.5A 12.0V(6P)

P-6 1.5A 13.56V CHG 002:22 00106

Pb Cold CHARGE Mode:

Pb COLD CHG

1.5A 12.0V(6P)

e680

21 ·

Pb Lead-Acid Battery Program

P-6 1.5A 13.56V CHG 002:22 00106

Pb Discharge Mode:

After selecting the correct battery type, use the INC or DEC buttons to change it to the “DISCHARGE“ mode. Press the START button and the amp rate value will begin flashing. Use the INC or DEC buttons to adjust the value to the desired discharge rate. Follow the instructions provided with your battery when setting the amp rate.

Pb Discharge

1.5A 12.0V(6P)

Press the START button again and the nominal battery pack voltage will begin flashing. Use the INC or DEC buttons to set the voltage and the number of cells. Press and hold the START button and discharging will begin.

P-6 1.0A 13.56V DCH 005:10 00964

Once discharging has commenced, the charger will display the following real-time information: battery type, cell count, discharging current, battery voltage, elapsed time and discharged capacity. When discharging is complete, the screen will read “FINISHED” and the charger will emit a ringing sound.

Additional Pb Process Information:

During the Pb battery charging/discharging process the e680 can display a variety of information. Using the INC or DEC buttons you can also view the following information:

Capacity Cut-Off ON 5000mAh

Temp Cut-off 50 C

In Power Voltage

12.56V

Capacity cutoff setting

Temperature cut-off

Input voltage

Safety Timer ON 200min

Ext. Temp ---Int. Temp 37 C

Safety timer setting

External*/ internal temperature

· 22

e680

Dji Mavic Battery Program

This charger is capable of charging, storage DJI Mavic smart battery.

Charging Mode

Connect the battery to the charger as show on the diagram. Mavic charging cable(SK-600023-

06) is not included in the package. You need purchase it separately. Turn ON the battery before you put it in charging mode.

Note: Mavic charging cable is not included in the package

CONNECTION DIAGRAM

Press the Power Button once Press Again and Hold

for 2 Seconds to Turn On

BATT/PROGRAM DJI Mavic BATT

LH3S CHARGE TURN ON BATTERY

Click +/- to locate DJI Mavic BATT program

Click ENTER to get into CHARGE mode

Press and hold START/ENTER for 3 seconds to start the program.

Storage Mode

When the battery is idle for more than ten days. It is better to discharge the battery to 65% of total power in order to prevent swelling. If the battery level is below 65%(15.6V), you need recharge it to 65%.

Turn ON the battery before you put it in storage mode.

BATT/PROGRAM DJI Mavic BATT

e680

Click +/- to locate DJI Mavic BATT program

23 ·

DC Power Supply

LH3S CHARGE TURN ON BATTERY

LH3S STORAGE TURN ON BATTERY

Click +/- to locate STORAGE mode

Press and hold START/ENTER for 3 seconds to start the program.

DC Power Supply

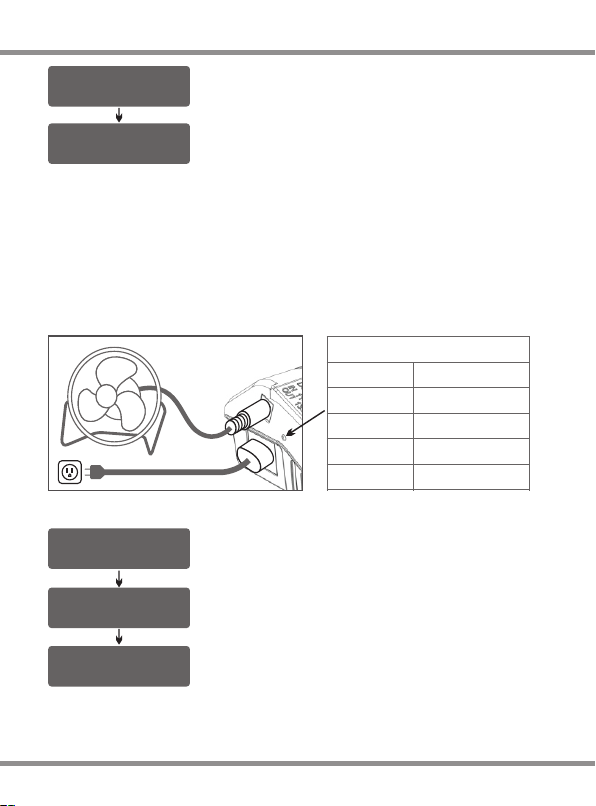

To use e680 as a power supply, the user must connect it to AC power source. When the green LED on the left side turns on, then the user is free to use the power supply, the power of DC output is adjustable from 10W to 80W. The output voltage is 13.8V. The power of DC output is shared with charger power. When you increase the power of DC output, the charger power will be decreased accordingly. (DC Power + Charger Power = 80 Watts)

DC Fan

BATT/PROGRAM SYSTEM SETTING->

ENTER

DC SUPPLY: OFF CHARGE POWER: 80W

ENTER

DC SUPPLY: 25W CHARGE POWER: 35W

Press the ENTER to enter the DC Power Supply program

Select the power of DC output.

Press ENTER, the power value will blink, click +/to allocate the power.

Caution: The maximum DC Power output is 80 Watts. Please check your device loading before you allocate the power.

EXPLANATION OF LED STATUS

OFF

Green

Yellow

Red

Red Blinking

DC Power Off

0-50% Loading

51-75% Loading

76-100% Loading

Over Load

· 24

e680

Battery Memory Set and Call Out

The charger can store up to 10 different charge/discharge profiles for your convenience, and the stored profiles can be recalled quickly without having to go through the setup process. When you are willing to alter the parameter value in the program, press START/ENTER to make it blink then change the value with INC or DEC. The value will be stored by pressing START/ENTER once. Note: All following screen are taking 2S(7.4V) LiPo battery for example.

1. Battery Memory Set

[ BA T T M E MO R Y 1 ] EN T E R S ET - >

STA RT/ EN TE R

BA T T T Y PE Li P o

DEC IN C

BA T T V O LT S

7. 4 V ( 2 S )

DEC IN C

CH A R G E CU R R E NT

4. 9 A

DEC IN C

DS C H C U RR E N T

2. 0 A

DEC IN C

DS C H V O LT A G E

3. 0 V / CE L L

DEC IN C

TV C = Y OU R R I S K

4. 2 0 V

DEC IN C

SA V E P R OG R A M EN T E R

STA RT/ EN TE R

Enter the battery memory program. (10 different charge/discharge profiles can be stored).

Set the battery type(LiPo/LiHV/LiFe/LiIon/NiMH/NiCd/Pb).

Set the voltage and number of cells(1-6S).

Set the charge current(0.1-8.0A).

Set the discharge current (0.1A-2.0A).

Set the discharge voltage(3.0-3.3V/Cell).

Set the terminal voltage(4.18-4.25V).

Press ENTER to save program.

e680

25 ·

Battery Memory Set and Call Out

SA V E P R OG R A M SA V E .

[ BA T T M E MO R Y 1 ] Li P o  7 . 4V ( 2 S )

[ BA T T M E MO R Y 1 ] C: 4 . 9 A D: 2 . 2 A

START/ENTER >3 Seconds

EN T E R C HA R G E R LO A D

Li P o B A LA N C E C H G

4. 9 A 7 . 4V ( 2 S )

Indicate the battery type and battery cell of the saved profile.

Indicate the charge and discharge current of the saved profile. Press the START/ENTER for 3 seconds to call out the memory.

2. Battery Memory Call Out

Load the memory set

Press START/ENTER for 3 seconds to start the process.

· 26

e680

System Setting

It will be operated with the default value of the essential user settings when it is powered on for the first time.The screen displays the following information in sequence and the user can change the value of parameter on each screen. When you are willing to alter the parameter value in the program, press START/ENTER to make it blink then change the value with INC or DEC. The value will be stored by pressing START/ENTER once.

ITEM

DC S U P P LYC H A R G E PO W E R ON 8 0 W

Sa f e t y Ti m e r ON 1 2 0 M in

Ca p a c it y C u t - Of f ON 5 0 0 0 mA H

Te m p C u t- O f f ON 5 0 C 12 2 F

Te m p e ra t u r e U ni t Ce l s i us

Re s t T i me CH G > D CH G 1 0 M i n

e680

SELECTION DESCRIPTION

The total power for DC SUPPLY and

DC SUPPLY: 10-80W CHARGE POWER: 0-80W

OFF/ ON (1-720 Min)

OFF/ ON (100-50000 mAh)

OFF/ ON (20 C/68 F 80 C/176 F)

Celsius Fahrenheit

1-60Min

CHARGE POWER is 80W. You could set th e DC sup pl y man ua l ly a nd the C H A R GE P OW E R w i l l b e s e t aut om at ic al ly(DC P ow er + Charge r Power = 80 Watts).

When you start a charge process, the integral safety timer automatically starts runn ing at the sa me time. This is programmed to prevent overcharge the battery if it proves to be faulty, or if the termination circuit cannot detect the battery full. The value for the safety timer should be generous enough to allow a full charge of the battery.

This program sets the maximum charge capacity that will be supplied to the battery during charge. If the delta peak voltage is not detected nor the safety timer expired by any reason, this feature will automatically stop the process at the selected capacity value.

The battery's internal chemical reaction will cause the temperature of the battery to rise. If the temperature limit is reached, the process will be terminated.

You c an cho o se the t e mp era tu r e displayed by Celsius or Fahrenheit as you like.

A rest time allowing the battery to cool dow n betw ee n char gi ng/di sc ha rg in g cycle.

27 ·

System Setting

ITEM

Ni M HS e ns i t i v it y D. P e a k De f a u l t

Ni C dS e ns i t i v it y D. P e a k De f a u l t

Ke y B e e p ON Bu z z e r ON

DC I n p u t Lo w Cu t - O ff  1 1 . 0 V

Lo a d F a ct o r y S e t En t e r

Ve r s i on HW : 1 . 00 F W : 1 . 1 0

SELECTION DESCRIPTION

This program is for NiMH/NiCd battery

Default: 4mV/Cell 3-15mV/Cell

OFF/ON

10-1 2V

only. When the charger detects the delta peak value reaches the value you set, the charger will say the battery is fully charged.

The beep sounds at every time touching the buttons to confirm your action. The beep or melody sounded at various times during operation to alert different mode changes.

There will be error message when DC input voltage is lower than the reset value.

Press ENTER to load factory default setting.

It indicates the hardware and firmware version.

· 28

e680

Battery Voltage Meter

The user can check battery's total voltage, the highest voltage, the lowest voltage and each cell's voltage.

Please connect the battery to the charger main battery lead to battery socket and balance wires to balance socket.

4.19 4.15 4.18V

4.15 4.19 4.18V

Lithium Battery Pack

This diagram shows the correct way to connect your battery to check the voltage.

B A T T/ P R O G R A M B AT T M E T E R

4 . 2 0 4. 1 9 4 . 1 9 V 4 . 1 8 4. 1 8 4 . 1 9 V

M A I N 25 . 1 3 V H 4 . 20 0 V L 4 . 1 8 2 V

e680

START ENT ER

IN C

Press the START/ENTER to enter the Lithium Battery Meter program.

The screen indicate each cell's voltage.

The screen indicate the total voltage, the highest voltage and the lowest voltage.

29 ·

Battery Resistance Meter

The user can check battery's total resistance, the highest resistance, the lowest resistance and each cell's resistance.

Please connect the battery to the charger main battery lead to battery socket and balance wires to balance socket.

00 5 00 3 00 3 mΩ

Lithium Battery Pack

This diagram shows the correct way to connect your battery to check the resistance.

B A T T/ P R O G R A M B A T T RE S I S T A N C E

Sta rt Ent er

0 1 2 00 5 0 0 5 mΩ

0 0 6 mΩ

IN C

T AT A L :2 8 mΩ

H :12 mΩ L :5 mΩ

· 30

Press the START/ENTER to enter the Lithium Battery Resistance program.

The screen indicate each cell's resistance.

The screen indicate the total resistance, the highest resistance and the lowest resistance.

e680

Warning And Error Message

In case of an error the screen will display the cause of error and emit an audible sound.

Incorrect polarity connected.

The battery is interrupted.

CO N N E CT E R R O R CH E C K M AI N P O R T

BA L A N CE C O N N E CT ER R O R

DC I N T O O L OW

DC I N T O O H IG H

CE L L E R RO R LO W V O L TA G E

CE L L E R RO R HI G H V O LT A G E

CE L L E R RO R VO L T A GE - I N V AL I D

CE L L N U MB E R IN C O R RE C T

IN T . T EM P . T O O HI

EX T . T EM P . T O O HI

OV E R C H AR G E CA P A C IT Y L I M I T

OV E R T I ME L I M I T

BA T T E RY W A S F U L L

NO P O W E R DI S T R IB U T E D

Thebattery connection is wrong.

Thebalanceconnectiswrong.

Input voltage less than 11V.

Input voltage higher than 18V.

Voltage of one cell in the battery pack is too low.

Voltage of one cell in the battery pack is too high.

Voltage of one cell in the battery pack is invalid.

The cell number is wrong.

The internal temperature of the unit goes too high.

The external temperature of the battery goes too high.

The battery capacity is more than the maximum capacity which the user sets.

The charging time is longer than the maximum charging time which the user sets.

The battery voltage is higher than the maximum voltage which the user sets when charging in balance mode.

No power allocate to the charger.

e680

31 ·

The Set Contains

THESETCONTAINS

1. SKYRC e680 Charger

2. Power Cord

3. XT60 Connector Charging Cable

4. DC Cable with Alligator Clip Connector

5. XH Adaptor

· 32

2 3

4 5

e680

Recommended Accessories

e680

DC Power Distributor

SK-600114-02

DJI Mavic charging cable

SK-600023-06

EC3 charging cable

5201-0034-01

JST/BEC charging cable

5201-0043-01

Temperature Sensor

SK-600040-01

Tamiya charging cable

5201-0030-01

Crocodile clip charging cable

5201-0031-01

Dean charging cable

5203-0016-01

33 ·

Specification

DC Input Voltage:11-18V AC Input Voltage : 100-240V Display Type: 2x16 LCD Display Backlight: Blue Case Material: Plastic Controls: Four Buttons Case Size: 135x110x60mm Weight: 390g External Port: 1-6S Balance Socket-XH, Temperature Probe Socket, Battery Socket, DC Input. Delta Peak Detection for NiMH/NiCd: 3-15mV/cell / Default: 4mV/cell Battery Cutoff Temperature: 20ºC/68ºF-80ºC/176ºF(adjustable) Charge Voltage: NiMH/NiCd: Delta peak detection  LiPo: 4.18-4.25V/cell LiHV:4.25-4.35V/cell LiFe: 3.58-3.7V/cell LiIon: 4.08-4.2V/cell DJI:13.05V

Balance Current: 300mA/cell Reading Voltage Range: 0.1-26.1V/cell Battery Types/Cells: LiPo/LiHV/LiFe/LiIon: 1-6cells NiMH/NiCd: 1-15cells  Pb: 2-20V DJI:3cells(LiHV) Battery Capacity Range: NiMH/NiCd: 100-50000mAh LiPo/LiHV/LiFe/LiIon: 100-50000mAh Pb: 100-50000mAh Charge Current: 0.1A-8.0A Safety Timer: 1-120minutes off Charge Wattage: 80W Discharge Current: 0.1A-2.0A Discharge Cut-off Voltage: NiMH/NiCd: 0.1-1.1V/cell LiPo: 3.0-3.3V/cell LiHV: 3.1-3.4V/Cell LiFe: 2.6-2.9V/cell LiIon: 2.9—3.2V/cell Pb: 1.8-2.0V/cell Discharge Wattage: 10W Balance Cells: 2-6 cells Memory: 10 different charge/discharge profiles Charge Method: CC/CV for lithium types and lead (Pb) batteries Delta-peak Sensitivity for NiMH/NiCd.

Pb Normal:2.4V/cell Pb AGM:2.45V/cell Pb Cold:2.45V/cell

· 34

e680

Conformity Declaration

SkyRC e680 satisfy all relevant and mandatory EC directives and FCC Part 15 Subpart B.

EN 55014-1:2017 Electromagnetic compatibility

EN 55014-2:2015 Electromagnetic compatibility

EN 61000-3-2:2014 Electromagnetic compatibility (EMC)

EN 61000-3-3:2013 Electromagnetic compatibility (EMC)

EN 60335-2-29:2004+A2:2010+ A11:2018 to be used in conjunction with EN 60335-1:2012+A11:2014+ A13:2017

FCC Rules Part 15 Subpart B

Requirements for Household Appliances, electric tools, and similar apparatus –Part 1: Emission

Requirements for Household Appliances, electric tools, and similar apparatus – Part 2: ImmunityProduct family standard

Part 3-2: Limits-Limits for harmonic current emissions (equipment input current up to and including 16 A per phase

Part 3-3: Limits - Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current ≤ 16 A per phase and not subject to conditional connection

Safety of household and similar electrical applicances

Unintentional Radiators

This symbol means that you must dispose of electrical from the General

household waste when it reaches the end of its useful life. Take your charger to

your local waste collection point or recycling centre. This applies to all countries of the European Union, and to other European countries with a separate waste collection system.

e680

35 ·

Commonly Used Terms

Commonly used terms

Final charge voltage: the voltage at which the battery's charge limit (capacity limit) is reached. The charge process switches from a high current to a low maintenance rate (trickle charge) at this point. From this point on further high current charging would cause overheating and eventual terminal damage to the pack.

Final discharge voltage: the voltage at which the battery's discharge limit is reached. The chemical composition of the batteries determines the level of this voltage. Below this voltage the battery enters the deep discharge zone. Individual cells within the pack may become reverse polarized in this condition, and this can cause permanent damage.

A, mA: unit of measurement relating to charge or discharge current.1000 mA = 1 A (A=Ampere,mA=Milliampere)

Ah, mAh: unit of measurement for the capacity of a battery (Amperes x time unit; h = hour). If a pack is charged for one hour at a current of 2 A, it has been fed 2 Ah of energy. It receives the same quantity of charge (2 Ah) if it is charged for 4 hours at

0.5 A, or 15 minutes (=1/4 h) at 8 A. 'C'-rating: Capacity is also referred to as the 'C' rating. Some battery suppliers

recommend charge and discharge currents based on the battery 'C' rating. A battery's '1C' current is the same number as the battery's rated capacity number, but noted in mA or amps. A 600mAh battery has a 1C current value of 600mA, and a 3C current value of (3 x 600mA) 1800mA or 1.8A. The 1C current value for a 3200mAh battery would be 3200mA (3.2A).

Nominal voltage(V): The nominal voltage of the battery pack can be determined as follows;

-.NiCd or NiMH: multiply the total number of cells in the pack by 1.2. A 8-cell pack will have a nominal voltage of 9.6 volts (8x1.2).

-.LiPo: multiply the total number of cells in the pack by 3.7. A 3-cell LiPo wired in series will have a nominal voltage of 11.1 volts (3x3.7).

-.LiIo: multiply the total number of cells in the pack by 3.6. A 2-cell LiIo wired in series will have a nominal voltage of 7.2 volts (2x3.6).

-.LiFe: multiply the total number of cells in the pack by 3.3. A 4-cell LiIo wired in series will have a nominal voltage of 13.2 volts (4x3.3). If the nominal voltage of the battery is not printed on the battery's label, consult your battery manufacturer or supplier. Do not guess the rated voltage of battery.

· 36

e680

Warranty and Service

Liability exclusion

This charger is designed and approved exclusively for use with the types of battery stated in this Instruction Manual. SkyRC accepts no liability of any kind if the charger is used for any purpose other than that stated. We are unable to ensure that you follow the instructions supplied with the charger, and we have no control over the methods you employ for using, operating and maintaining the device. For this reason we are obliged to deny all liability for loss, damage or costs which are incurred due to the incompetent or incorrect use and operation of our products, or which are connected with such operation in any way.Unless otherwise prescribed by law, our obligation to pay compensation, regardless of the legal argument employed, is limited to the invoice value of those SkyRC products which were immediately and directly involved in the event in which the damage occurred.

Warranty and service

THIS WARRANTY IS ONLY VALID IN THE COUNTRY OF PURCHASE AND

THROUGH FORMAL DISTRIBUTOR.

We guarantee this product to be free of manufacturing and assembly defects for a

period of one year from the time of purchase. The warranty only applies to material

or operational defects, which are present at the time of purchase. During that period,

we will repair or replace free of service charge for products deemed defective due to

those causes.

For any repair or replace service, please contact your dealer in the first instance,

who is responsible for processing guarantee claims. This warranty is not valid for any

damage or subsequent damage arising as a result of misuse, modification or as a

result of failure to observe the procedures outlined in this manual.

e680

37 ·

This content is subject to change.

Latest version can be downloaded from www.skyrc.com

All specifications and figures are subject to change without notice. Printed in China 2019.03

7504-1138-02

SKYRC SK-100149, e680 User guide

Specifications and Main Features

Frequently Asked Questions

User Manual
