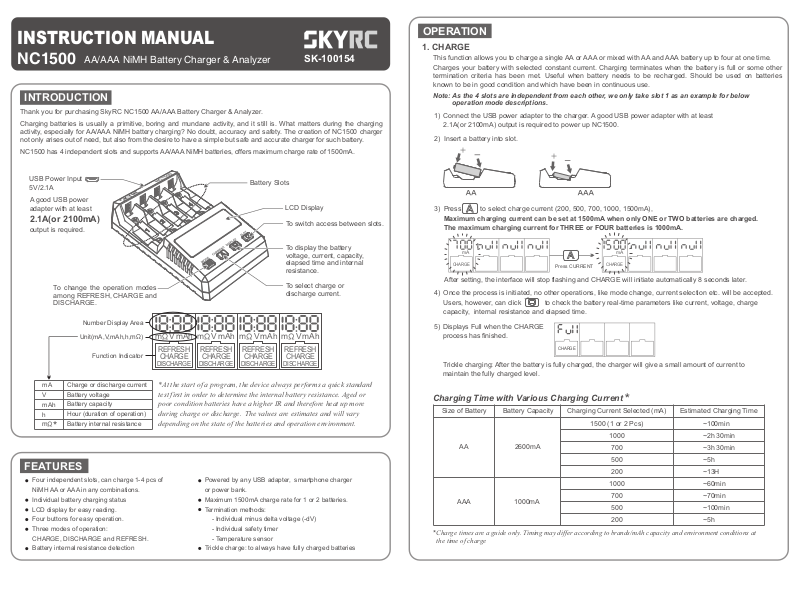

INSTRUCTIONMANUAL

NC1500

AA/AAA NiMH Battery Charger & Analyzer

INTRODUCTION

Thank you for purchasing SkyRC NC1500 AA/AAA Battery Charger & Analyzer.

Charging batteries is usually a primitive, boring and mundane activity, and it still is. What matters during the charging activity, especially for AA/AAA NiMH battery charging? No doubt, accuracy and safety. The creation of NC1500 charger not only arises out of need, but also from the desire to have a simple but safe and accurate charger for such battery.

NC1500 has 4 independent slots and supports AA/AAA NiMH batteries, offers maximum charge rate of 1500mA.

SK-100154

OPERATION

1. CHARGE

This function allows you to charge a single AA or AAA or mixed with AA and AAA battery up to four at one time. Charges your battery with selected constant current. Charging terminates when the battery is full or some other

termination criteria has been met. Useful when battery needs to be recharged. Should be used on batteries known to be in good condition and which have been in continuous use.

Note: As the 4 slots are independent from each other, we only take slot 1 as an example for below operation mode descriptions.

Connect the USB power adapter to the charger. A good USB power adapter with at least

2.1A(or 2100mA) output is required to power up NC1500.

Insert a battery into slot.

USB Power Input 5V/2.1A

A good USB power adapter with at least

2.1A(or 2100mA)

output is required.

To change the operation modes among REFRESH, CHARGE and DISCHARGE.

Number Display Area

Unit(mA,V,mAh,h, )

Charge or discharge current

Battery voltage

Battery capacity

mAh

Hour (duration of operation)

Battery internal resistance

Function Indicator

FEATURES

Four independent slots, can charge 1-4 pcs of

NiMH AA or AAA in any combinations.

Individual battery charging status

LCD display for easy reading.

Four buttons for easy operation.

Three modes of operation:

CHARGE, DISCHARGE and REFRESH.

Battery internal resistance detection

BatterySlots

LCD Display

To switch access between slots.

To display the battery voltage, current, capacity, elapsed time and internal resistance.

To select charge or discharge current.

m V mAh

REFRESH

CHARGE

DISCHARGE

m V mAh

REFRESH

CHARGE

DISCHARGE

m V mAh

REFRESH

CHARGE

DISCHARGE

m V mAh

REFRESH

CHARGE

DISCHARGE

*At the start of a program, the device always performs a quick standard test first in order to determine the internal battery resistance. Aged or poor condition batteries have a higher IR and therefore heat up more during charge or discharge. The values are estimates and will vary depending on the state of the batteries and operation environment.

or power bank.

Maximum 1500mA charge rate for 1 or 2 batteries.

Termination methods:

- Individual minus delta voltage (-dV)

- Individual safety timer

- Temperature sensor

Trickle charge: to always have fully charged batteries

Press to select charge current (200, 500, 700, 1000, 1500mA),

Maximum charging current can be set at 1500mA when only ONE or TWO batteries are charged. The maximum charging current for THREE or FOUR batteries is 1000mA.

CHARGE

After setting, the interface will stop flashing and CHARGE will initiate automatically 8 seconds later.

Once the process is initiated, no other operations, like mode change, current selection etc. will be accepted. Users, however, can click to check the battery real-time parameters like current, voltage, charge capacity, internal resistance and elapsed time.

Displays Full when the CHARGE process has finished.

Trickle charging: After the battery is fully charged, the charger will give a small amount of current to maintain the fully charged level.

Press CURRENT

CHARGE

Charging Time with Various Charging Current

Size of Battery

AAA

Charge times are a guide only. Timing may differ according to brands/mAh capacity and environment conditions at the time of charge

Battery Capacity

2600mA

1000mA

Charging Current Selected (mA)

1500 (1 or 2 Pcs)

1000

700

500

200

1000

700

500

200

Estimated Charging Time

~100min

~2h 30min

~3h 30min

~5h

~13H

~60min

~70min

~100min

~5h

2. DISCHARGE

Useful for analyzing the remaining amount of electric charge stored in the battery.

Insert a battery into slot.

Press to select DISCHARGE mode;

Press to select discharge current (100, 250, 350, 500, 650mA),

DISCHARGE

Press CURRENT

DISCHARGE

Recharges the battery to Full. Displays as shown on the right:

Displays Full when the REFRESH process has finished.

REFRESH

CHARGE

REFRESH

Charge Four Batteries With Different Modes at Same Time

Scan to watch

Example:

Two batteries at charge mode, one at discharge mode and one at refresh mode.

After setting, the interface will stop flashing and DISCHARGE will initiate automatically 8 seconds later.

Once the process is initiated, no other operations, like mode change, current selection etc. will be accepted. Users, however, can click to check the battery real-time parameters like current, voltage, discharge capacity, internal resistance and elapsed time.

Displays End when the DISCHARGE process has finished.

DISCHARGE

3. REFRESH

First charges the battery, rest for one hour, discharges, rest, then recharges again. This function reduces the memory effect and re-activates rechargeable batteries that have been unused for a long period of time. Also useful when the battery capacity needs to be determined.

What is memory effect: It describes the situation in which rechargeable batteries gradually lose their maximum energy capacity if they are repeatedly recharged after being only partially discharged. REFRESH may bring the rechargeable battery back to optimum condition.

Insert a battery into slot.

Press to select REFRESH mode;

Press to select charge current (200, 500, 700, 1000, 1500mA). Discharge current will be half of charging current selected.

REFRESH

Press CURRENT

After setting, the process will initiate automatically 8 seconds later. It will stop flashing and enter into CHARGE process.

When the CHARGE process finishes, the slot will rest for an hour and displays as shown on the right:

Starts DISCHARGE routine after resting. Displays as shown on the right:

Rests for another hour after the DISCHARGE process has finished. Displays as shown on the right:

REFRESH

DISCHARGE

REFRESH

SPECIFICATION

USB Input Power:

Operation Mode:

Charge Current:

Discharge Current:

Max Charging Capacity:

5V/2.1A

CHARGE, DISCHARGE and REFRESH

200mA / 500mA / 700mA / 1000mA / 1500mA

100mA / 250mA / 350mA / 500mA / 650mA

3000 mAh

Trickle Current:

Operating Temperature:

Size:

Net Weight:

50mA

0 ~ 45 ℃

108*73*28mm

106g

CAUTION

The charger is restricted to charging NiMH rechargeable battery only.

Never adapt this charger to other types of batteries such as alkaline, lithium, carbon zinc.

Never charge or discharge any battery having evidence of leakage or damage.

Do not expose the device to direct sunlight, heating devices, open flames; avoid extreme high or extreme low ambient temperatures and sudden temperature changes.

Operate on a hard flat nice clean smooth heat-resistant noninflammable nonconductive surface in a wellventilated area. Never place the device on a carpet, or similar.

Keep all the inflammable volatile substances away from operating area.

Avoid mechanical vibration or shock as these may cause damage to the device.

Do not short-circuit slots or other parts of the device. Do not allow metal wires or other conductive material into the charger.

WARRANTY AND SERVICE

THIS WARRANTY IS ONLY VALID IN THE COUNTRY OF PURCHASE AND THROUGH FORMAL DISTRIBUTOR.

We guarantee this product to be free of manufacturing and assembly defects for a period of one year from the time of purchase. The warranty only applies to material or operational defects, which are present at the time of purchase. During that period, we will repair or replace free of service charge for products deemed defective due to those causes.

For any repair or replace service, please contact your dealer in the first instance, who is responsible for processing guarantee claims. This warranty is not valid for any damage or subsequent damage arising as a result of misuse, modification or as a result of failure to observe the procedures outlined in this manual.

SKYRC TECHNOLOGY CO., LTD.

www.skyrc.com

All specifications and figures are subject to change without notice.

Printed in China 201 .029

7504-1161-01
