SKYPOINT TINY-W3, TINY-PLUS, TINY-WBF, TINY-7 User Manual

P INTSPY INTPSPY
TINY
v1.9
USER MANUAL
Models:
TINY-W3 TINY-WBF TINY-PLUS TINY-7
WIRELESS TRAIL CAMERA
1-888-779-7646support.spypoint.com

tech@spypoint.com
P INTSPY INTPSPY
THANK YOU FOR CHOOSING A SPYPOINT PRODUCT.
This manual will guide you through all the features of your device so that you will get optimal use out of your SPYPOINT product.
Our priority is to provide outstanding customer service. If you need support for your product, please contact the SPYPOINT technical support or visit our website.
CONTACT
1-888-779-7646
tech@spypoint.com
www.spypoint.com
ABOUT US
GG Telecom’s mission is to offer products that are easy to use, innovative, affordable and of exceptional quality.
Our SPYPOINT products are mainly used for hunting and residential/commercial surveillance. They are distributed and shipped all over the world and the market never stops growing. Prosperous and respected, GG Telecom is a company that constantly keeps abreast of new technologies and listens to its customers to deliver cutting-edge products with practical solutions that improve hunting and outdoor activities.
JOIN THE SPYPOINT COMMUNITY



NON-CELLULAR CAMERAS
Visit mySPYPOINT.com to create your free basic account.
facebook.com/SPYPOINT twitter.com/SPYPOINTcamera youtube.com/SPYPOINTtrailcam
CELLULAR CAMERAS
Visit mySPYPOINT.com to learn more about the different accounts available.
For the latest version of the activation procedure, go to support.spypoint.com/activation.
mySPYPOINT.com is an online camera & photo management system. This incredible tool for hunters is available for all SPYPOINT cameras.
3
Package contents ....................................................................... 4
Components
Camera ........................................................................................ 5
Receiver
(BLACKBOX) ...................................................................... 7
Controller
(BLACKBOX-D).................................................................. 8
Power
Camera ........................................................................................ 9
Receiver
(BLACKBOX) .................................................................... 10
Controller
(BLACKBOX-D)................................................................ 11
Memory card
Camera ...................................................................................... 14
Receiver
(BLACKBOX) .................................................................... 13
Controller
(BLACKBOX-D)................................................................ 20
BUSY LED
Camera ...................................................................................... 14
Controller
(BLACKBOX-D)................................................................ 20
Antenna installation (TINY-PLUS) ................................................. 14
Settings (camera) ........................................................................ 15
Setup
Receiver
(BLACKBOX) .................................................................... 21
Controller
(BLACKBOX-D)................................................................ 23
Sound recording
(camera) ........................................................... 26
External triggering (camera) ....................................................... 26
File transfer to a computer
Camera ...................................................................................... 27
Receiver
(BLACKBOX) .................................................................... 28
Controller
(BLACKBOX-D)................................................................ 28
Troubleshooting
Camera ...................................................................................... 29
Receiver
(BLACKBOX) .................................................................... 31
Controller
(BLACKBOX-D)................................................................ 32
Error messages
Camera ...................................................................................... 30
Controller
(BLACKBOX-D)................................................................ 32
Available accessories
Camera ...................................................................................... 33
Receiver
(BLACKBOX) .................................................................... 35
Controller
(BLACKBOX-D)................................................................ 36
Specications
TINY-W
3
..................................................................................... 37
TINY-W
BF
.................................................................................... 39
TINY-PLUS .................................................................................. 41
TINY-7 ....................................................................................... 42
Regulation ................................................................................ 43
Limited warranty ...................................................................... 44
Repair service ........................................................................... 44
Table of contents
TINY
4
USB
cable
Audio-video
cable
Installation strap
(TINY-7, TINY-PLUS)
Camera
(TINY-7)
Camera (TINY-PLUS,
TINY-WBF, TINY-W3)
BLACKBOX receiver
(TINY-WBF)
BLACKBOX-D controller
(TINY-W3)
Installation straps
(TINY-WBF, TINY-W3)
Quick start guide
(camera)
Quick start guide
WIRELESS TRAIL CAMERA SYSTEM
Models:
TINY-PLUS TINY-W
BF
TINY-W
3
TINY-7
P INTSPY INTPSPY
v1.5
1-888-779-7646
support.spypoint.com

tech@spypoint.com
TINY
In the box
Components
* TINY-WBF ** TINY-W3
Installation
strap
USB
cable
Camera
Quick start
guide
BLACKBOX-D**
BLACKBOX*
Audio-video
cable
BUSY LED Navigation buttons Viewing screen Battery switch Microphone SD card slot Removable battery holder
USB port 12V/Solar panel jack External trigger jack TV OUT
Photo lens Antenna (W
BF/W3
)
Invisible LEDs Test light Side sensors (2) Detection lens
(in front of the central
sensor)
Cable lock hole Tripod mount Slot for installation strap Power button
1 2 3 4 5 6
7 8 9
10
11
12 13
14
15
16
17
18
19
21
20
3 4 5
6
1 2
1914 161715 18
20 21
8
7 9
11
12
13
10
1. CHOOSE A POWER SOURCE
We recommend the use of new batteries to ensure a maximum performance of the camera. Rechargeable AA batteries are not
recommended.
Battery switch position (depending on the power source)
Power source Battery switch position
6 AA
12V
12V + 6 AA
ALK
LIT-09*
12V + LIT-09*
Solar panel + LIT-09*
RECH
* Rechargeable lithium battery pack, sold separately (LIT-09) or with
a charger (LIT-C-8).
Getting started
6 alkaline AA batteries
Lithium battery pack
LIT-09/LIT-C-8
Connectors Connectors
Insert connectors
rst
2. INSTERT THE MEMORY CARD
Insert an SD/SDHC memory card (up to 32 GB capacity) in the card slot, gold contacts facing up. The card is inserted correctly when a click is heard.
Before inserting or removing a memory card, always turn off the camera to prevent loss or damage of the photos already
recorded.
Quick start guide
(TINY-W
BF
receiver,
TINY-W3 controller)
Quick start guide
Wireless backup system
v1.4
P INTSPY INTPSPY
Models:
BLACKBOX
TM
(receiver included with TINY-WBF)
BLACKBOXTM-D
(controller included with TINY-W3)
Getting started Setup of the
BLACKBOX
receiver
Complete instructions
www.spypoint.com
Setup of the BLACKBOX-D controller
Error messages
1 2 3 4 5
COMPONENTS
BLACKBOX Receiver
BLACKBOX-D Controller
3
1
2
4
5
6 7
Getting started
1
2
4
3
11
12
10
5
1
7
8
9
1 Antenna Allows wireless communication between the
BLACKBOX and the camera.
2
1)
12V power
jack
2)
Solar panel
jack
(BLACK-
BOX-D only)
1) The devices can be powered from an ex- ternal 12-volt DC input such as a 12V battery or a 12V adapter, sold separately.
2) Allows the user to connect a solar panel (SP-12V) to maintain the charge of the lithi- um battery pack (LIT-09/LIT-C-8), sold sepa- rately.
3 Slot for instal-
lation strap
Allows the user to install the device using the installation strap included.
4 Battery case Insert 6 AA batteries (alkaline or lithium).
The BLACKBOX-D controller can also be pow- ered by a rechargeable lithium battery pack (LIT-09/LIT-C-8, sold separately).
5 SD card slot An SD card is required to record photos. The
devices accept SD/SDHC memory cards, up to 32 GB (not included).
6 Test light In the minute following turning on the receiver,
the rst 8 seconds allows the user to know the
battery status by the test light. Then, for the
rest of the time, the test light ashes rapidly to
indicates the synchronization period.
7 ON/OFF Allows the user to turn on/off the device.
8 BUSY LED Lights up when the controller is recording.
9 Viewing
screen
To access the main menu, see battery level and view photos. Screen with zoom and pan functions.
10 Navigation
buttons
Buttons to set the controller.
11 TV OUT
Allows the user to view or delete the recorded
photos on a television.
12 Battery switch Allows the user to select the power source
according to the type of batteries used.
BATTERY INSTALLATION
We recommend the use of new batteries to ensure a maximum performance of the device. Rechargeable AA batteries are not
recommended.
Battery switch position (depending on the power source)
BLACKBOX-D controller only
Power source Battery switch position
6 AA
12V
12V + 6 AA
ALK
LIT-09*
12V + LIT-09*
Solar panel + LIT-09*
LIT-09
* Rechargeable lithium battery pack, sold separately (LIT-09) or with
a charger (LIT-C-8).
6 alkaline AA batteries
BLACKBOX
6 alkaline
AA batteries
Lithium battery pack
LIT-09/LIT-C-8
BLACKBOX-D
INSERTING THE MEMORY CARD
Insert an SD/SDHC memory card in the card slot (up to 32 GB capacity). The card is inserted correctly when a click is heard.
Before inserting or removing a memory card, always turn off the device to prevent loss or damage of the photos already recorded.
BLACKBOX AND CAMERA INSTALLATION:
BLACKBOX BLACKBOX-D
TREE
SIGNAL STRENGHT
1
ORIENTATION
OF THE BLACKBOX UNIT
SIGNAL
STRENGHT
2
HEIGHT
OF THE TWO DEVICES
Package content
TINY
5
Microphone Battery switch Access to the time battery SD card slot Removable battery holder USB port 12V/Solar panel jack External trigger jack TV out
Power button BUSY LED Navigation buttons Viewing screen
11
12
13
14
1 2
3
6
4 5
7
8
9
11
12
13
14
16 17 18 192021
22 23
Photos lens
Antenna
(TINY-PLUS, TINY-WBF, TINY-W3)
Invisible LEDs Test light Side sensors (2)
Fresnel lens
Light sensor
1
2
3
4 5 6 7
10
Cable lock hole Tripod mount Slot for installation strap
8 9
10
15
22
21
15
16
17
18
20
19
23
Components • Camera
TINY
6
1 Photo lens Image sensor and infrared lter. 2 Antenna
(TINY-PLUS, TINY-WBF, TINY-W3)
Allows wireless communication between the camera and a BLACKBOX (receiver/control­ler).
3 Invisible LEDs Night lighting to obtain black and white photos
and videos.
4 Test light Flashes in TEST mode when there is detec-
tion and ashes 60 seconds in PHOTO/VIDEO
mode to allow the user to leave without being photographed or recorded.
5 Side sensors (2) Allows to prepare the camera so when the
target passes through the central sensor, the system is already pre triggered. When acti­vated, the detection area is expanded.
6 Fresnel lens
(in front of the central sensor)
Expands the detection area and increases the sensitivity of the camera’s motion sensor.
7 Light sensor Allows the lighting of the LEDs panel at night. 8 Cable lock hole Allows the user to install a CL-6FT cable lock. 9 Tripod mount Standard ¼-20" tripod mount.
10 Slot for installation
strap
Allows the user to install the camera using the installation strap included.
11 Power button Press the button to turn on or off the camera. 12 BUSY LED Lights up when the camera is recording.
13 Navigation buttons Buttons to set the camera. 14 Viewing screen Allows the user to access the main menu and
view photos/videos.
15 Microphone Record sound in video mode. 16 Battery switch Allows the user to select the power source
according to the type of batteries used.
17 Access to the time
battery
Battery that keeps the time and date in memory.
18 SD card slot An SD card is required to record photos/
videos.
19 Removable battery
holder
Holder for AA batteries or a rechargeable lithium battery pack.
20 USB port To transfer photos/videos to a computer.
21 1)12V power jack
2)Solar panel jack
1)
This camera can be powered from an external 12-volt DC input such as a 12V battery or a 12V adapter, each sold sepa- rately.
2)
Allows the user to connect a solar panel (SP-12V) to maintain the charge of the lithium battery pack (LIT-09/LIT-C-8), sold separately.
22 External trigger jack 1/8” port which triggers the taking of pho-
tos or videos using a normally open contact. (Example: using a magnetic door contact connected to an alarm system).
23 TV OUT Allows the user to view or delete photos/
videos directly on TV.
Components • Camera
TINY
7
1
2
3
7
6
4
5
1 Antenna Allows wireless communication between the
BLACKBOX and the camera.
2 12V power jack The receiver can be powered from an exter-
nal 12-volt DC input such as a 12V battery or a 12V adapter, each sold separately .
3 Slot for installation
strap
Allows the user to install the receiver using the installation strap included.
4 Battery case Case for AA batteries. 5 SD card slot An SD card is required to record photos. 6 Test light Allows the user to know the battery status
and indicates the synchronization period.
7 ON/OFF Allows the user to turn on/off the device.
Components • Receiver (BLACKBOX)
TINY
8
1 BUSY LED Lights up when the controller is record. 2 Antenna Allows wireless communication between the
BLACKBOX-D and the camera(s).
3 Viewing screen Allows the user to access the main menu, see
battery level and view photos. Screen with zoom and pan functions.
4 SD card slot An SD card is required to record photos. 5 Navigation buttons Buttons to set the controller. 6 TV OUT Allows the user to view or delete the photos
directly on a television.
7 Battery switch Allows the user to select the power source
according to the type of batteries used.
8 ON/OFF Allows the user to turn on/off the device. 9 1)12V power jack
2)Solar panel jack
1)The controller can be powered from an
external 12-volt DC input such as a 12V battery or a 12V adapter, each sold separately.
2)Allows the user to connect a solar panel (SP-12V) to maintain the charge of the lithium battery pack (LIT-09/LIT-C-8), sold separately.
10 Battery case Case for AA batteries or a rechargeable lithium
battery pack.
11 Slot for installation
strap
Allows the user to install the controller using the installation strap included.
12 Access to the time
battery
(located inside the battery case)
Battery that keeps the time and date in memory.
2
1
3
4
5 6 7 8
9
10
11
12
Components • Controller (BLACKBOX-D)
TINY
9
The battery level is shown in the REPORT mode (4/4 = full, 1/4= low) and in the bottom right corner of the screen when the camera is in TEST mode.
When the battery level shows 2/4 or when a single line remains (see gure
below), the camera will continue to take photos but we strongly recommend to change the AA batteries or charge the lithium battery pack before they
are empty. If a video is being recorded and the batteries level reaches 0%, the camera saves the le before shutting down.

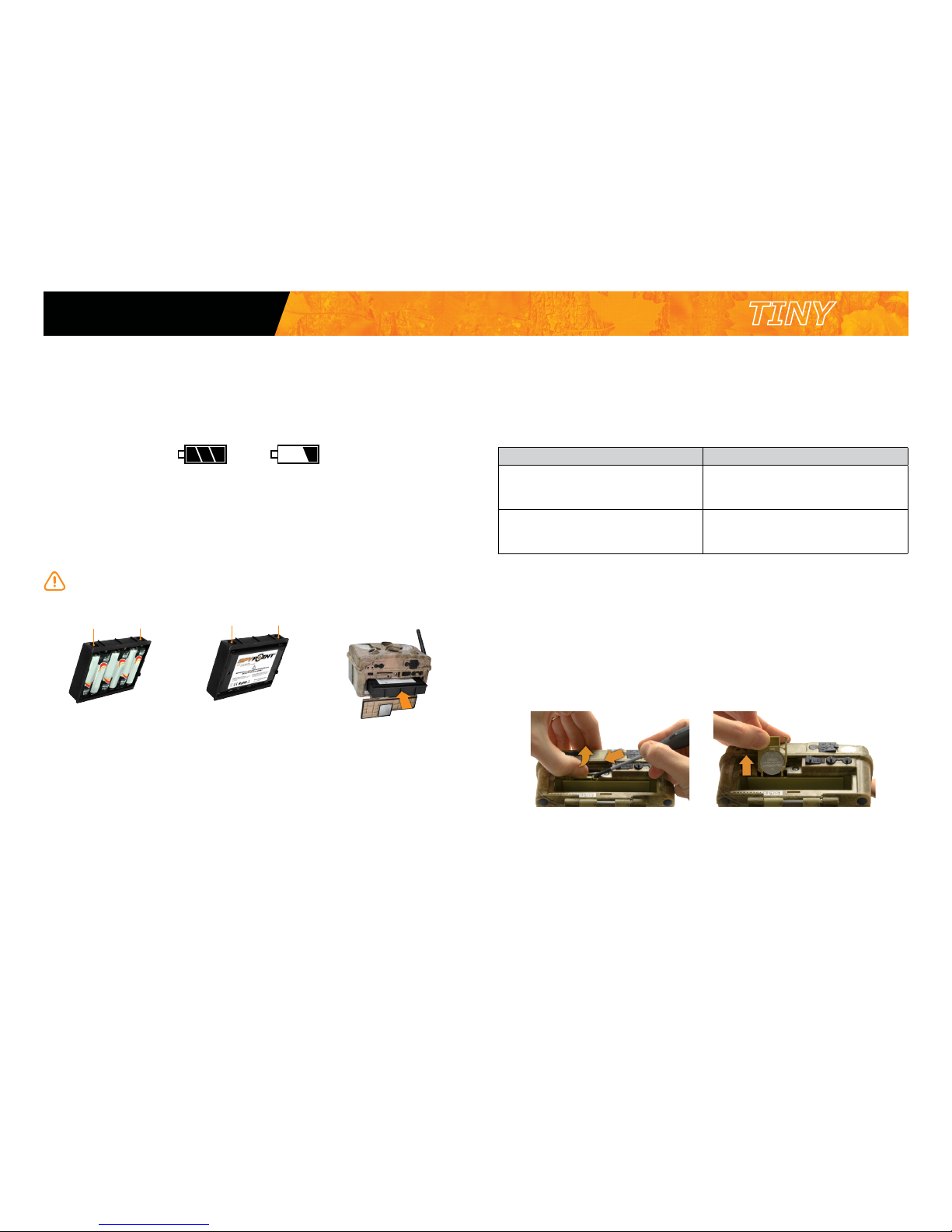

AA BATTERIES
This camera requires 6 AA batteries (1.5V). The use of alkaline or lithium batteries is strongly recommended. During the installation of the AA batteries, slide the battery switch to ALK (i.e. alkaline). Insert the batteries in the removable battery holder as indicated and insert it inside the camera
(see gure below). Battery polarity must be followed.
Please note that the voltage of rechargeable AA batteries (1.2V) is
insufcient to power the SPYPOINT camera. We also recommend the
use of new batteries to ensure maximum performance of the camera.
LITHIUM BATTERY PACK
This SPYPOINT camera can be powered by a rechargeable lithium battery
pack LIT-09/LIT-C-8 (sold separately). This type of battery is less affected
by cold temperatures and lasts up to 3 times longer than an alkaline bat­teries. During the installation of the lithium battery pack, slide the battery
switch to RECH. Insert the battery in the removable battery holder and insert it inside the camera (see gures above).
EXTERNAL (12V)
This camera can also be powered by an external 12-volt DC input such as a 12-volt battery (KIT-12V, BATT-12V or KIT6V/12V) or a 12-volt adapter (AD-12V), each sold separately. During the installation of a 12-volt connec­tion, slide the battery switch to ALK (the AA batteries can remain safely inside the camera). If combined with a lithium battery pack, slide the bat-
tery switch to RECH. For available accessories, see p.33.
SOLAR PANEL
This camera also offers the possibility to connect a solar panel (SP-12V sold separately) to maintain the charge of the lithium battery pack (sold separately). While installing the rechargeable lithium battery pack, slide the
battery switch to RECH to activate the charging system of the solar panel.
Battery switch position (depending on the power source)
Power source Battery switch position
• 6AA
• 12V
• 12V + 6AA
ALK
• LIT-09*
• 12V + LIT-09*
• Solar panel + LIT-09*
RECH
* Rechargeable lithium battery pack, sold separately (LIT-09) or with a
charger (LIT-C-8).
TIME BATTERY
The camera has a CR2032 lithium button battery which saves the time and
date. To replace the battery:
1. Turn off the camera and remove it from the housing.
2. Using a at screwdriver, push the tab to the left.
3. While pushing the tab to the left, remove the compartment of the camera.
4. Replace the battery, the polarity must be respected (side + facing up).
Insert connectors
rst
6 alkaline AA batteries
Lithium battery pack
LIT-09/LIT-C-8
Connectors
Connectors
Power • Camera
TINY
10
It is possible to know the battery level of the receiver when it is turned on.
The TEST LIGHT stays on for 8 seconds when the batteries are full. When the TEST LIGHT ashes for 8 seconds, the batteries are low and need to be replaced. If the TEST LIGHT remains off, the batteries are completely empty
or are possibly installed in the wrong direction.
AA BATTERIES
The receiver requires 6 AA batteries (1.5V). The use of alkaline or lithium batteries is strongly recommended. Insert the batteries as indicated, battery polarity must be followed.
Please note that the voltage of rechargeable AA bat-
teries (1.2V) is insufcient to power the BLACKBOX
receiver. We also recommend the use of new batteries to ensure maximum performance of your device.
EXTERNAL (12V)
The receiver can also be powered from an external 12-volt DC input such as a 12-volt battery (KIT-12V, BATT-12V or KIT6V/12V) or a 12-volt adapter (AD-12V), each sold separately (p.11). During the installation of a 12- volt connection, the AA batteries can remain safely inside the receiver.
SOLAR PANEL
The receiver can be powered with a 12-volt battery combined with a solar panel SP-12V (sold separately) to maintain the charge of the 12-volt battery (sold separately).
For available accessories, see p.35
6 alkaline AA
batteries
Power • Receiver (BLACKBOX)
TINY
11
The battery level is shown in the top right corner of the screen. When a single line remains, the controller will continue to receive photos but we strongly recommend to change the AA batteries or charge the lithium bat­tery pack before they are empty.
AA BATTERIES
The controller requires 6 AA batteries (1.5V). The use of alkaline or lithium batteries is strongly recommended. During the installation of the AA batte­ries, slide the battery switch to ALK (i.e. alkaline). Insert the batteries in the compartment as indicated. Battery polarity must be followed.
Please note that the voltage of rechargeable AA batteries (1.2V) is
insufcient to power the controller. We also recommend the use of new
batteries to ensure maximum performance of your device.
LITHIUM BATTERY PACK
The controller can be powered by a rechargeable lithium battery pack LIT-
09/LIT-C-8 (sold separately). This type of battery is less affected by cold
temperatures and lasts up to 3 times longer than an alkaline batteries. During the installation of the lithium battery pack, slide the battery switch
to LIT-09. Insert the lithium battery pack in the compartment as indicated.
EXTERNAL (12V)
The controller can also be powered by an external 12-volt DC input such as a 12-volt battery (KIT-12V, BATT-12V or KIT6V/12V) or a 12-volt adapter (AD-12V), each sold separately. During the installation of a 12-volt connec­tion, slide the battery switch to ALK (the AA batteries can remain safely inside the controller). If combined with a lithium battery pack, slide the
battery switch to LIT-09.
SOLAR PANEL
The controller also offers the possibility to connect a solar panel (SP-12V sold separately) to maintain the charge of the lithium battery pack (sold separately). While installing the rechargeable lithium battery pack, slide the
battery switch to LIT-09 to activate the charging system of the solar panel.
Battery switch position (depending on the power source)
Power source Battery switch position
• 6AA
• 12V
• 12V + 6AA
ALK
• LIT-09*
• 12V + LIT-09*
• Solar panel + LIT-09*
LIT-09
* Rechargeable lithium battery pack, sold separately (LIT-09) or with a
charger (LIT-C-8).
For available accessories, see p.12
6 alkaline AA batteries
Lithium battery pack
LIT-09/LIT-C-8
Power • Controller (BLACKBOX-D)
TINY
12
TIME BATTERY
Located inside the battery case, the CR2032 lithium button battery saves
the time and date. To replace the battery:
1. Turn off the controller
2. Loose the screw located behind the controller to remove the cover of the battery case.
3. Loose the screw at the bottom of the battery case to access to the time battery.
4. Using a at screwdriver, push the battery upwards and lift to remove it from its holder.
5. Replace the battery, the polarity must be respected (side + facing up).
Power • Controller (BLACKBOX-D)
TINY
13
MEMORY CARD
A memory card is required to operate the BLACKBOX receiver. The receiver
is compatible with SD/SDHC memory cards, up to 32 GB capacity (sold
separately).
When the memory card of the receiver is full, the transmission and recor-
ding of photos continue by clearing the rst recorded photos on the memory
card.
Here is a table of the approximate number of photos that can be recorded
with different memory card capacities.
INSERTING THE MEMORY CARD
Insert an SD/SDHC memory card (up to 32 GB capacity)
in the card slot, gold contacts facing up. The card is inser­ted correctly when a click is heard.
Before inserting or removing a memory card, always turn off the receiver to prevent loss or damage of the
photos already recorded.
REMOVING THE MEMORY CARD
Lightly press the memory card into the receiver once to pop it out of the slot and remove it.
4 GB 8 GB 16 GB 32 GB Photo 3 MP 20500 41000 61500 82000 5 MP 17000 34000 51000 68000 8 MP 12000 24000 36000 48000
Memory card • Receiver (BLACKBOX)
TINY
14
MEMORY CARD
A memory card is required to record photos and videos. The camera is compatible with SD/SDHC memory cards, up to 32 GB capacity. (sold separatel).
When the PHOTO, VIDEO or TEST mode is selected and no memory card is used, the screen displays "Insert memory card" and the camera beeps. When the SD card is full, the screen displays "Memory card full".
Here is a table of the approximate number of photos and length of videos
that can be recorded with different memory card capacities. Many photo and video resolutions are noted, see those corresponding to the camera.
4 GB 8 GB 16 GB 32 GB Photo 3 MP 4100 8200 16400 32800 4 MP 3800 7600 15200 30400 5 MP 3400 6800 13600 27300 6 MP 3200 6300 12600 25300 7 MP 2700 5500 10900 21800 8 MP 2400 4800 9500 19000
10 MP 1900 3800 7600 15200
12 MP 1600 3200 6300 12600 Video
320 x 240 4 h 8 h 16 h 32 h
640 x 480 2h10 4h10 8h20 16h40
1280 x 720 40 min 1h20 2h40 5h20
INSERTING THE MEMORY CARD
Insert an SD/SDHC memory card (up to 32 GB capacity) in the card slot, gold contacts facing up. The card is inserted correctly when a click is heard.
Before inserting or removing a memory card, always turn off the camera to prevent loss or
damage of the photos already recorded.
REMOVING THE MEMORY CARD
Lightly press the memory card into the camera once to pop it out of the slot and remove it.
"BUSY" DEL
The BUSY light, located beside the screen, is a diagnostic tool. It lights up
when the camera starts, when the camera records a le and in TEST mode
at the same time as the test light (located in front of the camera).
ANTENNA INSTALLATION (TINY-PLUS)
Remove the cap and screw the antenna on the side of the camera. The antenna allows wireless commu­nication between the camera and a controller. The TINY-PLUS camera can be added to the wireless sys­tem TINY-W3 (composed of a TINY-W3 camera and a BLACKBOX-D controller). Up to 10 cameras can be combined to a single controller.
Memory card/ «BUSY» LED/ Antenna • Camera
TINY
15
Use the and buttons to navigate in the interface and modify the selection, the OK button to select and the button to return to the previous menu.
Allows the user to take photos. When the PHOTO mode is selected, the
test light in front of the camera will ash for 60 seconds to allow the user to
leave the area without being photographed.
VIDEO
Allows the user to take videos. When the VIDEO mode is selected, the
test light in front of the camera will ash for 60 seconds to allow the user to
leave the area without being recorded.
TEST
Allows the user to test the detection system of the camera. When TEST mode is selected, no photo or video is recorded. Walk perpendicu­larly in front of the camera. When the camera detects a movement, the light blinks to indicate that normally, a photo or video would have been recorded. If the system does not detect the movement, increase the detection
distance using the "Sensitivity" option in the settings menu. Realign the
camera can also be required. In TEST mode, it is possible to take a photo by pressing the OK button. The photo is saved and appears in the VIEW mode.
INSTALLATION WITH THE SUPPLIED STRAP
Use the mounting bracket slot for installation strap to x the camera. The dimensions of the strap (included) is 1" X 60".
Recommended installation height: about 3 feet above the ground. Do not place the camera facing the sun.
Settings • Camera
TINY
SETTINGS
Allows the user to change the different settings. To set the system in English, hold the button until "Language" is highlighted. Press OK, select "English" with the button  or and conrm the choice with OK. The system will then change the menus to English.
Camera ID: (TINY-PLUS, TINY-W
3
)
Allows the user to assign a name to the camera (maximum 8 characters).
Start time/Stop time:
Allows the user to set the operation period of the camera. The start and stop time programmed hours are the hours during which the camera is in
action and records photos or videos. Example: If the user selects "15:00" start time and "19:00" stop time, the camera will only detect for that
period of time and will stay inactive for the remaining hours. Press OK and use or to adjust the hours. Press OK again to set the minutes. When the time is properly set, press OK.
For a 24 hour activation, the same start and stop times must be entered
(example: 00:00 as start time and 00:00 as stop time. These hours are
the basic settings of the camera.
Note: The hours are recorded over a 24-hour period. For example, 5pm
is 17:00 (00:00 means midnight).
16
Settings • Camera
TINY
Wireless: (TINY-PLUS, TINY-W
BF
, TINY-W3)
(On/Off)
Enables or disables the wireless transmission of photos to the BLACKBOX receiver (TINY-WBF), to the BLACKBOX-D controller (TINY-PLUS, TINY­W
3
).
When the transmission is enabled:
• Only photos are transmitted to the receiver and to the controller, not videos.
• The quality of the photos recorded on the receiver and the controller is reduced to maximize transmission:
8 or 10MP = 800 x 600 pixels 5MP = 640 x 480 pixels 3MP = 320 x 240 pixels
• When the TIME LAPSE mode is enabled, the photos are sent to the
receiver and to the controller except for the "30s" setting.
• When the delay setting "10s" is selected, the time between each
detection is calculated when the transmission is completed. For example, if the transmission takes two seconds, the time between the two detections is 12 seconds.
Note: When the "Wireless" option is activated, it is only possible to take up
to 2 consecutive shots
(TINY-PLUS, TINY-W3).
Delay:
(10s/1m/3m/5m/10m/15m/30m)
Allows the user to choose the time interval between each detection before the camera records the next photo or video. A longer delay minimize the number of photos taken and maximize the battery life. A shorter delay maximize the number of photos taken but requires more battery power. The shorter times interval are recommended when the cameras is used for security purposes.
Additional setting:
It is possible to decrease the delay between detections to 10 seconds
(instead of 1 minute) by using the following procedure.
Note that the battery life will be affected.
1. Turn OFF the camera.
2. Press and hold the button and turn ON the camera.
3. "10sec enabled" appears on the screen meaning the minimum delay is now 10 seconds. If this option is used, the 30 minute delay disappears.
4. To reset the camera to 1 minute delay, follow the same procedure.
"10sec disabled" appears on the screen. (see next gure)
Multi-shot:
(1/2/3/4/5/6 consecutive shots)
Takes up to 6 consecutive shots at each detection, with a 10-second delay
between each photo. This option allows the user to get up to 6 photos
from different angles when the camera is in PHOTO mode.
Note: When the "Wireless" option is activated, it is only possible to take up
to 2 consecutive shots (TINY-PLUS, TINY-W
3
).
Video length:
(10s/30s/60s/90s)
Allows the user to select the duration of the recording when the camera is set in VIDEO mode.
Language:
(English/Français/Deutsch/Italiano/Español)
Allows the user to select a language for the camera menus.
P INTSPY INTPSPY
10SEC DISABLED
P INTSPY INTPSPY
10SEC ENABLED
P INTSPY INTPSPY
10SEC DISABLED
10 s delay 1 min delay
17
Settings • Camera
TINY
Sensitivity:
(Low/Medium/High)
Allows the user to choose the detection sensitivity of the camera. A higher sensitivity allows the user to take more photos.
The camera will only detect sources of heat in movement. Make sure to have the least possible objects in front of the camera during the positio­ning. This prevents the camera to take photos when oriented towards the sun while an object moves in front of the camera (e.g. a branch).
Date:
Allows the user to set the date as Month/Day/Year.
Time format:
(12h/24h)
Allows the user to select the time display over a period of 12 or 24 hours
on the photos. (e.g. 6:00 pm or 18:00)
Time:
Allows the user to set the time as Hour/Minute.
Stamp:
(Yes/No)
Allows the user to have date, time, temperature and moon phases printed on the photos.
New moon: Waxing Crescent: First Quarter: Waxing Gibbous: Full moon: Waning Gibbous: Last Quarter: Waning crescent:
Quality:
(Low/Medium/High)
Allows the user to set the photo resolution. The low resolution allows the user to save space on the card and the high resolution allows the user to get a better photo quality.
When the quality is set to "High", the video resolution is automatically set to 1280 x 720 or 640 x 480 (TINY-WBF) and when is set to "Medium" or "Low", the video resolution is automatically set to 640 x 480 or 320 x 240 (TINY-WBF).
Temperature:
(°C/°F)
Allows the user to select the temperature display.
Continuous:
(Yes/No)
Allows the user to take photos or videos even if the memory card is full.
The camera will continue to record photos or videos by deleting the rst recorded les.
Power:
(Batteries/Electricity)
Allows the user to select the type of power supply.
Choose "Electricity" if the camera is powered by a main electric power
supply (using a 12-volt DC adapter, #AD-12V, sold separately. A main electric power supply is recommended when camera is used for security purposes. It provides an instant trigger time when a movement is detec­ted. The lithium battery pack and the AA batteries can remain safely inside the camera and it is ideal for blackouts. A 12-volt DC adapter that can
provide a minimum of 800 mA is required (p.33).
Note: When using a main electric power supply, the MULTI-SHOT mode
and the DELAY option are disabled as the camera triggers instantly every time it detects motion. Also, the printing of the temperature on each photo is disabled.
18
Settings • Camera
TINY
Side sensors:
(On/Off)
When the side sensors are activated, a total of 7 zones are covered. The central sensor covers 5 zones. The side detectors are mainly used to pre­pare the camera so when your target passes through the central sensor, the system is already pre-triggered, increasing greatly the reaction time of your camera (ideal when the camera is placed near a narrow trail).
The side sensors require more battery power.
34’
30’
65’
30° 70°40°
S C S
Camera
Detection distance (central)
Detection distance of the side sensors
s: Side sensors c: Central sensor : Detection zone : Viewing field
30°: Detection angle of the central sensor 40°: Viewing angle for TINY series cameras 70°: Detection angle including both central and side sensors (2)
Time lapse:
(Off/30s/1m/3m/5m/15m/30m/1h)
Allows the camera to take photos at regular preset intervals. For example, if the option "5m" is selected in the TIME LAPSE mode, the camera takes a photo every 5 minutes during the period of operation (start time and stop time) even if there is no detection. This option allows the user to obtain photos of game outside the detection range of the camera.
Note: The TIME LAPSE mode only applies in PHOTO mode, not in VIDEO mode. When TIME LAPSE mode is selected, the DELAY option and the MULTI-SHOT mode are disabled.
19
REPORT
The report mode keeps a record of the last period of use of the camera and indicates the battery level (4/4=full). The beginning date corresponds with the moment the camera is set to either PHOTO or VIDEO mode. Thus, the report is reset when changing modes.
1.
2.
3.
4.
5.
6.
7.
8.
9.
1. Beginning and end date of the report
2. Number of photos or videos taken during the day
3. Number of photos or videos taken at night
4. Total of photos or videos taken
5. Current time of the camera
6. Current date of the camera
7. Battery level (1/4 = low, 4/4 = full)
8. Remaining space on the SD card estimated by a number of photos
9. Used space on the SD card (total number of les, only includes photos
and videos taken by a SPYPOINT camera)
VIEW
Allows the user to view or delete recorded photos and videos on the
camera screen or on a television.
Viewing with the screen of the camera: When the VIEW mode is selected, the latest photo or video recorded appears on the screen automatically. Press or to view next or previous images.
Press OK to view the different options available.
Play: Allows the user to play or pause the video on the screen.
(This option is available only for videos)
Date and time: Allows the user to view the date and time printed on
the photo.
Protect: Allows the user to protect a photo or video to prevent it
from being deleted by selecting "Delete All".
Delete: Allows the user to erase from the memory card, the
photo or the video seen on the screen.
Delete all: Allows the user to erase from the memory card all stored
photos and videos, with the exception of protected les.
Format: Allows the user to format memory card and delete all
protected photos and videos.
Exit: Allows the user to exit the menu to return to the viewing
screen.
• Watching on TV: Allows the user to view or delete the photos or videos directly on a TV.
1. Turn on the camera.
2. Connect the yellow end of the RCA cable supplied into the VIDEO IN of the TV and the other end into the TV OUT of the camera. The options are the same as viewing on the screen of the camera (previously men­tioned).
SIGNAL (TINY-PLUS, TINY-W
BF
, TINY-W3)
Allows the user to test the wireless signal and to synchronize the
camera with BLACKBOX systems.
RCA
Note: The number of yellow stars that appear to the right of the screen corresponds to the resolution of the photos.
=Low resolution =Medium resolution =High resolution
Settings • Camera
TINY
20
MEMORY CARD
A memory card is required to operate the controller. The controller is compatible with SD/SDHC memory cards, up to 32 GB capacity (sold separate).
When the controller’s memory card is full, the transmission and recording of
photos continue by clearing the rst recorded photos on the memory card.
When the START BLACKBOX option is selected and no memory card is used, the screen indicates to insert a memory card. The BLACKBOX-D controller
also beeps. When the SD card is full, the screen displays "Memory card full".
Here is a table of the approximate number of photos that can be recorded
with different memory card capacities.
4 GB 8 GB 16 GB 32 GB Photo 3 MP 20500 41000 82000 164000 5 MP 17000 34000 68000 136500
10 MP 9500 19000 38000 76000
INSERTING THE MEMORY CARD
Insert a SD/SDHC memory card (up to 32 GB capacity) in the card slot. The
card is inserted correctly when a click is heard.
Before inserting or removing a memory card, always turn off the controller to prevent loss or damage of the photos already recorded.
REMOVING THE MEMORY CARD
Lightly press the memory card into the controller once to pop it out of the slot and remove it.
«BUSY» DEL
The «BUSY» light, located above the screen, lights up when the controller
records a le.
Memory card/ SIM card/ «BUSY» LED • Controller (BLACKBOX-D)
TINY
21
By default, the TINY-WBF camera is synchronized with its receiver on channel 1 and the icon SYNC is green. (see SIGNAL mode in menu)
To change the synchronization channel or to add other sets (TINY-WBF camera/BLACKBOX receiver) in the same area, refer to the MANUALLY SYN­CHRONIZING ONE OR MULTIPLE SETS IN THE SAME PERIMETER section.
INSTALLATION OF THE RECEIVER AND THE CAMERA
The strength of the wireless signal varies depending on the orientation of the receiver. We strongly recommend installing the receiver on the same
side of the antenna of the camera (see gure below).
For best results, the antennas of the two devices must also point upwards
and their respective height should be approximately the same (see gure
below).
Sync
Channel
1
+
TREE
SIGNAL STRENGHT
SIGNAL
STRENGHT
INSTALLATION WITH THE SUPPLIED STRAP
WIRELESS SIGNAL TEST
The quality of the wireless signal between the TINY-WBF camera and the BLACKBOX receiver can be checked on the camera. Perform the range test
after the nal installation of the devices. To see the wireless signal icon on
the main menu, the WIRELESS option in Settings should be on.
1-Select the SIGNAL mode.
2-Select the Range test option.
Range Test
If the icon of the wireless signal is red, the signal is too weak. Move the receiver or bring it closer. If the icon of the wireless signal is green and stays green for at least 10 seconds, the signal is strong and stable enough to enable wireless transmission of photos to the receiver.
Note: If the receiver is turn off and not synchronized with the camera, the signal icon remains red.
Setup • Receiver (BLACKBOX)
TINY
22
Note: In the minute following turning on the receiver, the test light of the
receiver ashes. The rst 8 seconds allows the user to know the battery status. Then for the rest of the time, the test light ashes rapidly to indi-
cate the synchronization period.
Note: After a synchronization or when the test light turns off (after 60
seconds), the receiver can’t be synchronized unless it is turned off and on again.
MANUALLY SYNCHRONIZING ONE OR MULTIPLE SETS (TINY-W
BF
CAMERA/BLACKBOX RECEIVER) IN THE SAME PERIMETER
To change the synchronization channel or to install one or many sets (TINY-W
BF
/BLACKBOX receiver) in the same area of transmission, it is necessary to manually synchronize each camera with its receiver on a different channel.
1. Turn on the rst camera and choose the SIGNAL mode.
2. Turn on the rst BLACKBOX receiver.
3. Choose the
Channel
1
option on the camera and press OK.
4. Use the and buttons to select a channel and press OK.
5. Choose the
Sync
option on the camera and press OK.
6. The camera synchronizes with the powered receiver and the icon Sync goes from red to green when the synchronization is complete.
7. Turn off the camera and the corresponding receiver.
8. Repeat these steps for each additional set, up to 9 sets (TINY-W
BF
/BLACK-
BOX
receiver) can be matched in a same perimeter of 250ft.
Sync
Setup • Receiver (BLACKBOX)
TINY
23
MAIN MENU
Use the and buttons to navigate in the interface and to modify the selection. Use the OK button to select and the BACK button to return to the previous menu.
SIGNAL
Allows the user to synchronize a new camera to a BLACKBOX-D con­troller, see SYNCHRONIZE A NEW CAMERA TO THE CONTROLLER section. Also allows to add other sets (camera/BLACKBOX-D) in a same area, see
USING MULTIPLE CONTROLLERS IN THE SAME AREA section.
By default the TINY-W3 camera, supplied with the BLACKBOX-D, is already
synchronized to the controller as CAMERA 01 in groupe 1 and the camera
icon is green. Each additional camera (TINY-PLUS) must be synchronized with the BLACKBOX-D. To see the wireless signal icon on the main menu, the WIRELESS option in SETTINGS should be on.
START BLACKBOX-D
Select this option when the controller and camera(s) have been con-
gured and synchronized. The controller is now ready to receive photos
from the synchronized camera(s).
SETTINGS
Allows the user to congure the different parameters of the synchro­nized cameras.
1. When SETTINGS is selected, the complete list of options in the menu is displayed. If more than one camera is synchronized to the controller, choose the one that is to be changed.
2. Make the desired changes and press OK to conrm.
3. Press the BACK button to send the new parameters to the camera.
4. The message "Sending Settings" appears on the screen of the BLACK BOX-D and the screen of the camera shows "Receiving". The controller returns to the main menu when the changes are successful.
BLACKBOX-D AND CAMERA INSTALLATION
The strength of the wireless signal varies depending on the orientation of the controller. We strongly recommend installing the controller on the same
side of the camera’s antenna (see gure below).
For best results, the antennas of the two devices must also point upwards
and their respective height should be approximately the same (see gure
below).
INSTALLATION WITH THE SUPPLIED STRAP
TREE
SIGNAL STRENGHT
SIGNAL
STRENGHT
Note: When the controller is left inactive for more than 2 minutes on the
main menu, it automatically resets itself to "START BLACKBOX" mode.
To return to the main screen, turn off the controller and turn it on again.
Note: When this option is selected, the controller screen turns off in order to preserve battery life. To return to the main screen, turn off the control­ler and turn it on again.
Setup • Controller (BLACKBOX-D)
TINY
24
VIEW
Allows the user to view or delete the recorded photos on the controller screen or on a television.
• Viewing with the screen of the controller:
When VIEW mode is selected, choose the name of the desired camera and press OK. The last recorded photo automatically appears on the screen. Press f or g to view the next or previous. Press OK to view the different options available.
Date and time: To view the date and time printed on the photo. Protect: Allows the user to protect the photo to prevent it from
being deleted by selecting "Delete All".
Delete: Allows the user to erase from the memory card, the
photo seen on the screen.
Delete all: Allows the user to erase from the memory card, all
stored photos, with the exception of protected photos.
Format: Allows the user to format memory card and delete all
protected photos.
Exit: Allows the user to exit the menu to return to the viewing
screen.
Press the to enlarge the photo on the screen or to return to the original size. When the photo is enlarged, press OK to allow movement in the photo. Then use the navigation buttons to explore different parts of the photo. To disable the mouvement mode, press OK again.
REMOTE
Allows the user to see the camera status, to start/stop the camera, to
verify the quality of the wireless signal and to have an overview of the eld
of view of the camera in real time. If more than one camera is synchronized to the controller, choose one from those available.
Get camera status
Indicates the battery level and the percentage of used space in the memory card of the camera.
Start/stop caméra
Allows the user to remotely stop or restart photos taking. These options can be used if the user is working in the zone of detection of the camera and he
doesn’t want photos to be taken. When nished, he can remotely restart the
camera to continue taking photos.
Range test
Allows the user to check the quality of the wireless signal between the camera and the controller. If the icon of the wireless signal is red, the signal is too weak. Bring closer or move the controller. If the icon of the wireless signal is green and stays green for more than 10 seconds, the signal is strong enough and stable to en­able wireless transmission of photos to the controller.
Live view
Allows a live preview of the eld of view of the camera in real time (1 photo
per second is sent to the controller). Press the BACK button to return to the previous menu.
This mode requires more battery power.
Note: The message "Waiting for camera" appears on the screen of the
BLACKBOX-D if the controller is not synchronized with the camera or if the wrong camera ID is selected.
Note: The preview can also be on a TV using the TV-OUT port of the controller (see View section).
Note: The number of yellow stars that appear to the right of the screen corresponds to the resolution of the photos stored in the BLACKBOX-D.
=Low résolution =Medium résolution =High résolution
Setup • Controller (BLACKBOX-D)
TINY
25
USING MULTIPLE CONTROLLERS IN THE SAME AREA:
When multiple controllers are installed in the same area of transmission, it is necessary to manually synchronize each controller with it’s camera(s) in a different group.
To do this:
1. On the controller, select the SIGNAL mode
and press OK.
2. Hold down the button for 3 seconds to reach the group option located in the upper right corner of the screen controller and press OK.
3. Use or buttons to assign a new group to each additional controller (maximum 5 BLACKBOX-D) and press OK.
4. Synchronize the cameras to the new group (follow the steps in the PREPARING THE CAMERA and PREPARING THE BLACKBOX-D CONTROLLER sections.
• Watching on TV: Allows the user to view or delete the photos directly on a TV.
1. Turn on the controller.
2. Connect the yellow end of the RCA cable supplied into the VIDEO IN of the TV and the other end into the TV OUT of the controller. The options are the same as viewing on the screen of the controller (previously mentioned)
SYNCHRONIZE A NEW CAMERA TO THE CONTROLLER:
Preparing the camera:
1. Set the name of the camera:
• When SETTINGS is selected, choose "Camera ID" and press OK.
• Determine the name of the camera by pressing the or buttons to change the letter and press OK to go to the next space.
2. Continue changing other parameters of the camera as needed.
3. To enable communication with the controller:
• While still in the SETTINGS menu, select "Wireless" option and press OK.
• Select "On" and conrm the selection by pressing OK; then on BACK to return to the previous menu.
4. Select the SIGNAL mode
and press OK. The camera searches for the
controller.
Preparing the BLACKBOX-D controller:
1. Select the SIGNAL mode
.
2. Press on "Add new camera" (to see this option, select a blue camera icon using f or g buttons. The "Sync" icon changes from red to green in the camera screen when synchronization is successful.
Note: A camera cannot be synchronized to multiple controllers.
RCA
Notes:
• It’s possible to synchronize up to 10 cameras to a single controller.
• If the name of the camera is changed, it is necessary to resynchronize the devices by following the steps in the PREPARING THE CAMERA and PREPARING THE CONTROLLER sections.
• The "Reset All" option allows to nd the original settings.
• It is possible to easily retrace the BLACKBOX-D controller with a buzzer signal by pressing the FN button on the RC-1 remote control. The remote control must be previously synchronized with the camera, which commu­ nicates with the controller. The remote control (sold separately) is part of the product line compatible with the REMOS technology.
Sync
Setup • Controller (BLACKBOX-D)
TINY
26
SOUND RECORDING
The SPYPOINT camera offers the possibility to record sound in VIDEO mode. When the VIDEO mode is selected, the camera automatically re-
cords the sound. Under the camera, you will nd a rubber cap with the
inscription MIC. If the user does not want to record the sound, the rubber cap needs to stay in place. If sound recording is required, the user must lift the rubber cap and turn it slightly so that the microphone receiver is
completely cleared (See gure below).
EXTERNAL TRIGGERING
1/8" input which triggers the taking of photos or videos using a normally
open contact. Example: Using a magnetic door contact connected to an alarm system (see
gure below). 1/8" Mono connector not included.
Weld the two wires of a
door contact to a 1/8"
mono connector.
Insert the connector in the external trigger jack of the camera.
Sound recording/ External triggering • Camera
TINY
27
To transfer photos/videos to a computer:
1. Turn OFF the camera.
2. Connect the USB cable (supplied) from the camera to a computer
3. The computer will detect the camera and install the driver automatically.
4. Click on "My Computer" and select "Removable Disk".
5. Then click on "DCIM" and "100DSCIM" to nd all your photos and videos.
6. Drag or save the les to the desired location.
Taking the memory card (sold separately) out of the camera and inserting it into the computer slot will achieve the same results.
USB
File transfer to a computer • Camera
TINY
28
To transfer photos to a computer, remove the memory card (sold separa­tely) out of the receiver or the controller and insert it into the computer slot.
1. Click on "My Computer" and select "Removable Disk".
2. Then click on "DCIM" and "100DSCIM" to nd all the recorded photos.
3. Drag or save the les to the desired location.
The names of the photos recorded by the camera and the BLACKBOX-D controller start by PICT while those stored in the BLACKBOX receiver starts by PICW. The BLACKBOX-D controller creates a folder for each synchro- nized camera and automatically class photos to different folder.
MEMORY CARD
File transfer to a computer • Receiver (BLACKBOX)/ Controller (BLACKBOX-D)
TINY
29
Problem Possible solutions Impossible to
turn on the camera
• Verify if there are batteries in the camera.
• Verify if the batteries are correctly installed.
• Verify if the battery switch position is positioned according to the power source.
• Install the latest update (available on www.spypoint. com under SUPPORT section).
• Replace alkaline batteries or recharge the lithium battery pack.
The screen of the camera turns off
• The camera may be set to PHOTO or VIDEO mode and the screen turns off after a period of 60 seconds
in order to preserve battery life.
• The camera automatically resets itself to PHOTO or VIDEO mode (depending of the latest mode used or selected) after 2 minutes of inactivity on the main menu.
• To return to the screen, turn off the camera and turn
it on again. The camera beeps • Insert a memory card. The camera does
not respond
• Remove the batteries and reinstall them.
• Replace alkaline batteries or recharge the lithium
battery pack. The camera
works, but is losing its time and date settings
• The time battery must be replaced.
Impossible to take photos/ videos
• Verify if there are batteries in the camera.
• Replace alkaline batteries or recharge the lithium
battery pack.
• Memory card is full.
• Verify if the camera is turned on.
No person/animal on photos
• Sunrise or sunset can trigger the sensor. Camera must be re-orientated.
• At night, the motion detector may detect beyond the range of the IR illumination. Reduce sensibility setting.
• Small animals may trigger the unit. Reduce sensibi­ lity setting and/or raise height of camera.
• Motion detector may detect animals through foliage.
• If a person or animal moves quickly, it may move out of the camera’s eld of view before the photo is taken. Move the camera further back or redirect the camera.
• Make sure the mounting post or tree is stable and does not move.
Red light in front of the camera blinks
• Camera is set in TEST mode.
• Camera is set in PHOTO or VIDEO mode. The red light in front of the camera ashes for 60 seconds to
allow the user to leave without being photographed or recorded.
The photos/ videos do not appear on the television
• Verify if the camera is correctly connected to the television using the RCA cable.
• Verify if the memory card contains photos/videos.
The computer does not recognize the camera
• Verify if the camera is properly connected to the computer using the USB cable.
The computer can’t play videos
• The .MP4 video format requires the use of a video player software compatible such as VLC, Windows Media Player or QuickTime.
Troubleshooting • Camera
TINY
30
Error message Possible solutions Insert memory
card
The use of a memory card is required to record photos
and videos.
Memory card full
• Delete the les or use a new memory card.
• Afterwards, the "Continuous" option can be activated
for a continuous recording.
Card error
The camera cannot access the memory card.
• Turn off the camera and turn it on again
• Remove the memory card and insert it again.
• Verify if the gold contacts are clean.
• Format the memory card.
Low battery
Appears on the screen just before the camera turns
off. Recharge the batteries or insert new ones. Always
verify the battery level before using the camera.
No image
There are no les to view. Verify if the memory card
contains photos/videos.
Protected le
It is impossible to delete the le because it is protected.
To delete this le and all the others, just format the
memory card.
Error messages • Camera
TINY
31
Problem Possible solutions Impossible
to turn on the receiver
• Verify if there are batteries in the receiver.
• Verify if the batteries are correctly installed.
• Replace alkaline batteries.
The photos are not transferred to the BLACKBOX
• Synchronise together the BLACKBOX and the camera
before use.
• Verify the quality of the wireless signal with the
option "Range Test".
• Observe the maximum distance between the receiver
and the camera (250 ft).
• Install the latest update available for the receiver
and the camera (available on www.spypoint.com
under SUPPORT section). The BLACKBOX
receiver does not synchronize with the TINY-W
BF
camera
• Bring closer the 2 devices.
• Install the latest update available for the receiver
and the camera (available on www.spypoint.com
under SUPPORT section).
The range test of wireless signal does not work
• Verify if the receiver is turned on.
• Synchronise together the BLACKBOX and the camera
before use.
• Bring closer the 2 devices.
• Verify if the two antennas (BLACKBOX and camera)
are pointing up and they are placed approximately at
the same height.
• Install the receiver on the same side of the camera’s
antenna to have a stronger signal. The device takes
water
• Verify if the cover is tightly closed.
• Verify if the rubber ring is correctly installed.
• Clean the rubber ring.
Troubleshooting • Receiver (BLACKBOX)
TINY
32
TROUBLESHOOTING
Problem Possible solutions Impossible to
turn on the controller
• Verify if there are batteries in the controller.
• Verify if the batteries are correctly installed.
• Verify if the battery switch position is positioned
according to the power source.
• Install the latest update (available on www.spypoint.
com under SUPPORT section).
• Replace alkaline batteries or recharge the lithium
battery pack. The screen of the
controller turns off
• The controller is ready to receive photos following
the selection of the START BLACKBOX option in the
menu. The screen turns off in order to preserve
battery life.
• The controller automatically resets itself after 2
minutes of inactivity on the main menu.
• To return to the screen, turn off the controller and
turn it on again. The controller
beeps
• Insert a memory card.
• The emergency buzzer was activated with the
RC-1 remote control. The controller
does not respond
• Remove the batteries and reinstall them.
• Replace alkaline batteries or recharge the lithium
battery pack. The controller
does not commu­nicate with the camera
• Install the latest update available for the
BLACKBOX-D controller and camera (available on
www.spypoint.com under SUPPORT section).
• Synchronize the controller with the camera.
The controller does not receive all the photos
• Bring closer the camera and make a test signal.
The controller works, but is losing its time and date settings
• The time battery must be replaced.
The controller takes water
• Verify if the controller is correctly closed.
• Clean the rubber located inside the controller.
The photos do not appear on the television
• Verify if the controller is correctly connected to the
television using the RCA cable.
• Verify if the memory card contains photos.
ERROR MESSAGES
Error message Possible solutions Insert memory
card
The use of a memory card is required to record photos.
Card error
The controller cannot access the memory card.
• Turn off the controller and turn it on again
• Remove the memory card and insert it again.
• Verify if the gold contacts are clean.
• Format the memory card
Low battery
Appears on the screen just before the controller turns off. Recharge the batteries or insert new ones. Always verify the battery level before using the controller.
No image
There are no les to view. Verify if the memory card
contains photos.
Protected le
It is impossible to delete the le because it is protected. To delete this le and all the others, just format the
memory card.
Troubleshooting/ Error messages • Controller (BLACKBOX-D)
TINY
33
To obtain more information on the available accessories, go to
www.spypoint.com. Here are the main accessories available:
POWER
12-volt Adaptor
#AD-12V, AC adaptor (6V to 12V). Powers the camera from an elec­trical outlet.
12V DC Power cable
#CB-12FT, 12 ft power cable with alligator clips at one end to connect a 12V battery to a camera.
Rechargeable 12V battery & charger set
#BATT-12V, 12-volt 7.0Ah rechar- geable battery and AC charger to power the camera.
Lithium battery pack
#LIT-09, Additional rechargeable
lithium battery pack ts most SPYPOINT products.
Lithium battery pack & charger
#LIT-C-8, Rechargeable lithium battery pack and AC charger with charge indicator light. Fits most SPYPOINT products.
Spare power cable
#PW-12FT, Spare 12 ft power cable, to connect the camera to the KIT-12V.
Rechargeable 12V battery, charger & housing kit
#KIT-12V, 12-volt 7.0Ah rechar- geable battery with a water resis­tant ABS plastic case, AC charger, 12 ft power cable (#PW-12FT) and carrying strap included. Compa­tible with all SPYPOINT products equipped with a 12V power jack.
Solar panel
#SP-12V, Solar panel with adjus­table steel mounting kit. Maintains the charge of the lithium battery pack directly into compatible de­vices. Can also be combined with any 12-volt battery. 9 ft power cable.
Available accessories • Camera
TINY
MEMORY CARD
P INT
SPY
INTP
SPY
Memory Card
Carte Mémoire
HIGH SPEED/HAUTE VITESSE
/ R F N
SD Memory card 8GB
#SD-8GB, SDHC memory card 8 GB, High speed Class 6.
Memory Card
Carte Mémoire
ULTRA HIGH SPEED/ULTRA HAUTE VITESSE
/ R F N
16 GB
SD Memory card 16GB
#SD-16GB, SDHC UHS-1 memory
card 16 GB, ultra high speed Class
10.
Universal power kit
#KIT6V-12V, Universal kit with 6V or 12V output. Compatible with all SPYPOINT products or any other products equipped with a 6V or 12V power jack. 6 connectors in-
cluded to t any device. Includes
6V (5.6Ah) and 12V (2.8Ah) out-
put conguration and AC charger.
Water resistant ABS plastic case, 12 ft power cable and strap in­cluded. Camo pattern.
34
INSTALLATION AND SECURITY
Camera mount
#MA-360, Adjustable mounting
arm, ts all cameras that have a standard ¼-20" tripod mount. It can rotate 360° and tilt approx +/­90°. Also available in black.
Tripod
#TP-CAM, SPYPOINT Lightweight tripod, in black aluminum, with a unique anchor system and a re­movable quick release plate. Max. height: 4.9 ft (1.5 m), min. height:
1.7 ft (0.5 m), max. load weight:
11 lbs (5 kg). Fits most SPYPOINT products.
Steel security box
#SB-T, Steel box to secure the ca­mera against theft. It also protects it from breakage caused by bears or other animals. Fits SPYPOINT cameras of the TINY series. Also available in black.
Available accessories • Camera
TINY
Cable lock
#CL-6FT, 6 ft cable lock ts all SPYPOINT cameras.
35
To obtain more information on the available accessories, go to
www.spypoint.com. Here are the main accessories available:
POWER
12-volt Adaptor
#AD-12V, AC adaptor (6V to 12V). Powers the receiver from an elec­trical outlet.
12V DC Power cable
#CB-12FT, 12 ft power cable with alligator clips at one end to connect a 12V battery to the receiver.
Rechargeable 12V battery & charger set
#BATT-12V, 12-volt 7.0Ah rechar- geable battery and AC charger to power the receiver.
Spare power cable
#PW-12FT, Spare 12 ft power cable, to connect the receiver to the KIT-12V.
Rechargeable 12V battery, charger & housing kit
#KIT-12V, 12-volt 7.0Ah rechar- geable battery with a water resis­tant ABS plastic case, AC charger, 12 ft power cable (#PW-12FT) and carrying strap included. Compa­tible with all SPYPOINT products equipped with a 12V power jack.
Solar panel
#SP-12V, Solar panel with adjus­table steel mounting kit. Maintains the charge of the lithium battery pack directly into compatible de­vices. Can also be combined with any 12-volt battery. 9 ft power cable.
Available accessories • Receiver (BLACKBOX)
TINY
MEMORY CARD
P INT
SPY
INTP
SPY
Memory Card
Carte Mémoire
HIGH SPEED/HAUTE VITESSE
/ R F N
SD Memory card 8GB
#SD-8GB, SDHC memory card 8 GB, High speed Class 6.
Memory Card
Carte Mémoire
ULTRA HIGH SPEED/ULTRA HAUTE VITESSE
/ R F N
16 GB
SD Memory card 16GB
#SD-16GB, SDHC UHS-1 memory
card 16 GB, ultra high speed Class
10.
Universal power kit
#KIT6V-12V, Universal kit with 6 volts or 12 volts output. Compa­tible with all SPYPOINT products or any other products equipped with a 6 volts or 12 volts power jack. 6 connectors included to t any de­vice. Includes 6 volts (5.6Ah) and 12 volts (2.8Ah) output congura­tion and AC charger.
36
To obtain more information on the available accessories, go to
www.spypoint.com. Here are the main accessories available:
POWER
12-volt Adaptor
#AD-12V, AC adaptor (6V to 12V). Powers the controller from an elec­trical outlet.
12V DC Power cable
#CB-12FT, 12 ft power cable with alligator clips at one end to connect a 12V battery to a controller.
Rechargeable 12V battery & charger set
#BATT-12V, 12-volt 7.0Ah rechar- geable battery and AC charger to power the controller.
Lithium battery pack
#LIT-09, Additional rechargeable
lithium battery pack ts most SPYPOINT products.
Lithium battery pack & charger
#LIT-C-8, Rechargeable lithium battery pack and AC charger with charge indicator light. Fits most SPYPOINT products.
Spare power cable
#PW-12FT, Spare 12 ft power cable, to connect the controller to the KIT-12V.
Rechargeable 12V battery, charger & housing kit
#KIT-12V, 12-volt 7.0Ah rechar- geable battery with a water resis­tant ABS plastic case, AC charger, 12 ft power cable (#PW-12FT) and carrying strap included. Compa­tible with all SPYPOINT products equipped with a 12V power jack.
Solar panel
#SP-12V, Solar panel with adjus­table steel mounting kit. Maintains the charge of the lithium battery pack directly into compatible de­vices. Can also be combined with any 12-volt battery. 9 ft power cable.
Available accessories • Receiver (BLACKBOX-D)
TINY
MEMORY CARD
P INT
SPY
INTP
SPY
Memory Card
Carte Mémoire
HIGH SPEED/HAUTE VITESSE
/ R F N
SD Memory card 8GB
#SD-8GB, SDHC memory card 8 GB, High speed Class 6.
Memory Card
Carte Mémoire
ULTRA HIGH SPEED/ULTRA HAUTE VITESSE
/ R F N
16 GB
SD Memory card 16GB
#SD-16GB, SDHC UHS-1 memory
card 16 GB, ultra high speed Class
10.
Universal power kit
#KIT6V-12V, Universal kit with 6V or 12V output. Compatible with all SPYPOINT products or any other products equipped with a 6V or 12V power jack. 6 connectors in-
cluded to t any device. Includes
6V (5.6Ah) and 12V (2.8Ah) out-
put conguration and AC charger.
Water resistant ABS plastic case, 12 ft power cable and strap in­cluded.
37
Photo recording
Photo resolution 3 MP, 5 MP, 10 MP File format JPG Time lapse mode Predened intervals from 30 s to 1 h Multi-shot mode Up to 6 photos per detection Stamp (only on photos) Date, time, temperature (°C/°F) and
moon phase
Capture mode Color by day, black and white by night
Video recording
Video resolution 640 x 480, 1280 x 720
File format AVI Sequence length Adjustable from 10 to 90 s Capture mode Color by day, black and white by night
Audio
Sound recording (automatically recorded in video mode)
Mono
Memory storage
Support •Internal memory: none
•External memory : SD/SDHC card
(up to 32 GB)
Viewing
Built-in screen 2.4" LCD TV output Composite video (PAL/NTSC) Computer output USB 2.0
Power source
Accessories sold separately, p.33 Alkaline or lithium batteries 6 x AA Lithium battery pack Rechargeable battery pack
(LIT-09/LIT-C-8)
External (12V jack) 12V battery (KIT6V-12V, KIT-12V,
BATT-12V) or 12V adapter (AD-12V)
Solar panel Solar panel (SP-12V) combined with
rechargeable battery pack (LIT-09/
LIT-C-8)
Detection system
Motion sensor PIR Detection angle of the main
sensor
30°
Detection angle of the side sensors
70°
Detection range Adjustable from 5 to 65 ft Delay between each detection Adjustable from 1 to 30 min
*Additional 10 s setting
Electricity option Instant trigger time
(*Connection to an electrical outlet only)
External trigger 1/8" jack for normally open contact
Night time illumination system
LEDs 38 LEDs Type Invisible LEDs
Exposure Automatic infrared level adjustment
Optical eld of view
40°
Dimensions
4.7" W x 3.5" H x 2.7" D
Recommandations
Operating temperature (-30 °C to + 50 °C) (-22 °F to +122 °F) Storage temperature (-40 °C to + 60 °C) (-40 °F to +140 °F)
Specications (TINY-W3)
CAMERA
38
Specications (TINY-W3)
BLACKBOX-D CONTROLLER
Memory storage
Support • Internal memory : none
• External memory : SD/SDHC card
(up to 32 GB)
Viewing
Built-in screen 2.4" LCD TV output Composite video (PAL/NTSC)
Power source
Accessories sold separately, p.36 Alkaline or lithium batteries 6 x AA Lithium battery pack Rechargeable battery pack
(LIT-09/LIT-C-8)
External (12V jack) 12V battery (KIT6V-12V, KIT-12V, BATT-
12V) or 12V adapter (AD-12V)
Solar panel Solar panel (SP-12V) combined with
rechargeable battery pack (LIT-09/
LIT/C-8)
Dimensions
3.9" W x 4.7" H x 1.9" D
Wireless
Wireless range Maximum 500 ft (150 m) from camera
to BLACKBOX-D controller (supplied with TINY-W
3
)
Recommendations
Operating temperature (-30 °C to + 50 °C) (-22 °F to +122 °F) Storage temperature (-40 °C to + 60 °C) (-40 °F to +140 °F)
39
CAMERA
Photo recording
Photo resolution 3 MP, 5 MP, 8 MP File format JPG Time lapse mode Predened intervals from 30 s to 1 h Multi-shot mode Up to 6 photos per detection Stamp (only on photos) Date, time, temperature (°C/°F) and
moon phase
Capture mode Color by day, black and white by night
Video recording
Video resolution 320 x 240, 640 x 480 File format AVI Sequence length Adjustable from 10 to 90 s Capture mode Color by day, black and white by night
Audio
Sound recording (Automatically recorded in video mode)
Mono
Memory storage
Support • Internal memory : none
• External memory : SD/SDHC card
(up to 32 GB)
Viewing
Built-in screen 2.4" LCD TV output Composite video (PAL/NTSC) Computer output USB 2.0
Power source
Accessories sold separately, p.33 Alkaline or lithium batteries 6 x AA Lithium battery pack Rechargeable battery pack
(LIT-09/LIT-C-8)
External (12V jack) 12V battery (KIT6V-12V, KIT-12V, BATT-
12V) or 12V adapter (AD-12V)
Solar panel Solar panel (SP-12V) combined with
rechargeable battery pack (LIT-09/
LIT/C-8)
Detection system
Motion sensor PIR Detection angle of the main
sensor
30°
Detection angle of the side sensors
70°
Detection range Adjustable from 5 to 65 ft Delay between each detection Adjustable from 1 to 30 min
*Additional 10 s setting
Electricity option Instant trigger time
(*Connection to an electrical outlet only)
External trigger 1/8" jack for normally open contact
Night time illumination system
LEDs 38 LEDs Type Invisible LEDs Exposure Automatic infrared level adjustment
Optical eld of view
40°
Dimensions
4.7" W x 3.5" H x 2.7" D
Wireless
Wireless range Maximum 250 ft
Recommendations
Operating temperature (-30 °C to + 50 °C) (-22 °F to +122 °F) Storage temperature (-40 °C to + 60 °C) (-40 °F to +140 °F)
Specications (TINY-WBF)
40
BLACKBOX RECEIVER
Memory storage
Support • Internal memory : none
• External memory : SD/SDHC card
(up to 32 GB)
Power source
Accessories sold separately, p.35 Alkaline or lithium batteries 6 x AA External (12V jack) 12V battery (KIT6V-12V, KIT-12V, BATT-
12V) or 12V adapter (AD-12V)
Dimensions
2.7" W x 3.5" H x 2.7" D
Specications (TINY-WBF)
41
Photo recording
Photo resolution 3 MP, 5 MP, 10 MP File format JPG Time lapse mode Predened intervals from 30 s to 1 h Multi-shot mode Up to 6 photos per detection Stamp (only on photos) Date, time, temperature (°C/°F) and
moon phase
Capture mode Color by day, black and white by night
Video recording
Video resolution 640 x 480, 1280 x 720
File format AVI Sequence length Adjustable from 10 to 90 s Capture mode Color by day, black and white by night
Audio
Sound recording (Automatically recorded in video mode)
Mono
Memory storage
Support • Internal memory : none
• External memory : SD/SDHC card
(up to 32 GB)
Viewing
Built-in screen 2.4" LCD TV output Composite video (PAL/NTSC) Computer output USB 2.0
Power source
Accessories sold separately, p.33 Alkaline or lithium batteries 6 x AA Lithium battery pack Rechargeable battery pack
(LIT-09/LIT-C-8)
External (12V jack) 12V battery (KIT6V-12V, KIT-12V,
BATT-12V) or 12V adapter (AD-12V)
Solar panel Solar panel (SP-12V) combined with
rechargeable battery pack (LIT-09/
LIT/C-8)
Detection system
Motion sensor PIR Detection angle of the main
sensor
30°
Detection angle of the side sensors
70°
Detection range Adjustable from 5 to 65 ft Delay between each detection Adjustable from 1 to 30 min
*Additional 10 s setting
Electricity option Instant trigger time
(*Connection to an electrical outlet only)
External trigger 1/8" jack for normally open contact
Night time illumination system
LEDs 38 LEDs Type Invisible LEDs
Exposure Automatic infrared level adjustment
Optical eld of view
40°
Dimensions
4.7" W x 3.5" H x 2.7" D
Recommandations
Operating temperature (-30 °C to + 50 °C) (-22 °F to +122 °F) Storage temperature (-40 °C to + 60 °C) (-40 °F to +140 °F)
Specications (TINY-PLUS)
42
Photo recording
Photo resolution 3 MP, 5 MP, 7 MP File format JPG Time lapse mode Predened intervals from 30 s to 1 h Multi-shot mode Up to 6 photos per detection Stamp (only on photos) Date, time, temperature (°C/°F) and
moon phase
Capture mode Color by day, black and white by night
Video recording
Video resolution 640 x 480, 1280 x 720
File format AVI Sequence length Adjustable from 10 to 90 s Capture mode Color by day, black and white by night
Audio
Sound recording (Automatically recorded in video mode)
Mono
Memory storage
Support • Internal memory : none
• External memory : SD/SDHC card
(up to 32 GB)
Viewing
Built-in screen 2.4" LCD TV output Composite video (PAL/NTSC) Computer output USB 2.0
Power source
Accessories sold separately, p.33 Alkaline or lithium batteries 6 x AA Lithium battery pack Rechargeable battery pack
(LIT-09/LIT-C-8)
External (12V jack) 12V battery (KIT6V-12V, KIT-12V,
BATT-12V) or 12V adapter (AD-12V)
Solar panel Solar panel (SP-12V) combined with
rechargeable battery pack (LIT-09/
LIT/C-8)
Detection system
Motion sensor PIR Detection angle of the main
sensor
30°
Detection angle of the side sensors
70°
Detection range Adjustable from 5 to 65 ft Delay between each detection Adjustable from 1 to 30 min
*Additional 10 s setting
Electricity option Instant trigger time
(Connection to an electrical outlet only)
External trigger 1/8" jack for normally open contact
Night time illumination system
LEDs 38 LEDs Type Invisible LEDs
Exposure Automatic infrared level adjustment Exposure Automatic infrared level adjustment
Optical eld of view
40°
Dimensions
4.7" W x 3.5" H x 2.7" D
Recommendations
Operating temperature (-30 °C to + 50 °C) (-22 °F to +122 °F) Storage temperature (-40 °C to + 60 °C) (-40 °F to +140 °F)
Specications (TINY-7)
43
FCC REGULATIONS
FCC Part l5
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequen­cy energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modications to this equipment not expressly approved by the
party responsible for compliance could void the user’s authority to operate the equipment.This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Hereby, GG Telecom declares that this camera is in compliance with
the essential requirements and other relevant provisions of Directive 99/5/EC. The user can obtain a copy of the Declaration of Conformity by e-mail at info@spypoint.com.
Regulation
44
This SPYPOINT product designed by GG Telecom, is covered by a one (1) year warranty on material and workmanship starting from the original date of purchase. The sales receipt is the client’s proof of purchase and must be presented if warranty service is needed. This warranty will be honored in the country of purchase only.
This GG Telecom warranty does not apply: (a) to consumable parts, inclu­ding but not limited to batteries, which performance is designed to decrease
over the course of time; (b) to damage caused by misuse, use with another product, neglect, accidents, liquid contact, re, earthquake or any other ex­ternal cause; (c) to GG Telecom products that have been purchased online from an unauthorized dealer; (d) to products that have had any modication or tampering; (e) to cosmetic damage including but not limited to scratches and broken plastic; (f) to damage caused by operating the GG Telecom pro-
duct outside of GG Telecom’s recommendations.
INSTRUCTIONS FOR REPAIR SERVICE
GG Telecom will repair the product without charge or replace it at its discre­tion with an equivalent product, if it has a manufacturing defect covered by the warranty described previously. GG Telecom will pay the shipping costs only for the return of the products covered by the warranty. The shipping costs for an item sent will be assumed by the customer.
Repairs for damages not covered by the warranty will be subject to a reasonable charge. The customer will pay all shipping costs.
1. BEFORE sending a product for repair, the costumer is welcomed
to contact GG Telecom technical support team at 1-888-779-7646 or tech@spypoint.com and to clearly describe the problem and give a phone number where she or he can be reached. It happens regularly that some problems can be solved over the phone.
2. If a product needs to be sent, an RMA number will be given to the
customer (Return Merchandise Authorization).
3. The original receipt or a copy must be sent along with the package.
4. The RMA number must be written on the outside of the package and sent to:
CANADA United States GG Telecom GG Telecom
120 J.Aurèle-Roux 555 VT route 78
Victoriaville, QC Swanton, Vermont
G6T 0N5 05488
IMPORTANT: Under no circumstances will GG Telecom accept returned products without a Return Material Authorization number (RMA). It is essential to contact GG Telecom before making a return.
The customer is liable for loss or damage to the product that may occur during the transport to GG Telecom. We recommend the use of a traceable method of shipping to ensure protection.
WWW.SPYPOINT.COM
Limited warranty and repair
Loading...
