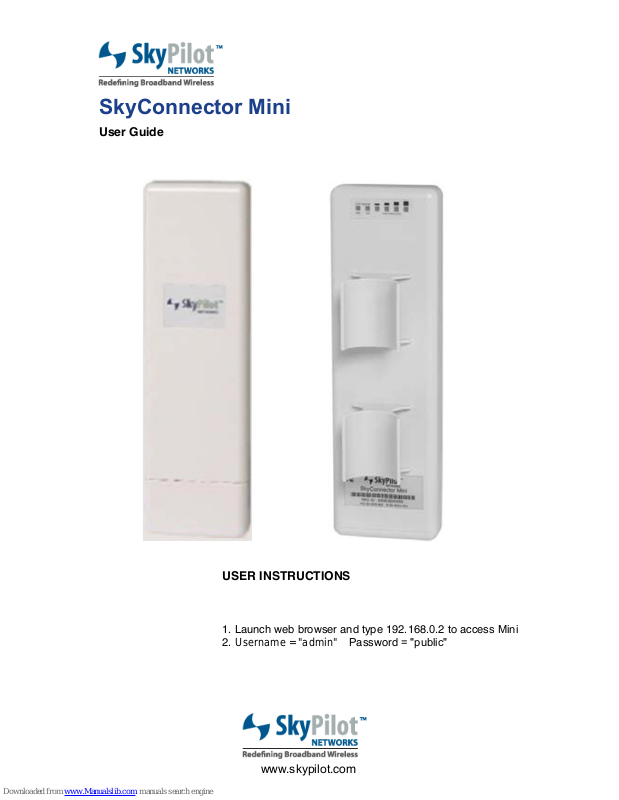

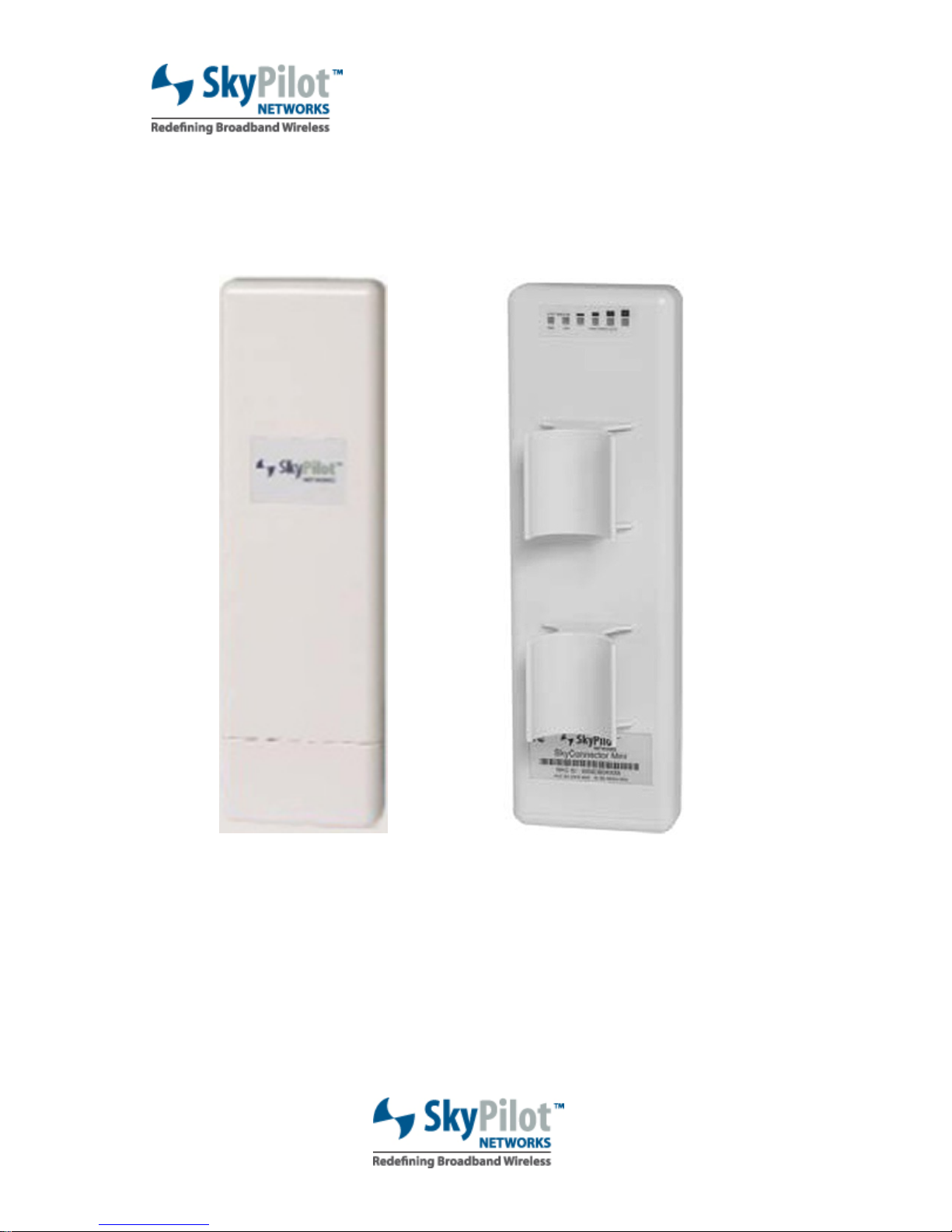

SkyConnector Mini
User Guide

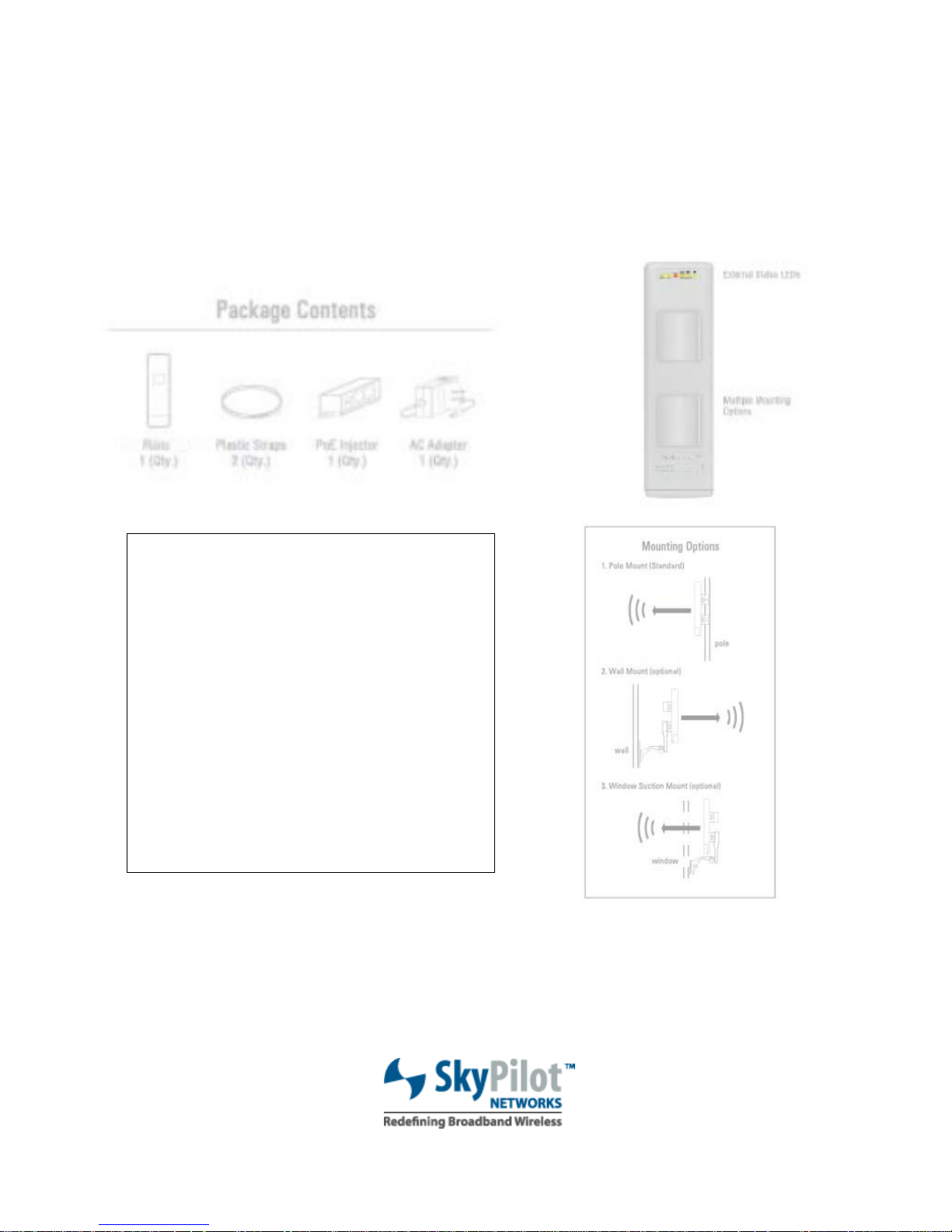

USER INSTRUCTIONS
1. Launch web browser and type 192.168.0.2 to access Mini
2. Username = "admin" Password = "public"
www.skypilot.com
Page 2
Traffi c Management
• VLAN support: IEEE 802.1q
• Traffi c Prioritization: IEEE 802.1p,
protocol type, IP port, IP ToS fi eld,
and IP address list
• Traffi c Filtering: protocol type, IP
port, and IP address list
• Traffi c Shaping: upstream and
downstream per-user rate control
Confi guration, Management,
& Monitoring
• NMS integration: SNMPv2c
• EMS: SkyControl
• IP address: DHCP or static
• Firmware: Multiple versions stored
in nonvolatile memory; updated
over the air via FTP
• Provisioning: Manual or automated
• Confi guration fi le: XML over HTTP
• MIB support: MIB-II (RFC 1213);
EtherLike (RFC 2665); Bridge (RFC
1493); SkyPilot private MIB
• Remote management: CLI via
Telnet, SNMPv2c
™
SkyConnector Mini Specifi cations
Wireless
Frequency band 5.250-6.075 GHz
Transmit power 24 dBm/250mW (6 Mbps)
Antenna 14 dBi (55° azimuth x 18° elevation)/vertical polarity
EIRP 38 dBm/6 W (6 Mbps)
Receive sensitivity -94 dBm at 6 Mbps modulation
Range Up to 7.5 miles (12 km)
Media access Time Division Duplex (TDD)
Modulation technique OFDM with adaptive modulation
Modulation rates 54, 48, 36, 24, 18, 12, 9, and 6 Mbps
Throughput Up to 13 Mbps TCP/20 Mbps UDP (at 36 Mbps modulation rate)
Latency 8-10 ms roundtrip per hop
Channel width 20 MHz
Channel resolution 5 MHz frequency control
Authentication RSA-based certifi cates
Encryption 128-bit AES
Product Specifi cations
Enclosure Outdoor UV stabilized plastic
Connectors (under RJ-45 to 12V/1A Power over Ethernet (PoE) injector
waterproof sliding door) (Optional) reverse-polarity SMA to external antenna
Power 100-240 VAC, 50-60 Hz input; 5 Watts
Mounting Pole mount (standard), wall mount (optional), or window suction mount (optional)
LEDs Power, Ethernet, and wireless signal strength
Dimensions 10.4” (26 cm) H x 3.2” (8 cm) W x 1.2” (3 cm) D
Weight 0.9 pounds (0.4 kg)
Operating temperature -4° to 158° F (-20° to 70° C)
Operating humidity 5 to 95% condensing
Certifi cations FCC Part 15.247, IC RS210, CE, ETSI 300-019-1.4 shock and vibration, RoHS
Warranty One-year limited warranty on hardware; 90-day limited warranty on software
www.skypilot.com
Page 3
NOTE: This equipment has been tested and found
to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to pro-vide reasonable
protection against harmful interference when the
equipment is operated in a commercial
environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not
installed and used in accordance with the
instruction manual, may cause harmful
interference to radio communications. Operation
of this equipment in a residential area is likely to
cause harmful interference in which case the user
will be required to correct the interference at his
own expense.
!
Changes or modifications not expressly approved
by the party responsible for compliance could void
the user’s authority to operate the equipment.
ADDITIONAL INFORMATION AND COMPLIANCE
This is a Point-to-Point CPE Wireless Device.
www.skypilot.com
