INSTRUCTION MANUAL
High Rotation Blender
TA-02S
TA-02S
- ALÉM DESTAS MÁQUINAS, FABRICAMOS UMA LINHA COMPLETA DE EQUIPAMENTOS. CONSULTE SEU REVENDEDOR.
- ESTE PRODUTO CONTA COM ASSISTÊNCIA TÉCNICA, REPRESENTANTES E REVENDEDORES EM TODO TERRITÓRIO NACIONAL.
DEVIDO À CONSTANTE EVOLUÇÃO DOS NOSSOS PRODUTOS, AS INFORMAÇÕES AQUI CONTIDAS PODEM SER MODIFICADAS SEM AVISO PRÉVIO.
LI NHA D IRE TA
SKYMSEN
Ra mai s 201 1
20 12
20 13
E-mail: at@siemsen.com.br
METALÚRGICA SIEMSEN LTDA.
Rua Anita Garibaldi, nº 262 – Bairro: Sno Luiz – CEP: 88351-410
Brusque – Santa Catarina – Brasil
Fone: +55 47 3255 2000 – Fax: +55 47 3255 2020
METALÚRGICA SIEMSEN LTDA.
METALÚRGICA SIEMSEN LTDA.
26392.3 - Janeiro / 2014
1. Introduction 01
1.1Main Safety Precautions 01
1.2Main Components 01
1.3Technical Characteristics 02
2. Installation and Pre-Operation 02
2.1Installation 02
2.2Pre-Operation 02
3. Operation 03
3.1 Starting 03
3.2 How to Feed the Blender 03
3.3 Cleaning 03
4. General Safety Advices 05
4.1 Basic Operation Procedures 05
4.2 Cares before to Start the Blender 06
4.3 Routine Inspection 07
4.4 Operation 08
4.5 After Work End 08
4.6 Maintenance 08
4.7 Advices 08
5. Problems Analysis and Solutions 09
5.1 Problems Causes and Solutions 09
5.2 Electric Diagram Mod. TA-02S 09
SUMMARY
09
5.1 Problems Causes and Solutions
5 Problem Analysis and Solutions
The High Rotation Blender has been designed to need a minimum
maintenance . However some problems may arise due to normal wear during the machine
life .
If some problem arises with your High Rotation Blender , check table 2 ,
where some possible solutions are recommended .
Table - 02

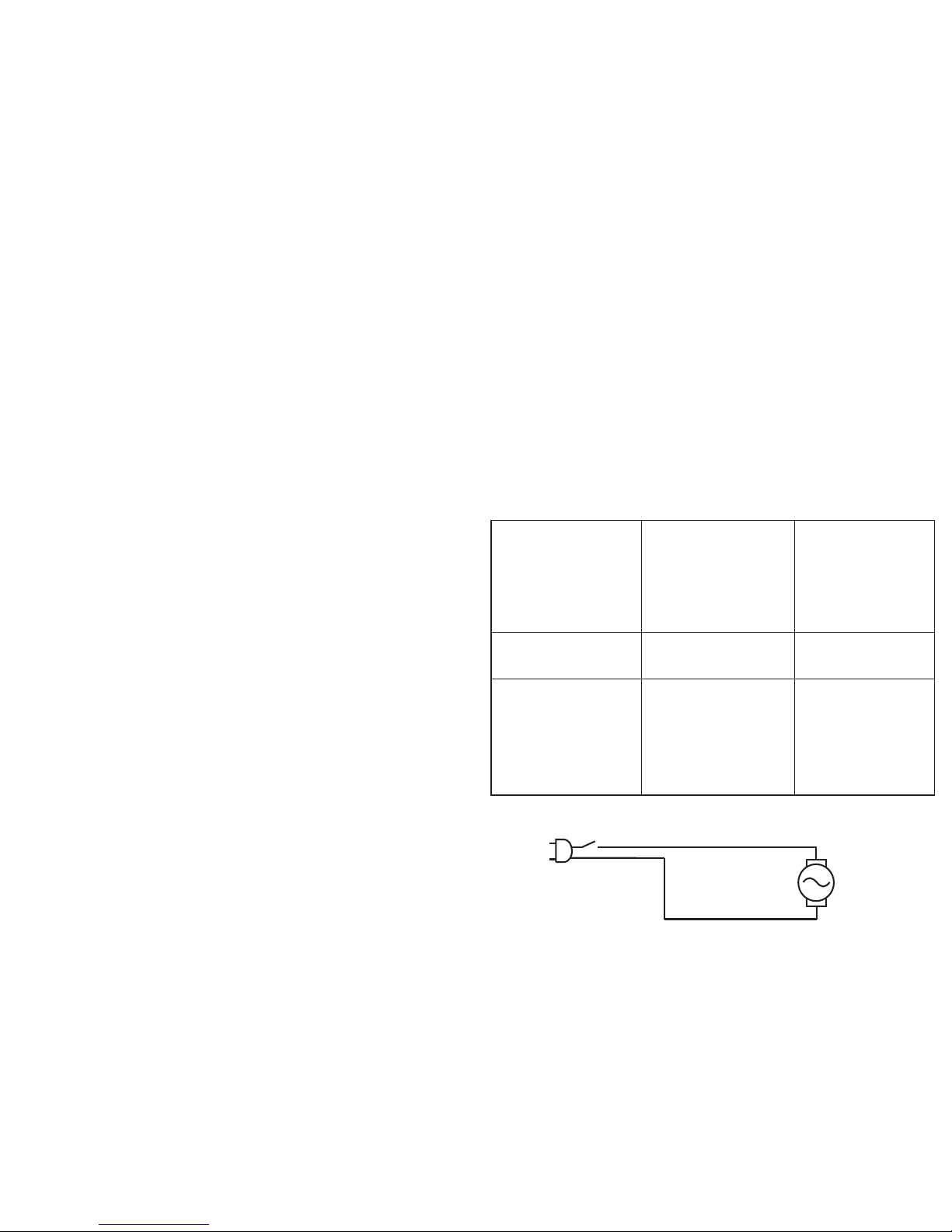

5.2 Electric Diagram Mod. TA-02S
ON/OFF Switch
Motor
110 or 220 Volts
Problems Causes Solutions
* Electric shortage .
* Check if the machine
plug is into its socket ,
and if there is electric
energy on the network .
* The machine does not
Start.
* The Bowl is leaking.
* The product does
not blend
* Problem with the sealing
system
* Product to big , the
knife does not touch it .
* Knife not sharpened.
* C a l l T e c h n i c a l
Assistance
* C a ll Tech ni c a l
Assistance
* Cut the product into
smaller pieces .
01 - Lid
02 - Bowl
03 - Motor Support Flange
04 - Cabinet
05 - Base
06 - on/off Switch
07 - Cup Flange
01
1. Introduction
1.1 Main Safety Precautions
The High Rotation Blenders Mod. TA-02S are machines simple to operate
and to clean .
To avoid accidents read the following instructions :
1.1.1Before cleaning or maintenance unplug the machine from electric
source .
1.1.2Never use tools not belonging to the machine to help operation .
1.1.3Before to switch ON the machine , be sure the Bowl No.02 (Pic.01)
is stable on its position .
1.1.4Never throw water directly on the machine .
1.1.5Never switch ON the machine with wet clothes or wet feet .
1.1.6 Read with attention item 3.1.
1.1.7 For your safety, the temperature of the processed products shall not
exceed 40 °C.
1.2 Main Components
All components are made with carefully selected materials for their
function, in accordance with the Siemsen standard testing procedures and experience .
Picture - 01
07
01
02
03
05
06
04
08
4.4 Operation
4.4.1 Warnings
Long hairs , that could touch the machine , could cause serious accidents .
Tie them or cover them with a head scarf .
Only skilled operators shall use the machine .
NEVER use the machine without any of its safety devices normally
operating.
4.6 Maintenance
4.6.1Dangers
With the machine switched ON any maintenance operation is dangerous .
UNPLUG THE MACHINE FROM ITS SOCKET DURING THE WHOLE MAINTENANCE
OPERATION TIME .
4.5 After work end
4.5.1 Cares
Always clean the machine . Before to clean it ALWYS UNPLUG IT FROM THE SOCKET .
Never start to clean before the motor is COMPLETELY STILL .
Be sure all the machine components are in their due places before to start to work again .
IMPORTANT
Always unplug the machine during emergencies .
Electrical or mechanical maintenance shall be made by qualified
persons .
The maintenance responsible shall be sure the machine is working in
TOTAL SAFETY conditions .
4.7 Advices
Before to start be sure the Blender is perfectly steady . It is recommended to
work with the machine placed on a 850 mm high table .
Before to use it , the parts to be in contact with the product to be processed shall
be washed with water and soap . To clean your TA-02S read item No. 3.3 Cleaning Pg 03 .
You should not...
… expect your blender to replace any other kitchen appliance. It is not supposed to make
mashed potatoes, it does not blend egg white or any other cream for covering, it does not
grind raw meat, it does not blend hard pastas and not extract pulp from fruits and
vegetables.
…process blending for too long. Remember that the blender works in seconds and not in
minutes. Therefore, never let your blender working for more than one minute. It is better no
turn it off and check the mixing consistency after a few seconds to avoid too much blending.
… overload the motor with big or heavy portions as it will make the blender´s life shorter. If
motor stops, turn it off immediately, unplug and remove part of the load before start
operating again.
02
1.3 Technical Characteristics
2.1 Installation
To achieve a good performance the TA-02S Blender shall be installed on a
steady and flat surface about 850 mm above the floor .
The TA-02S Blender has been designed for 110 V (60 c/s) or 220 V (50 c/s
or 60c/s ) voltages . Check the voltage , to be sure the electric source has the same voltage
indicated on the label placed on the cord .
The cord plug has two round pins. It is mandatory to have the cord plugged
into the socket before to Switch ON the machine .
2. Installation and Pre-operation
2.2 Pre-Operation
Important
When placing the Bowl No. 02 ( Pic. 01) , check if it is well fitted . The fitting
system assures the Bowl to be steady in eight positions , therefore giving a
perfect performance guaranty .
Tabela - 01
110 or 220 *
50 / 60
1200
1,2
500
200
200
1,2
Voltage
Frequency
Power Rating
Consumption
Height
Width
Length
Net weight
Gross weight
[V]
[ c/s ]
[w]
[kw/h]
[mm]
[mm]
[mm]
[kg]
[kg]
1,3
Cup Maximum Capacity
Rotation
[l]
[ rpm]
2
22000
(*) Voltage will be only the one indicated on motor characteristics label.
Watch out any abnormal noises coming from the motor or any moving parts .
Check the safety devices to be normally operating .
4.3 Routine Inspection
4.2.2 Advices
The instructions of the this Manual shall be perfectly understood .
All function or procedure shall be perfectly clear .
Any manual ( button , pulse ,electric switch or lever ) command shall be
given only after to have the complete assurance it is the right command .
4.2.3 Cares
The electric cord , used to feed the electricity to the machine must have the
right section to be able to support the machine motor power rating . Any electric wiring
running over the floor near the machine shall be duly protected to avoid short circuits .
07
3.3 Cleaning
Important
Never clean the machine when plugged to the electric network . Before
cleaning , withdraw the plug from the socket .
Before to withdraw the Bowl be sure the motor has stopped completely .
03
IMPORTANT
Before removing Cup Nº02 (Fig.01), check if the motor is completely stopped,
otherwise accidents and damages to your product may occur.
3.1 Starting
To start machine use ON/OFF switch Nº06 (Fig.01) located on Motor
Housing Nº04 (Fig.01).
3. OPERATION
Observation
The necessary processing time will be different for each kind of
IMPORTANT
NEVER SWITCH ON THE MACHINE BEFORE LOADING ITS
BOWL , BECAUSE IRREPARABLE DAMAGE WILL RESULT .
3.2 How to Feed the Blender
The TA-02S Blenders are machines working at high speed (
approximately 22,000 rpm off load ) .
To feed it observe the following instructions :
Cut the product in small pieces , about 1.5 inches wide , such precaution helps
to decrease the blending time process , mainly when working with frozen products . When
working with ice it is recommended to join a little water .
Withdraw the Lid No.01 (Pic.01) .
Place the product inside the Bowl No.02 (Pic.01) .
Close the Bowl with the Lid , and Switch ON the machine .
IMPORTANT
Blenders equipped with OVERLOAD SWITCH, code 26387.7 with serial number up
to 101 and code 26388.5 with serial number up to 000 will be turned OFF
automatically if there is an excessive temperature increase. When it happens turn
ON/OFF switch to OFF position immediately and disconnect plug from wall socket
as the Blender will turn ON AUTOMATICALLY WHEN THE TEMPERATURE COOLS
DOWN, WHICH MAY CAUSE ACCIDENTS. Wait for minimum 15 minutes before
turning Blender ON again. In case motor does not start after the Blender has been
turned ON, turn it OFF immediately and disconnect plug from wall socket and call
your Distributor for technical assistence.
06
4.1.2 Warnings
The Switch ON/OFF position must be well known , to allow to be used
without to look for it .
Before to proceed to any maintenance , unplug the machine from the
electric network .
Provide enough space around the machine to avoid falls .
Water and oil may produce a dangerous and slippery floor . To avoid
accidents the floor shall be dry and clean .
Never use a manual command ( button , switch , lever , etc ) unadvisedly .
If any work has to be done by more than one person , coordination signs
shall be accorded , for each step of the work . Next step shall not be started without the sign
is given and acknowledged .
4.1.3 Advices
Be sure this Manual INSTRUCTION has been fully understood . Each
function or operation procedure has to be perfectly clear .
Any manual command ( button , pulses , electric switch , lever, etc ) shall be
given only after to be sure it is the correct command .
If an electric supply failure happens , the machine shall immediately be
switched OFF .
Avoid any strikes on the machine , since they could produce failures or a
bad performance .
Avoid water, dust or dirt to get inside the electrical or mechanical
components of the machine .
DO NOT CHANGE the machine original characteristics .
DO NOT TEAR, WITHDRAW OR GET DIRTY , ANY SAFETY OR
IDENTIFICATION LABEL . If a Label is lost or unreadable ask for a new one to your Dealer .
4.2 Cares before to start the Blender
IMPORTANT
Read carefully this INSTRUCTION before to start the machine . Be sure it has
been correctly understood . If any doubt arises contact the department Chief
or the Dealer .
4.2.1 Danger
Electric wires must have a perfect insulation, any damage may cause an electric
shock .
Before to use them be sure they are in good conditions .
04
05
Instruction to wash the machine :
.
Switch OFF the machine.
. Withdraw the Lid No. 01 (Pic.02) and the Bowl No. 02 (Pic.02 ).
. Wash all parts with water and soap , except the Cabinet No. 03(Pic.02).
. To assemble the parts back , follow the inverse pass .
To clean the Cabinet use an alcohol wet cloth .
4. General Safety Advices
The General Safety Advices were prepared to properly instruct the
operators and the maintenance team .
The machine shall only be given to the operators in good working
conditions and they shall be properly oriented by the dealer, about how to use it with
safety .
The operator shall only use the machine after a complete knowledge
of the cares to be taken when operating the machine , carefully reading all this
Instruction Manual .
4.1.1 Dangers
Some parts of the machine electrical commands have high voltage
points or terminals . These when touched , may produce severe electric shocks , and
even DEATH .
Never touch a manual command ( button , electric switch, etc ) with wet
hands , shoes or clothes. If this warning is not followed electric shocks and even
DEATH , may occur .
4.1 Basic Operation Procedures
Important
When cleaning the Bowl inside watch the knife blades because they are very
sharp .
01
02
03
01 . Lid
02 . Bowl
03 . Cabinet
IMPORTANT
If any item from the GENERAL SAFETY NOTIONS section is not
applicable to your product, please disregard it.
3.3.1 Cautions with Stainless Steel:
The Stainless Steel may present rust signs, which ARE ALWAYS CAUSED
BY EXTERNAL AGENTS, especially when the cleaning or sanitization is not
constant and appropriate.
The Stainless Steel resistance towards corrosion is mainly due to the
presence of chrome, which in contact with oxygen allows the formation of a very
thin protective coat. This protective coat is formed through the whole surface of the
steel, blocking the action of external corrosive agents.
When the protective coat is broken, the corrosion process begins, being
possible to avoid it by means of constant and adequate cleaning.
Cleaning must always be done immediately after using the equipment. For
such end, use water, neutral soap or detergent, and clean the equipment with a soft
cloth or a nylon sponge. Then rinse it with plain running water, and dry immediately
with a soft cloth, this way avoiding humidity on surfaces and especially on gaps.
The rinsing and drying processes are extremely important to prevent stains
and corrosion from arising.
IMPORTANT
Acid solutions, salty solutions, disinfectants and some sterilizing solutions
(hypochlorites, tetravalent ammonia salts, iodine compounds, nitric acid
and others), must be AVOIDED, once it cannot remain for long in contact
with the stainless steel:
These substances attack the stainless steel due to the CHLORINE on its
composition, causing corrosion spots (pitting).
Even detergents used in domestic cleaning must not remain in contact with
the stainless steel longer than the necessary, being mandatory to remove it with
plain water and then dry the surface completely.
Use of abrasives:
Sponges or steel wool and carbon steel brushes, besides scratching the
surface and compromising the stainless steel protection, leave particles that rust and
react contaminating the stainless steel. That is why such products must not be used
for cleaning and sanitization. Scrapings made with sharp instruments or similar
must also be avoided.
Main substances that cause stainless steel corrosion:
Dust, grease, acid solutions such as vinegar, fruit juices, etc., saltern
solutions (brine), blood, detergents (except for the neutral ones), common steel
particles, residue of sponges or common steel wool, and also other abrasives.
Loading...
