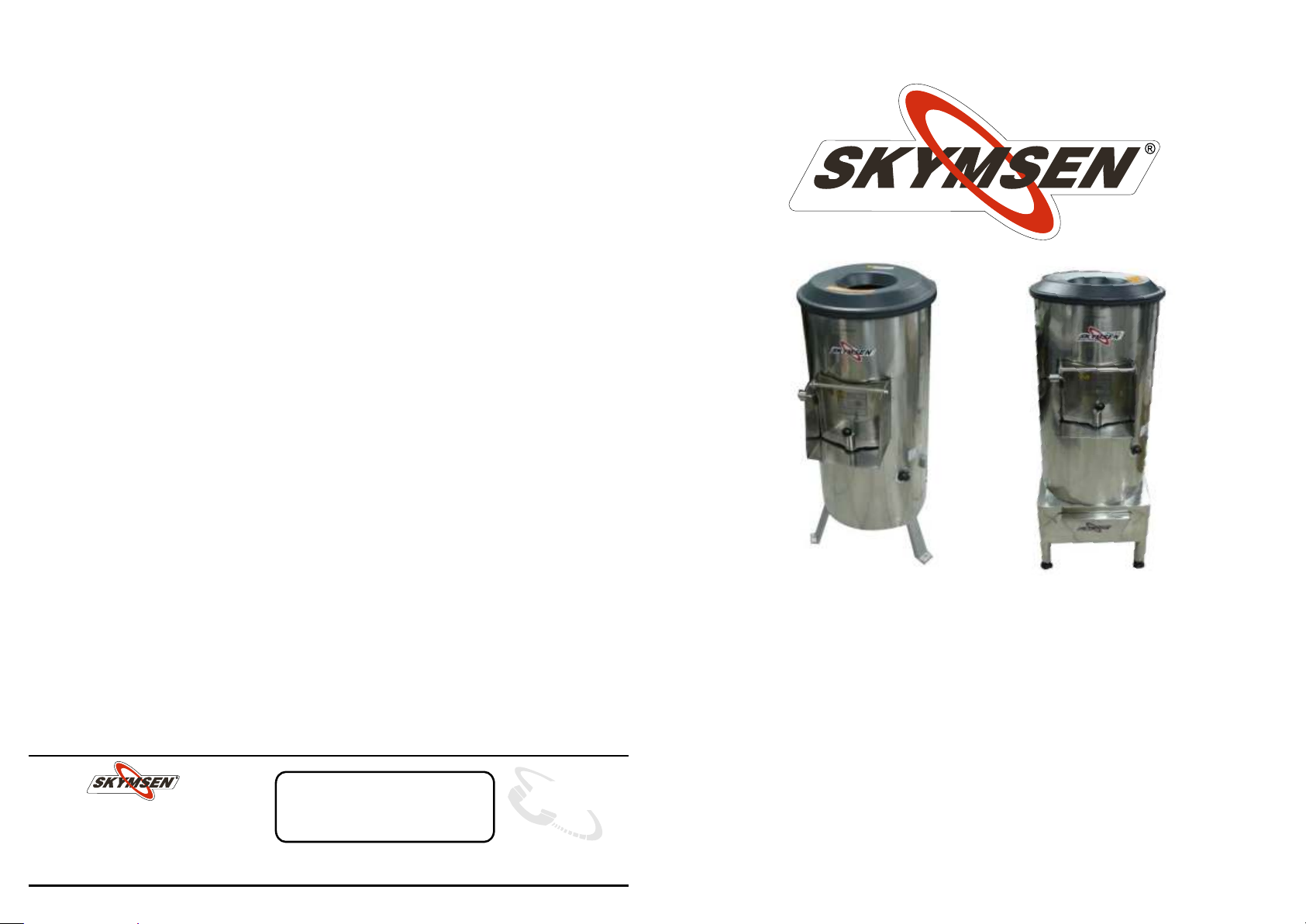

USER MANUAL
POTATO PEELER
Models:
DB-25HD- WITH FEET
DBC-25HD- WITH PEEL STRAINER
35224.1 - Março/2011
Page 2
Summary
1. Introduction
1.1 Safety
1.2 Main Components1.2
1.3 Technical Characteristics
02
02
02
04
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
2. Installation and Pre Operation
2.1 Installation
2.2 Pre Operation
3. Operation
3.1 Proceeding for Operation
3.2 Cleaning
4. General Safety Rules
4.1 Basic Operation Procedures
4.2 Safey Procedures and Notes Before Switching the Machine On
4.3 Routine Inspection
4.4 Operation
4.5 After Finishing the Task
4.6 Maintenace Operation
4.7 Warnings
5. Problemas Analysis and Solutions
04
04
05
05
05
06
07
08
08
09
09
10
10
10
10
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
5.1 Problems, Causes e Solutions
5.2 Adjustment and Components Replacement
5.3 Elesctrical Diagran
01
10
11
11
________________________________
________________________________
________________________________
Page 3
________________________________
1. Introduction
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
1.1 Safety
When misused, the Potato Peelers DB-25HD and DBC-25HD can be potentially
DANGEROUS. Maintenance, cleaning or any other service on this machine must be made
only by properly trained technicians and the power plug must be disconnected. For your
safety, the following instructions must be followed in order to avoid accidents:
1.1.1 - Unplug the machine when you need to remove any removable part during
cleaning, maintenance or any other operation.
1.1.2 - Never make use of any tool or instrument that is not originally part of the
machine during any operation.
1.1.3 - Do never touch the Abrasive Disc N°07 (Pic.01) when the machine is
working, because it has abrasive surface.
1.1.4 - Keep hands away from mobile parts.
1.1.5 – When replacing the Abrasive Disc N°07 (Pic.01), check its perfect fit to the
Central Shaft Pin N°02 (Pic.02). That is a way to avoid damages to the machine.
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
IMPORTANT
This equipment is not to be used by persons (including children)
with any physical or mental inabilities, or without operation
experience and knowledge, only acquired by means of instruction
and supervision of a security staff.
IMPORTANT
If the Cord is not in good conditions of use, to avoid accidents
it must be replaced by the supplier, an authorized technician or
someone qualified for the service.
1.2 Main Components
All components of this machine were made of raw materials carefully selected
for each function, according to the test patterns and Siemsen experience.
02
Page 4

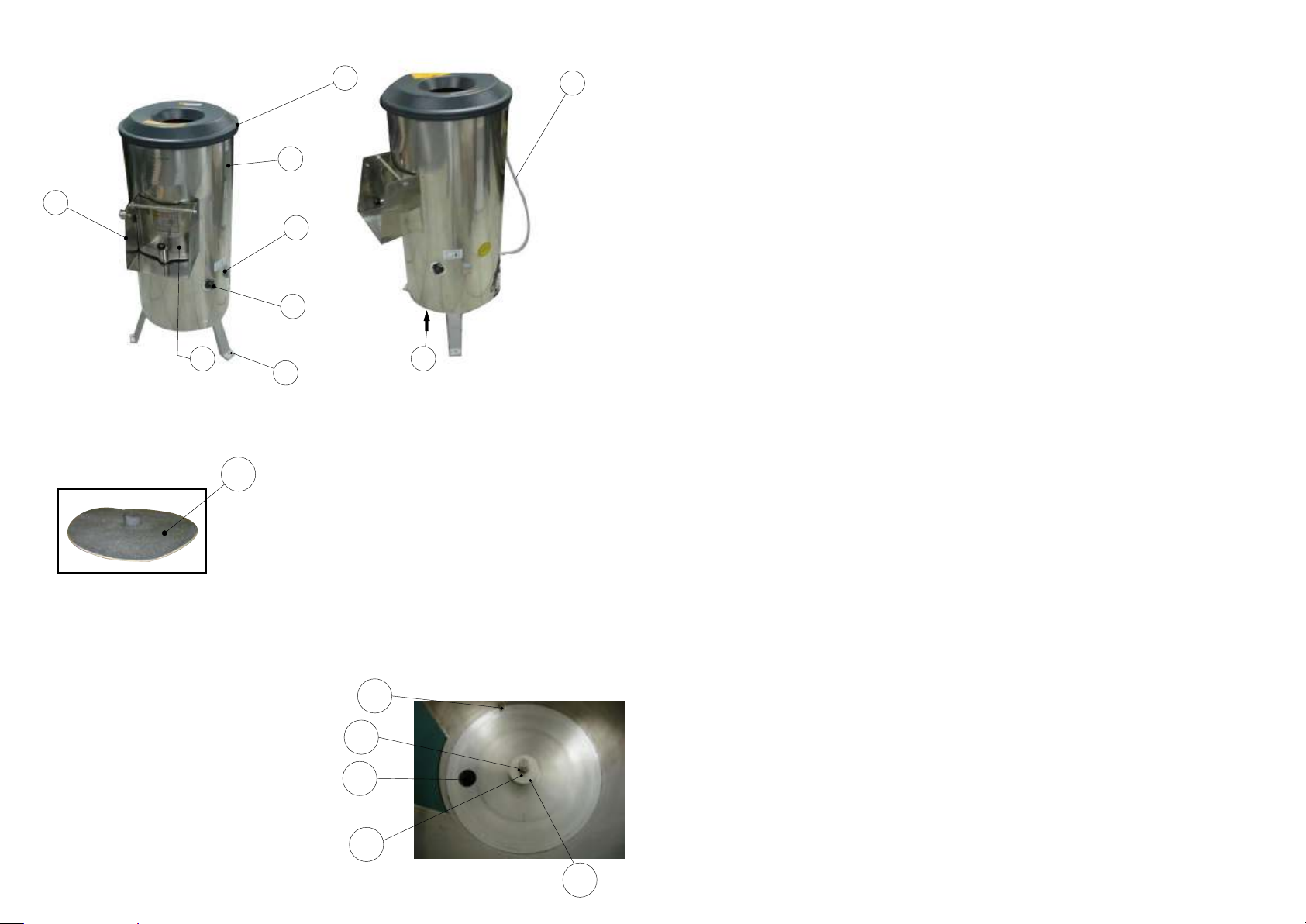

Picture - 01
________________________________
02
Disc Abrasive
08
07
05
10
03
06
09
04
01 –Water Entrance
02 – Door Base
03 – ON/OFF Switch
04 – Foot
05 – Lid
06 – Timer
07 – Abrasive Disc
08 – Door
09 – Exit Tube
10 – Housing
01
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
01 – Central Shaft
02 – Central Shaft Pin
03 – Lock
04 – Residue exit
05 – Rubber ring
03
01
04
02
03
Picture - 02
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
________________________________
05
Page 5
Table - 02
Problems
* The machine does not
turn ON.
* Burnt smell or smoke
* The machine turns on,
but when product is placed
upon the Disc, it stops or
spins in low rotation.
* Strange noises.
* Water leak in the bottom
of the machine.
5.2 Adjustments and Replacement of Components
The Abrasive Disc is covered with an Aluminum Oxide layer, responsible for the
food peeling. After some time, the Aluminum Oxide wears out and the efficiency of the
machine decreases consequently.
Then , the Abrasive Disc must be taken to the nearest Technical Assistance to be
recoated.
Causes Solution
* Power outage
* Problem on the internal
or external electric circuit
of the machine.
* Problem on the internal
or external electric circuit
of the machine.
* Skidding belts
* Problems with the
Electric Motor
* Abrasive Disc misplaced
* sDamaged Ball Bearings
* .Damaged retainer
* Check if there is Electric Power
* Call Technical Assistance.
* Call Technical Assistance.
* Call Technical Assistance.
* Call Technical Assistance.
* Place the Abrasive Disc
appropriately on the Central Shaft
Pin.
* Call Technical Assistance.
* Call Technical Assistance.
1.3 Techinical Characteristcs
Table - 01
Technical Characteristcs
Voltage
Power Rating
Cousumption
Heigth/Width/Depth
Net/Gross weight
Capacity
Average Production
[ V ]
[ CV ]
[ kW/h]
[ mm ]
[ kg ]
[ kg ]
[ kg/h ]
DB-25HD
110 ou 220V
1
0,73
1160x550x670
45/53
25
500
(*) There will be a single frequency option (50 or 60 Hz), depending on machine
motor type.
2. Installation and Pre-Operation
2.1 Installation
The Potatoes Peeler must be installed onto a stable working surface. Verify the
voltage of the power SOURCE it will be connected to (110V or 220V).
The Cord brings a plug with 2 (two) flat pins and 1 (one) round pin which is for
grounding (ground wire pin). It is mandatory that the three pins are properly connected
before using the equipment.
It is recommendable to install the machine close to a sewer or to canalize the
residues , by extending the Exit Tube N°09 (Pic.01), located on the lower part of the
machine. The model DBC-25HD brings a peel strainer. The water entrance Nº.01 (Pic. 01)
must be connected to a tap, to allow water to run directly over the potatoes to be peeled.
The water ouypoor thet enters the equipment must not pass beyond the center of
the disc, as indicater in the drawning-01
The water outflow not exceed 3 liters per minute.
Drawning - 01
WATER OPENING
DBC-25HD
110 ou 220V
1
0,73
1370x550x670
58/66
25
500
WATER OUTPOOR

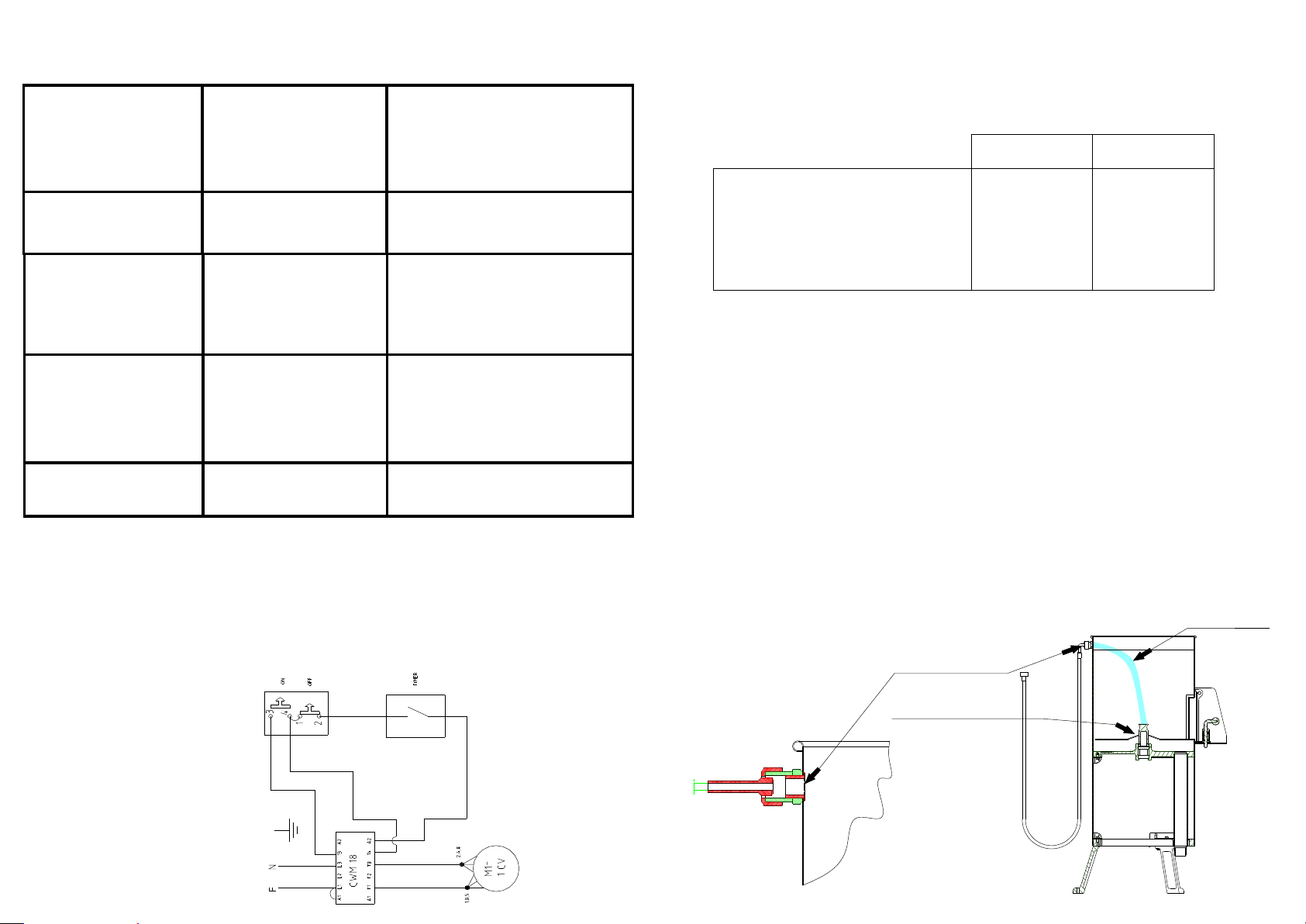

5.3 Electrical Diagran
11
ABRASIVE DISC
Ø6,5mm
04
Page 6
2.2 Pre-Operation
4.5 After Finishing the Work
IMPORTANT
4.5.1 Precautions
Make sure the Abrasive Disc N°07 (Pic.01) is well placed on Central
Shaft Pin N°02 (Pic.02) before switching the machine on.
Check if the Potato Peeler is firm in its position. Install the water entrance and
exit.
Check if the inner abrasive disc and walls are properly placed. Observe the link
Pic.06 attachment with the lock, Nº. 03 (Pic. 02).
from the socket before cleaning it.
3. Operation
3.1 Proceeding for operation
IMPORTANT
Under no circumstances touch the Abrasive Disc when it is in movement.
Remove the lid Nº. 05 (Pic. 01) open the water tap, set the timer Nº. 06 (Pic. 01) and
activate the ON / OFF Switch Nº. 03 (Pic. 01). With the machine on, pour the product to be
processed inside it, and replace the lid.
For both models DB – 25HD and DB/C – 25HD put 25 kg of potatoes at most. The
working time varies from 1 to 5 minutes. In case the product to be peeled is too irregular, it is
possible to watch when it's done through the Lid opening. To remove the peeled product,

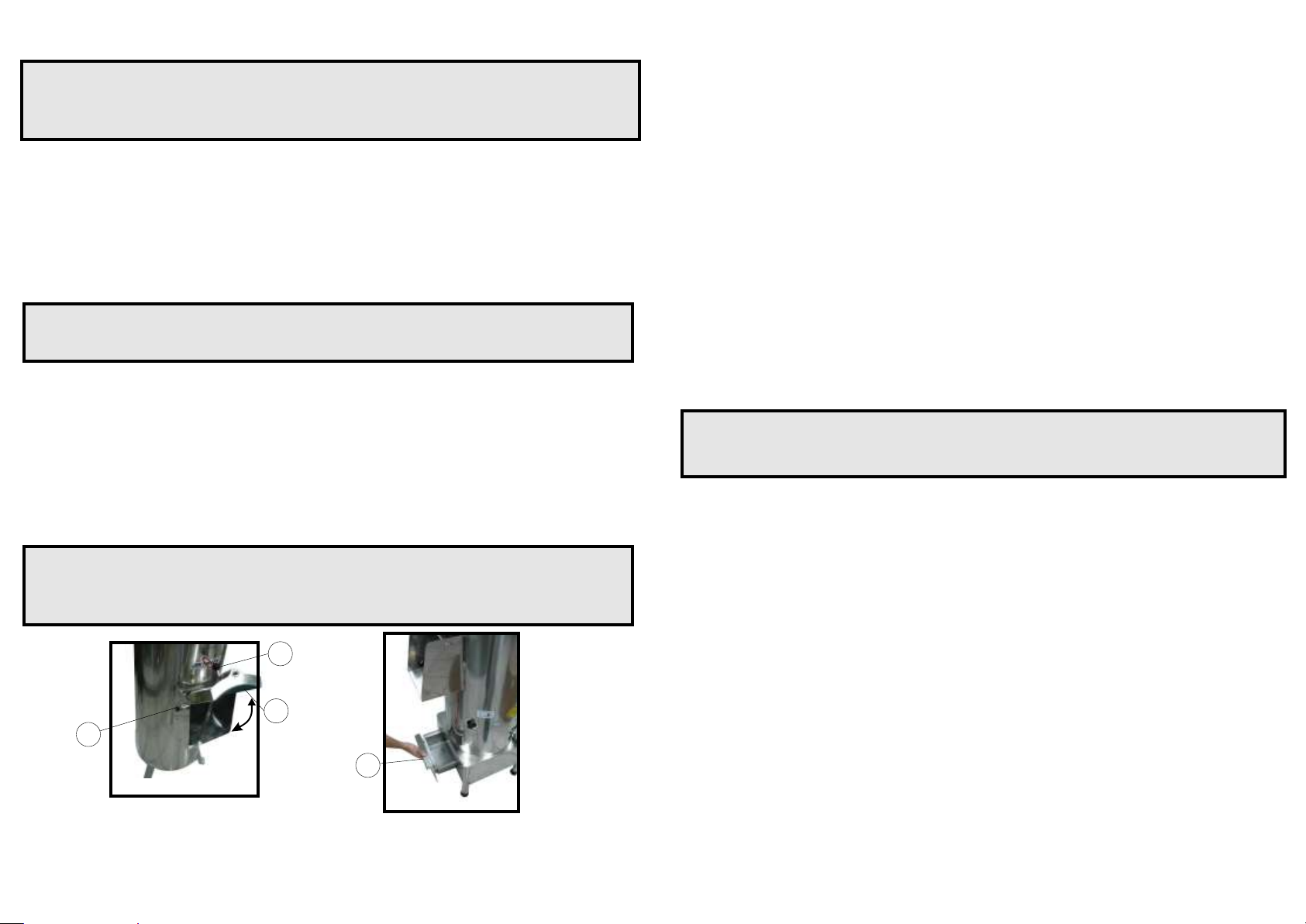

keep the machine running and open the Door N°01 (Pic.03), by pulling the lock Nº. 02 (Pic.
03) upwards. Lift it until the side lock Nº. 03 (Pic. 03) keep the door Nº. 01 (Pic. 03) open.
This way the product will be expelled. To close the door release the side lock Nº. 03 (Pic. 03),
by pulling it sideward.
4.6 Maintenance Operation.
4.6.1 Danger
OFF BY PULLING THE PLUG OFF THE SOCKET DURING MAINTENANCE.
4.7 Advices
Keep the machine clean. Always TURN THE MACHINE OFF by removing the plug
Never clean the machine unless it has come to a complete stop.
Put all components back to their functional positions before turning it ON again.
Check level of oil.
DO NOT place your fingers in between belts and pulleys nor chains and gears.
Every maintenance operation is dangerous when the machine is ON. TURN IT
IMPORTANT
Always remove the plug from the power point in any case of emergency.
Electrical or mechanical maintenance has to be undertaken by qualified personnel.
SKYMSEN TIP
The Potato Peelers can also be used to peel carrots, chayote,
oranges and others similar.
02
Pic.03 Pic.04
01
03
01
For the model with Peel Strainer, check the volume of residue and
remove the drawer Nº. 01 (Pic. 04) on each process (25Kg).
05
MODELO
DBC-25HD
Person in charge has to be sure that the machine is under TOTAL SAFETY
conditions when working.
5 Analysis and Problems Solving
5.1 Problems, causes and solutions
The Potato Peelers were designed to operate with minimum maintenance.
However, some irregularities may occur during its operation, due to the natural wear out
caused by the equipment use.
If there is any problem with your machine, check the Table-02 bellow, where you will
find some possible solutions.
10
Page 7
4.2.1 Danger
3.2 Cleaning
An electric cable or electric wire with damaged jacket or bad insulation could cause
electrical shocks as well as electrical leak. Before using the equipment, check conditions of
all wires and cables.
4.2.2 Advices
Be sure ALL INSTRUCTIONS in this manual have been thoroughly understood.
Every function and operational procedure has to be very clear to the operator.
Any manual command (switch, button or lever) shall be given only after being sure it
is the correct one.
4.2.3 Precautions
The electric cable has to be compatible with the power required by the machine.
Cables touching the floor or close to the machine, need to be protected against
short circuits.
4.3 Routine Inspection
4.3.1 Advice
When checking the tension of the belts or chains, DO NOT introduce your fingers
between the belts and the pulleys and nor between the chain and the gears.
To make the proper cleaning of the machine, follow the instructions below:
1 – Turn the empty machine on, and let it work for a few minutes, adding plenty of
water;
2 – Switch OFF the machine and unplug it, then wait until the Abrasive Disc N°01
(Pic.07) is motionless;
3 – Rub the external part of the machine with a wet cloth;
4 – Remove the abrasive disc N°07 (Pic.01) lifting it vertically ;
5 – Use a brush with nylon bristles and plenty of water to clean the disc.
6 – Replace the disc on the machine proceeding inversely. Make sure the disc fits
properly to the pin of the central shaft.
IMPORTANT
Never use water jet to wash the machine.
4.3.2 Precautions
Check the motor and turning or sliding parts of the machine, in case of abnormal
noises.
Check the tension of the belts and chains and replace the set when belt, chain or
gears show signs of being worn out.
When checking tension of belts or chain, DO NOT introduce your fingers between
belts and pulleys, nor between the chains and gears.
Check protections and safety devices to make sure they are working properly.
4.4 Operation
4.4.1 Warning
Do not operate the machine with long hair, which might touch any part of the
machine, because it may lead to serious accidents. Tie your hair up well and/or cover your
hair with a scarf.
Only trained or skilled personnel shall operate this machine. NEVER operate
machine without all original safety devices in perfect condition.
09
IMPORTANT
Take care of your machine and use it properly and with responsibility.
It will bring you benefits.
3.3.2 Cautions with Stainless Steel:
The Stainless Steel may present rust signs, which ARE ALWAYS CAUSED
BY EXTERNAL AGENTS, especially when the cleaning or sanitization is not
constant and appropriate.
The Stainless Steel resistance towards corrosion is mainly due to the
presence of chrome, which in contact with oxygen allows the formation of a very
thin protective coat. This protective coat is formed through the whole surface of the
steel, blocking the action of external corrosive agents.
When the protective coat is broken, the corrosion process begins, being
possible to avoid it by means of constant and adequate cleaning.
06
Page 8
Cleaning must always be done immediately after using the equipment. For
such end, use water, neutral soap or detergent, and clean the equipment with a soft
cloth or a nylon sponge. Then rinse it with plain running water, and dry immediately
with a soft cloth, this way avoiding humidity on surfaces and especially on gaps.
The rinsing and drying processes are extremely important to prevent stains
and corrosion from arising.
IMPORTANT
Acid solutions, salty solutions, disinfectants and some sterilizing solutions
(hypochlorites, tetravalent ammonia salts, iodine compounds, nitric acid
and others), must be AVOIDED, once it cannot remain for long in contact
with the stainless steel:
These substances attack the stainless steel due to the CHLORINE on its
composition, causing corrosion spots (pitting).
Even detergents used in domestic cleaning must not remain in contact with
the stainless steel longer than the necessary, being mandatory to remove it with plain
water and then dry the surface completely.
Use of abrasives:
Sponges or steel wool and carbon steel brushes, besides scratching the
surface and compromising the stainless steel protection, leave particles that rust and
react contaminating the stainless steel. That is why such products must not be used
for cleaning and sanitization. Scrapings made with sharp instruments or similar
must also be avoided.
Main substances that cause stainless steel corrosion:
Dust, grease, acid solutions such as vinegar, fruit juices, etc., saltern
solutions (brine), blood, detergents (except for the neutral ones), common steel
particles, residue of sponges or common steel wool, and also other abrasives.
4.1 Basic Operation Practices
4.1.1 Dangers
Some areas of the electric device have parts and terminals that are connected to
high voltage. These parts when touched may cause severe electrical shocks or even be
lethal.
Never touch manual commands such as switches, buttons, keys and knobs with wet
hands, wet clothes and/or wet shoes. By not following these instructions, operator could be
exposed to severe electrical shocks or even to a fatal situation
4.1.2 Warnings
The operator has to be well familiar with the position of ON/OFF Switch to make sure
the Switch is easy to be used when necessary.
Before any kind of maintenance, physically remove the plug from its socket.
Provide space for a comfortable operation thus avoiding accidents.
Water or oil spilled on the floor will turn it slippery and dangerous. Make sure the floor
is clean and dry.
Never use a manual command (switch, buttons, lever) unadvisedly.
If any work is to be made by two or more persons, coordination signs will have to be
given for each operation step. Every step of the operation shall be taken only if a sign has
been made and responded.
4.1.3 Advices
In case of power shortage, immediately turn the machine OFF.
Use recommended or equivalent lubricants, oils or greases.
Avoid mechanical shocks as they may cause failures or malfunction.
Avoid penetration of water, dirt or dust into mechanical or electrical components of
the machine.
DO NOT MODIFY original characteristics of the machine.
4. General Safety Practices
IMPORTANT
If any item from the GENERAL SAFETY NOTIONS section is not applicable to
your product, please disregard it.
The following safety instructions are addressed to both the operator of the machine
as well as the person in charge of maintenance.
The machine has to be delivered only in perfect conditions of use by the
Distributor to the user. The user shall operate the machine only after being well acquainted
with the safety procedures, and after reading carefully the entire manual.
07
DO NOT REMOVE, TEAR OFF OR MACULATE any safety or identification labels of
the machine. If any label has been removed or is no longer legible, contact your nearest
dealer for replacement.
4.2 Safety Procedures and Notes before Switching Machine ON
IMPORTANT
Carefully read ALL INSTRUCTIONS of this manual before turning the machine ON.
Be sure to be familiar with the instructions and that you have well understood all
information contained in this manual.
If you have any question, contact your supervisor
or your nearest Dealer.
08
Loading...
